cheap action camera HD WiFi Remote Camera with Rotable Lens, Night Vision, Light Body Camcorder Wireless Video View in Phone APP action camera hd Action Cameras

Brand Name:	ANYSECU
Image Sensor:	GC Series
Main Processor ( Maximum HD Support):	GPCV1247
Certification:	CE
Certification:	DOT
Certification:	EAC
Certification:	RoHS
Certification:	UL
Certification:	WEEE
Effective MegaPixel:	About 2MP
Origin:	CN(Origin)
Battery Capacity:	1000 mA
Bluetooth Support:	No
Display Screen:	No
Application:	For Home
Application:	Semi-professional
Application:	Outdoor Sport Activities
Application:	Beginner
Application:	Professional
WIFI Support:	Yes
Image Stabilization:	No Image Stabilization
Waterproof:	No
NFC Support:	No
Memory Card Type:	MicroSD / TF
Model Number:	K-16
Display Size:	Without Screen
Additional Function:	Nightshot
Touch Screen:	No
Weight:	101g-150g
NightShot Function:	Yes
Volume:	100x30x13 mm
Package:	Yes
HDMI-compatible Output:	No
Remote Control Support:	No
Built-in Memory Size:	Non
Memory Card Support:	128G

MXCAM

MXCAM

Main Functions:

1. Screen intelligent correction

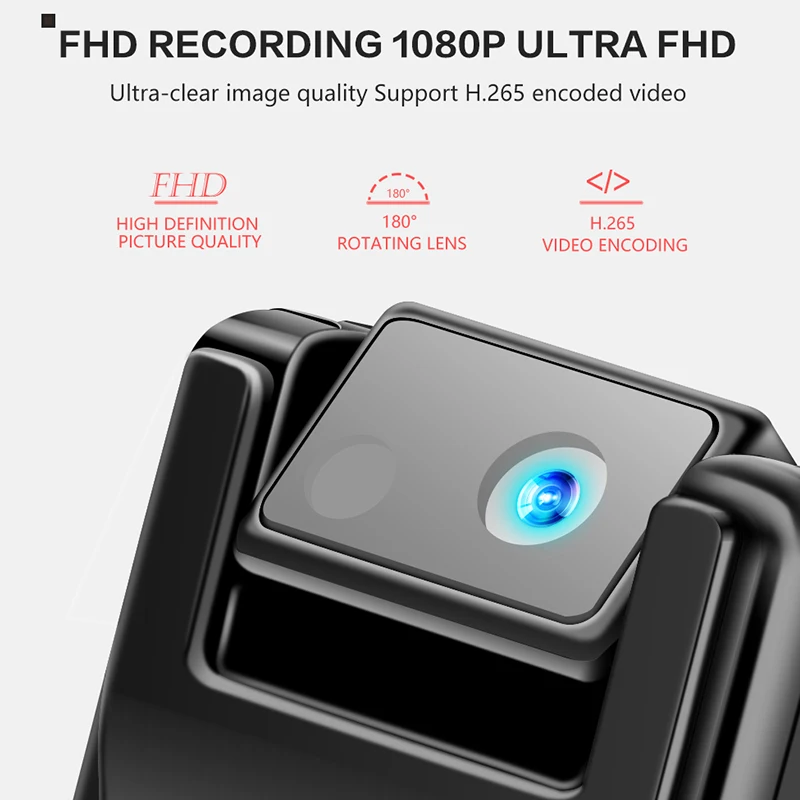

2. 1080P @ H265 encoded video

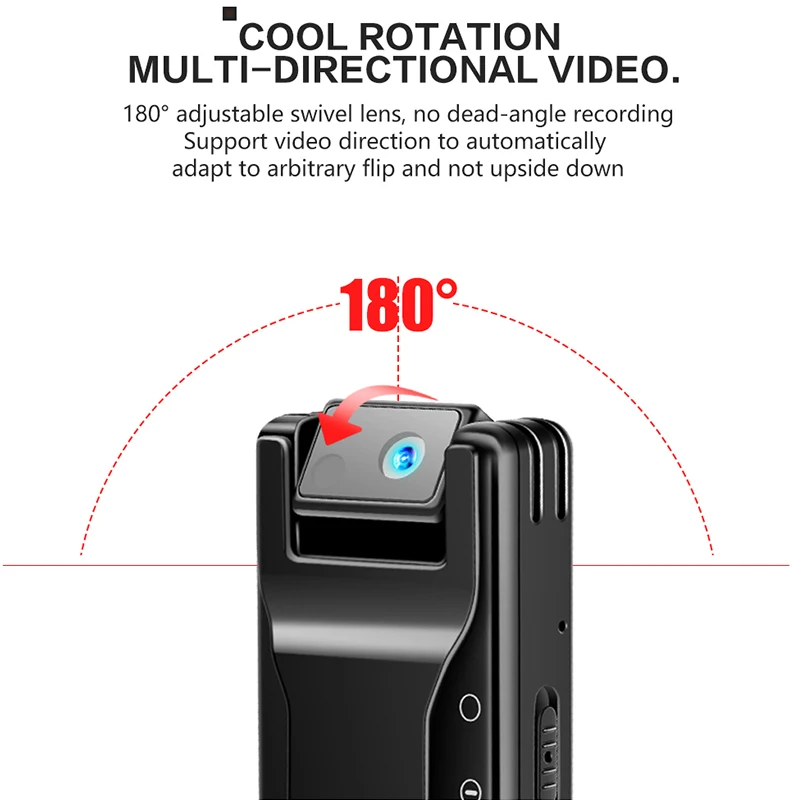

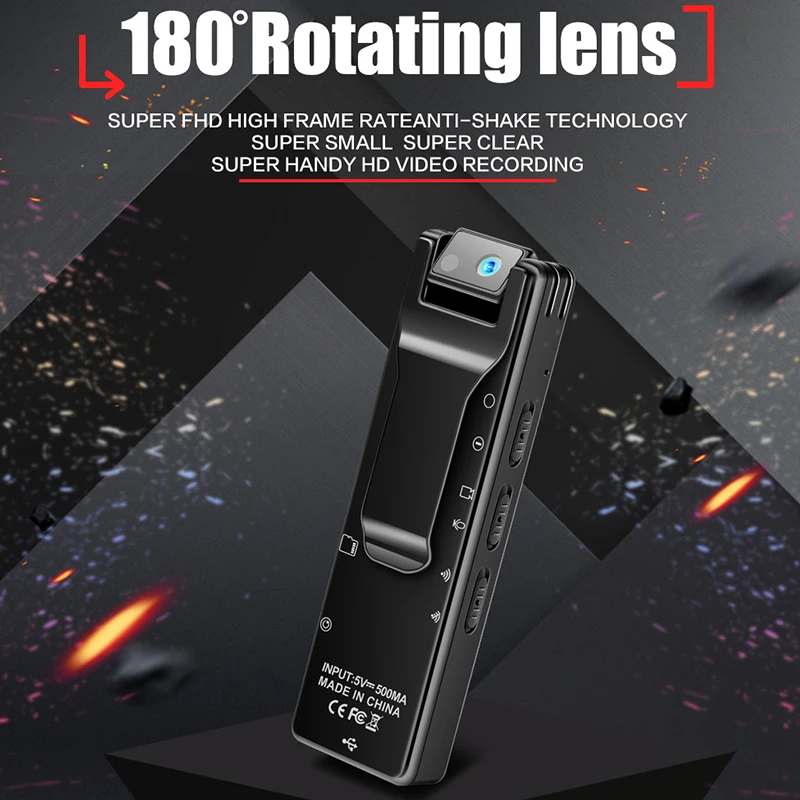

3. The camera can rotate 180 degrees

4. The infrared light can be set to turn on or off automatically

5. WiFi signal can be turned off separately to save powe

Technical info

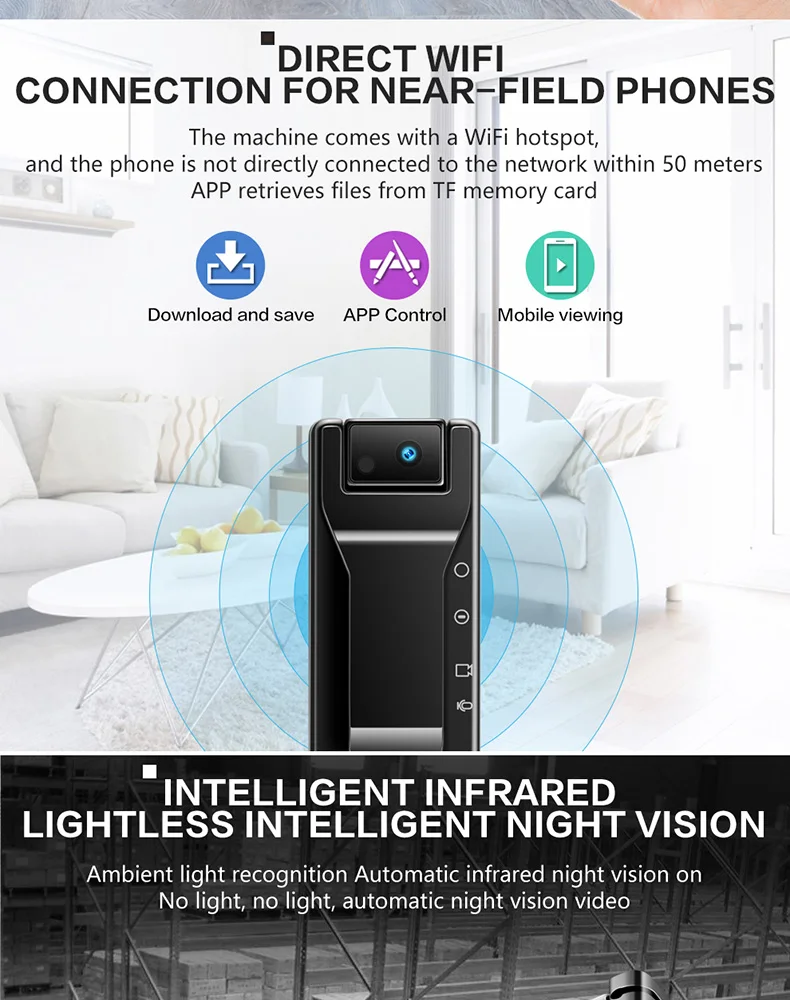

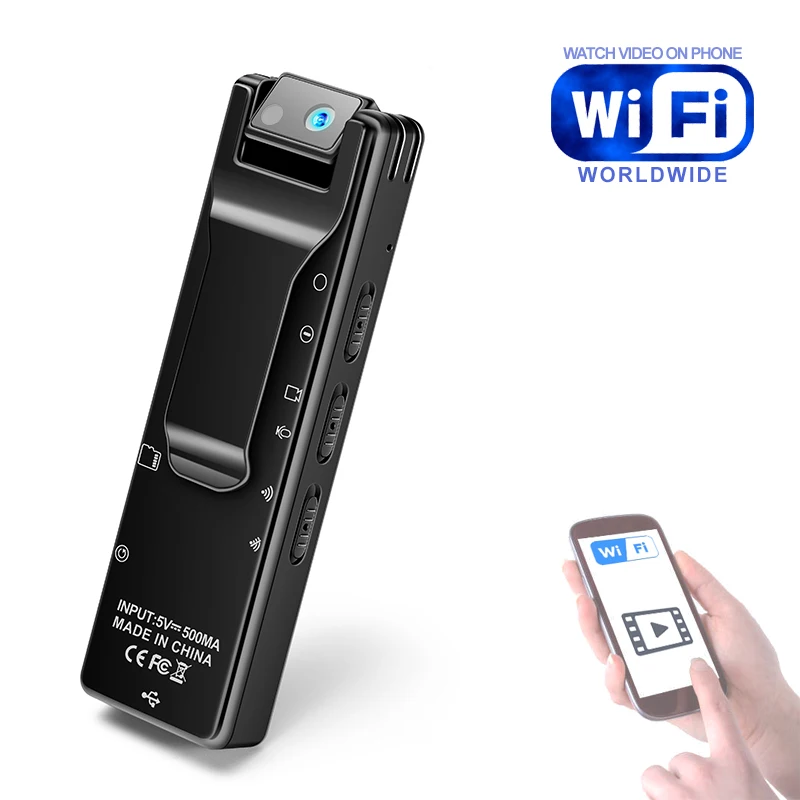

WiFi connection

Video resolution 1920*1080P

Playback software Recommend players that support H265 encoding

Battery 1000mAh high capacity polymer lithium battery

work time WiFi is off for about 5 hours (WiFi is on for about 4 hours)

Charging Parameters DC-5V/1A

Interface Type MicroUSB

Storage type Micro SD Card

(not included)

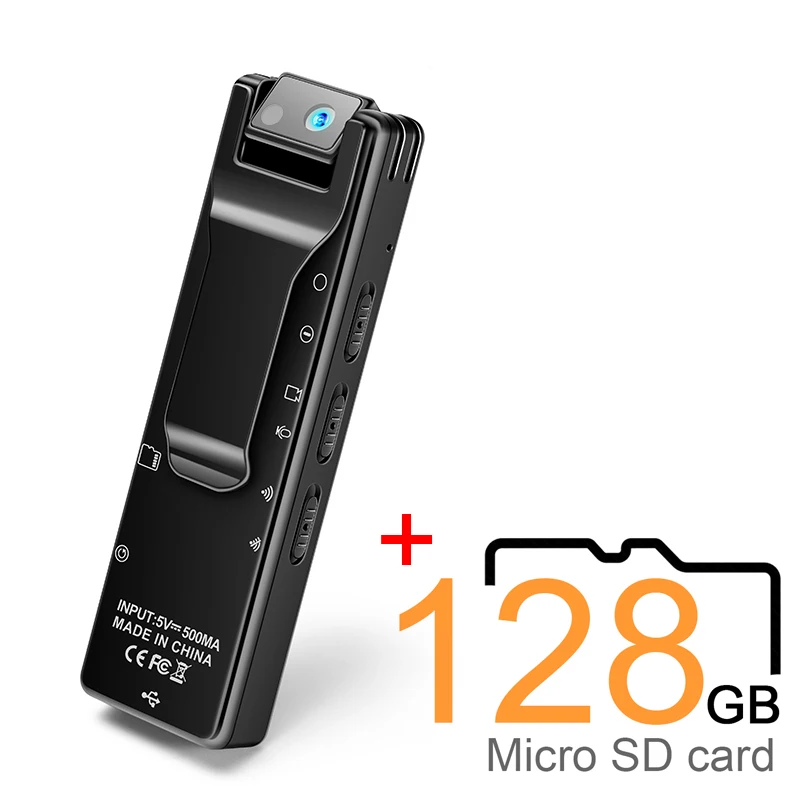

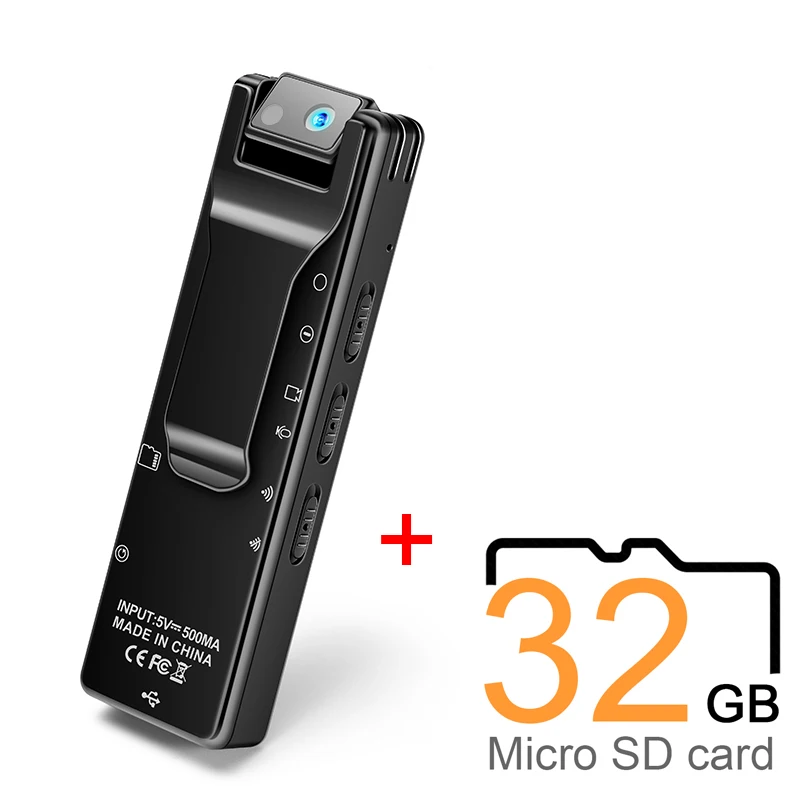

Maximum memory support 128GB

Stand-alone weight 40g

Video format MOV

This product (pictures and text) is from Aliexpress iCareStore store (910322024), if you see this mesage in another shop, it mean they copy us without thinking, and even without reading. We sugest you go to original source

here

 . Notice for plagiarist who want change this mesage to his own: In our pictures is many micro watermark too.

Connection way:

Indicator and button definition

A: Indicator color and status

1. Yellow indicator light-AP mode, when there is a TF card, it will automatically record and blink after 3 times when it is turned on.

2. Blue indicator light—P2P mode. When there is a TF card, it will automatically record after flashing and turn off after flashing 3 times.

* The blue light keeps flashing fast: it indicates that the network connection is abnormal, and you need to reset the WiFi password after "Factory Reset"

3. Red light — fully red

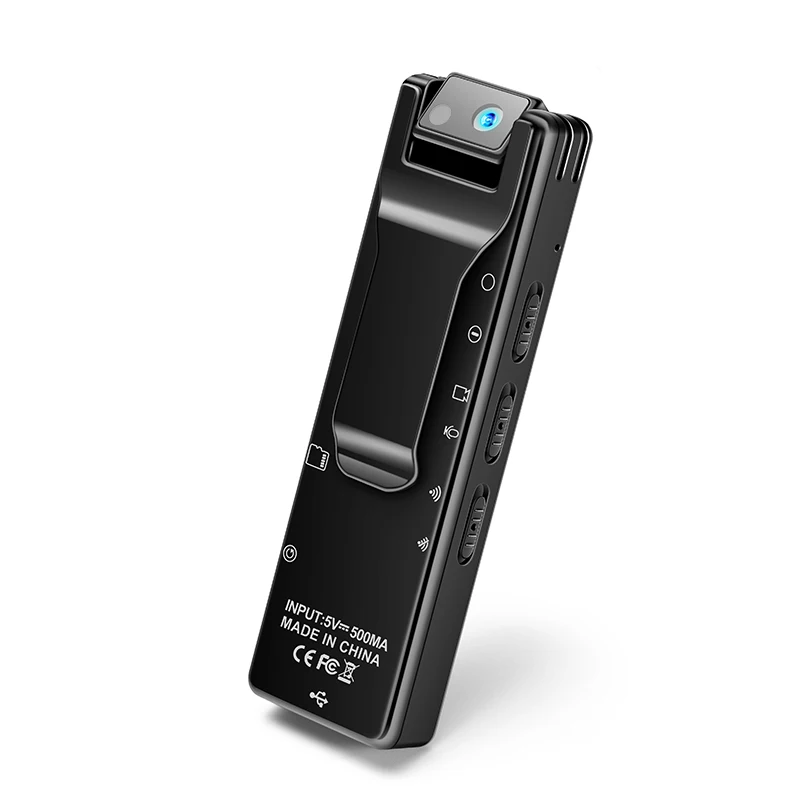

B. Button definition

1. Power switch: corresponding direction is on or off

* The TF card file can be read when the computer is turned off, but it cannot be inserted when the computer is turned on.

2. Video-Recording Mode: Record video or audio files for TF card in the corresponding direction

3.WiFi switch: can turn on or off the WiFi signal

4.Reset key: long press for 4 seconds while power on to release the factory state and enter AP mode

Function and operation

First please install the mobile software: Download and install MXCAM for free on "Google Play" or MXCAM in "APP store"

For the first use, follow these steps:

Step 1: AP connection (point-to-point)

A. Turn on the WLAN option in the phone settings and connect to the SZ *** hotspot. Some brands of Android phones (such as Huawei) will prompt "The current WLAN is not available on the Internet. Do you want to continue using this WLAN?", You must select "Use", otherwise you will Unable to connect to the app. If you accidentally select "Not in use", you need to select this hotspot in the WiFi list and set it to "Do not save" to reconnect.

B. Open the mobile phone software. Each time you open the APP, it will automatically scan for new devices. If it is not automatically added, please click Add Camera in LAN.

Step 2: P2P setting

After the AP connection is successful, you can start to set the P2P mode. The steps are as follows:

Click the yellow arrow on the right of the APP to pop up the (picture see in user manual)  menu. Click the left-most WiFi icon in the menu, select the hotspot and enter the password (picture see in user manual). The device will turn to  a blue light. access

* If you enter the wrong password, you need to re-bind (long press the reset button for 4 seconds while powering on and reconnect)

* You must set a password (picture see in user manual) for the first time to open the device to see the video screen (you cannot access and add this device if you do not know the password after setting the password)

* After opening the camera screen, you can see the screen in Figure 4. The specific key definitions are as follows: (picture see in user manual)
