CF-E317A 5G 10KM 24dBi Wireless Bridge Outdoor 300Mbps Router Signal Booster CPE WiFi Repeater Extender Router IP65 Nanostation wireless signal booster Wireless Routers
Code: TD-1005002108355917
7 orders
Free Shipping
$ 225.35
$ 271
Other people want this. 8 people have this in their carts right now.
| Brand Name: | comfast |
|---|---|
| With Modem Function: | No |
| Origin: | CN(Origin) |
| Type: | wireless |
| Wired Transfer Rate: | 10/100Mbps |
| WAN Ports: | 1 x10/100Mbps |
| Wi-Fi Supported Frequency: | 5G |
| 5G Wi-Fi Transmission Rate: | 433Mbps |
| Package: | Yes |
| Model Number: | CF-E317A |
| 2.4G Wi-Fi Transmission Rate: | 300 Mbps |
| Function: | Firewall |
| Certification: | CE |
| Number of USB Interfaces: | None |
| Supports WDS: | No |
| Max. LAN Data Rate: | 300Mbps |
| Standards And Protocols: | Wi-Fi 802.11n |
| Wi-Fi Transmission Standard: | 802.11g |
| LAN Ports: | 1 |
| Supports WPS: | No |
| Application: | Outdoor |
| High power wireless router chipset: | Qualcomm Atheros AR9344 |
| Outdoor wireless booster color: | white color |
| Outdoor router bridge Frequency: | Single frequency (5.180-5.825GHz) |
| Outdoor wi-fi amplifier Protocol: | 802.11a, 802.11an |
| High power wifi router Max. LAN Data: | 300Mbs |
| Outdoor wifi repeater 300Mbps poe: | 24v Poe Power supply |
| Outdoor wireless range extender: | 60dbm(1000mW) |
| wireless bridge Mode: | Station/AP/Router /Repeater |
| Outdoor wifi amplifier Antenna: | 24dBi High-Gain directional butterfly shape antenna |
| Wifi cpe Ports 1: | 1*10/100Mbps LAN RJ45 Ethernet Port |
| Wifi outdoor Protection Level: | 2KV Lightning Protection; IP 65 Level |
| Outdoor wireless bridge installation: | Pole-mounted,Wall -Mounted,Rack-Mounted |
| Poe access point: | wifi antenna outdoor /outdoor cpe |
5-11KM long Range Wifi Transmission Outdoor Wireless CPE Bridge 5.8GHZ Comfast CF-E317A Powerful 1000mW Wifi Access Point Repeater 24dBi Wifi Antenna Nanostation
Product Overview
CF-E317A 5GHz 1000mW High Power 24dBi Antenna outdoor CPE is designed to
PtP and PtMP solutions for privated ISP wireless connectivity， CCTV surveillance and data transmission.
It features with 24dBi directional dual polarization antenna to provide an efficient way to pick up and maintain a stable long-distance connectivity up to 25km.
Adopt of auto-bridging technology， two CPE can connect to each other automatically to make it easy to setup.
Outdoor Point to point as wifi bridge 5-11km or more (no obstacles)
Suggestion:
The distance "5-11KM" mean 2pcs CPE based on point to point bridge mode.
There are many factors that affect distance, such as obstacles
(trees, walls, buildings, trucks, etc.), raw network signals, etc
If you want the good signal, we suggest you buy 2pcs!
Main Features
1.24dBi High-Gain directional butterfly shape antenna
2. High Transmit Power 1000mW (60dBm)
3. Working frequency :802.11a/an: 5.180GHz-5.825GHz
4. 300Mbps 5.8Ghz
5. 24V Poe Adapter
6.1*10/100Mbps LAN/WAN RJ45 Ethernet Port
7.6 Led indicator: Poe Adapter ,Network Port, Wifi , Signal Strength (1-3)

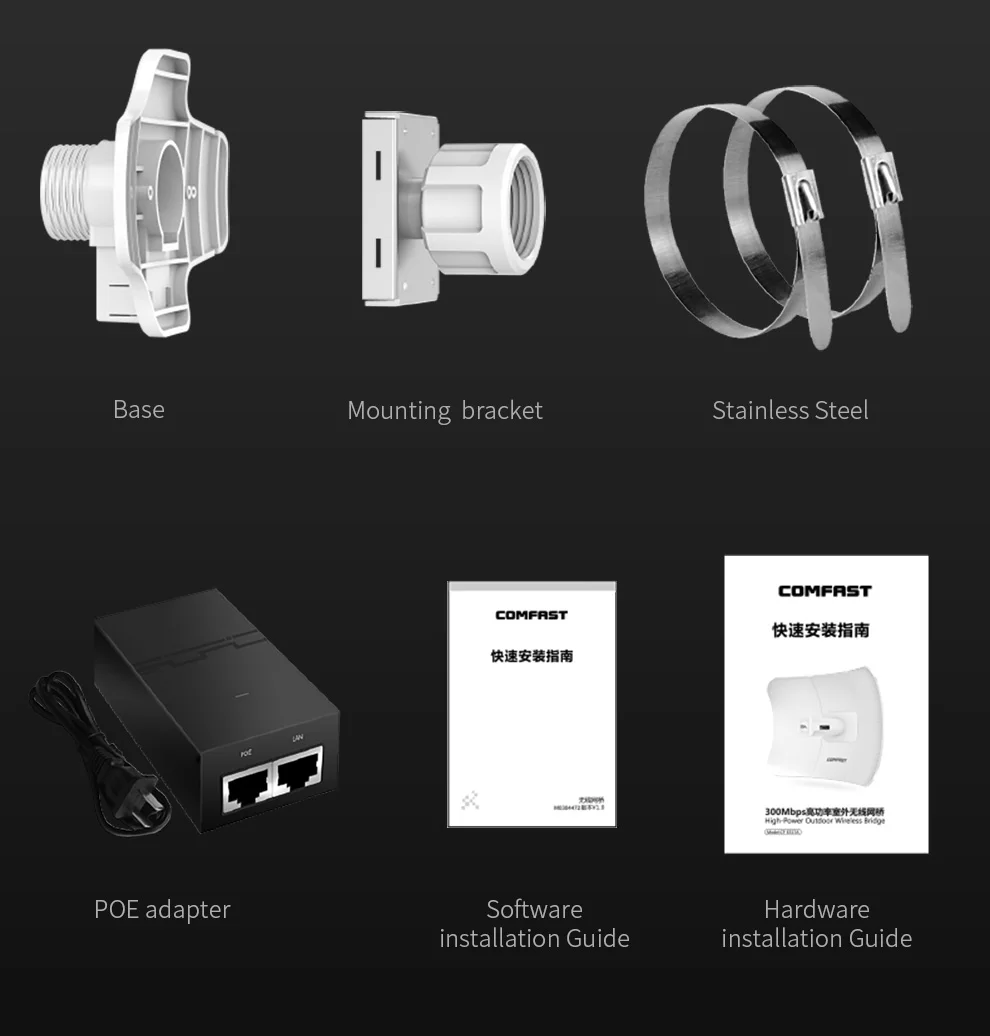

Package included :
CF-E317A CPE *1 or 2
Base * 1 or 2
Mounting bracket * *1 or 2
Stainless Steel *1 or 2
Poe Adapter *1 or 2
Software Installation Guide *1 or 2
Hardware Installation Guide *1 or 2

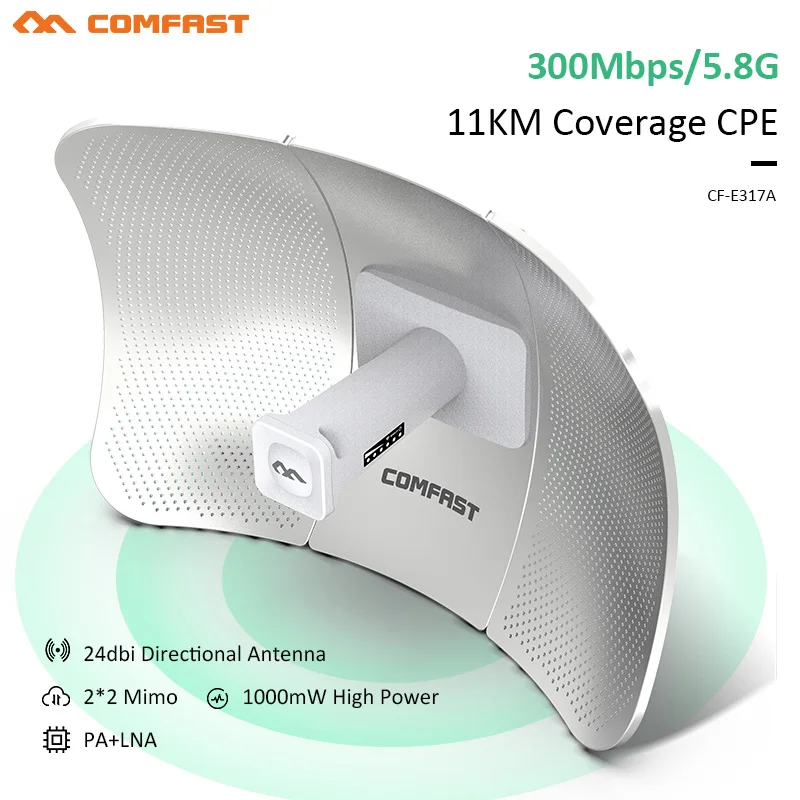

11KM long distance transmission
24dBi antenna/1000mW high power/Industrial grade Chipset
It’s hard to choose a satisfactory CPE ? Main reasons are here:
Signal is unstable packet loss during transmission transmission is slow
Unable to work under bad weather difficult to setup Low configuration
Innovative research and development, breaking the shackles Butterfly shape antenna Long distance transmission transmit power Anti-interference Protection level POE power supply Powerful inner core High power PA Hidden SSID
Outdoor IP67 rating provides the ability to handle different kinds of rugged surroundings.
Lightning protection waterproof Antifreeze Dust proof High temperature resistance Anti-oxidation

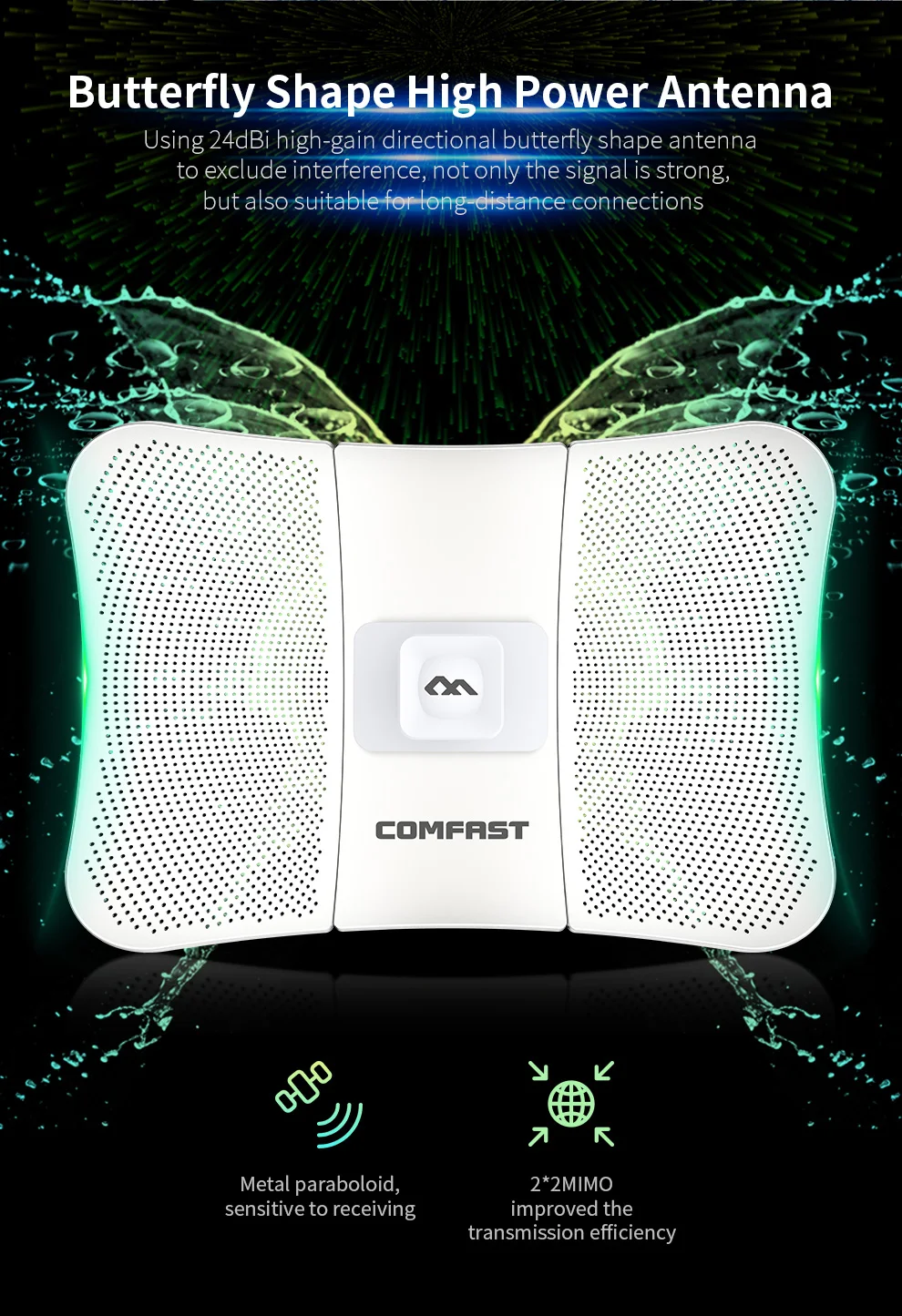

Butterfly shape high power antenna
Metal sensitive to receiving 2*2MIMO, improved the transmission efficiency
The measured transmission reaches 11 Kilometers
Qualcomm chipset, together with PA can improve the transmission power
The measured transmission distance in an open environment is about 11 kilometers
Transmission power 60dBm Transmission distance 11KM Improve the transmission power PA+LNA

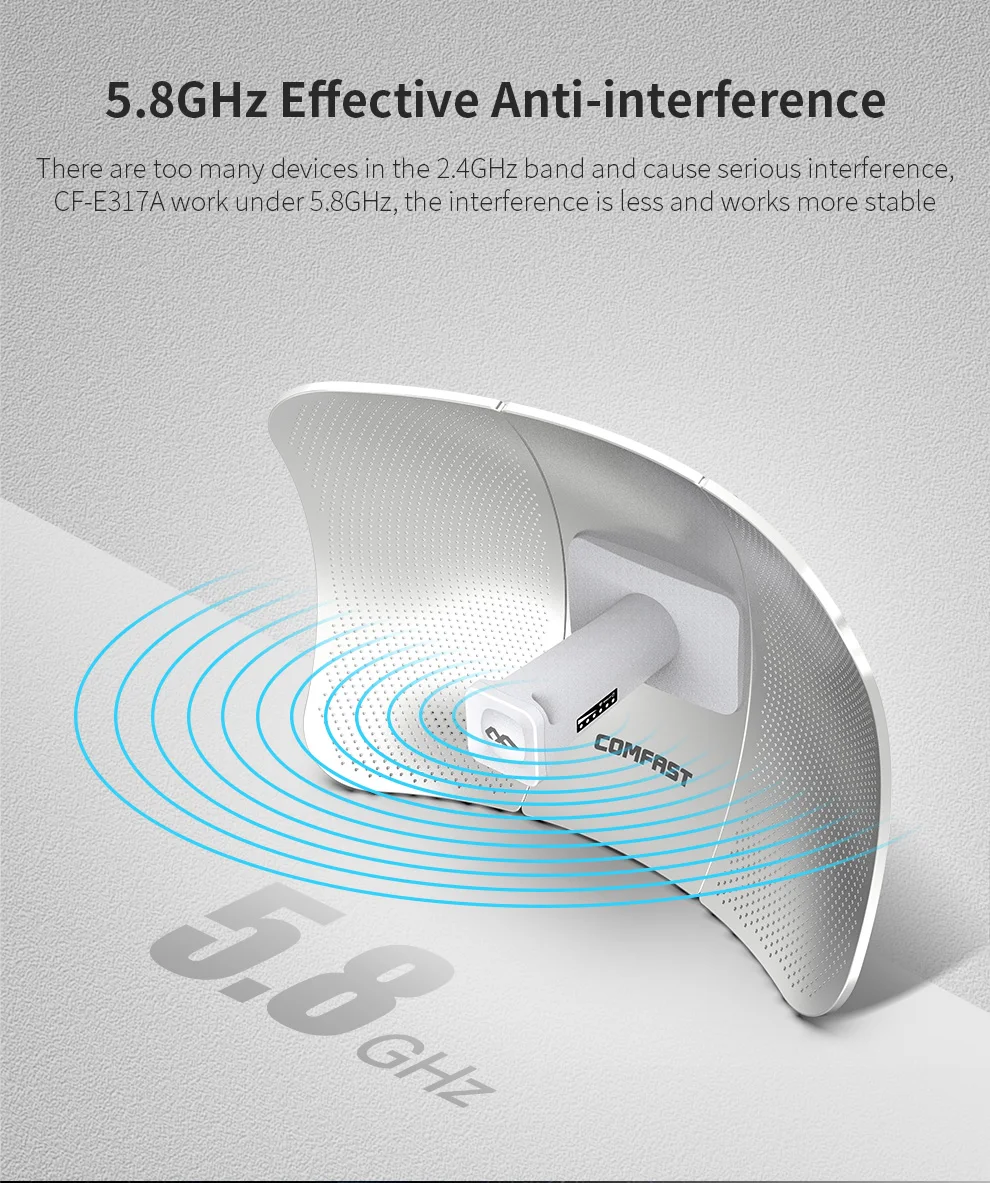

5.8GHz Effective anti-interference
There are too many devices in the 2.4GHz band and cause serious interference, CF-E317A work under 5.8GHz, the interference is less and works more stable
Industrial design, wind resistance antenna reflector
The reverse design of the through-hole antenna is adopted to effectively reduce wind resistance and resist stormy weather, and the product adaptability to the environment is greatly improved

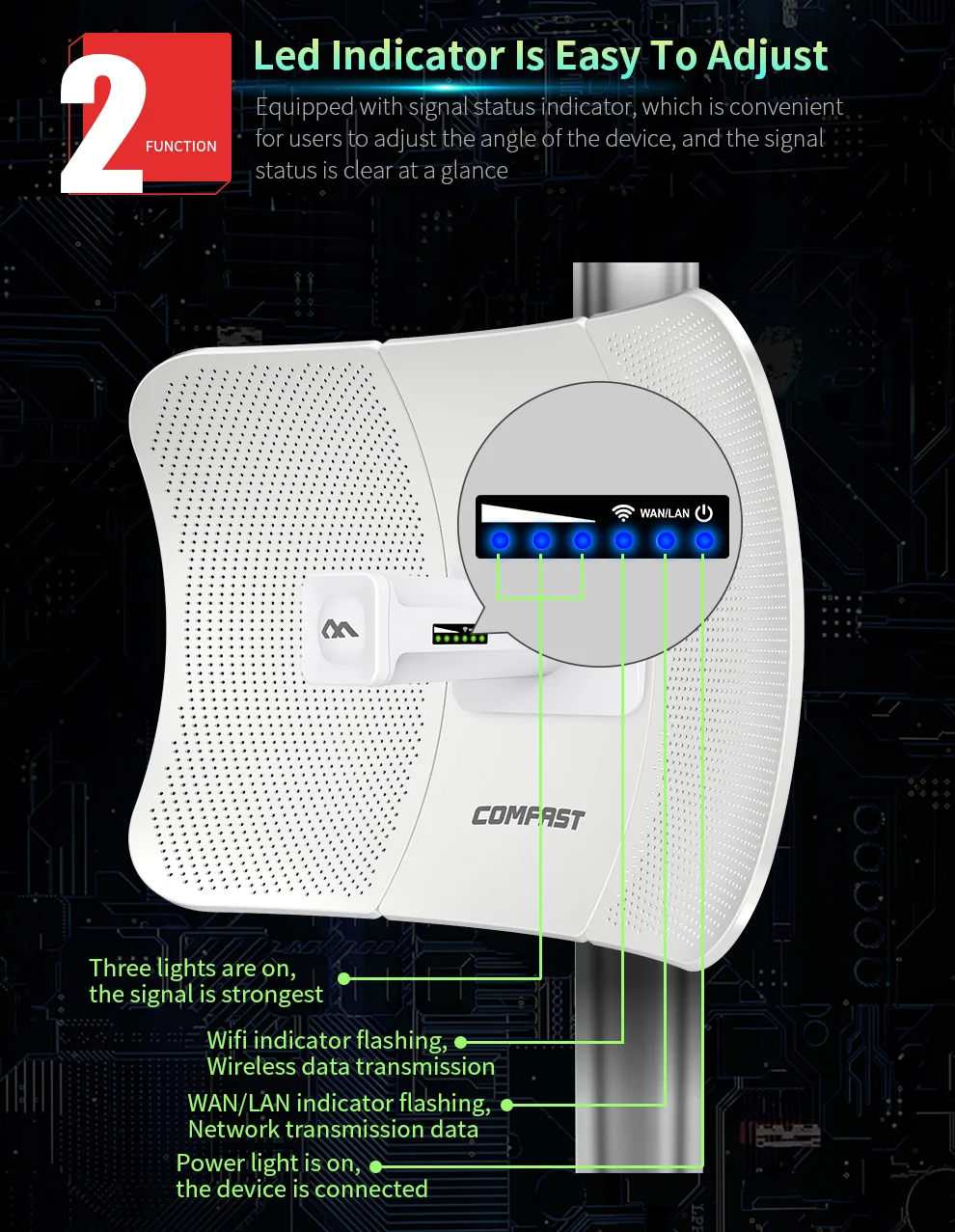

Led indicator is easy to adjust
Equipped with signal status indicator, which is convenient for users to adjust the angle of the device, and the signal status is clear at a glance
Three lights are on,the signal is strongest
Wifi indicator flashing,Wireless data transmission
WAN/LAN indicator flashing, Network transmission data
Power light is on, the device is connected
The level design can help users quickly judge whether the installation angle is accurate, and it is clear at a glance
Installation clip, flexible rotation
The innovative design of the installation clip, the bridge can be rotated and adjusted at any angle, which greatly enhances the flexible application of the project
POE Power supply
CF-E317A support POE power supply,It can support 100-meter long network cable for power supply and data transmission at the same time. It is more convenient to get electricity for outdoor projects, free from the shackles of power supply problems. Makes project easier.
Schematic diagram of wireless bridge connection
Point to point connection
Multiple camera connection: method 1: Connect the camera to the switch, then connect to the comfast bridge, and transmit data through the one-to-one bridge
Set mode: Terminal mode Set mode: AP transmit
Camera > POE Switch> CPE Bridge CPE Bridge>DVR> Monitor computer
Multi point to Multi point connection
Multiple cameras connection method 2: If the cameras are far apart, you can configure a pair of bridges for each camera, and the monitoring center uses a switch to connect the AP terminals together and then connect to the hard disk video recorder
Set mode: Terminal mode Set mode: AP emission
Camera >CPE Bridge CPE Bridge>POE Switch>DVR> Monitor computer
CPE Bridge>DVR> Monitor computer
Camera>CPE bridge
In the wireless monitoring transmission, it is recommended to use the illustrated method for point-to-point or point-to-multipoint transmission. The transmission angle of the wireless bridge is 60 degrees. In the point-to-point transmission, please adjust the angle of the device

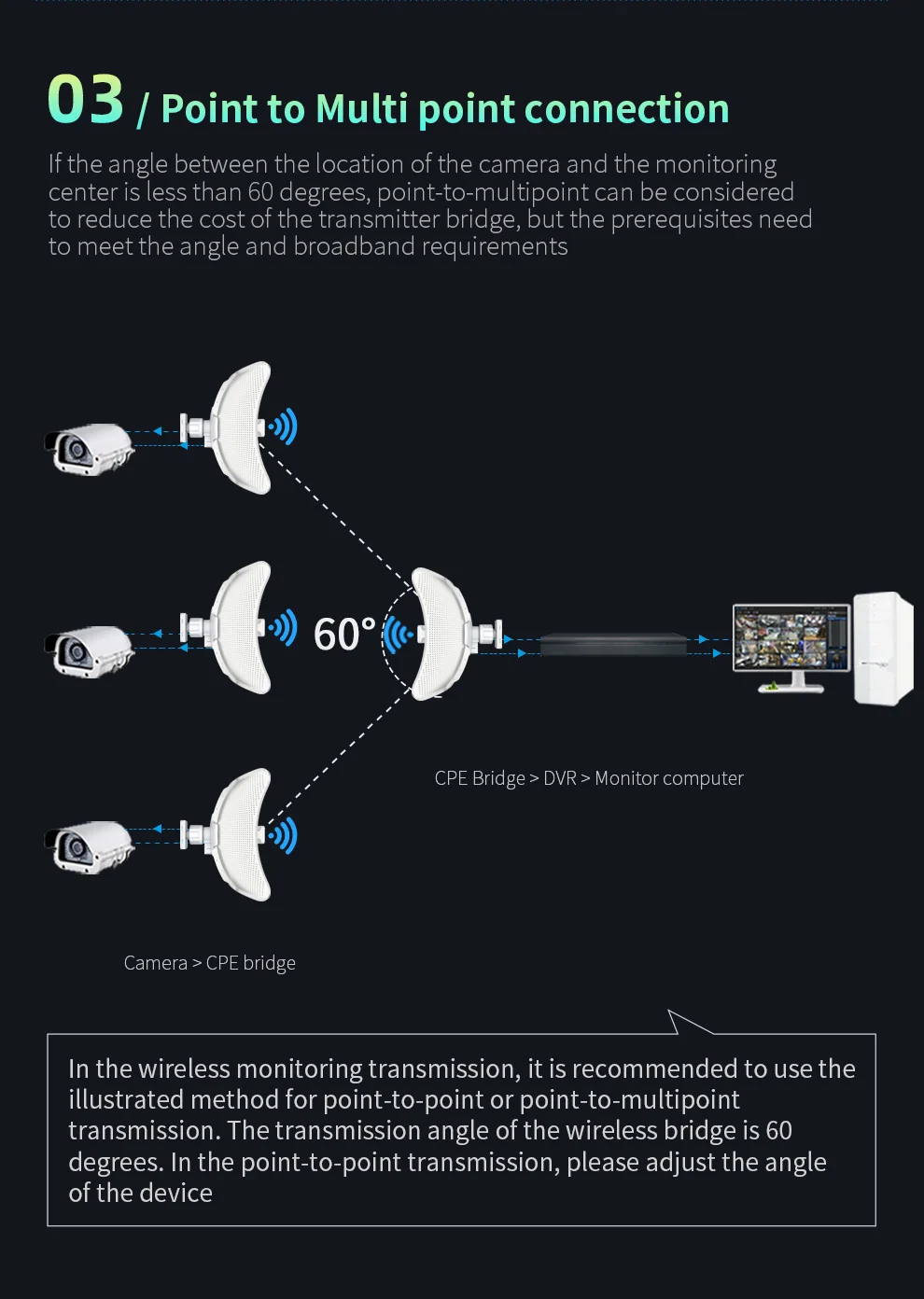

Point to Multi point connection
If the angle between the location of the camera and the monitoring center is less than 60 degrees, point-to-multipoint can be considered to reduce the cost of the transmitter bridge, but the prerequisites need to meet the angle and broadband requirements
Build a local area network
A network bridge can be used to build a local area network for data transmission when there is no external network
If the distance between the two places AB is very long and the data transmission does not reach, a relay forwarding point C can be established in an unobstructed place between the two points AB, and the point C receives the data from point A and then relays it to point B to achieve normal wireless data transmission
1. Connect the three antenna sets
2. Insert the base on the antenna and fix it with two screws
3. Insert the shell +cover into the reflector
4. Screw the bracket +nut+device clockwise on the base device
5. Pull out the back waterproof cover,insert the network cable into the port, and push back the cover
6. Open the stainless steel tie through the 4 slots on the bracket and fix the device onto the pole.
