Car Diy 5.0 Bluetooth Player MP3 Decoder Spectrum Color Display Solution Wireless Hands Free Module

Code: TD-3256802793088095 195 orders
Free Shipping
$ 29.95
Quantity:
Other people want this. 20 people have this in their carts right now.
Brand Name:  szymxtv
Origin:  CN(Origin)
Audio Format Support:  MP3, WAV
Audio Format Support:  APE, FLAC
Audio Format Support:  FLAC
Audio Format Support:  APE
External Memory:  Yes
Balanced Out:  No
DSP:  48P
Dimensions (WxHxD):  107mm*25mm
Function:  FM Radio
Function:  bluetooth
Package:  Yes
Supports FM:  Yes
DAC:  48p
Have Speakers or not:  No
Bluetooth:  Yes
Model Number:  m01bt
WIFI:  No
Operation Mode:  Touch Tone
Body Material:  Plastic
Supports Recording Function:  No
Certification:  NONE
Screen:  Yes
FM:  FM radio frequency 76-108MHz

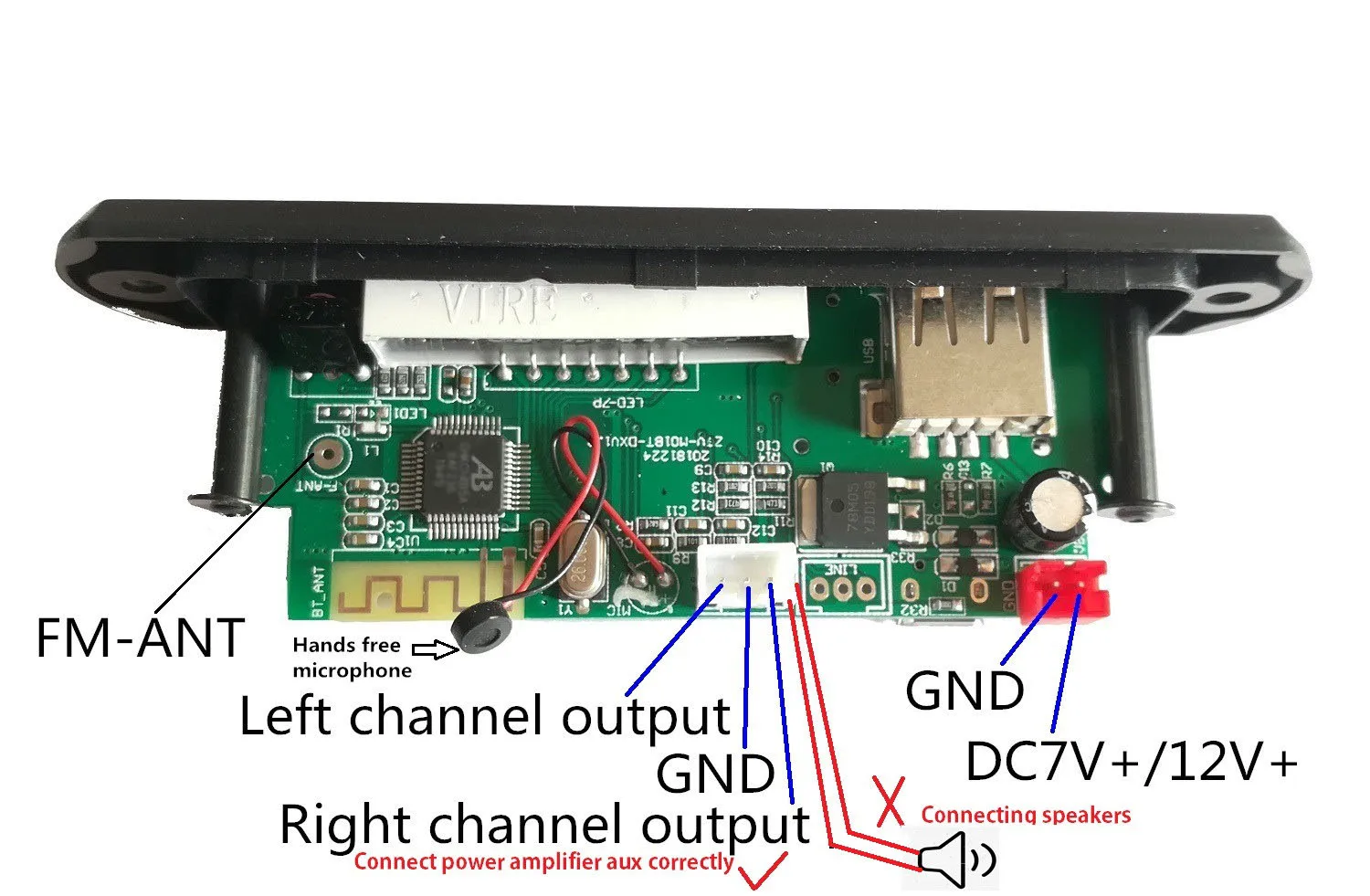

This connection does not have power amplifier and cannot be directly connected to the loudspeaker. It can only be used by refitting the power amplifier. Please refer to the picture and the relevant instructions and precautions below the picture for the specific connection method;

Power supply voltage: choose one of the two power input, do not connect the two at the same time.
12V is the red seat DC 7v-12v.

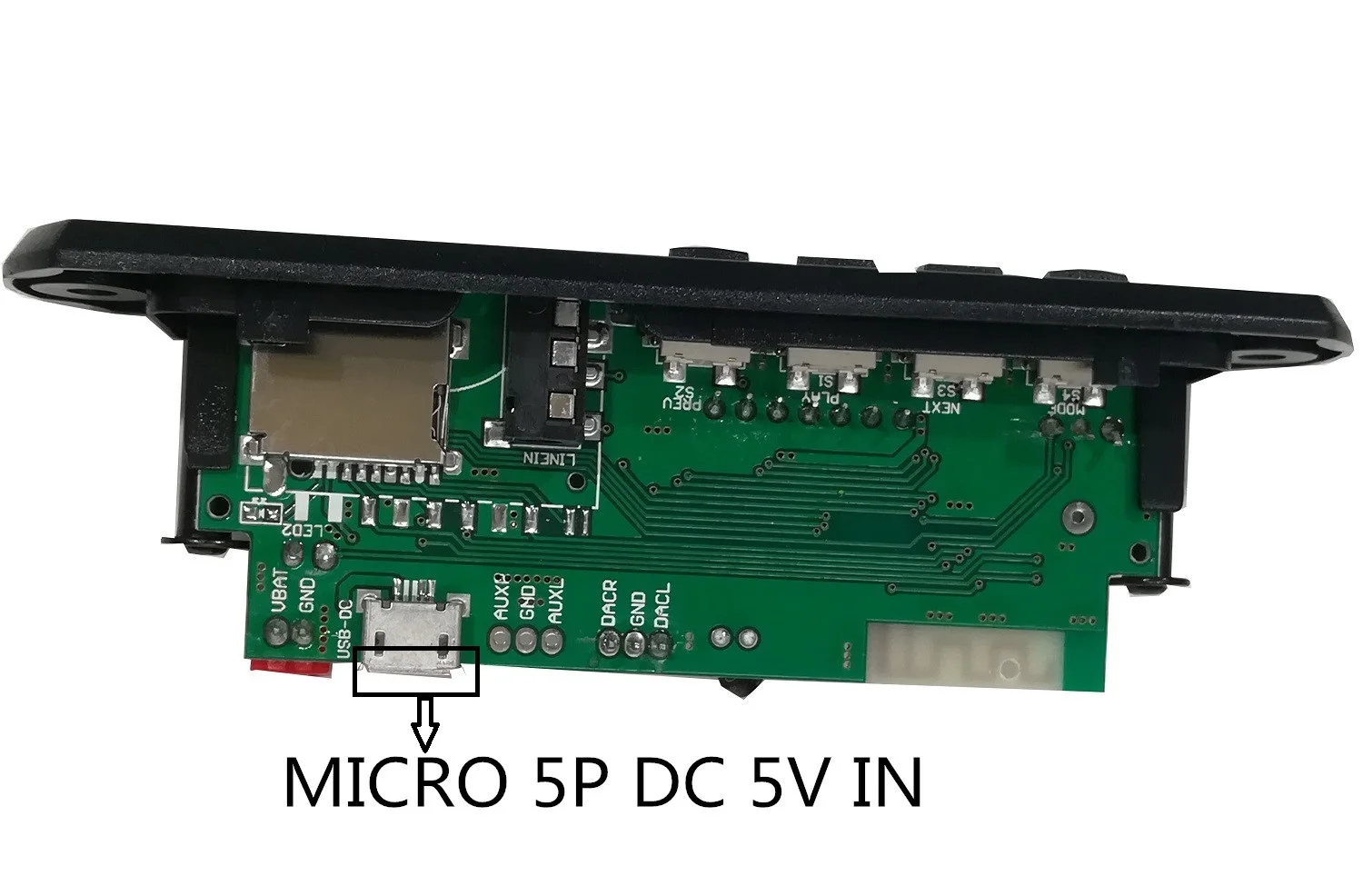

5V is the Mini USB access from the back of the board, DC 4v-5v can not be higher than 5V, can be used directly (Mini USB mic0 plug-in is convenient and practical, novice can also DIY; as shown in the figure).Current 800ma-1a
Do not connect any AC voltage value; please understand the precautions at the bottom of the picture before purchasing.

Model: TF m01bt; Panel size: 107mm * height: 25mm * depth: 38mm; Opening: 83 * 20 * 38mm; Screw fixed mounting hole spacing: 92mm;

USB sound card function (double head USB cable with data transmission function USB cable). Plug in the USB plug

Insert the USB plug into the USB module. The word "PC" will appear in the MP3 module; At this point, the computer

Playing music can be transmitted to the module through the audio output of the module. You can also

Insert the computer directly into the SD card on the module or delete music from the card,

-Operation method: insert the module with SD card, and then open the computer on my computer, there will be a removable hard disk

Or USB flash disk and other computer systems, different prompts will be different)

Multi function: This product supports the function of hands-free answering phone, and supports the mobile app to control the player (APP)

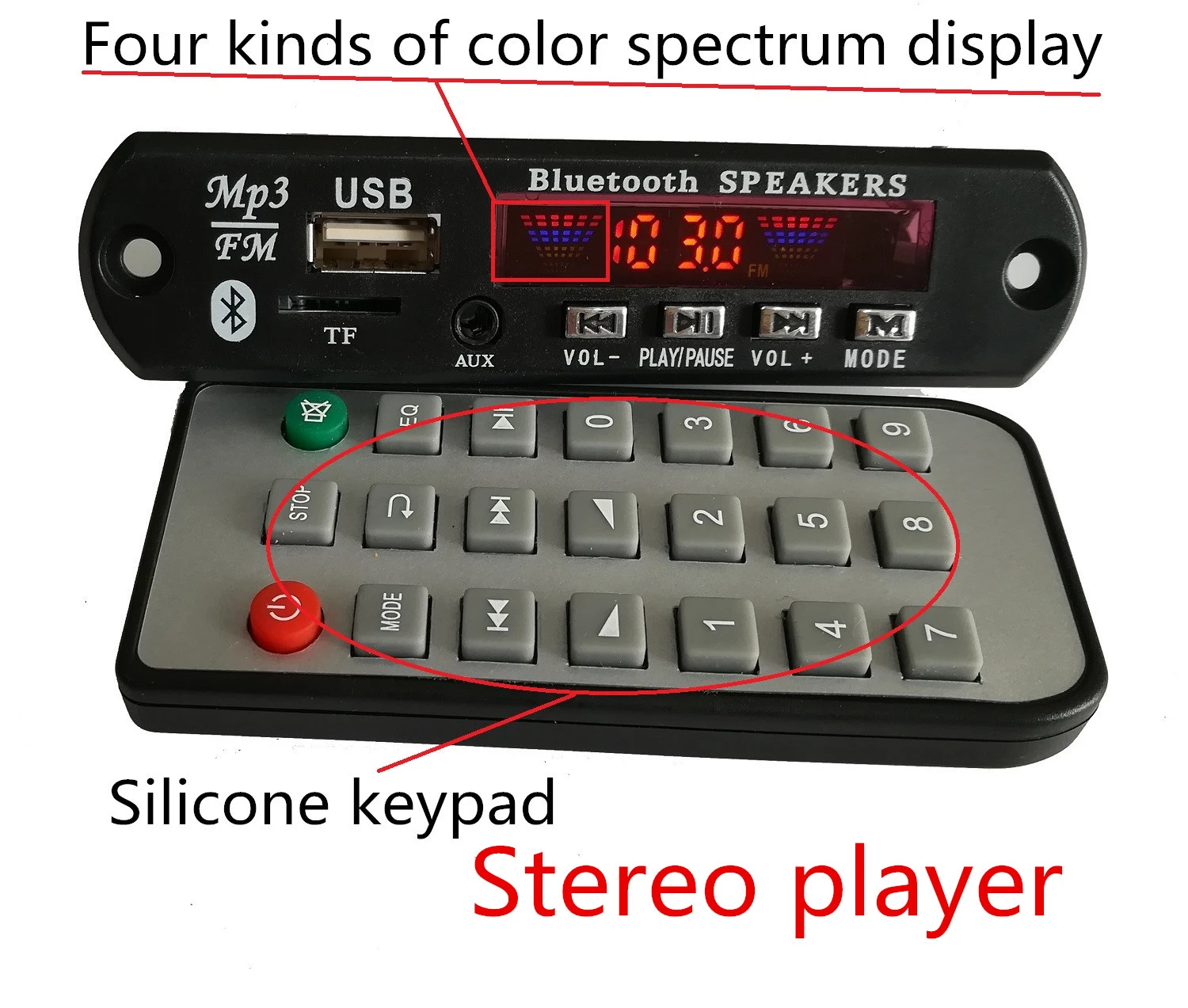

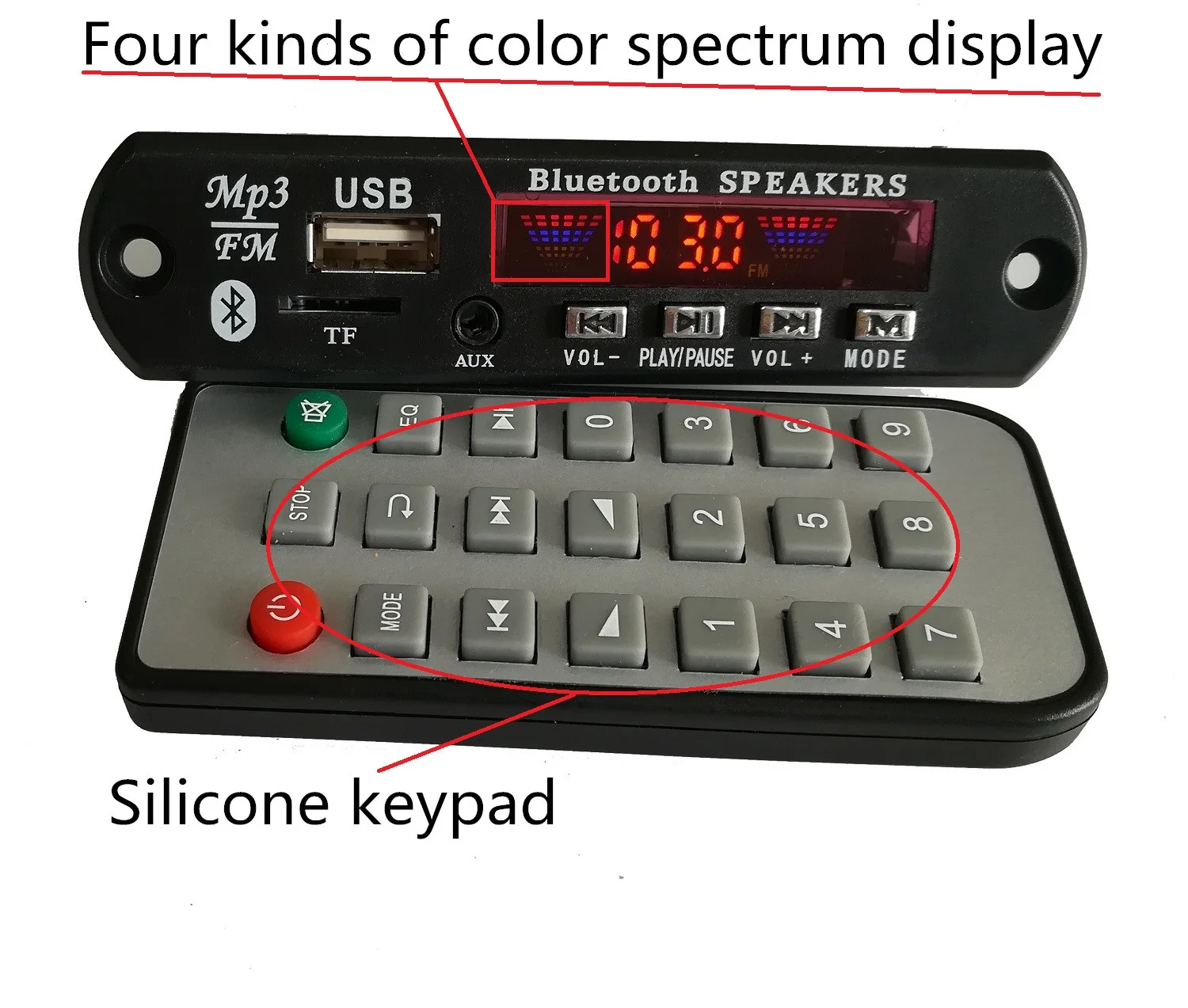

Software needs to be installed). 4 color display, the effect is more moving. 3.5 auxiliary input; USB / SD play MP3 losslessly; APE / WAV and wma / FLAC also support folder selection; FM radio; Auxiliary; auxiliary; Stereo Bluetooth. DIY speakers and the best accessories

Refit audio / car

Module features:

*Support 5.0 BT and hands-free call (you can answer the call hands-free, when you hear the "beep" sound and number, press pause to answer the call)

Call back: in BT mode, double-click the "pause" key to call back the last phone number,

*Support to select the folder to play -. DJ music / background music / Nursery Rhymes can be divided into different folders on the card / U disk; Folder play: long press "mode", F001, F002,...

Circulation mode: in the playing state, press the "arrow" or "RPT" symbol key or long press the "play" key: ran / one / fol / all;

If you select (fol) under the current folder, you can only cycle completely in the current folder.

*Support mp3 / wma / WAV format music. MP3 songs 32-320kbps, lossless APE / FLAC / wma / WAV 1411kbps or lower, ordinary two channels (unable to play DTS format music)

*Support 2.0 USB (fat system) / card switching, previous song, next song, volume adjustment, EQ, play / pause, stop, single song, repeat, mute, power off, direct selection of songs.

*Support BT previous song, next song, volume adjustment, play / pause, mute.

*Support shutdown memory function: remember the song and volume played before shutdown, and remember the current point.

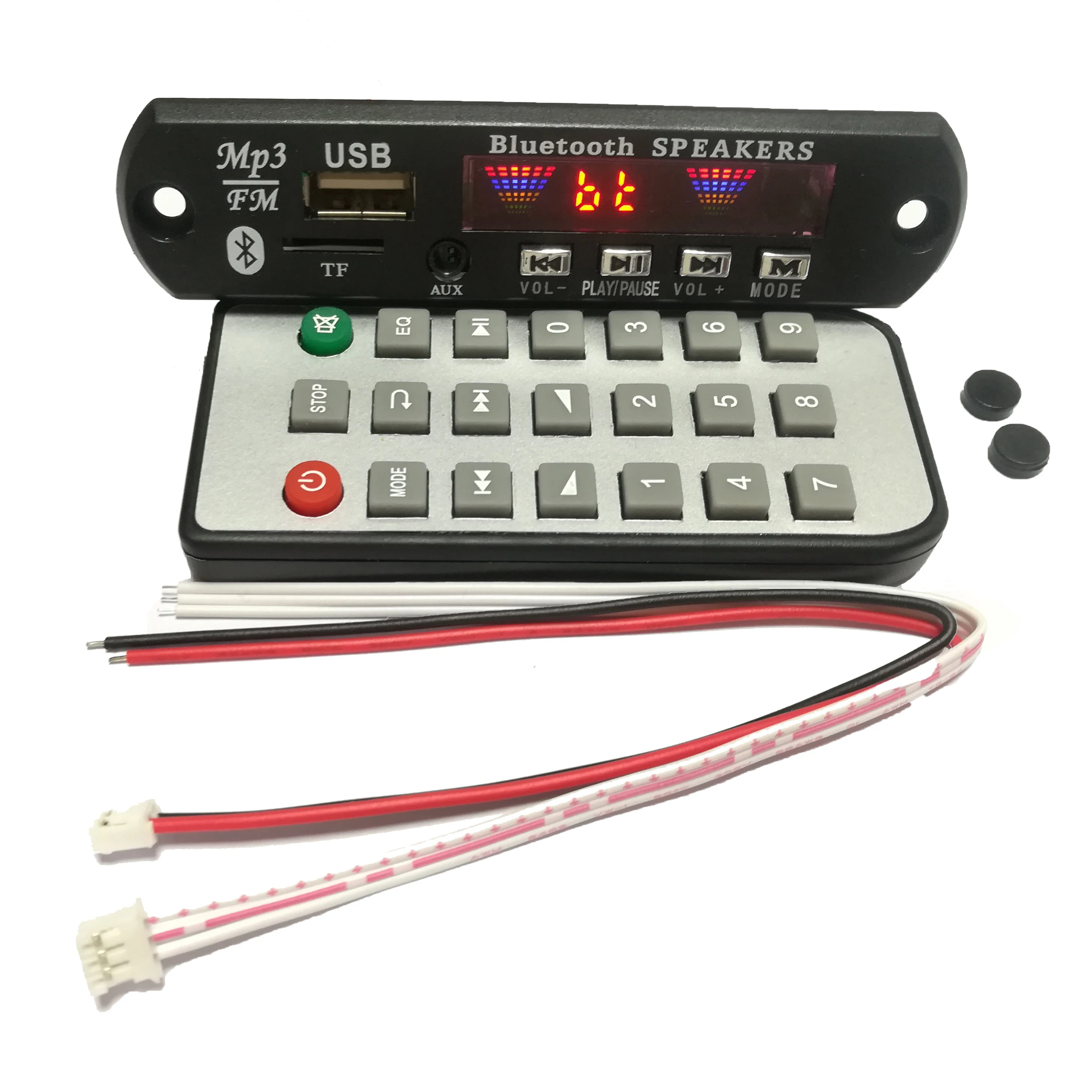

(item list, see packing instructions for details) operation instructions

Note: BT equipment name m01bt

Special attention 1

1) Working voltage:

Red 2p socket 12V: DC 7V to 12V,

Mini USB 5pin 5V: 3.7V to 5V (Mini USB mic0 plug-in) current 800ma-1a. If the current is not enough, there will be some abnormalities

Jump, remote control failure or BT reading failure, etc. (if you have this problem, please check your

Power supply); The voltage should not be higher than the highest value of the voltage range required by the product, otherwise

The main chip and related components will be damaged.

2) The power ground and signal ground of the module are separated, and there is a separate resistance, which is more convenient for the selection and use of different power amplifiers (see 0 ohm resistance of R32 on the board). It is now shipped with a 0 ohm connection. Some power amplifiers are noisy. A separate power supply is recommended for the decoder board. If the power supply is in parallel with the power amplifier, first disconnect the 0 ohm resistance of R32 connected between the audio output ground of the decoder board and the power supply ground, and then connect the wire (power off operation). If you don't understand the wiring or other problems, or can't handle them correctly, you can contact us at any time.)

In order to make the product work normally, independent power supply is recommended for the module

Special attention 2

Precautions for vehicle modification

Power supply: the power supply cannot be directly connected to the battery, cigarette lighter and car lock. The voltage in these three places is unstable, and there is a precedent of damaging the circuit board. In addition, some cars have interference. look out!! please

Pay attention to the anti-static treatment when refitting. The wire ends must be in good contact, especially no matter when the operation is done, remember to turn off the power supply. The power can only be turned on after the wiring is checked correctly. Do not operate with the power on. Do not use electronic wires to touch the points disorderly. Pay attention!
