Certification:	CE
Origin:	CN(Origin)
Special Features:	ECU Programmer Power Box
Software Version:	ECU Programmer Power Box
Software Update:	No
Hardware Version:	ECU Programmer Power Box
OEM NO.:	ECU Programmer Power Box
Item Type:	Code Readers & Scan Tools

Description:

It is compatible in the automatic mode with the loading programs which use:

BOOT-OEM12, 12 pin OBD-II;

L-LINE, 15 pin OBD-II.

The Tool has built-in current limiting resistors on the following signal lines:

RESET — 510 Ω;

BOOT — 510 Ω;

CNF1 — 220 Ω.

In conclusion:

All programming tools above can be used for ECU read and write, but differs in ECU coverage and Read/Write method.

There is NO LIMITS of the car model and year when using bench to read/write data.

But if you have chips and gearboxes to read and write, you should have a flash. The bad is: disassembling is required.  bench doesn’t cover chips and gearboxes and OBD cannot not work good for gerabox Read/Write.

So, you’d better check the ECU/gearbox/chip before your purchase.

Check each car list on corresponding product page.

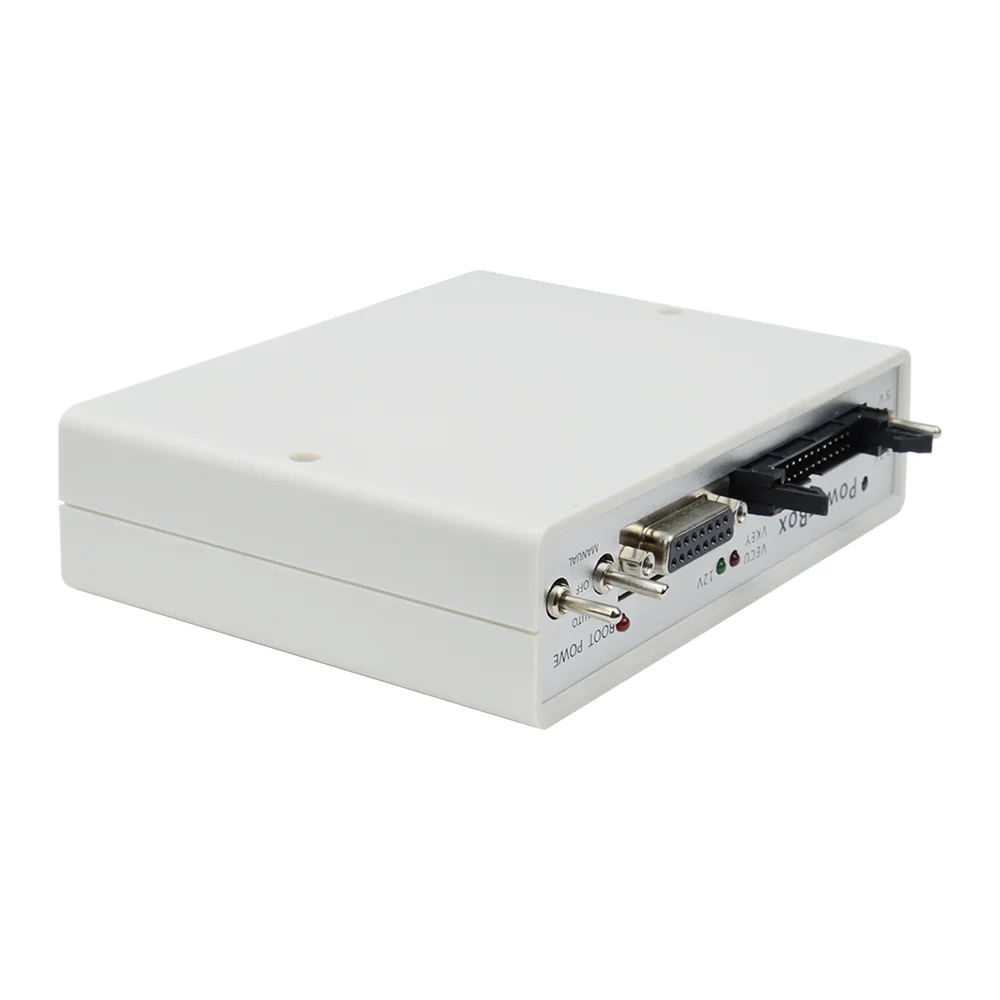

The tool is fitted with multipurpose connectors which allow to establish the connections flexibly:

USB:

Designed for connecting to the computer. It is to be connected when the built-in USB — UART converter is enabled; for PowerBox software update; while reprogramming Renesas CPUs;

DC:

Designed for powering the built-in circuit as well as the connected ECU. It is recommended to use only quality units with 12V output voltage. While reading the password, when it is impossible in the vehicle, one must note that high-voltage converters in ECUs consume rather high current at the start which can trigger protection mechanism or even result in the power unit damage;

J2534 (OBD-II-F):

Designed for connecting the same name interface to OBD-II;

DB-15:

Designed for connecting to the main ECU connector. It is recommended to use  14P600KT02, 14P600KT03 cables or analogous ones;

IDC-26:

Designed for connecting directly to the ECU board or via the adapter to the special head. It is recommended to use 14P600KT06 cable or an analogous one for Tricore GPT.

It is recommended to use Flash Development Toolkit software for flashing for Renesas CPUs.

Controls:

The tool has 3 switches for operating in different  modes.

POWER:

Power control. The tool has three modes of power supply to the ECU: OFF allows to remove all power and control signals from IDC-26 and DB-15 connectors; MANUAL supplies power to VECU and VKEY terminals and to the control outputs depending on the chosen tactics; AUTO, automatic control, in this mode power is controlled by the loading program with L-Line signal (15 pin OBD-II).

BOOT:

Simultaneous control of BOOT, RESET and CNF1 signals (3.3V): OFF, allows to remove all control signals from DB-15 connector; MANUAL pulls RESET and BOOT to the signal minus, and CNF1 to +3.3V; AUTO, automatic control,  in this mode BOOT, RESET and CNF1 signals are simultaneously controlled by the loading program (12 pin OBD-II, OEM12).

GPT:

Dor for Renesas and for Tricore with GPT CPUs. It is necessary to use 5V while working with SH705x CPUs, in other cases 3.3V is to be used.

Lights:

LED near the 5V/3.3V switch indicates 5V or 3.3V voltage supply.

VECU, VKEY LED indicates VECU and VKEY voltage supply.

12V LED indicates power voltage.

BOOT LED indicates voltage on CNF1 output (the LED works both for input and output).

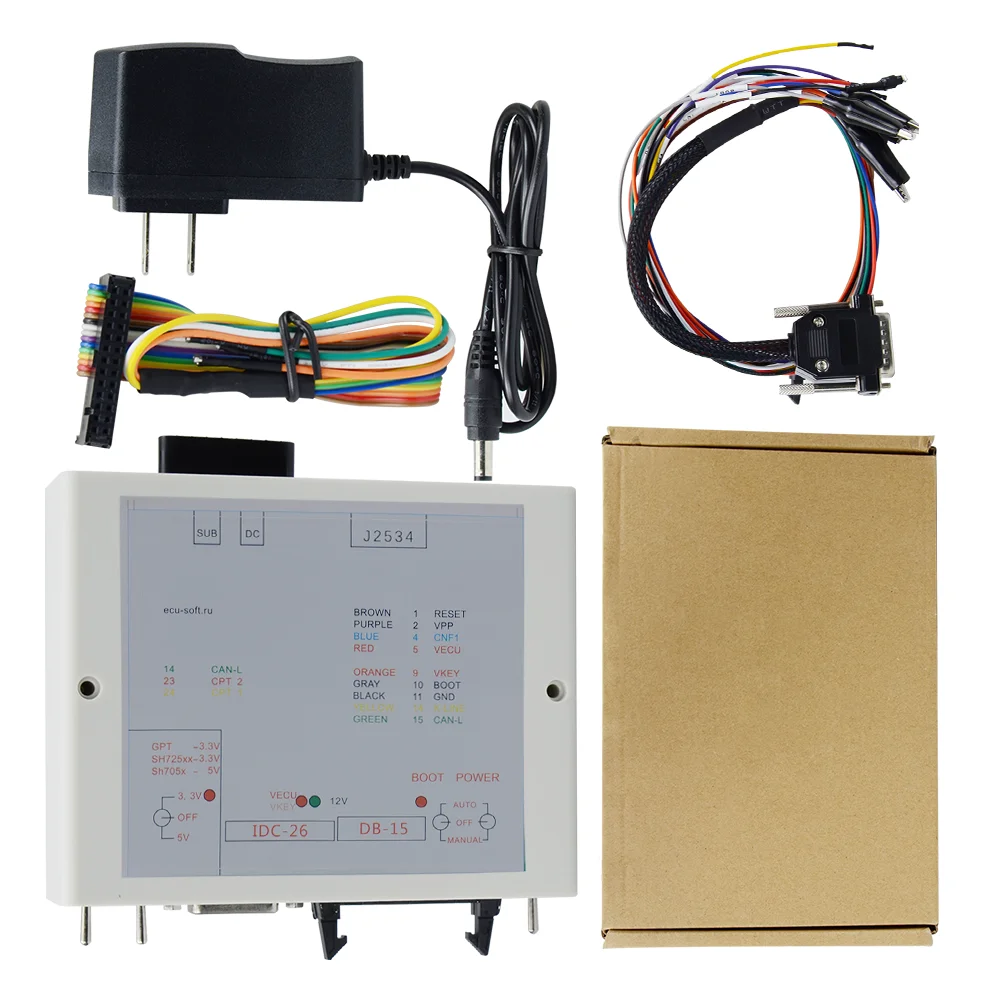

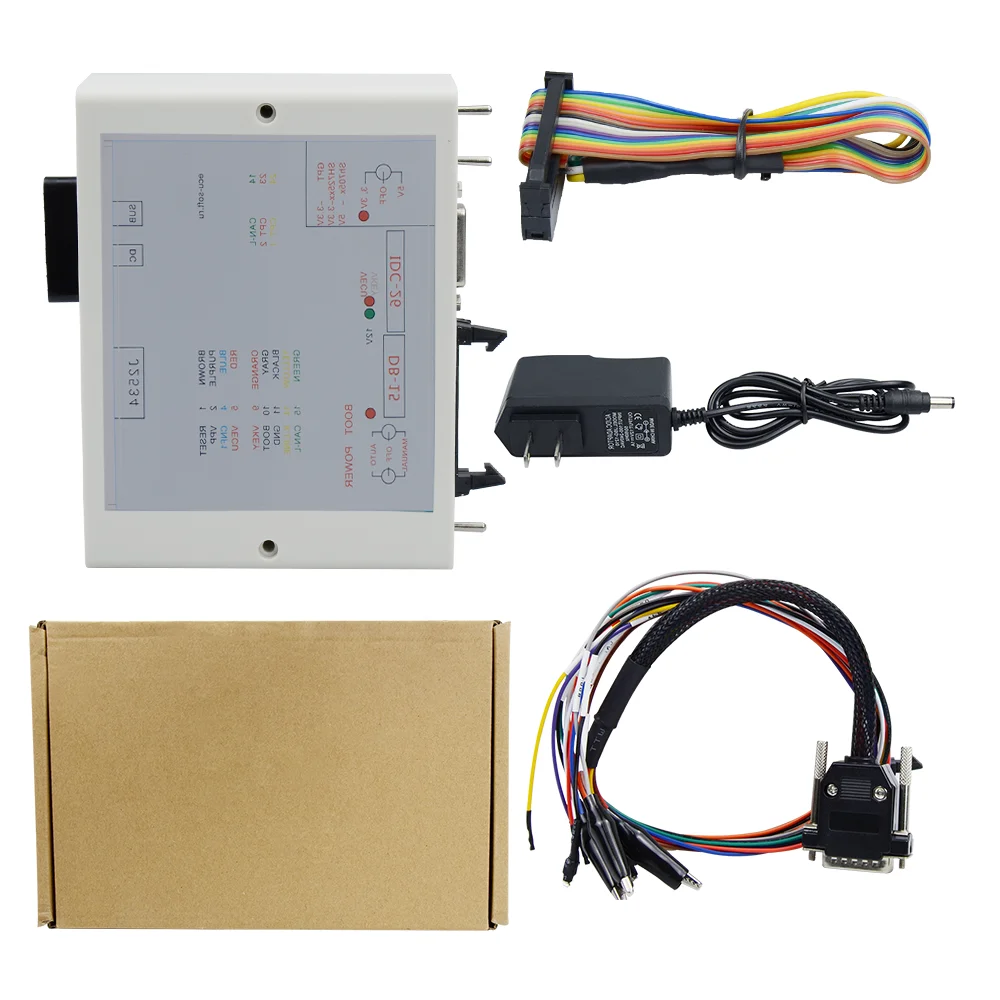

Package List:

1 x PowerBox for Flash

1 x Color Wire Diagram

1 x GPT Color Cable

1 x Charger Plug
