calipers for sale BSIDE Digital Transistor Tester ESR02pro Multimeter SMD Components Diode Triode Capacitance Inductance Resistance Lcr Meter ph measuring device Measurement & Analysis Tools

Code: TD-3256803463112255 62 orders
Free Shipping
$ 53.55
Color:
calipers for sale BSIDE Digital Transistor Tester ESR02pro Multimeter SMD Components Diode Triode Capacitance Inductance Resistance Lcr Meter ph measuring device
calipers for sale BSIDE Digital Transistor Tester ESR02pro Multimeter SMD Components Diode Triode Capacitance Inductance Resistance Lcr Meter ph measuring device
calipers for sale BSIDE Digital Transistor Tester ESR02pro Multimeter SMD Components Diode Triode Capacitance Inductance Resistance Lcr Meter ph measuring device
calipers for sale BSIDE Digital Transistor Tester ESR02pro Multimeter SMD Components Diode Triode Capacitance Inductance Resistance Lcr Meter ph measuring device
Note

Quantity:
Other people want this. 19 people have this in their carts right now.
Brand Name:  BSIDE
Origin:  CN(Origin)
DIY Supplies:  ELECTRICAL
AC Voltage:  N/A
Display Type:  Digital Display
DC Voltage:  N/A
AC Current:  N/A
Measuring Resistance Range:  0-50Mohm
Certification:  CE
DC Current:  N/A
Measuring Capacitance Range:  25pF-100mF
Operating Mode:  Auto Range
Model Number:  ESR02 pro
Is Smart Device:  No
Measuring Inductance Range:  0.01mH-20H

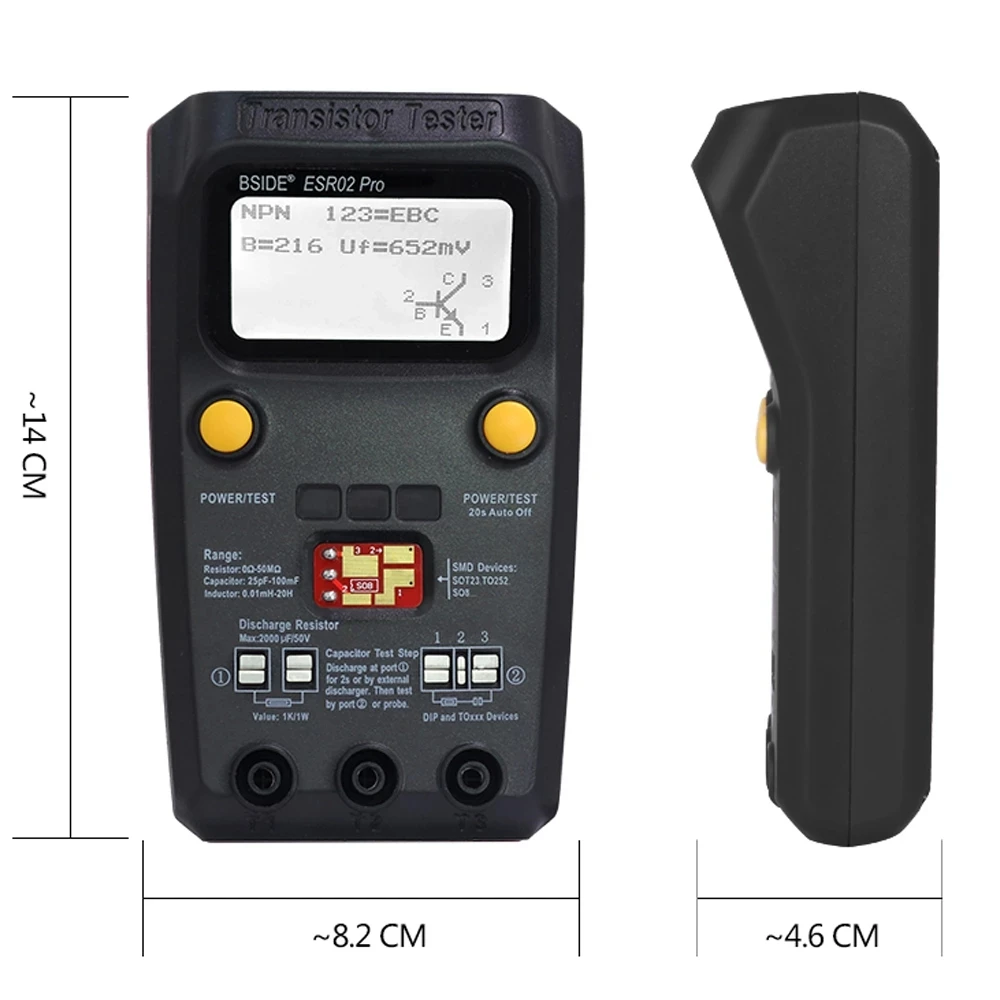

Dimensions:  14*8*5cm
Operating Temperature:  0 - 40 ℃
Left and right hand operation mode:  :YES
SMD Component tester:  :YES
Test line interface:  :YES
Inductor:  :0.01mH-20H
ESR Parameter table:  :YES
Component groove:  :YES
Capacitive discharge device:  :YES
esr continuous measurement function:  :YES
Capacitor ESR:  :2uF-50mF

Good News:

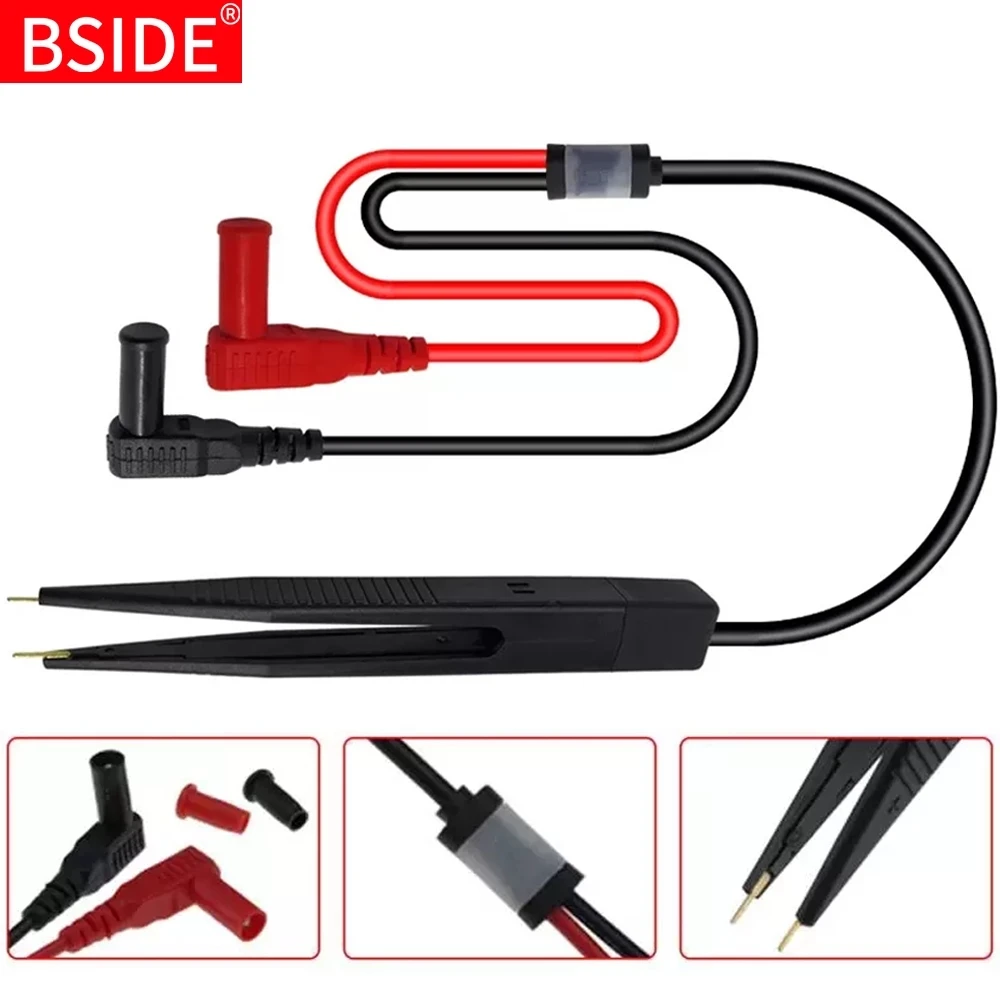

You only need to pay an extra $2 to get SMD Inductor Test Tweezers Clips worth $8. This is a limited time event, I hope you like it!

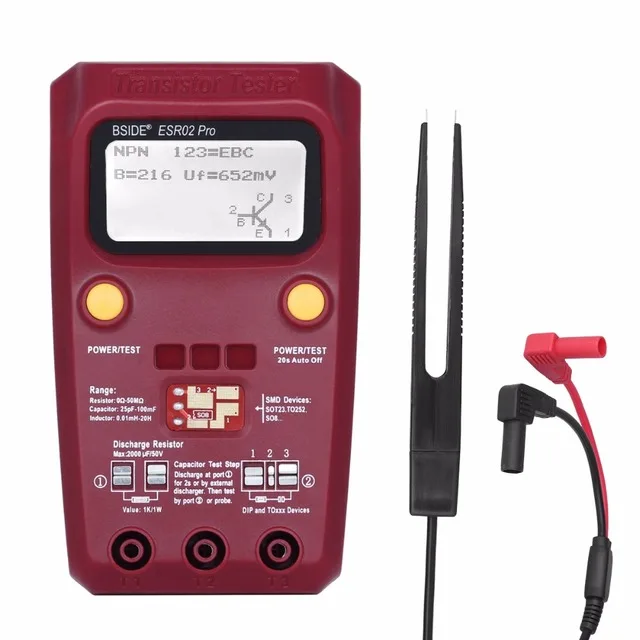

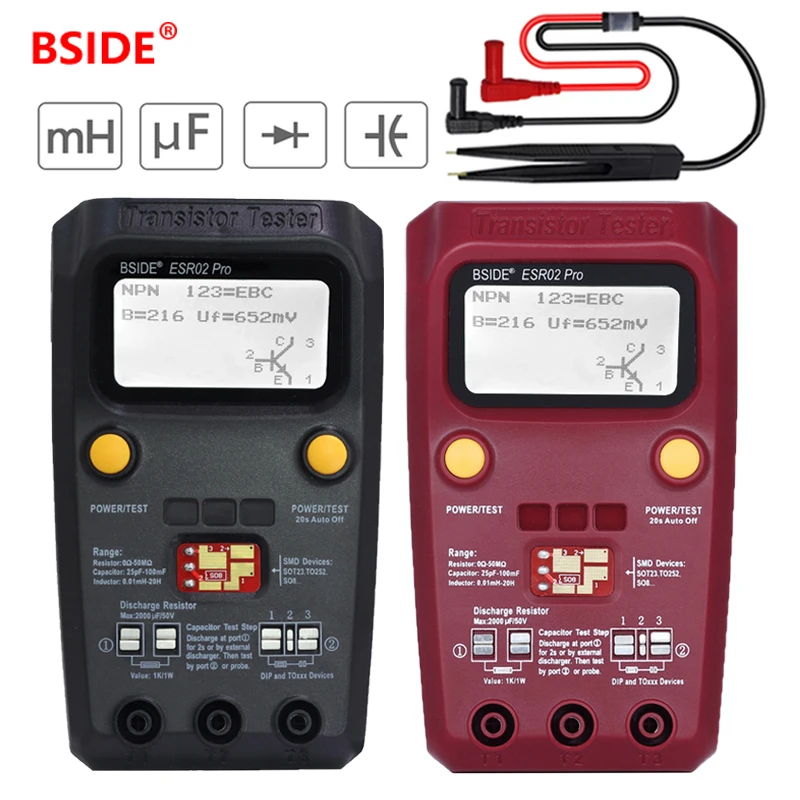

Choose the color you like! ( Red or Black )

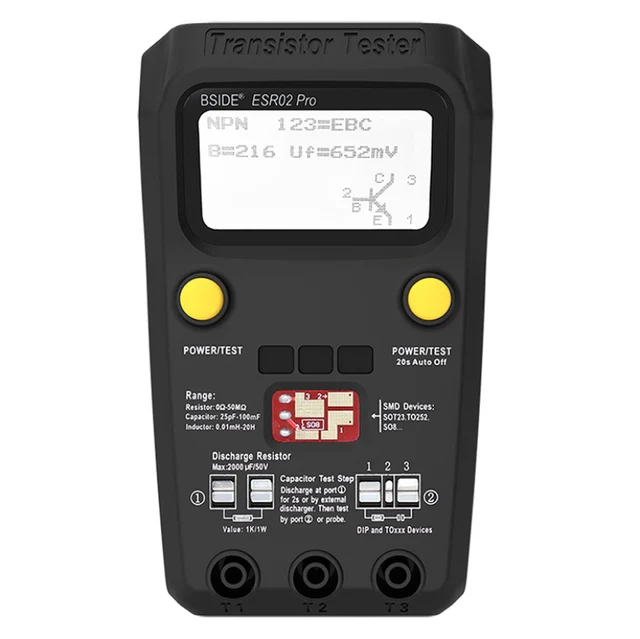

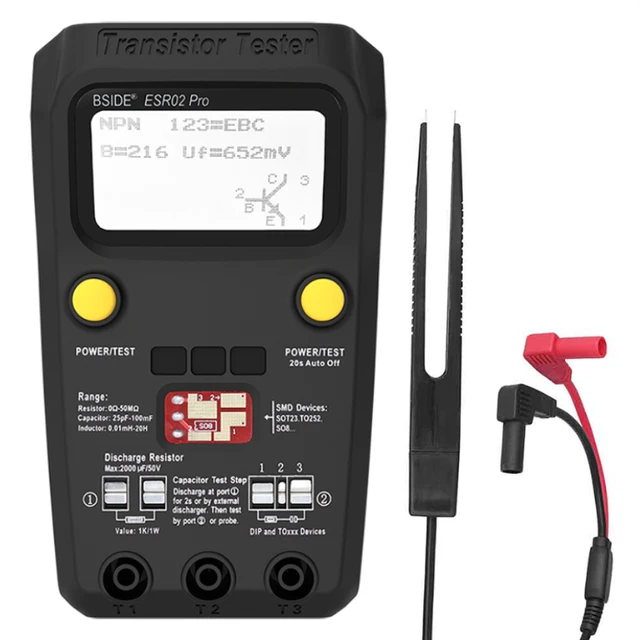

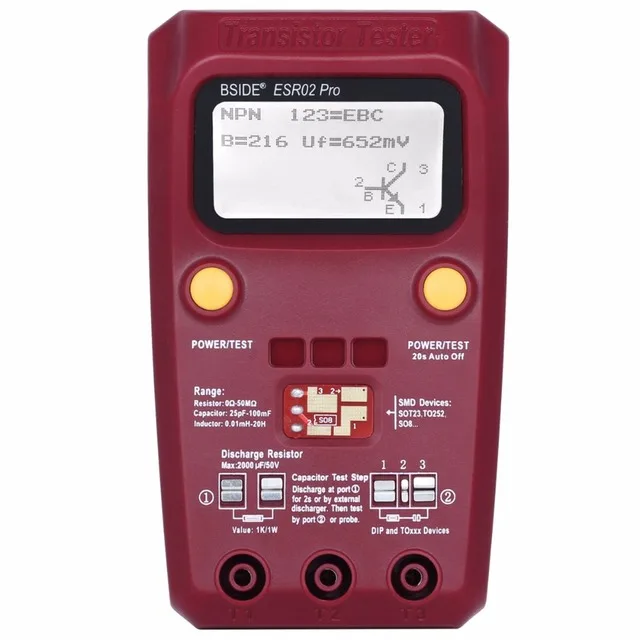

ESR02 pro Digital transistor SMD Components tester Diode Triode Capacitance Inductance Multimeter ESR Meter.

Descriptions:

This instrument is an instrument developed for electronics engineers, developers, electronic repair, production plants and enthusiasts.

It is very easy to test plug-in and SMD devices, also can test different kinds of diodes, triodes, thyristors, MOSFET, enable to analysis the device type, the polarity of the pin, the output HFE, the valve voltage, the junction capacitance of the FET.

Support calibration function, you can choose to have original test clips.

Parameters:

Resistance: 0Ω-50MΩ.       Resolution: 0.01Ω.

Capacitance: 25pf-100mf.  Resolution: 1pf.

Inductance: 0.01mH-20H.  Resolution: 0.01mH.

Measuring capacitance ESR resolution: 0.01Ω.

Things to note:

Before testing the capacitor, be sure to discharge it, otherwise it may damage the internal circuit.

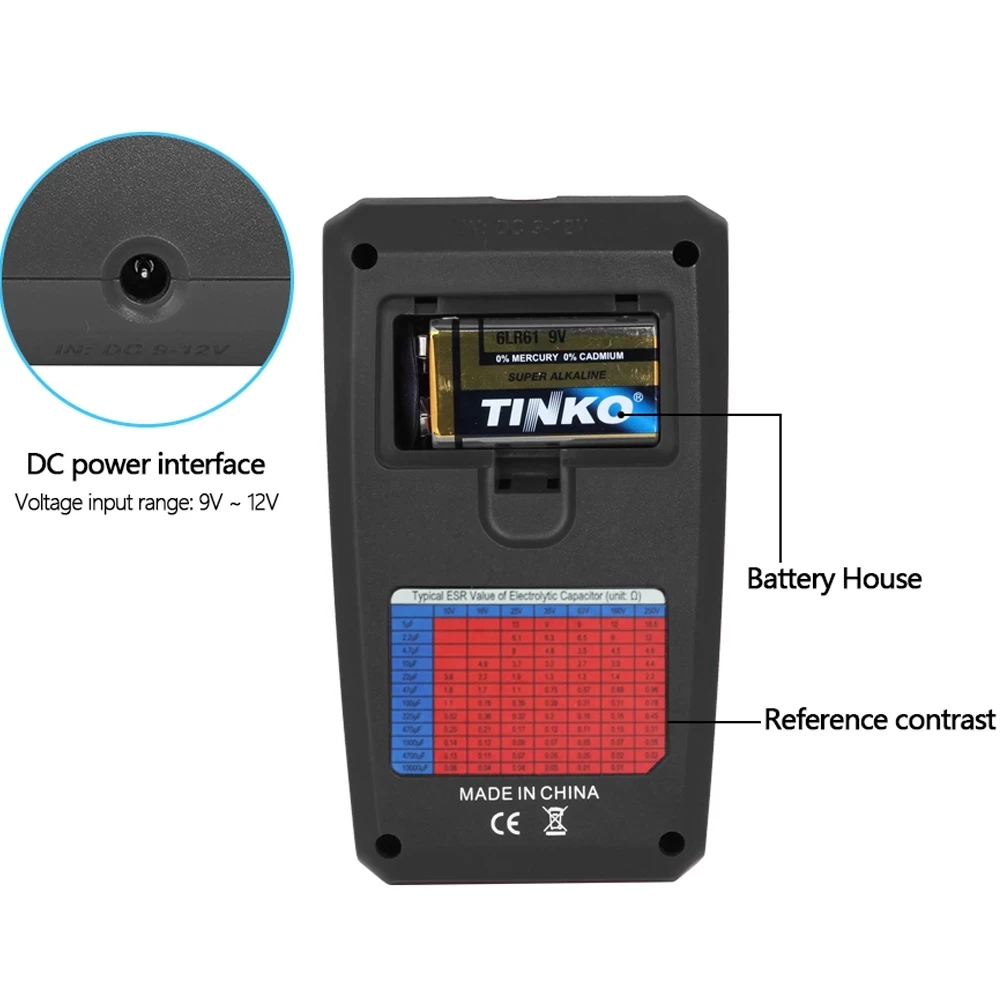

If using DC supply, please choose DC 9V - 12V adapter (including 9V and 12V).

Can be powered by a 9V 6LR61 battery (not included), when the battery power is under 6V, please replace a new one.

How to use instructions:

Push "POWER / TEST" to power on and start a test, multiple measurements can be repeated by this key, auto power off 20 seconds after measurement.

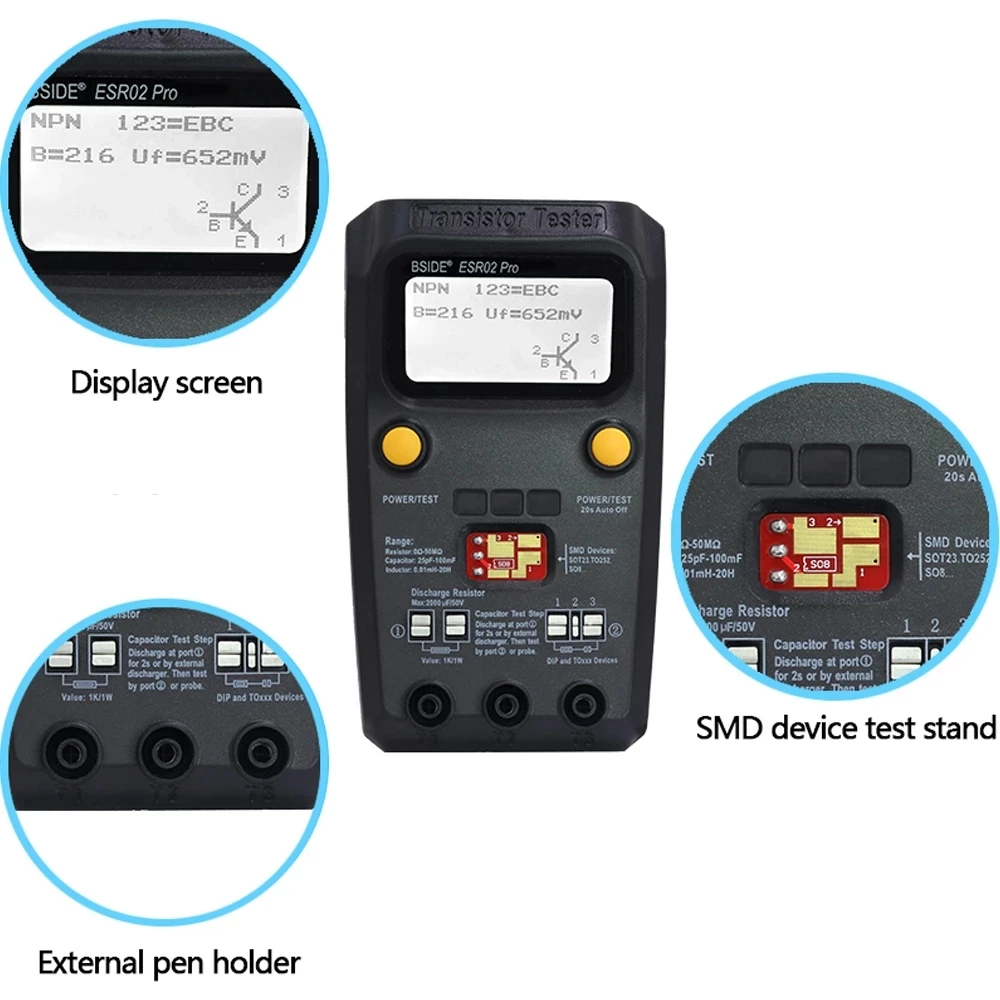

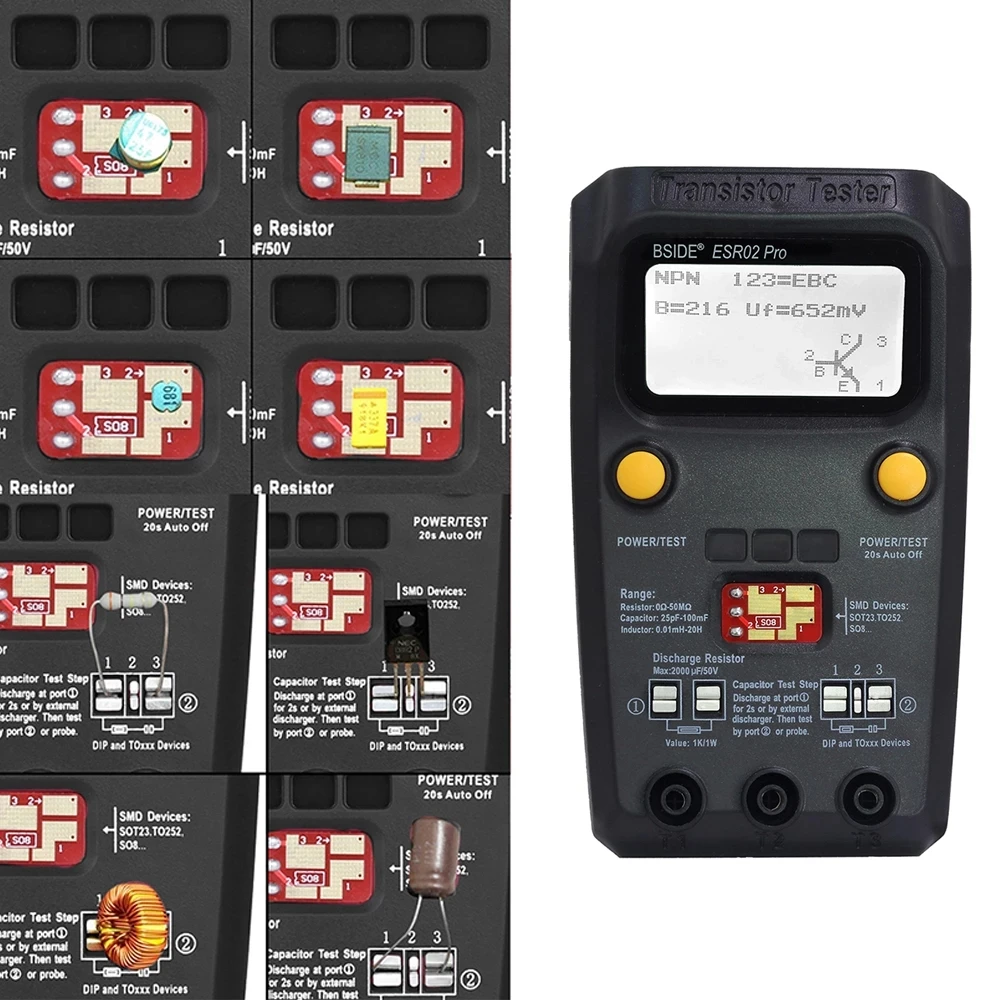

Provide three kinds of socket, each socket pin 1, pin 2 and pin 3 are connected.

There is a table "typical ESR value of electrolytic capacitor" at the back, it is for guiding only, these are typical value for standard grade electrolytic capacitor at room temperature.

Calibration:

Short the test pin 1, 2, 3 together and push "POWER / TEST" button, then the screen prompts to enter calibration, push the button again within 2 seconds to confirm.  Few seconds latter the screen prompts to release pin 1, 2, 3, release them and wait for calibration finish.

Package weight: 0.25 kg  Package Size(L x W x H): 17.50 x 10.00 x 6.00 cm / 6.89 x 3.94 x 2.36 inches.

Package Contents:

1 x ESR02PRO Digital Transistor Tester.

1 x English User Manual.

1 x Color box.

1 x Protective bag.

1 x ESR test clip (optional).
