business security cameras 5MP 8MP 4K CCTV Security Camera Tester 5 Inch TFT LCD Monitor For 4 IN 1 TVI AHD CVI Analog Security Cam Tester Video Audio Test wifi security camera Surveillance Items

Code: TD-1005003261225169 10 orders
Free Shipping
$ 147.48 $ 196.64
Quantity:
Other people want this. 20 people have this in their carts right now.
Brand Name:  BOAVISION
Maximum IR Distance(m):  CCTV Camera Tester
Certification:  CE
Lens:  CCTV Tester
Origin:  CN(Origin)
Sensor Size:  Security Tester
Sensor Type:  Security Camera Tester
Model Number:  MATC-IV8W
Plug Type:  EU plug
LCD Screen:  5.0 inch TFT-LCD, (RGB) 800x 480 resolution
Video Test:  NTSC/PAL (Auto adapt)
LCD Adjustment:  Brightness, Contrast, Saturation adjustable
Video IN/OUT:  1 Channel BNC Input & 1 channel BNC Output
VGA/HDMI input:  Max support 1920X1080 video input
PTZ Controller:  Support RS485
DC12V Power Output:  Output DC12V 1A power for camera
Audio input test:  1 Channel audio signal input
Battery:  Built-in 18650 2600mA battery X 2
Dimension:  194mm x 112mm x 48mm / 540g

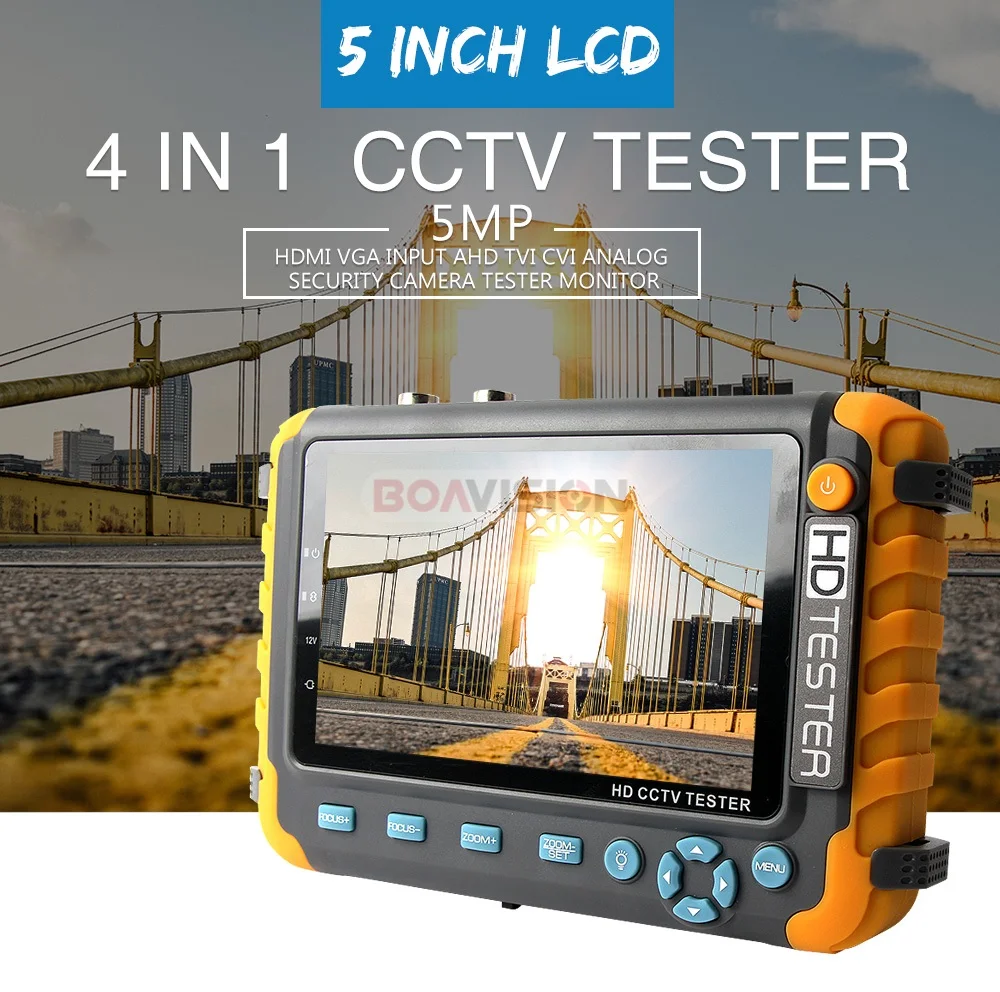

5 INCH LCD

4 IN 1 CCTV TESTER

4 IN 1 CHIP

The 4IN 1 Testerl support TVI CVI AHD Analog CVBS camera testing

HD DISPLAY

Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display

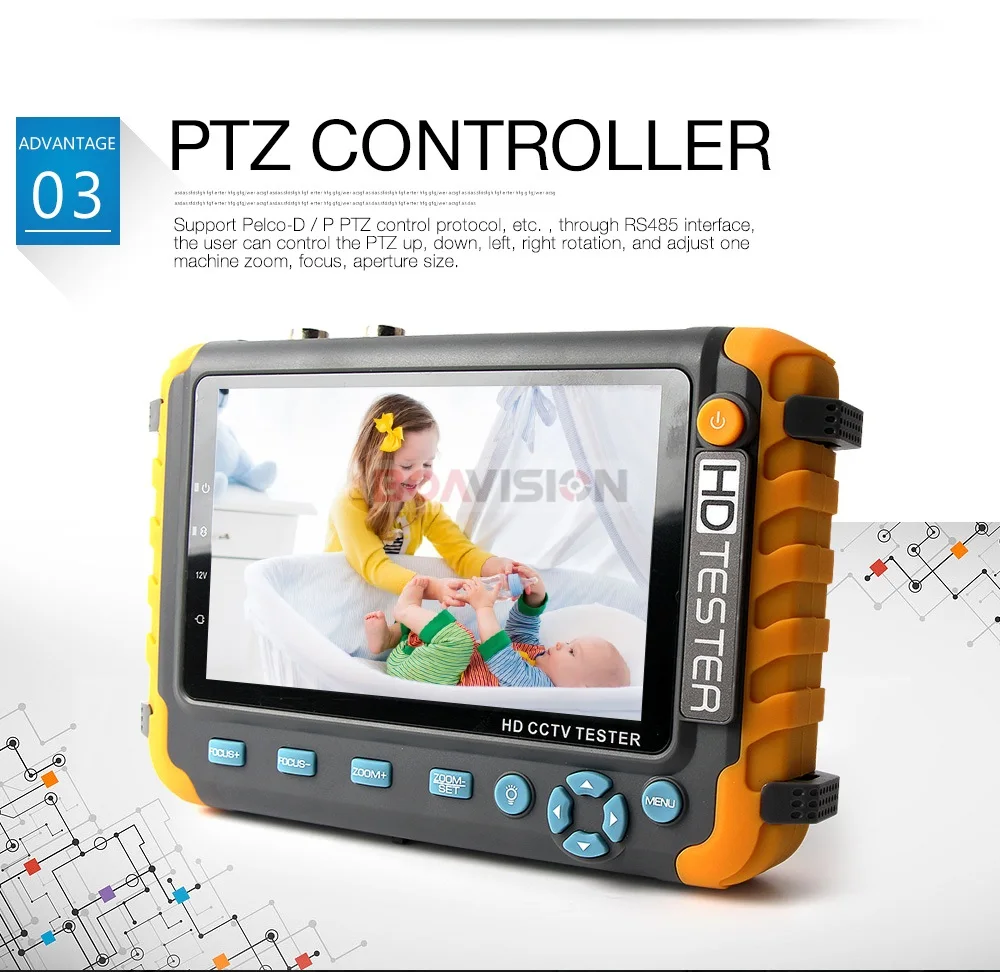

PTZ CONTROLLER

AHD+TVI+CVI+CVBS

Functional connection diagram

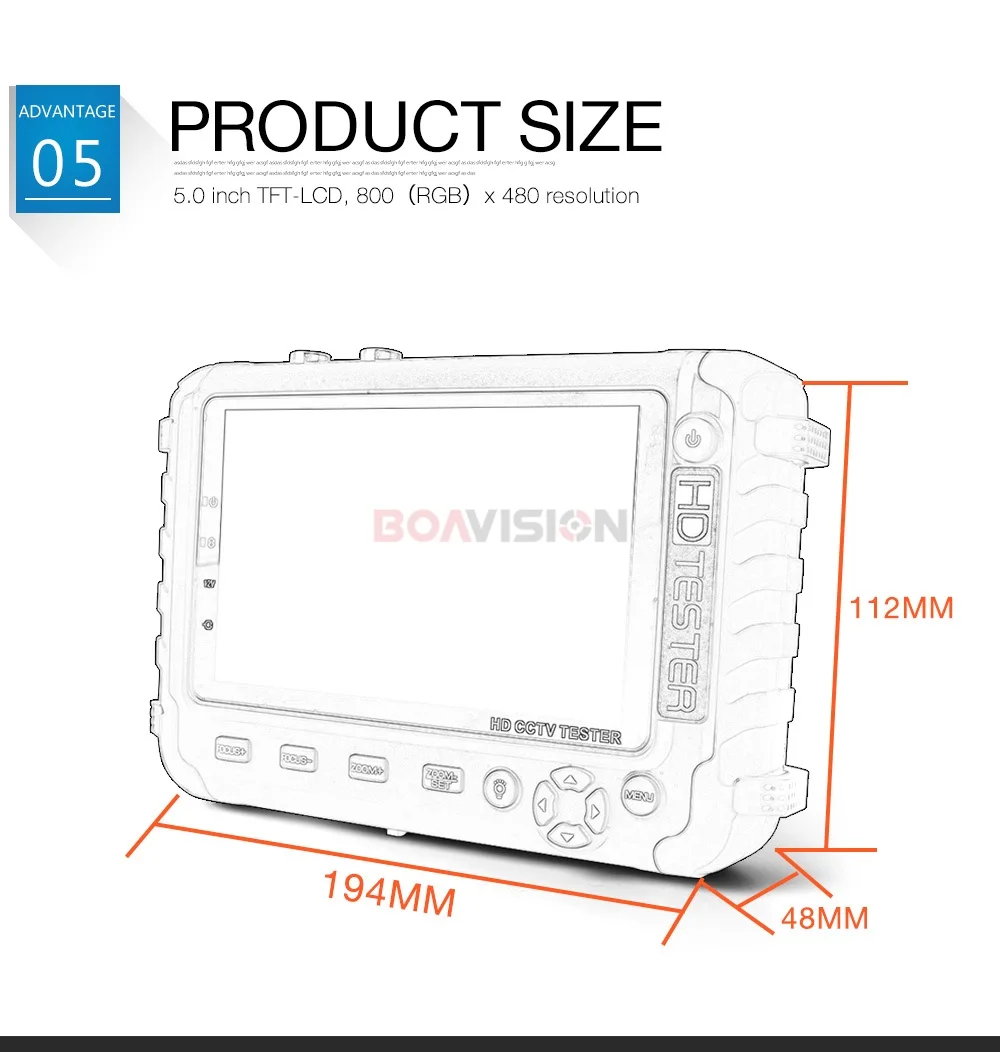

PRODUCT SIZE

5.0 inch TFT-LCD, 800 (RGB) x 480 resolution

PRODUCT ADVANTAGE

Other brand vs Product

18650 2600MA BATTERY

After charing 3-4 hour,working time lasts 11 hours

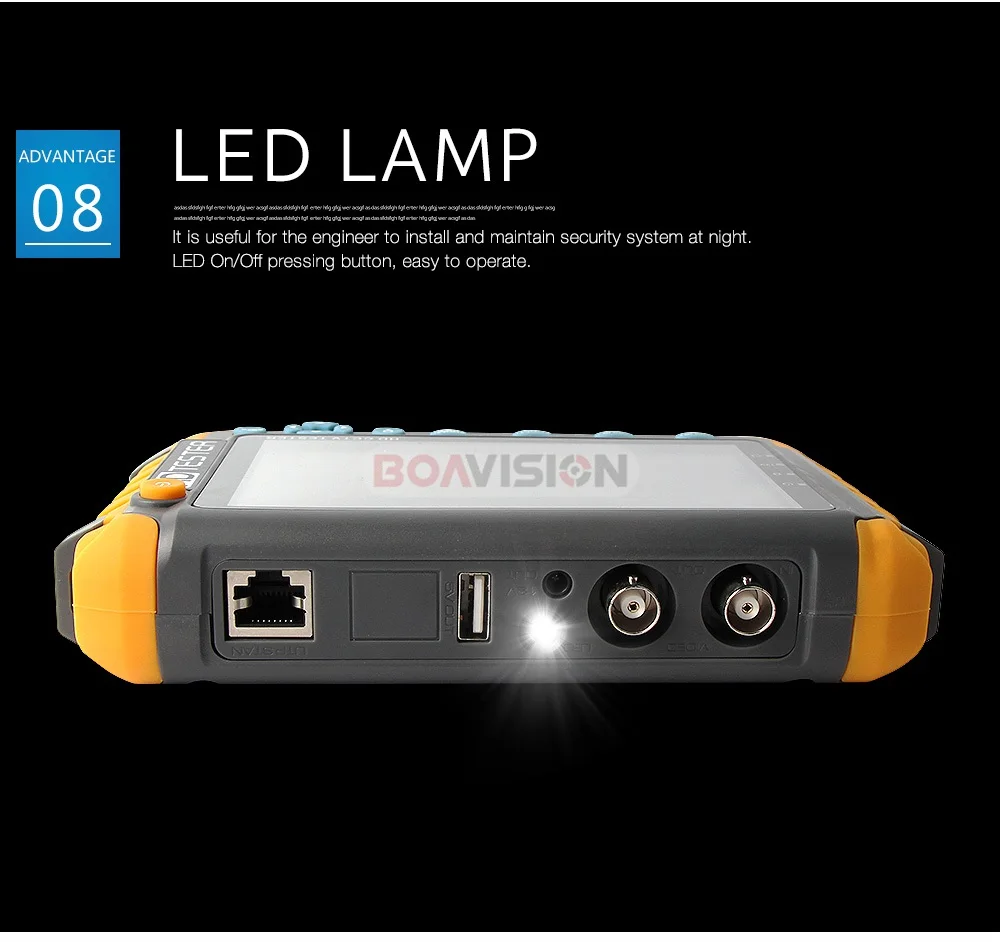

LED LAMP

It is useful for the engineer to install and maintain security system at night.LED On/Off pressing button,easy to operate.

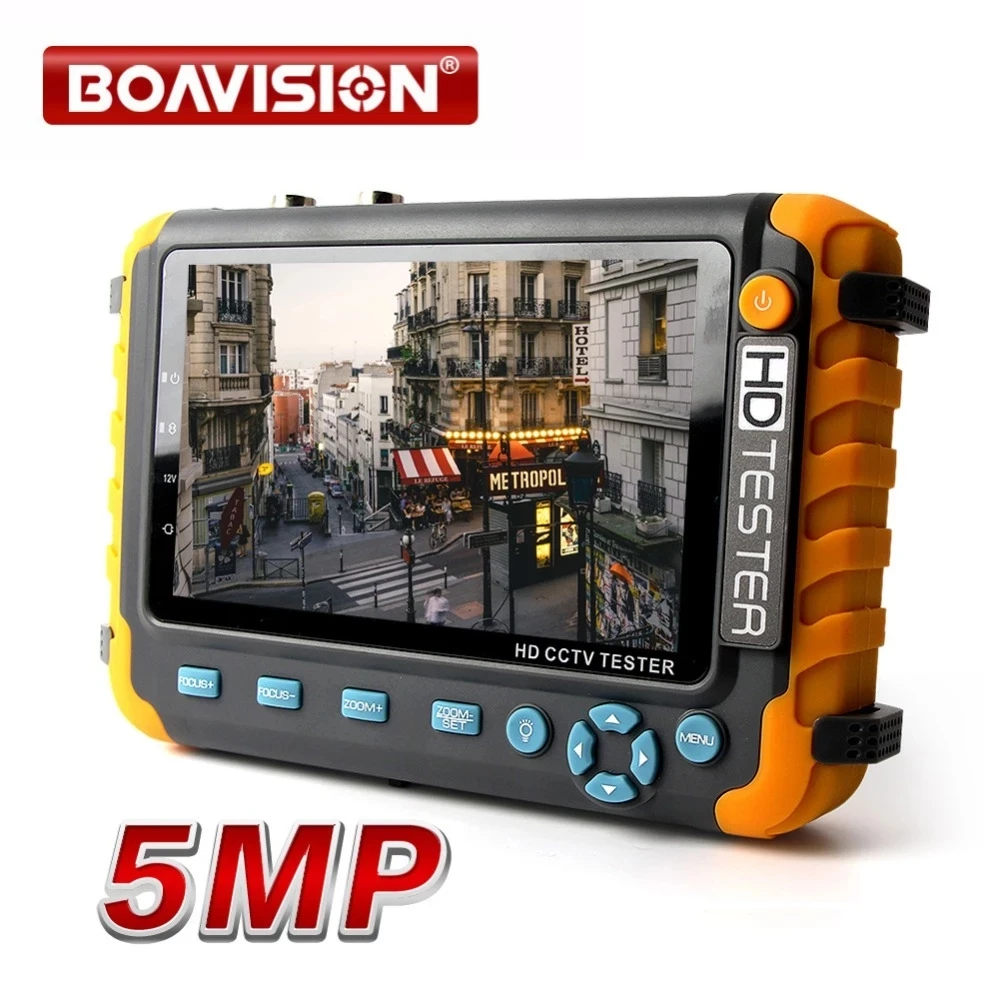

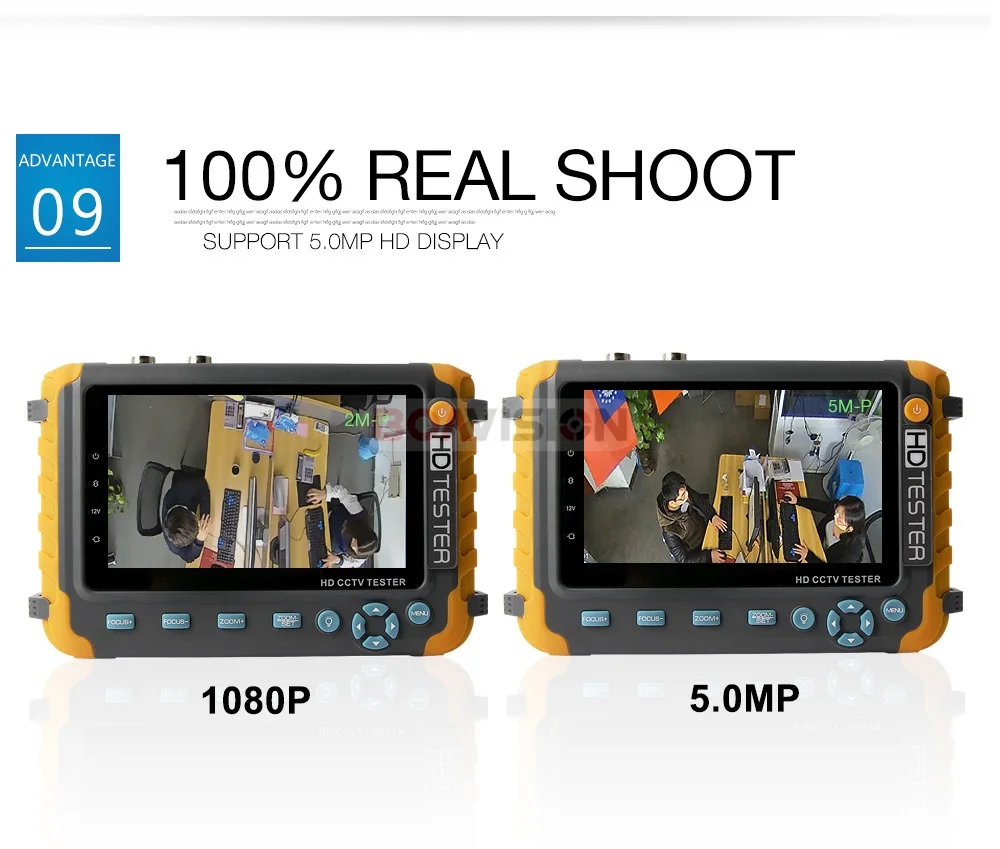

100% REAL SHOOT

SUPPORT 5.0MP HD DISPLAY

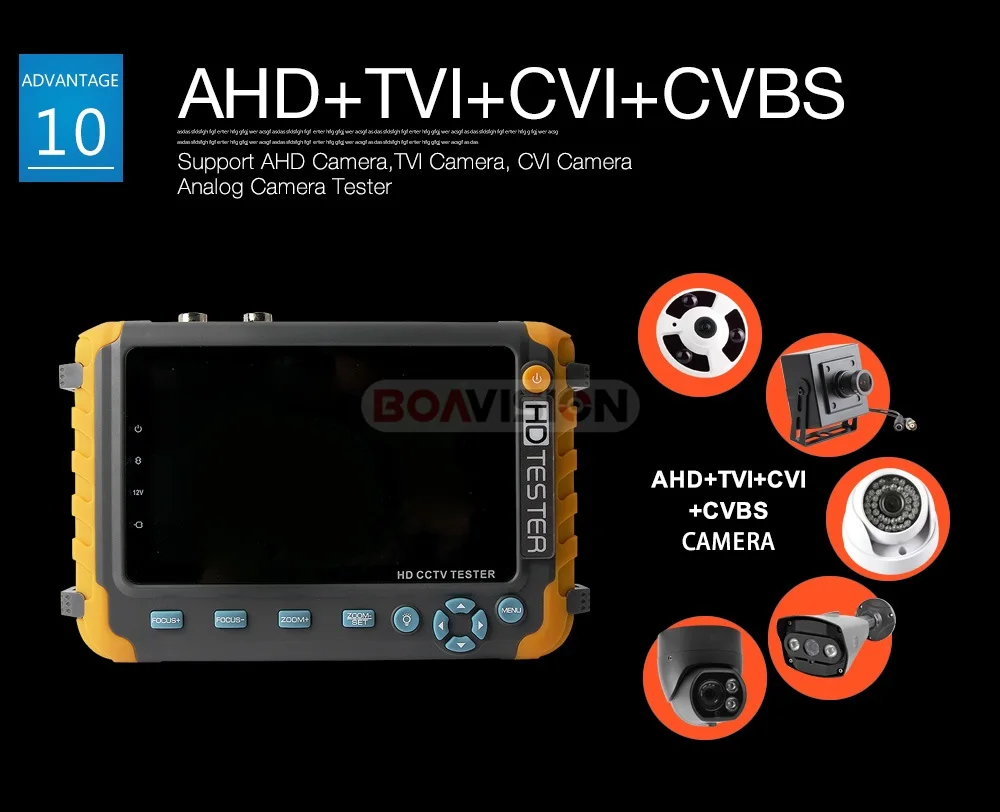

AHD+TVI+CVI+CVBS

Support AHD Camera,TVI Camera,CVI Camera Analog Camera Tester

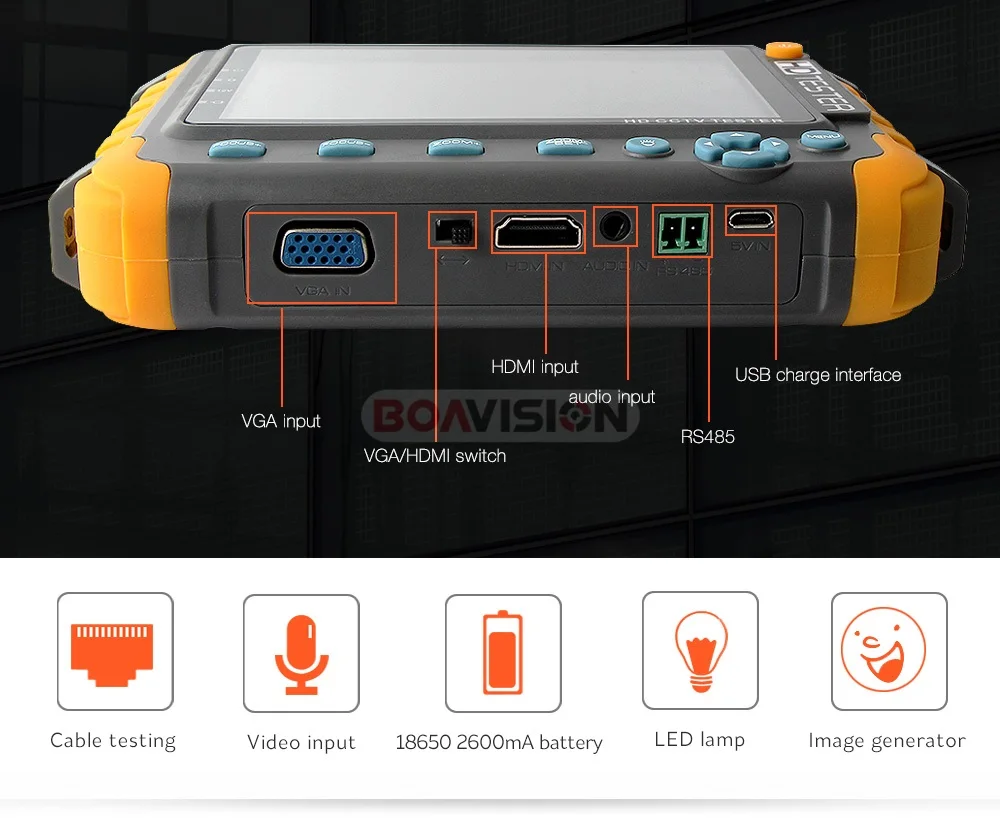

The 4 IN 1 Testerl support TVI CVI AHD Analog CVBS camera testing, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, LED lamp etc;

Product overview:

The new HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, like TVI,CVI, AHD,Analog, CVBS. It also provides many useful functions, such as video display, PTZ control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data searching, cable testing, high precision digital multi-meter, LED lamp etc.

Key feature

* Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display,

*  Support PAL/NTSC standard video signal. CVBS testing.

* PTZ controller

Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

* Image generator

Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section

* DC12V 1A output power

Power the camera with DC12V (1A) power from the tester.

* Audio testing

Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

* Improvement cable test

UTP cable, telephone cable etc order and connectivity test, can save testing report

* VGA/HDMI input

Support 1920X1080VGA/HDMI 1.0 video input, HDMI or VGA is optional via switch.

* TVI camera test

HD TVI video surveillance testing, support

5MP 25,30fps,

 8MP(4K) 15fps

. When TVI signal input, the tester will display HD TVI camera image.

* CVI camera test

HD TVI video surveillance testing, support

5MP 25,30fps,8MP(4K)

15fps

. When TVI signal input, the tester will display HD TVI camera image.

* AHD camera test

HD video surveillance testing, support AHD 2.0 version,

5MP

25,30fps,

8MP(4K)

15fps

. When AHD signal input, the tester will display the AHD camera image.

* LED lamp

It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.

Specification

Model

MATC-IV8W

LCD screen

5.0 inch TFT-LCD, 800(RGB)x 480 resolution

Video test

NTSC/PAL (Auto adapt)

LCD adjustment

Brightness, Contrast, Saturation adjustable

Video IN/OUT

1 channel BNC Input & 1 channel BNC Output

VGA/HDMI input

Max support 1920X1080 video input

PTZ Controller

Support RS485

PTZ Protocol

Compatible with protocols PELCO-D/P,

Baud Rate

Baud Rate: 600,1200, 2400, 4800, 9600, 14400bps

Color bar generator

Support both PAL / NTSC format’s standard color bar output

(Red, Green, Blue, White, Black, Grey) and testing image output

UTP Cable Test

Display UTP cable connection status , cable type and

the sequence of wires as well as read the number of the test box.

DC12V power output

Output DC12V1A power for camera

Audio input test

1 channel audio signal input

Coaxial HD test

TVI test

1 channel TVI input(BNC interface),

support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps,

5MP 25 / 30fps/8MP(4K)

15fps

CVI Test

1 channel TVI input(BNC interface),

support 720p 25 / 30 / 50 / 60fps, 1080p 25 / 30fps,

 5MP 25 / 30fps

/

8MP(4K)

15fps

AHD Test

1 channel AHD input (BNC interface),

support AHD 2.0 version, 720p 25 / 30fps, 1080p 25 / 30fps,

5MP 25 / 30fps

/

8MP(4K)

15fps

POWER

Power Adapter

DC 5V(1.5A)

Battery

Built-in 18650 2600mA battery X 2,

After charging 3-4 hour, working time lasts 11 hours

General

 Language

 English and Chinese optional

Working Humidity

30%-90%

 Dimension

194mm x 112mm x 48mm / 540

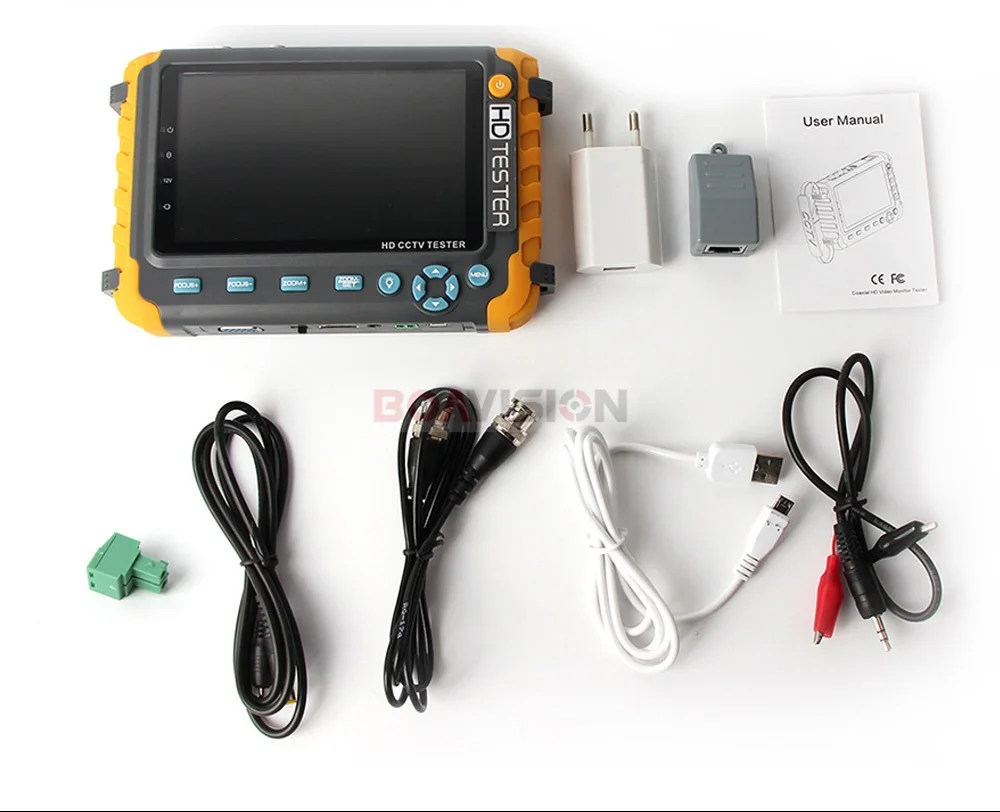

Packing List

1* HD 5MP Coaxial Tester

1* Adapter DC5V 1.5A(

with USB cable)

2* International Standard 18650 2600ma battery

1* BNC cable

1* RS485 connector

1* Power output conversion cable

1* Audio cable

1* Lanyard

1* Tool bag

1* Instruction Manual
