32 Channel LED Controller with Motion Sensor for Light Strip Stair Dimming
Light Indoor Motion Night light DC12V & 24V Flexible LED Strip for
The Stair

Product description:

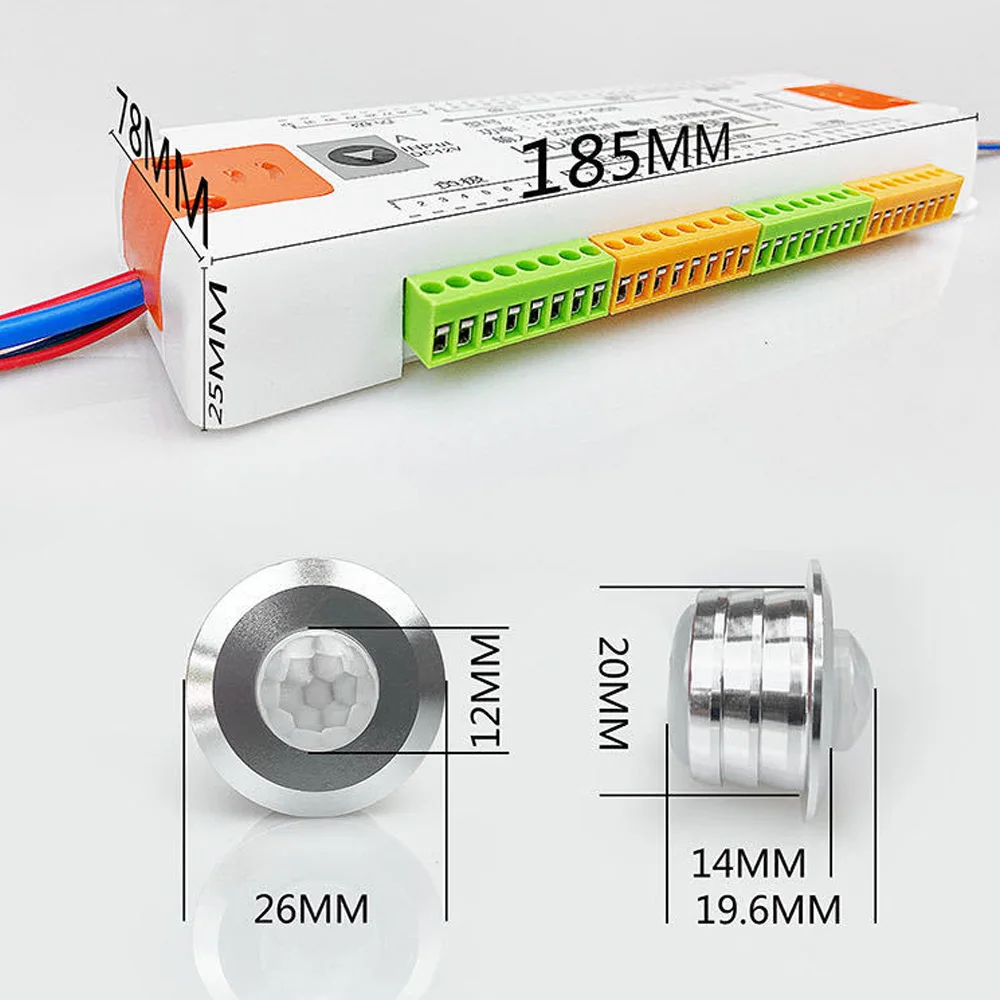

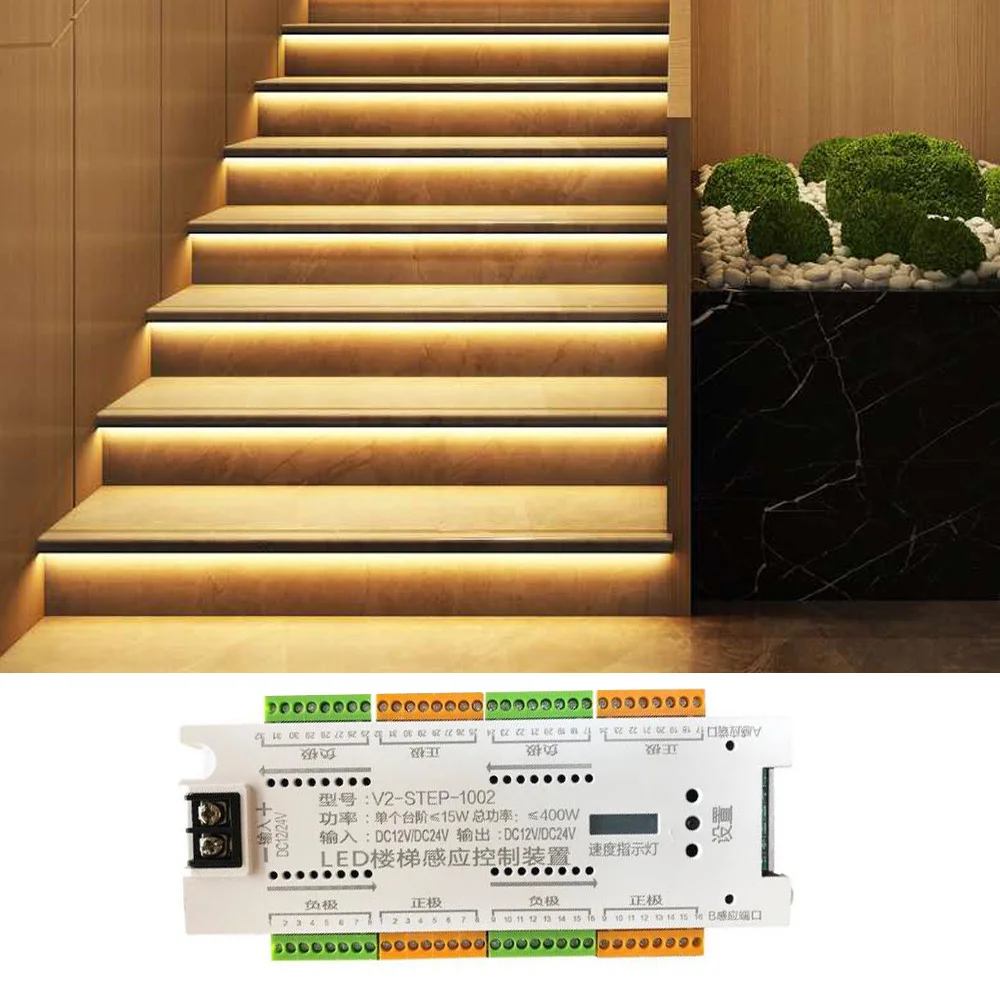

Product name: 32-channel stair sensor

Voltage: DC12V/DC24V

Power: ≤350w

Channel: 32

Sensors: 2

Controller operation:

1 Long press for 3 seconds to set the number of lights on the stairs, click the button until all lights are on, up to 32 steps, long press again to confirm.

2 The blue light indicates that the serial number light is turned on

3 Touch the button to adjust the speed of turning off the lights on the controller. The higher the four gears, the slower the lights will turn on and turn off.

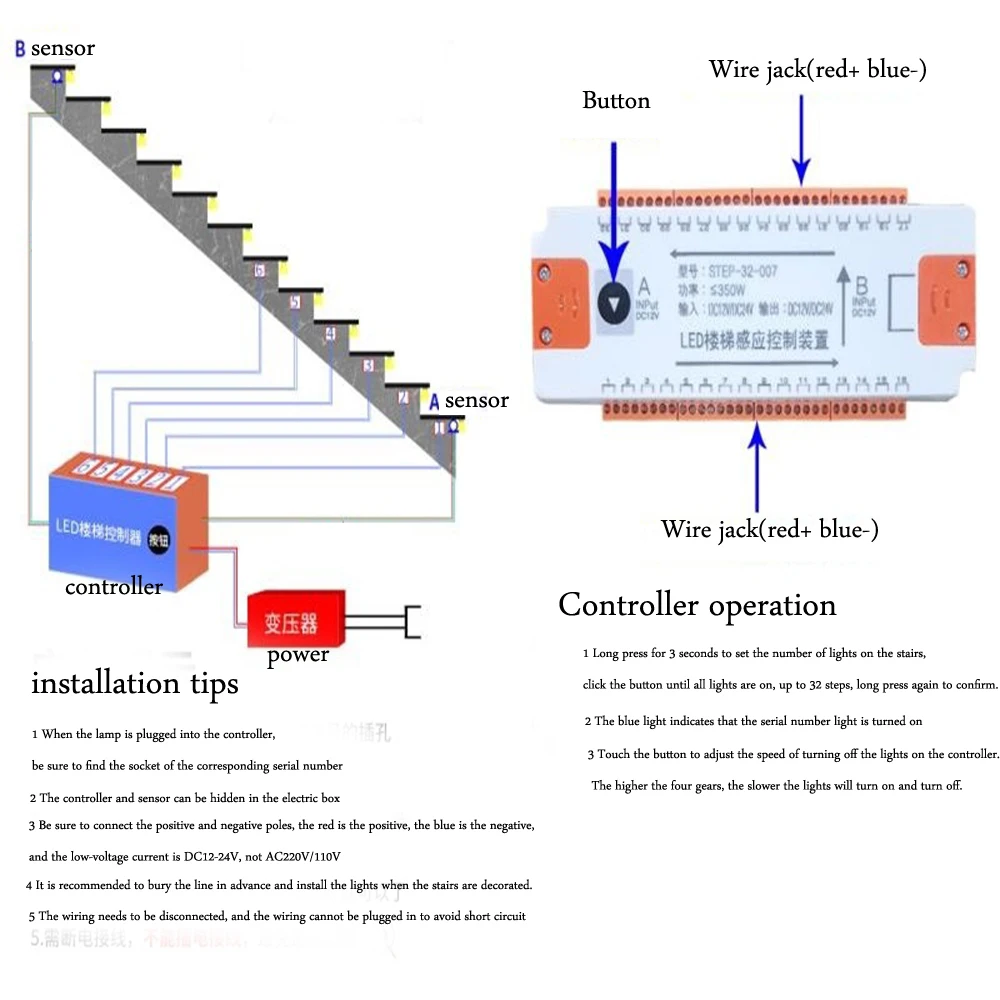

Installation Tips:

1 When the lamp is plugged into the controller, be sure to find the socket of the corresponding serial number

2 The controller and sensor can be hidden in the electric box

3 Be sure to connect the positive and negative poles, the red is the positive, the blue is the negative, and the low-voltage current is DC12-24V, not AC220V/110V

4 It is recommended to bury the line in advance and install the lights when the stairs are decorated.

5 The wiring needs to be disconnected, and the wiring cannot be plugged in to avoid short circuit

NOTE:

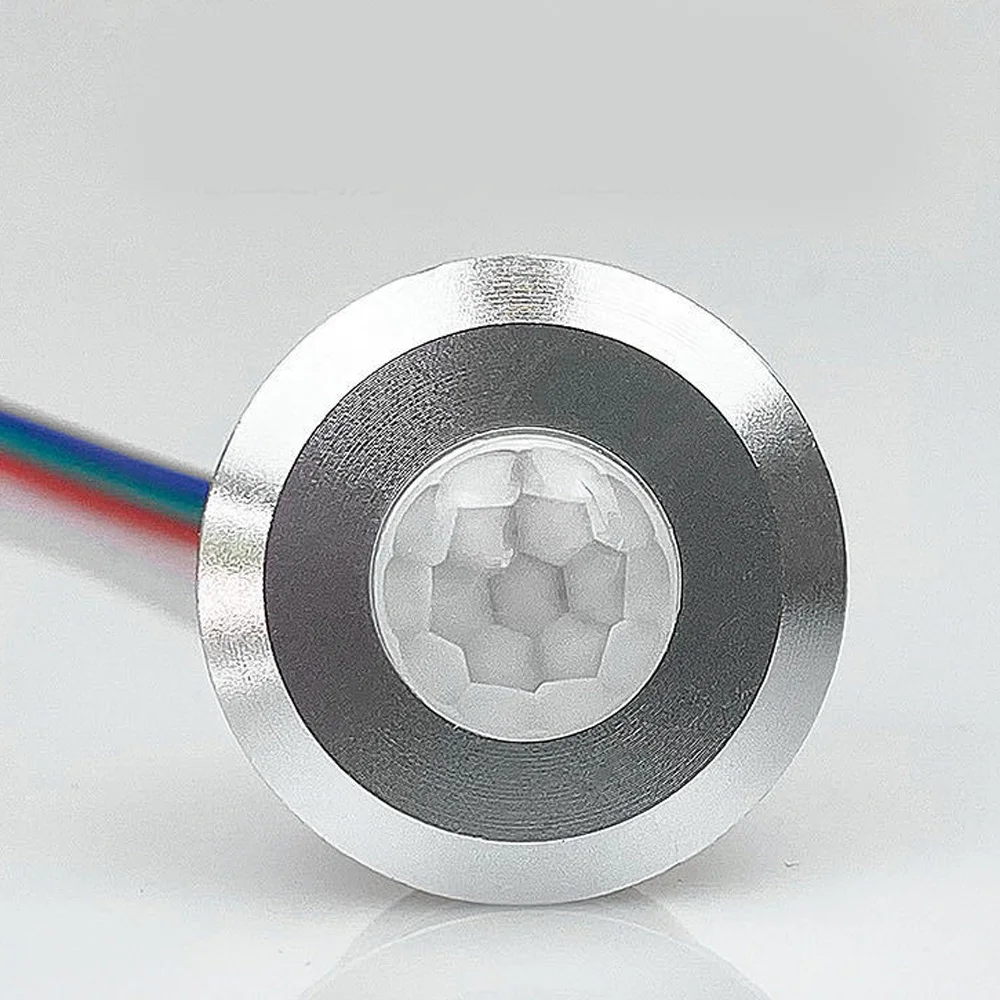

1-A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.
2- The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.
3- The product is not waterproof.

Important
note: The positive and negative terminals of the power supply input of
the controller cannot be reversed, the red wire V+ is connected to the
positive electrode of the switching power supply, and the blue (or black
wire) V- is connected to the negative electrode of the switching power
supply.

COB Light Strip

Specification:

Input Voltage: DC12V

Wattage: 6W

LED quantity: 320 LEDs/M

Waterproof level: IP20 Non-waterproof

Color temperature: Nature white(4000K), Warm white(3000K), White(6000K)

Color Rendering Index: ＞80

Operation temperature: -20℃-+45℃

Storage temperature: -20℃-+60℃

View angle: 180°

Note:

1.The minimum bending diameter of the LED strip is 60 mm. This avoids direct or indirect damage to the components on the FPC and FPC, resulting in an abnormality in the led strip.

2. Double-sided tape for LED strips, with its superior glue and weatherability, can be attached to any transparent glass, metal and plastic surface, but some surfaces, such as cloth and wood, can affect their function and durability. Please test the adhesion of the light bar before installation.

3.This product requires an anti-corrosion environment. For example, avoid moisture, dripping or other adverse factors.

4. If the led strip is connected more than 5 meters,There may be a voltage drop, which causes the brightness of the light to be inconsistent. Please adding the voltage every 5 meters.

Product package:

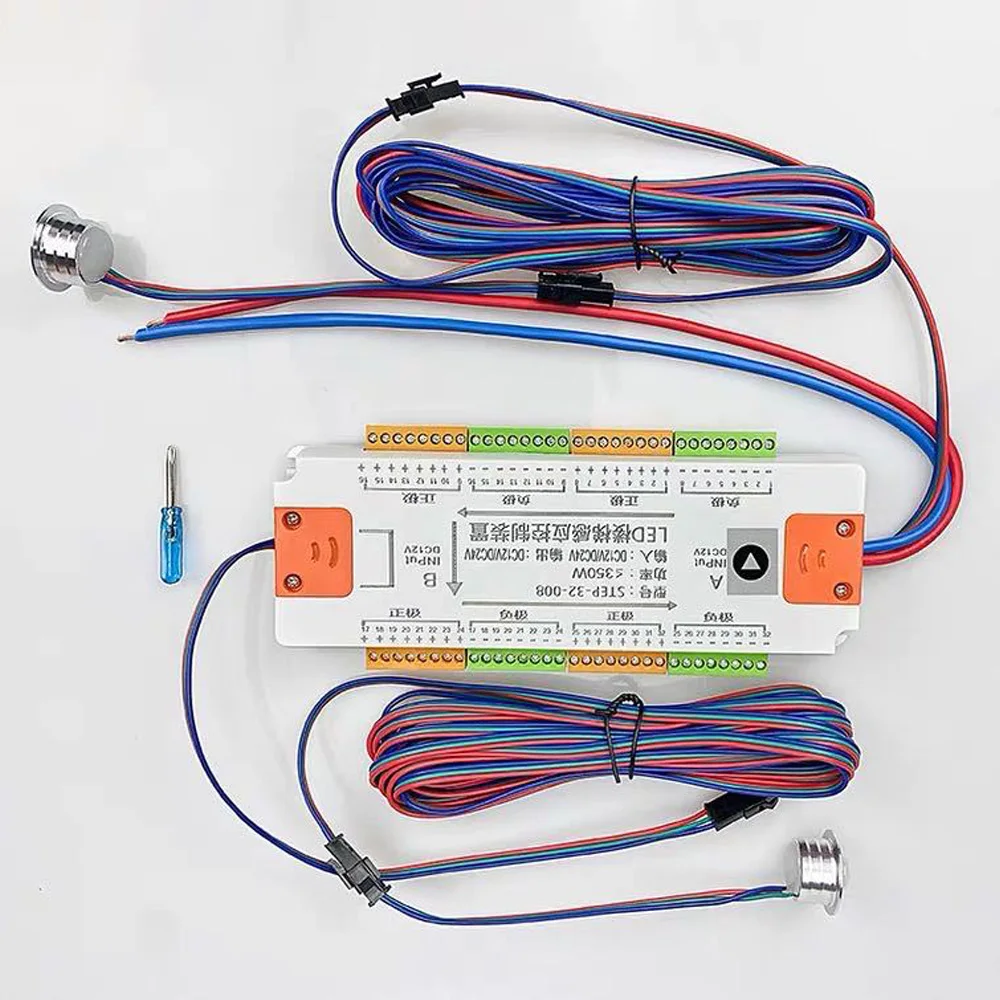

1. Only LED controller: 1pcs LED Controller + 2pcs sensor + 2pcs extension cord with SM JST Connector

2. Only light strip: 1 * 5m White PCB Strip (12V 5050 60leds/m strip or 12V 320leds/m COB strip ) (according to your choice)

3. Only Power Adapter： 30A 12V LED Power Adapter

4. Only wire：20/50/100m wire extend cable(according to your choice)
