best wireless router for home English Version E5885 Huawei Mobile WiFi Pro2 E5885Ls-93A 4G LTE Portable Router Power Bank wifi router 3G Modems

Brand Name:	Huawei
Certification:	CE
Origin:	CN(Origin)
Model Number:	E5885
Package:	Yes

Unlocked Huawei E5885 Mobile WiFi Pro2 4G LTE FDD/TD 300Mbps Mobile WiFi Router

Huawei Mobile WiFi Pro 2 is a new 4G pocket router supporting LTE advanced networks. Like its predecessor Huawei Mobile WiFi Pro E5770, Pro 2 combines the functions of mobile 4G router and power bank with larger battery up to 6400mAh. With HiSilicon LTE Cat6 Chipset, Huawei Mobile WiFi Pro 2 could achieve peak download speed up to 300Mbps and upload speed to 50Mbps. Up to 32 WiFi-enabled devices could access internet through the wireless network from Mobile WiFi Pro 2. There is one Ethernet port(RJ45) to provide network for desktop. The Huawei Mobile WiFi Pro2 has been available in Saudi Arabia and the specific model number is Huawei E5885Ls-93a.

Huawei Mobile WiFi Pro 2 E5885 Technical Specifications:

* Product type: 4G Portable Router/4G LTE Mobile Hotspot

* Category: LTE Cat.6 pocket router

* Chipset: Hisilicon LTE Cat6 chipset

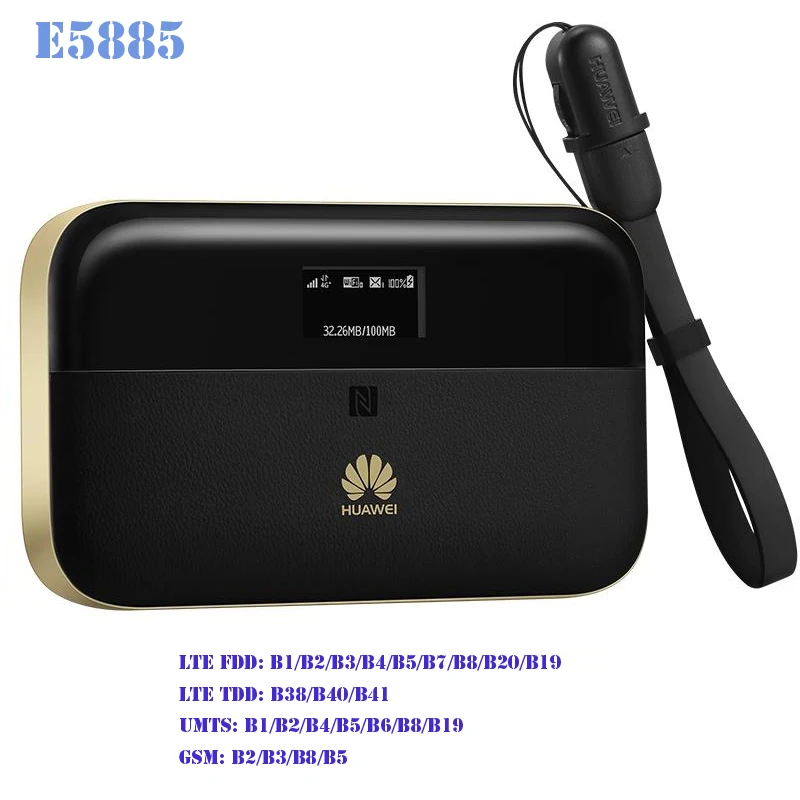

Network standard:

LTE FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B20 / B19

LTE TDD: B38 / B40 / B41 (2555-2655 MHz)

UMTS: B1 / B2 / B4 / B5 / B6 / B8 / B19

GSM: B2 / B3 / B8 / B5

Wireless:

802.11 ac / n / b / g standard, support 2.4G and 5G dual frequency, up to 32 users at the same time access

basic skills:

Support 4G + network, 300Mbps fast Internet access

Support 32G Micro SD card expansion

Network port turned wireless router

NFC fast link

System Tool:

Huawei HiLink APP

Local Web Administration Control

Power Specifications:

6400mAh (typical) Charging Po, support external charging, lanyard integrated charging cable (Micro USB interface)

Working hours 25 hours, standby time 1600 hours

Interface:

1 standard Micro USB interface (for product charging interface)

1 standard USB interface (external charging interface)

1 standard USB interface (external charging interface)

1 standard micro SD card slot

1 micro-SIM card interface

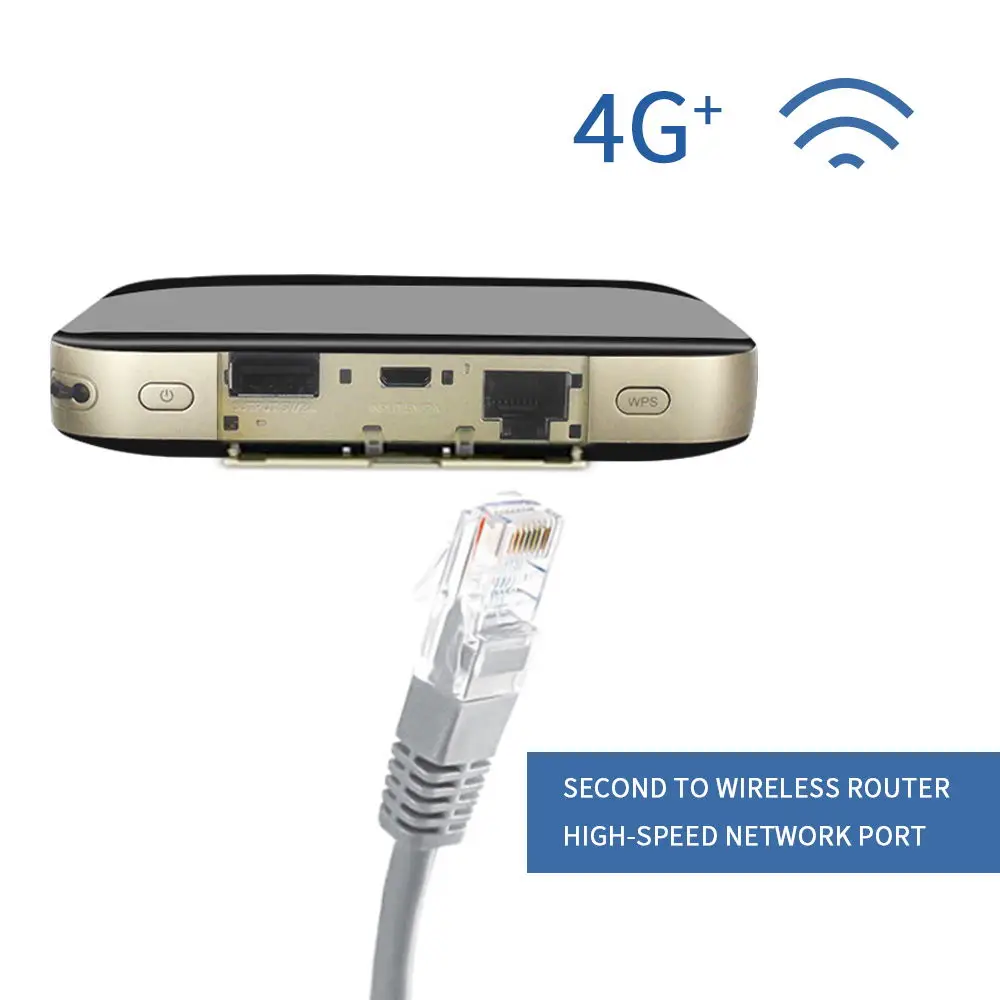

1 adaptive network port: RJ45

* 0.96 inch OLED display

* LED indicator: Signal Strength/Network/Charging/Provider/WiFi/SMS

* Output: 5V/2A

* Weight: 188g

Size:

Width: 112.0mm

Thickness: 69.2mm

Height: 23mm

Package including :

1 x HUAWEI E5885Ls-93a(Chinese original packaging)

1 x USB data cable

Note:

This product belongs to the upgraded version of Huawei ’s official standard in China. It supports multiple other languages. You can buy it with confidence without affecting normal use.

Huawei E5885 User Manual

This blog is about the Huawei E5885 user manual. The Huawei E5885Ls-93a user manual guides users to know the Huawei E5885. And the Huawei E5885 manual tells how to use and setup Huawei E5885 mobile hotspot.

Huawei E5885 Appearance

WPS button: To connect a WPS-enabled device to your HUAWEI Mobile WiFi Pro2 using the WPS button. When WPS is enabled, press and hold the button for more than five seconds to set up a WPS connection.

Screen

Slot cover

Power button: Press and hold to turn your

HUAWEI Mobile WiFi Pro2

on or off.

Lanyard hole

Output charging port

Micro USB port

Ethernet port

NFC sensor: Use NFC function to establish a Wi-Fi® connection.

Reset button: Press and hold to restart your HUAWEI Mobile WiFi Pro2 and restore it to its factory settings.

Note: If you forget the username, password or SSID for your HUAWEI Mobile WiFi Pro2, try restoring the device to its factory settings.

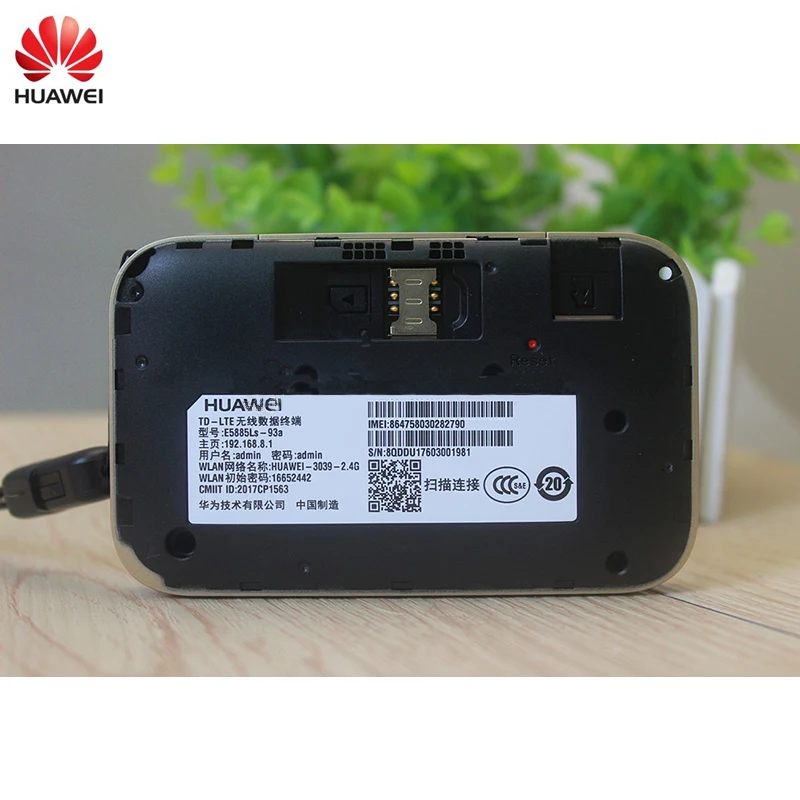

Huawei E5885 SIM card and SD card Installation

Network connection

You can view the current SSID (Wi-Fi network name) and Wi-Fi network key on the screen.

Westrongly recommend that you change the default SSID and Wi-Fi network key to keep your data secure.

HUAWEI Mobile WiFi Pro2 as a router

Use a network cable to reduce mobile data usage.

HUAWEI HiLink app

Download the HUAWEI HiLink app to manage your HUAWEI Mobile WiFi Pro2 more easily.

Change the SSID and Wi-Fi network key.

Check data traffic and SMS messages.

Check roaming state and signal strength.

Note:

You can also manage your HUAWEI Mobile WiFi Pro2 through the web interface at http://192.168.8.1. The default username and password is admin.

Click Help in the upper right corner of the web interface to learn more about your HUAWEI Mobile WiFi Pro2.

Connect to Huawei E5885 Wi-Fi via NFC(optional)

Ifyou are using a device (such as an Android phone or tablet) with NFC functionality, you can connect automatically to Wi-Fi by simply touching your device against the NFC sensor on the HUAWEI Mobile WiFi Pro2.

Before starting, make sure that your phone or tablet is unlocked and that NFC is enabled. Ensure that your HUAWEI Mobile WiFi Pro2 is powered on and that you have the HUAWEI HiLink app installed on your device.

Touch your device against the NFC sensor on the HUAWEI Mobile WiFi Pro2, as shown in the following figure.

When detection is successful, the HUAWEI HiLink app will automatically open on your device and you will be connected to Wi-Fi. The Wi-Fi icon should be visible in the status bar of your device if connection has succeeded.

Note:

This feature is not available for iOS devices.

If HUAWEI HiLink is not installed on your device, touching the device against the NFC sensor on the HUAWEI Mobile WiFi Pro2 will automatically bring up the Choose an action screen. From here, select New tag scanned (the name of this option may vary by device) and follow the link to download and install the HUAWEI HiLink app.

You can also download and install HUAWEI HiLink by scanning the QR code in the HUAWEI HiLink app section of this manual. Alternatively, search for and download HUAWEI HiLink in Google Play or the HUAWEI App Center.

Huawei E5885 Wi-Fi extender (optional)

The Wi-Fi extender feature increases Wi-Fi coverage and connects to Wi-Fi networks where available to reduce mobile data usage.

Onthe HUAWEI HiLink app, enable the Wi-Fi extender function, and connect HUAWEI Mobile WiFi Pro2 to a Wi-Fi network.

Huawei E5885 Charging other devices

You can charge your phone or Bluetooth headset with the HUAWEI Mobile WiFi Pro2 using a charging strap or charging cable.

Method 1

: Charging other devices using the charging strap

Please open the charging strap as indicated in the figure.

Note: The charging strap is a standard accessory.

Insert the charging strap in the port shown in the figure.

Method 2

: Charging other devices using a charging cable

User Tips for Huawei Mobile WiFi Pro2:

Why isn’t my HUAWEI Mobile WiFi Pro2 responding?

> Try restarting the device. If that doesn’t work, restore the device to its factory settings.

Why can’t I connect to my

HUAWEI Mobile WiFi

Pro2 sometimes?

> To save power, your HUAWEI Mobile WiFi Pro2’s Wi-Fi auto off feature is designed to turn off Wi-Fi when there haven’t been connections for a while. You can press the POWER button to turn on Wi-Fi again. Alternatively, you can disable this feature, although this might impact battery life. Log in to the web interface and disable the Wi-Fi auto off feature.

Why won’t my HUAWEI Mobile WiFi Pro2 connect to a network even though all the settings are correct?

> The PIN verification feature might be enabled. Launch HUAWEI HiLink and enter the correct PIN.

> You can disable this feature if you find entering the PIN regularly inconvenient.

> From the HUAWEI HiLink app, select Settings and then disable the PIN verification feature.

Why can’t I access the web interface at 192.168.8.1?

> This is likely due to an IP address conflict when the HUAWEI Mobile WiFi Pro2 assigns itself a new IP address. Please try 192.168.9.1 in this case. If your HUAWEI Mobile WiFi Pro2 has an LCD screen, the new IP address of your web interface will be displayed.

Why won’t my HUAWEI Mobile WiFi Pro2 power on?

>

Your battery is probably out of power.

> Charge your HUAWEI Mobile WiFi Pro2 for a while and power it back on.

Why did my HUAWEI Mobile WiFi Pro2 power off all of a sudden?

Your HUAWEI Mobile WiFi Pro2 may overheat when you use it continuously over a long period of time, and thereby trigger its automated protection system. Wi-Fi will be turned off and your HUAWEI Mobile WiFi Pro2 will power off if this occurs.

ure the device is properly ventilated and cooled before you power it on again.
