best outdoor security cameras ANNKE 5MP Lite 4CH HD Video Surveillance DVR 5IN1 H.265+ Digital Recorder PIR Motion Detection For 2MP 3MP IP CCTV Cameras wireless hidden camera with audio Surveillance Items

Brand Name:	ANNKE
Certification:	CE
Certification:	FCC
Origin:	CN(Origin)
Smart home platform:	Other
Two-way Audio:	No
Supported Mobile Systems:	Android
Supported Mobile Systems:	iPhone OS
Video Resolution:	5MP
HDD Capacity:	4TB
Hard drive Interface Type:	SATA
Model Number:	DW41JD
Communication Interface:	NONE
Alarm Action:	Local Alarm
Audio Input:	1 RCA
Supported Operating Systems:	Microsoft Windows 7
Supported Operating Systems:	Microsoft Windows 98
Supported Operating Systems:	Microsoft Windows 2000
Video Output:	1VGA + 1HDMI-compatible
e-Cloud(P2P):	No
Technology:	ANALOG
IP Mode:	Dynamic IP address
Video Standard:	NTSC/PAL
Hard Drive Size:	3.5''
Network Interface:	RJ45 10/100M
Backup Type:	Hard Drive
Audio Output:	1CH RCA
DVR Power Supply:	DC12V
Video Input Interface:	BNC (1.0 Vp-p, 75Ω)
Video Compression:	H.264+/H.264/H.265/H.265+
Video Input:	4CH Analog HD/Analog+1CH IP
Video Output:	HDMI and VGA Up to 1080P
Audio Input/Output:	1/1 RCA
IPC Recording Resolution:	Up to 6MP
IPC Playback Resolution:	Up to 6MP
HDD:	1 SATA interface
HDD Capacity:	Up to 6TB capacity
Key Features:	(only support AHD 1080P cameras!)

Note

:

1.

Compression up to

H.265+

,other's only to H.265,

up to

2

x

longer than H.265 on normal condition.

2.We suggest you buy DVR and cameras in one store to match.

(only support AHD 1080P cameras!)

4.Only a recorder, cameras are not included!

If you need cameras,pls click here:

Super HD 5mp TVI Cameras--

https://www.aliexpress.com/item/33045249040.html

Key Features:

· 5MP high definition live viewing

· 5MP Lite recording & playback
· Advanced H.265+ Video Compression

· Support TVI/AHD/CVI/CVBS/IPC input. 5 in 1(

AHD only support 1080P cameras!)

· Supports iPhone、iPad、Android mobile remote monitoring

ANNKE 5-in-1 5MP HD Standalone Surveillance DVR with H.265+ Compression

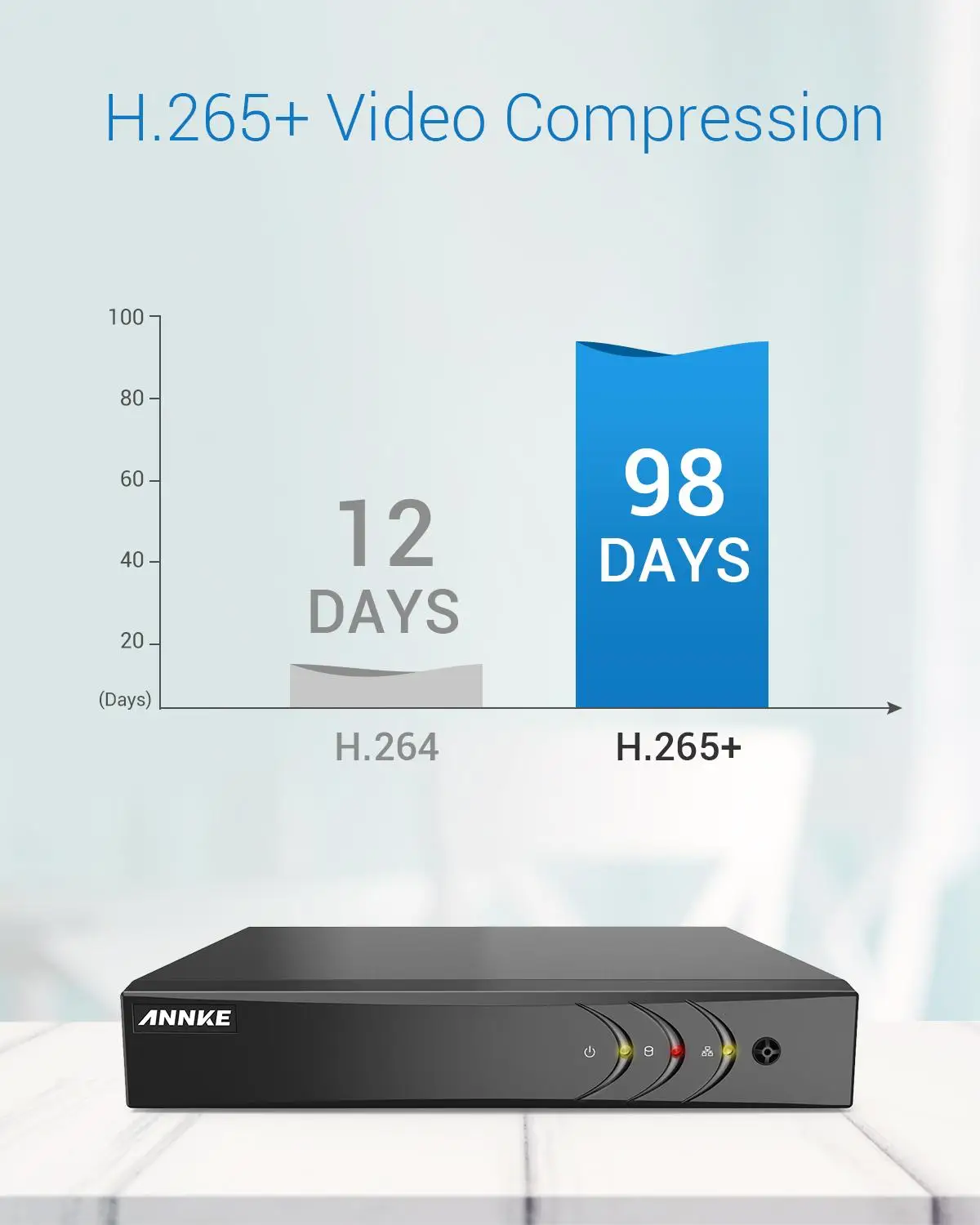

State-Of-The-Art H.265+ Codec

Normally, the H.265+ coding standard enables fast transmission and stable steam, records up to 98 days continuously for 4 cameras simultaneously with 1TB HDD, which is 7 times longer than H.264, saving plenty of money from buying extra hard disk drive

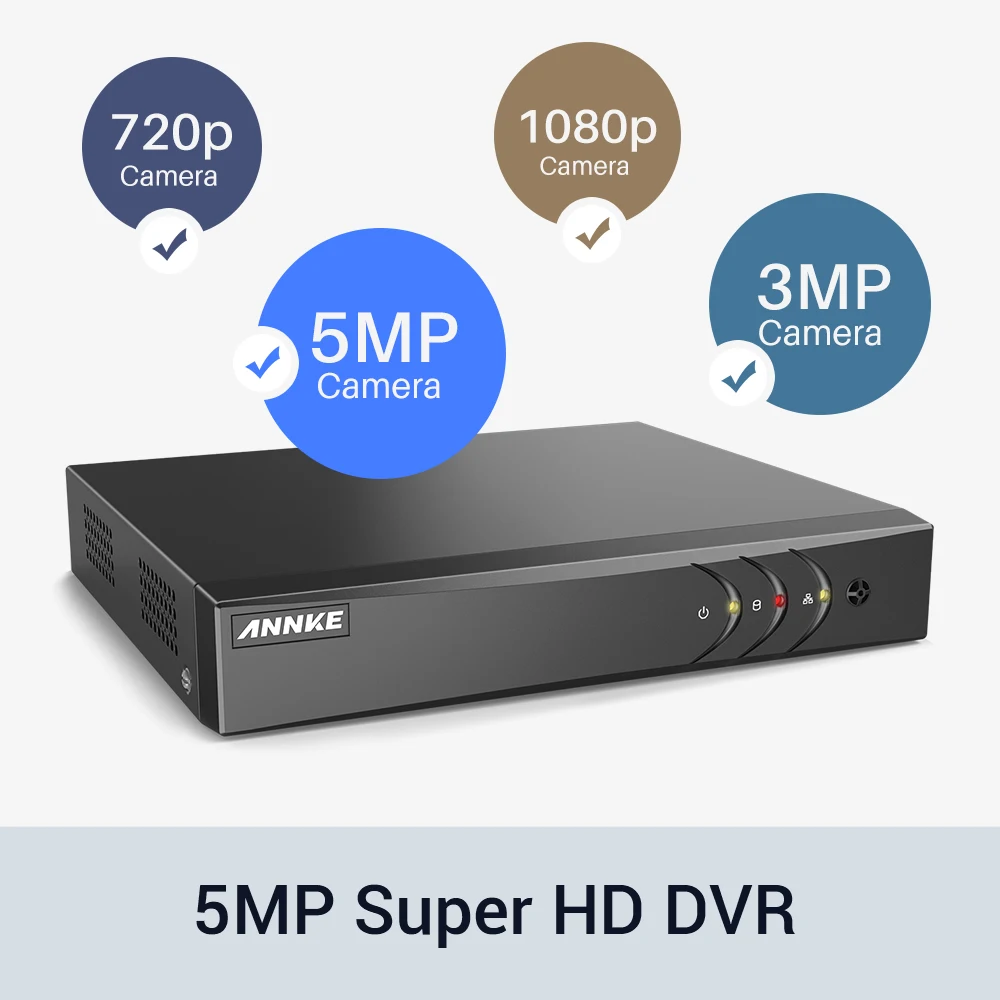

Up to 5MP Ultra HD Input

The DVR supports 5MP cameras to provide you 5MP streaming and 5MP lite recording, bring everything to life with stunning and clear details, even the license plate and human face can be recognized easily

Compatible 5-in-1 DVR

This powerful DVR supports up to 4CH TVI/AHD/CVI/CVBS and 1 IP cameras, thus you make full use of all your old cameras or brand new cameras for wide coverage. Clear off blind spot and leave nowhere for thieves and robbers to hide

Smart Motion-Triggered Alerts

Mark out relevant areas for motion detection, you can focus on what you care most and free from irrelevant alerts. Once alarm is triggered, it will send instant email alerts with snapshots and APP alarm pushes, so you can take appropriate precautions

Easy 3-Step Remote Access

Consolidating the security system into your smartphone, tablet and PC can be quite simple with our free Annke Vision APP. Quick scan the QR-code, install it on your mobile devices and then you can watch live video anytime from anywhere.

Multi-language Operation

Both DVR menu and APP support multi-language operation, no worry about maloperation caused by difficulties in languages. It is much more convenient to keep your home and business safe via surveillance system with your familiar language.

Save Time with Smart Playback

The smart playback offers you video with movements in selected areas and period. Thus you don’t have to waste time on checking footage frame by frame. It is much easier to find what you need in the records.

Information Security Measures

Adopted information protection technology of military grade, your date is on our top priority and well-protected. Therefore, you could set password and encryption code for access restrictions, avoiding access open to everyone like other brands.

1080P Full HD HDMI & VGA Output

The DVR supports HDMI and VGA 1080P full-HD outputs, so you can connect a HD monitor to it for live viewing and video playback. Default HDMI/VGA output resolution is 1024*768, please adjust it manually for higher resolution.

DVR Specification:

NO RS485

Video Compression :H.264+/H.264/H.265/H.265+

Video Input :4

CH Analog HD/Analog+1CH IP camera

Video Output :HDMI and VGA Up to 1080P

Audio Input/Output :1/1 RCA

Analog HD Recording Resolution :5MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps

Analog HD Playback Resolution :5MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF

IPC Recording Resolution :Up to 6MP

IPC Playback Resolution :Up to 6MP

Max Playback Channel: 4-ch

HDD :1 SATA interface

HDD Capacity :Up to 6TB capacity

Network interface :RJ45x1(10/100M)

USB :USB2.0x2

Operating Power: DC12V

Working Temperature :-14 °F – 131 °F /-10 °C – 55 °C

Dimensions(W x H x D) :260 × 222 × 45 mm

Weight (without hard disk) :≤ 1 kg (2.2 lb)(without HDD)

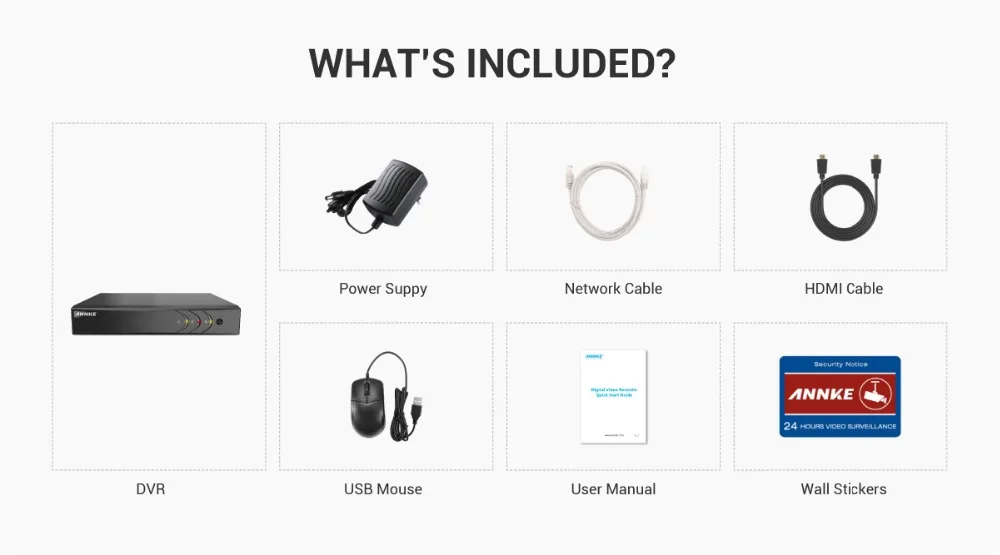

Packaging Contents:

x1 DVR

x1 USB Mouse

x1 Power Adapter

x1 HDMI Cable

x1 Network Cable

x1 User's Manual For DVR
