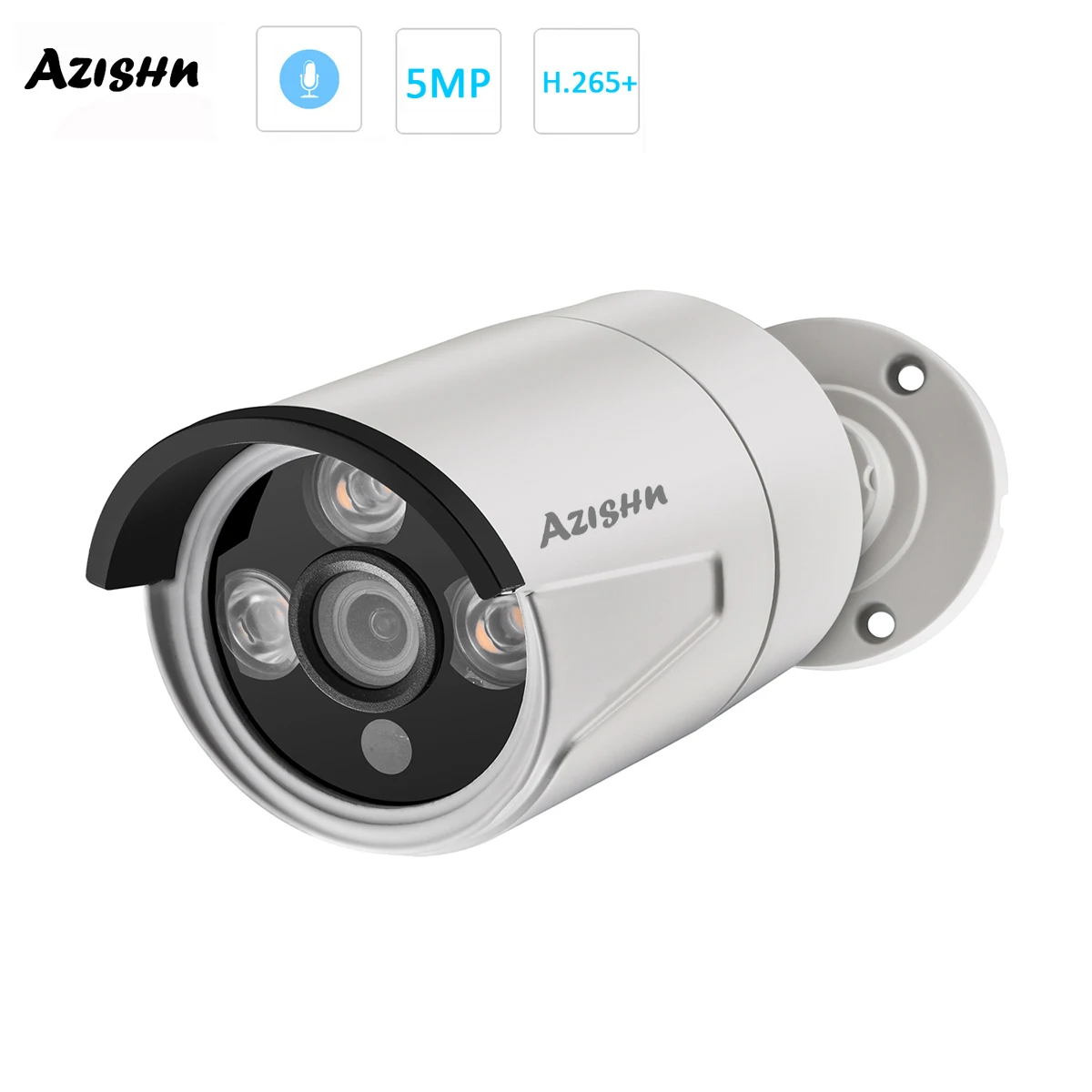

AZISHN H.265 Bullet IP Camera 5MP Infrared Audio Street Outdoor Metal Face Detection Security Surveillance Cam 4MP/3MP/2MP best home security camera Surveillance Items

Brand Name:	AZISHN
Type:	ip camera
Supported Operating Systems:	Windows 10
Supported Operating Systems:	Windows 2008
Supported Operating Systems:	Windows 2000
Supported Operating Systems:	Windows Vista
Supported Operating Systems:	Windows 8
Supported Operating Systems:	Windows 7
Supported Operating Systems:	Mac OS
Supported Operating Systems:	windows xp
Supported Operating Systems:	Windows 2003
High Definition:	5.0 Megapixels
Lens (mm):	6mm
Lens (mm):	3.6mm
Style:	Bullet Camera
Certification:	CE
Connectivity:	IP/Network Wired
Smart home platform:	Other
Origin:	CN(Origin)
Installation:	Normal
Wall Bracket:	Ceiling
Power Consumption(W):	3W
Color:	white
Minimum Illumination(Lux):	0.001Lux
Sensor:	CMOS
Megapixels:	5MP
Sensor Brand:	SmartSens
Special Features:	Waterproof / Weatherproof
Storage:	None
Alarm Action:	FTP Photo
Alarm Action:	Email Photo
Video Compression Format:	H.264
Video Compression Format:	H.265
Power Supply:	Normal
TF Card:	None
IR Distance(m):	5-25M
is_customized:	No
Power Supply(V):	DC 12V or 48V POE
Model Number:	AZ72603W-4M
Viewing Angle :	85°
Technology:	Infrared

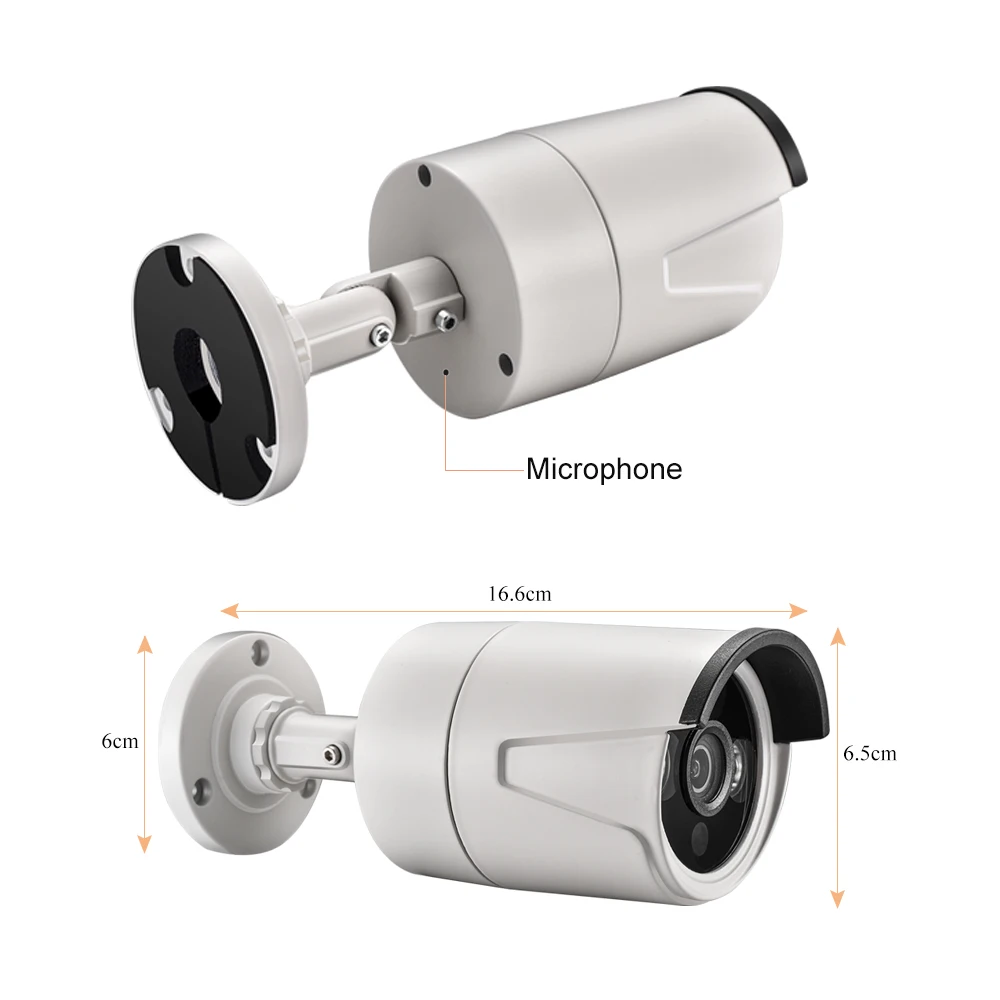

Dimensions (L x W x D)(mm):	166*65mm
Supported Mobile Systems:	iOS
Supported Mobile Systems:	Android
Network Interface:	RJ-45 10/100Mb Ethernet Slot
Audio Output:	None

Features:

1)     Advanced H.265AI(compatible with H.265/H.264) video compression

2)     CMOS sensor, day,IR cut filter off,color;night,IR cut filter on,black/white

3)     With IR-CUT, support day/night switch

4)     20fps for 5MP 4MP.25fps for 3MP 2MP

5)     Support ONVF;Support Third-party NVR

6)     3pcs Array IR Leds,25m ir distance for night vision

7)     Multi-screen software and CMS

8)     Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC)

9)     Support motion detection

•Support onvlf, can work with third-part NVR.

•Mobile phone viewing (iOS,android) depends on NVR APP.

Specification :

Resolution:

5MP:5MP (2592*1944) 20fps/(2560*1440) 20fps/(1920X1080) 25fps Optional
4MP:2560*1440@25fps,2304*1296@25fps,1920*1080@25fps;sub-stream:800*448@25fps;
3MP:2304*1296-20fps;1920*1080-25fps
2MP:1920X1080,25fps

Use Location:Outdoor/Indoor

Image sensor:

5MP:XM550AI+1/2.7"SC5335P CMOS(support Face detection function)
4MP:NT98562+1/3"SC401AI CMOS(support Face detection function)
3MP:XM535AI+1/2.7" SC3235P CMOS
2MP:XM530AI+1/2.9" SC2235P cmos

Lens:M12  3.6mm 6mm Optional

Communication Interface:1 RJ45 10M / 100M ethernet port

Video Image Compression:H.265AI

IR LED:3pcs array IR LED with 25M IR Distance

Material:metal outdoor indoor use

Power:DC12V/1A-2A or 48V POE optional , power consumption:≤3W

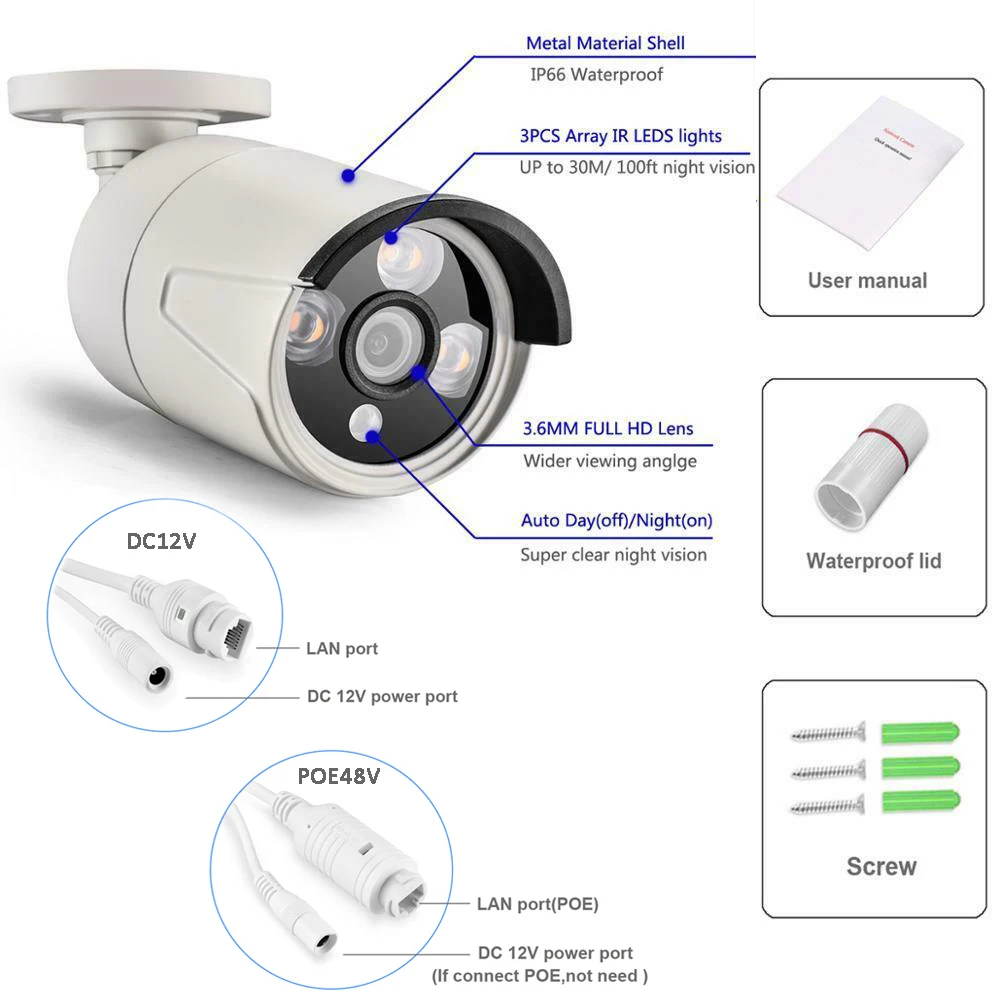

Package included:

1 x IP Camera

1 x Use Manual

1 x Waterproof cap of cable

3 x Wall plug and screws

(Adapter not inculded)

package not with poe switch

Q & A

1, IP camera default IP address:192.168.1.10

User name:admin,password:empty(null)

If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.

Please click "Edit Device" to change the camera's ip address,

For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX.

"DeviceManage" It can find and change the IP address, upgrade the firmware.

2, P2P website:

"www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .

then please input your P2P ID,user name and password to login and preview.

Access to the IPC through the web, only one screen can be displayed.

There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)

3,The camera's port information.

ONVF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port  25; SLL protocol Port 465.

4,Does the cameras can be compatible with other manufacturers NVR?

Please confirm whether other manufacturers NVR support onvf protocol.

Our camera's onvf protocol is onvf Profile S, does not support HTTPS protocol;

Auto focus camera, other manufacturers NVR can only zoom, can not focus.

5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.

A,How to set up motion detection?

Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.

B, About FTP

FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.

We suggest the Sever-U and FileZilla FTP Server to upload the video or image.

C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .

D, RTSP URL for VLC media Player :

RTSP port: 554

rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream

Example:

rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)

If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set

6, About DDNS

Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)

Note: The two ports in the network settings can be viewed, can be modified

What domain names are supported?

- CN99 / DynDns / Oray / NO-IP / MYQ-SEE

Audio Recording

Built-in microphone records what people say, make it authentic with sound video recording

INDOOR&OUTDOOR

Wired  dome camera, ceiling-mounted, versatile in applications and easy installation, indoor and outdoor use.

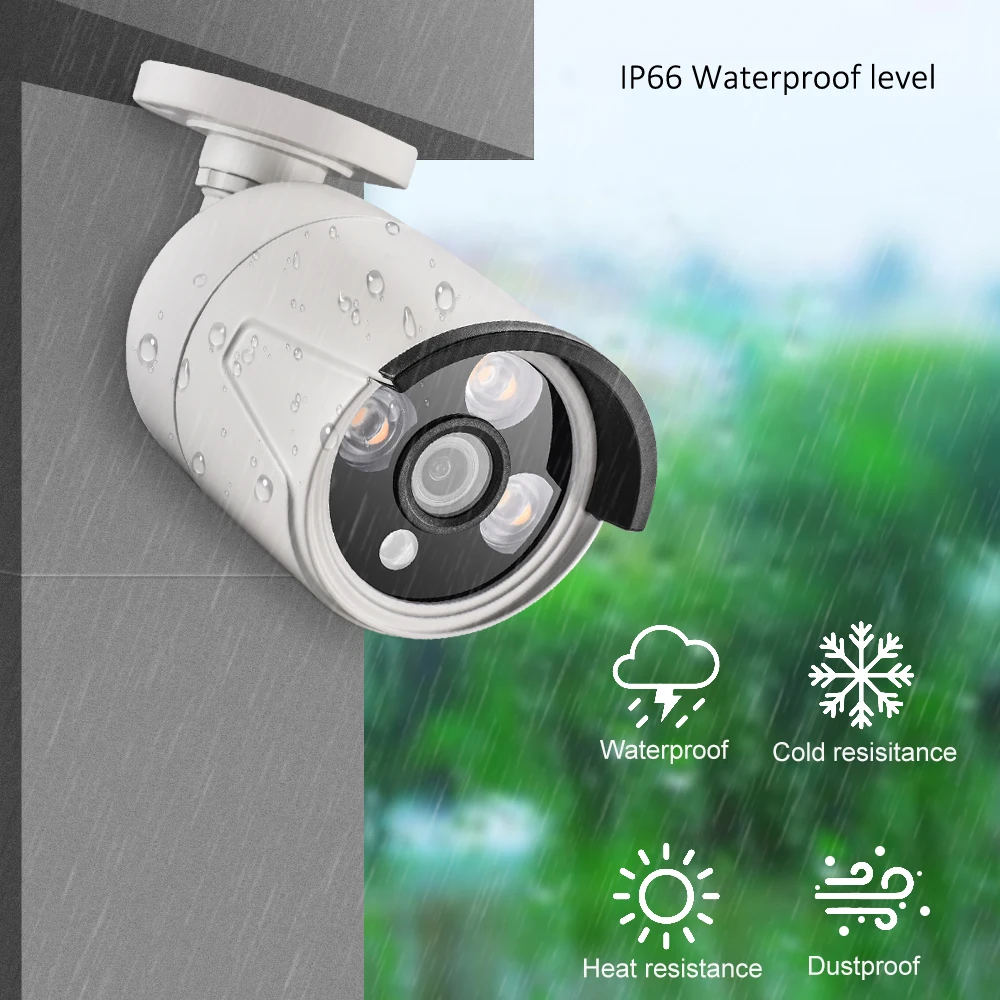

IP66 WATERPROOF

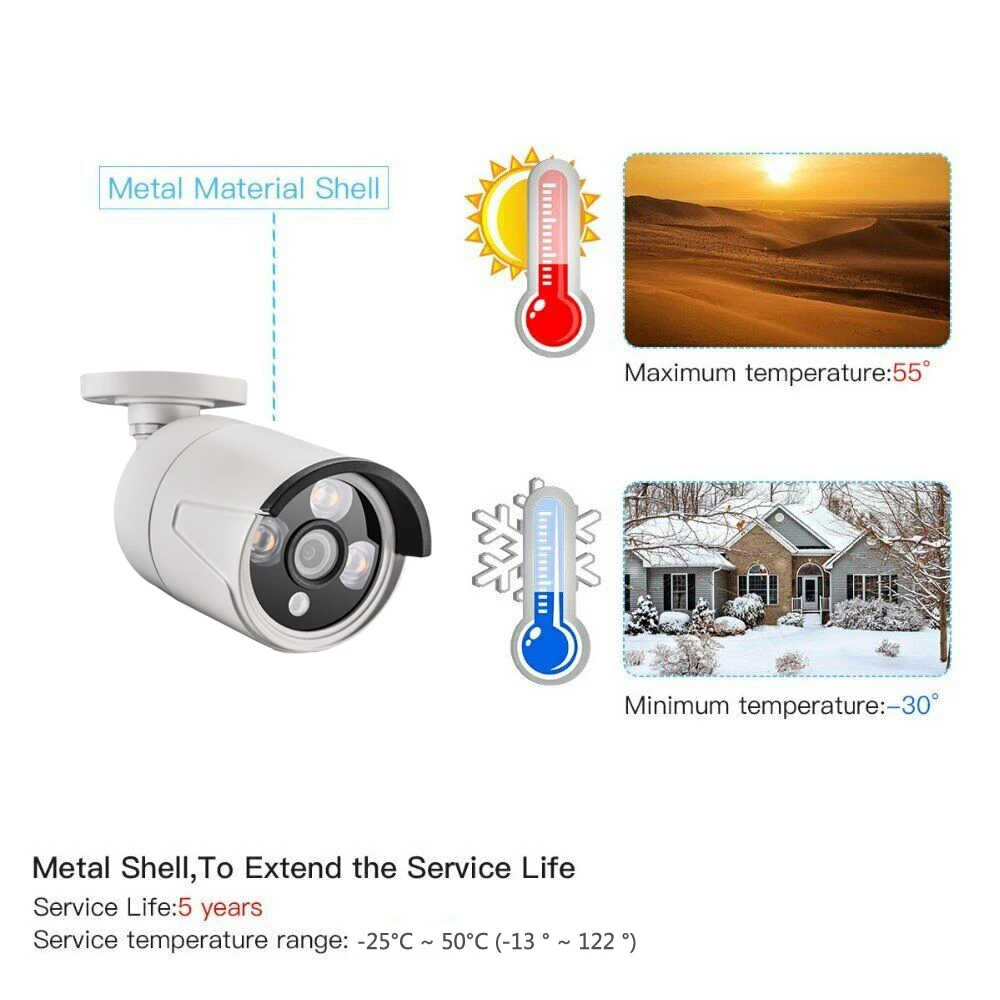

We have used with IP66 Level waterproof steady metal case and also extral protection to ensure our cameras will be durable enough for using outdoor even under rain or shine etc bad weather.

Night Vision

3Pcs Array IR LEDs lights offer you with 25M night vision that functions even in pitch black, which transmit their infrared rays in a frequency imperceptible to the human eye ,without disturbing those being monitored.

Motion detection

With motion detection enabled ,whenever detect moving objects ,IP surveillance camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device. enabling an extra layer of protection for your home or business.  you're able to be alerted of whatever goes bump throughout the day and night.

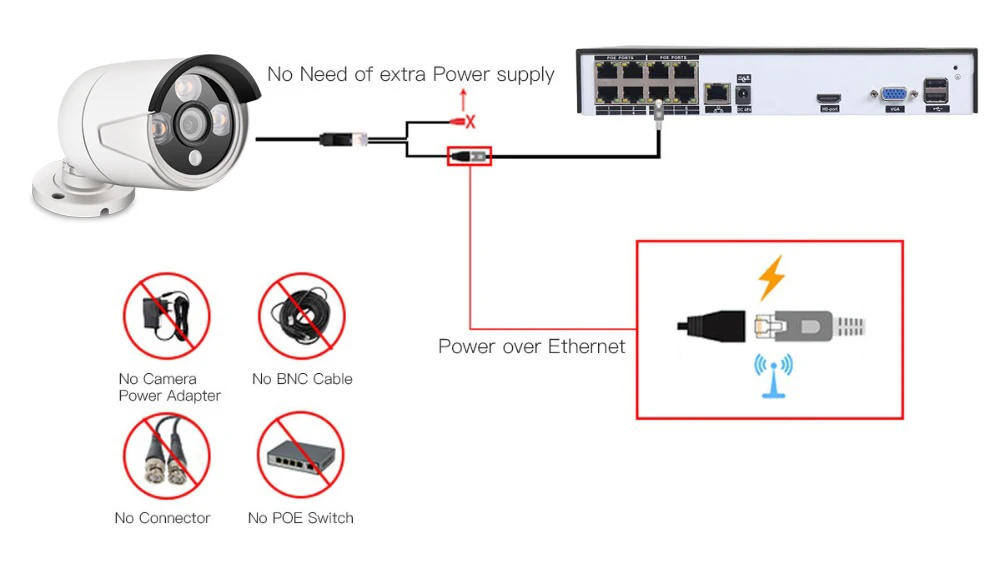

POE Function

Live View

Support iPhone, iPad, Android Tablet and PC.
