AZISHN H.265+ 5MP SONY IMX335 Security Audio IP Camera Metal IP66 Outdoor POE DC CCTV Cam P2P Face Detection Z201615W5M-SN best wireless camera system Surveillance Items

Brand Name:	AZISHN
Type:	ip camera
Supported Operating Systems:	windows xp
Supported Operating Systems:	Windows Vista
Supported Operating Systems:	Windows 7
Supported Operating Systems:	Mac OS
Supported Operating Systems:	Windows 8
Supported Operating Systems:	Windows 10
High Definition:	5.0 Megapixels
Lens (mm):	3.6mm
Lens (mm):	6mm
Lens (mm):	8mm
Style:	Bullet Camera
Certification:	CE
Connectivity:	IP/Network Wired
Smart home platform:	Other
Origin:	CN(Origin)
Installation:	Ceiling
Wall Bracket:	Side
Power Consumption(W):	3W
Color:	white
Minimum Illumination(Lux):	0.01Lux
Sensor:	CMOS
Megapixels:	5MP
Sensor Brand:	SONY
Special Features:	Vandal-proof
Storage:	None
Alarm Action:	Email Photo
Alarm Action:	Local Alarm
Video Compression Format:	H.264
Video Compression Format:	H.265
Power Supply:	With POE
TF Card:	None
IR Distance(m):	5-25M
is_customized:	No
Power Supply(V):	POE48V and DC12V dual-purpose
Model Number:	Z201615W5M-SN
Viewing Angle :	85°
Technology:	Infrared
Dimensions (L x W x D)(mm):	16.3CM * 6.1CM
Supported Mobile Systems:	Android
Supported Mobile Systems:	iOS
Network Interface:	RJ-45 10/100Mb Ethernet Slot
Audio Output:	None

H.265+ Audio Metal 5MP Hi3516EV300+1/2.7"SONY IMX335 Camera

Night Vision

With IR-Cut filter switches automatically between day and night , making sure you can get vivid surveillance footage from dawn to dark

Motion Detection

When security camera detect motion and triggers, it will notify you by the push notifications.

POE48V and DC12V dual-purpose

Multi Device access

you can watch the video by Android / ios, Table PC computer

POE48V and DC12V dual-purpose

Features:

1)     H.265AI/H.265+ (compatible with H.265/H.264), Hi3516EV300+1/2.7"SONY IMX335 cmos

2)     CMOS sensor, day,IR cut filter off,color;night,IR cut filter on,black/white

3)     With IR-CUT, support day/night switch

4)     5MP: 2592X1944,20fps

5)     Support ONVF;Support Third-party NVR

6)     6pcs array IR Leds,25m ir distance for night vision

7)     Multi-screen software and CMS

8)     Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC)

9)     Support motion detection

10)   Support visit by smart phone,app XMeye

11)

Audio:Build In Microphone. Support Audio Recording (Don't support Two way audio)

Specification :

Resolution:Main stream:

5MP: 2592X1944,20fps

Use Location:Outdoor/Indoor

Image sensor:Hi3516EV300+1/2.7"

SONY IMX335

cmos

Lens:M12 3.6mm 6mm 8mm Optional

Communication Interface:1 RJ45 10M / 100M ethernet port

Video Image Compression:   H.265AI/H.265+ (compatible with H.265/H.264)

IR LED:6pcs array IR LED with 25M IR Distance

Dimension:16.3*6.1cm

Material:metal waterproof vadal-proof

Power:POE48V/DC12V (Adapter NOT INCLUDED )

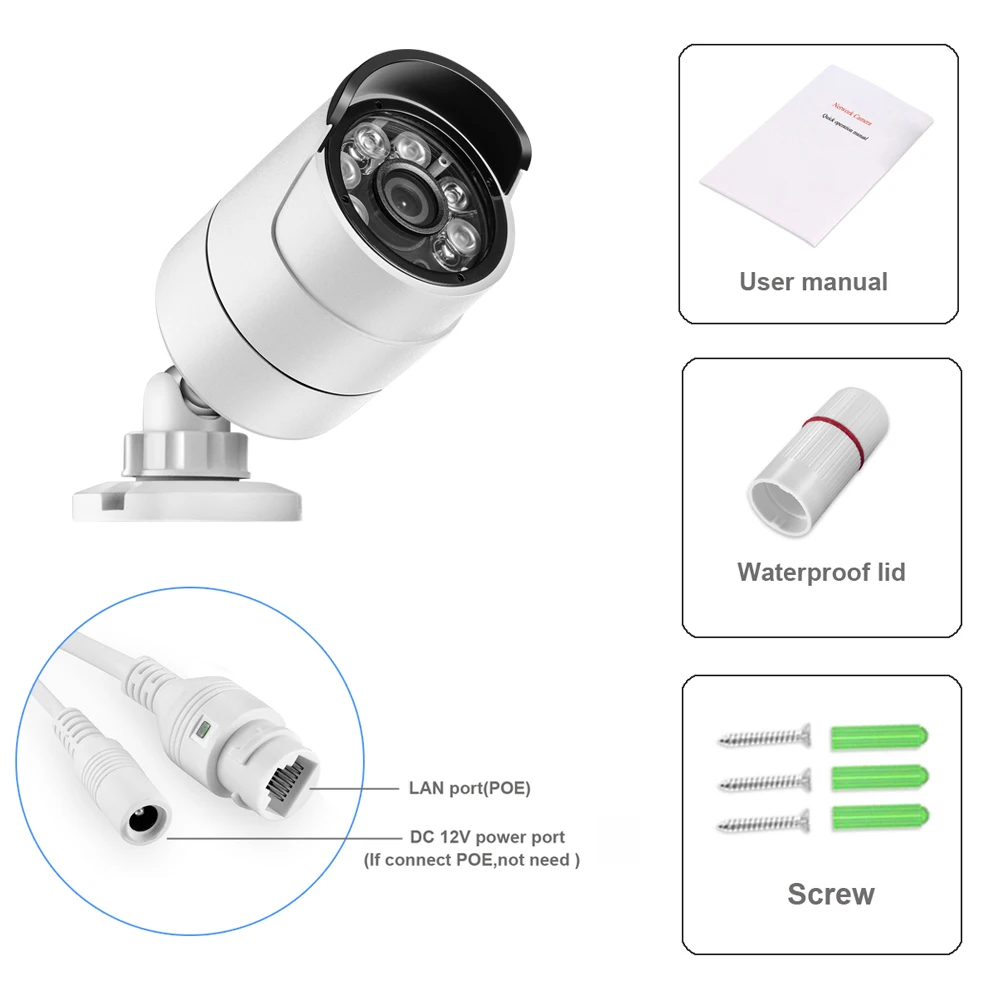

Package included:

1 x IP Camera

1 x Use Manual

1 x Waterproof cap of cable

3 x Wall plug and screws

(Does not include Power Adapter)

Q & A

1, IP camera default IP address:192.168.1.10

User name:admin,password:empty(null)

If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router.

Please click "Edit Device" to change the camera's ip address,

For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX.

"DeviceManage" It can find and change the IP address, upgrade the firmware.

2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .

then please input your P2P ID,user name and password to login and preview.

Access to the IPC through the web, only one screen can be displayed.

There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)

3,The camera's port information.

ONVF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port  25; SLL protocol Port 465.

4,Does the cameras can be compatible with other manufacturers NVR?

Please confirm whether other manufacturers NVR support onvf protocol.

Our camera's onvf protocol is onvf Profile S, does not support HTTPS protocol;

Auto focus camera, other manufacturers NVR can only zoom, can not focus.

5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.

A,How to set up motion detection?

Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save.

B, About FTP

FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.

We suggest the Sever-U and FileZilla FTP Server to upload the video or image.

C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .

D, RTSP URL for VLC media Player :

RTSP port: 554

rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream

Example:

rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)

If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set

6, About DDNS

Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)

Note: The two ports in the network settings can be viewed, can be modified

What domain names are supported?

- CN99 / DynDns / Oray / NO-IP / MYQ-SEE
