Brand Name: | abdo |
---|---|
Certification: | CE |
Origin: | CN(Origin) |
Itercom: | Yes |
Connection Type: | Wired |
Alarm: | No |
Power: | Electric Supply |
Feature: | None |
Display: | None |

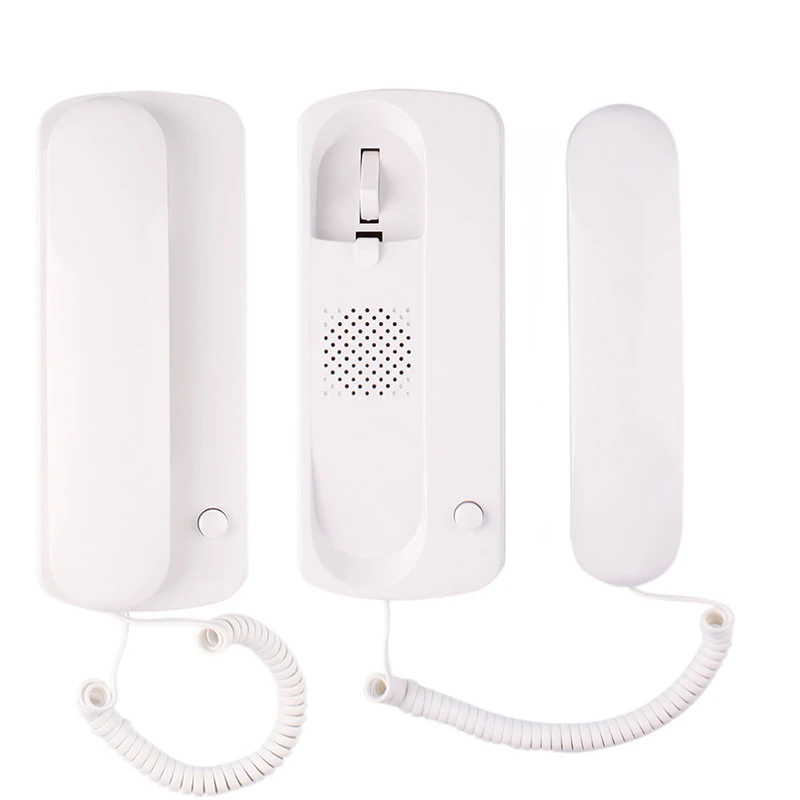

Item Type: | Audio Doorbell |
TL-109DC:Powered by batteries
TL-109AC/DC:
Powered by batteries or AC220V
Specifications:
Model Number:
TL-109D
C/
TL-109AC/DC
Voltage: DC6V(8x AA battery)(4 in each handset) not include the
battery
Output sensitivity: <60mV / frequency 1000Hz
Frequency response: ±3dB(300Hz-3400Hz)
Noise voltage: <10mV
Ring sound level: >70dB(AT 0.5m)
Quiescent current: <5uA
Intercom working current: <100mA
Color: white
Talk time: unlimited, free calls
Power Source: Battery
Range of application:Family,School,Restaurant,Office and so on
Excellent consumer side of the tone circuit, intercom voice clarity
Installation and use

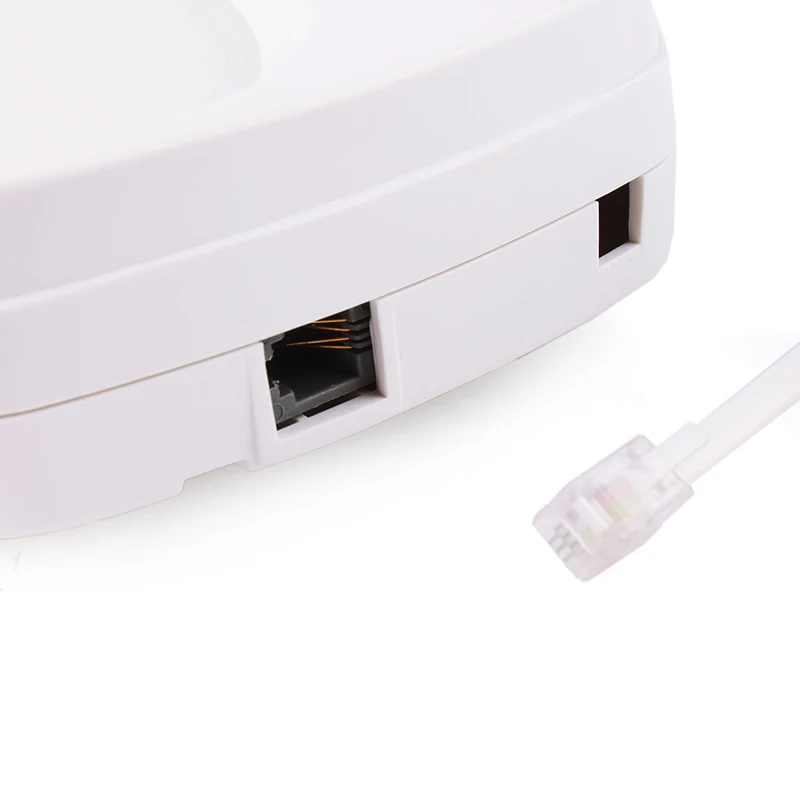

Set a double wire line screwed onto the back of the bases to connect each set together(wire line is not included),Within 30m use distance,you can use multicore cable to connect each set,in right ways,1-1,2-2,in each back of the phones,30-80m use distance,you can use copper wire to connect.
Insert 8 cells 1.5V AA batteries (4 in each handset)(alkaline) ,into the cabinet of the talkback pair
Press the call button to listen after the ringing , lift the handset microphone and you wait for the other to pick up the call
While talking, please speak into the microphone .
Please choose to buy the cable spec according to your distance.
Package Included:

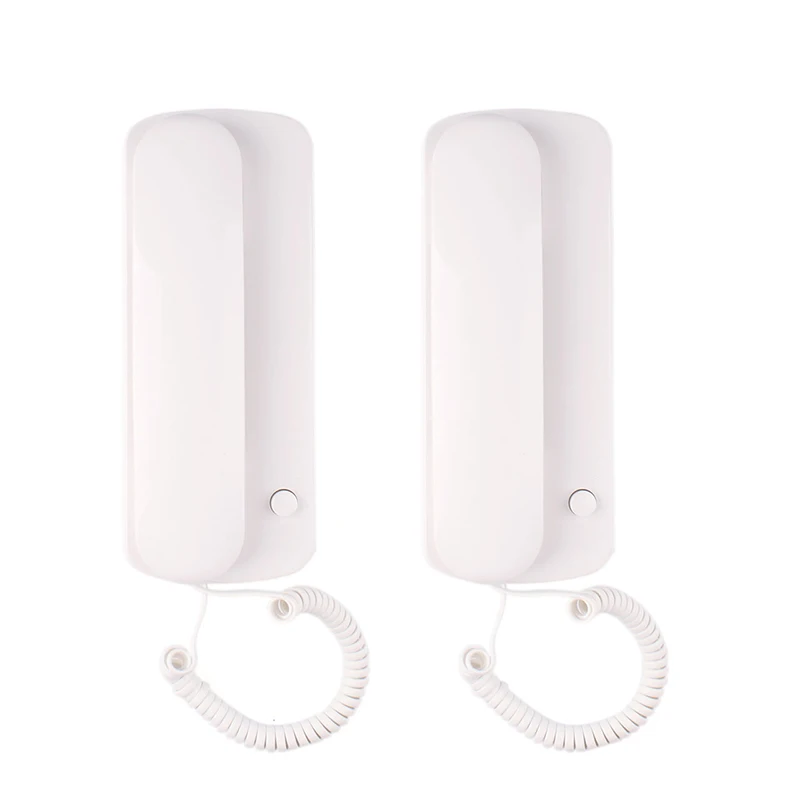

1 x 2 Pcs Intercoms Doorbell .
