Name: ANENG Q1 Digital Multimeter 9999 Analog Tester True RMS Professional Multimetro DIY Transistor Capacitor NCV Testers Lcr Meter dial indicator magnetic base
Brand: MMO Dropship
SKU: 33004794265
Price: 72.99 VND
Availability: InStock
Rating: 4.9 (97 reviews)

Code: TD-33004794265 2790 orders

Free Shipping

$ 72.99 $ 93.21

Color:

Note

Quantity:

Other people want this. 19 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	ANENG
DIY Supplies:	ELECTRICAL
Certification:	CE
Origin:	CN(Origin)
Model Number:	Q1 Digital Multimeter
AC Current:	999.9uA/99.99uA/999.9mA/10A
AC Voltage:	999.9mV/9.999V/99.99V/999.9V
Measuring Resistance Range:	99.99/999.9/9.999k/99.99k/999.9K/9.999M/99.99M
Operating Mode:	Auto/Manual Ranging
Measuring Inductance Range:	NO
Display Type:	Digital Display
DC Current:	999.9uA/99.99uA/999.9mA/10A
DC Voltage:	999.9mV/9.999V/99.99V/999.9V
Measuring Capacitance Range:	9.99nF/99.99nF/999.9nF/9.99uF/99.99uF/999.9uF/9.999MF
Dimensions:	146x74x34 mm
Operating Temperature:	0 - 40 ℃
ACV/ACA Frequency Range:	40Hz-1Khz
Duty Cycle:	1%-99%

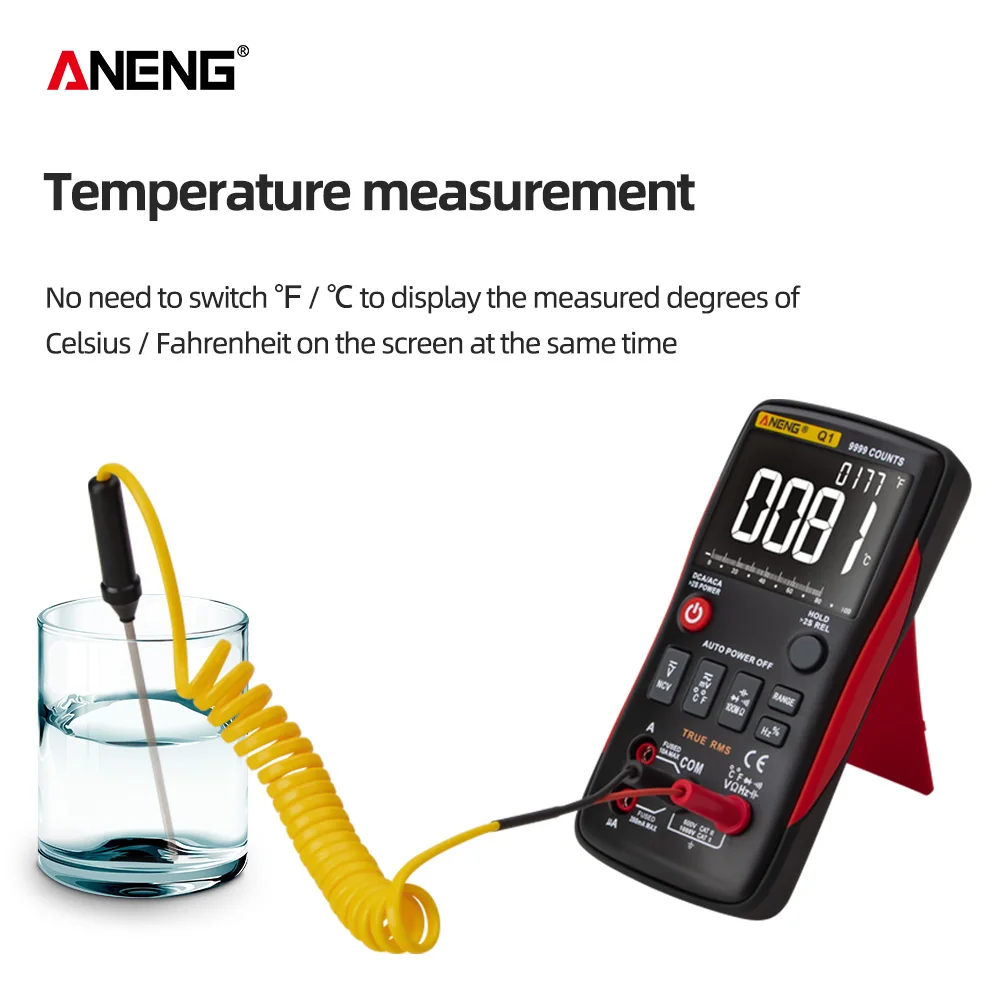

Temperature Range:	-20~1000 C/-4~1832 F
NCV:	None Contact Voltage Test
Diode Test:	Yes

ANENG Q1 True-RMS Digital Multimeter Button 9999 Counts With Analog Bar Graph AC/DC Voltage Ammeter Current Ohm Auto/Manual

Please Note you have to reading the operate manual first before use,otherwise you will burn the device with wrong operat.

Specifications:

Brand Name

ANENG

Model Number

Display (LCD)

9999 Counts

Ranging

Auto/Manual

Material

ABS+TPE

Update Rate

3 Times/Second

Ture RMS

YES

Data Hold

YES

Relative Value Measurement

YES

Low Battery Indication

YES

Backlight

YES

Auto Power Off

YES

Operating

Tenperature

0~40°C

Hunidity

75%

Storage

Tenperature

-20~60°C

Hunidity

80%

Funtion

Range

Accuracy

DC voltage (V)

999.9mV/9.999V/99.99V/999.9V

±(0.5%+3)

DC voltage (mV)

9.999mV /99.99mV

±(0.5%+3)

AC voltage (V)

999.9mV/9.999V/99.99V/750.0V

±(1.0%+3)

AC voltage (mV)

9.999mV /99.99mV

±(1.0%+3)

DC Current (mA&A)

999.9mA/9.999A

±(1.0%+3)

DC Current (A)

9999A

±(0.8%+3)

AC Current (mA&A)

999.9mA/9.999A

±(1.0%+3)

AC Current(A)

9999A

±(1.0%+3)

Resistance

99.99

±(1.0%+3)

Resistance

999.9 /9.999k /99.99k /999.9k /

±(0.5%+3)

Resistance

9.999M

±(1.5%+3)

Resistance

99.99M

±(3.0%+5)

Capacitor

9.999nF

±(5.0%+20)

Capacitor

99.99nF /999.9nF /9.999F /99.99F /999.9F

±(2.0%+5)

Capacitor

9.999mF

±(5.0%+5)

Frequency

99.99Hz /999.9Hz /9.999kHz /99.99kHz /999.9kHz /2.000MHz

±(0.1%+2)

Duty cycle

1%~99%

±(0.1%+2)

Diode :YES

Continuity :YES

NCV :YES

Temperature

(-20~1000)° /(-4~1832)°

±(2.5%+5)

Power

2 * 1.5V AA batteries

(Not Included)

Sample Rate

3 times per second

Packaging content:

1 x Multimeter

1 x Test lead+temperature sensor

1 x User Manual

1 x Storage bag

1 x 16pc Test probe

Note:

1. Do NOT exceed the maximum value indicated in the Specification;

2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;

3. Do NOT use the product when the batteries or the battery cover is not placed properly;

4. Turn off the product and remove the test leads from the test points before changing batteries or fuses.

5. Do not input voltage exceeds 36V DC or 25V AC when you are at the setting of measuring current.
