android mp3 player DY-HV20T DY-HV8F 12V/24V Power Supply10W/20W Voice Playback Module Supporting Micro SD Card MP3 Music Player For Arduino spotify mp3 player MP3 Players

android mp3 player DY-HV20T DY-HV8F 12V/24V Power Supply10W/20W Voice Playback Module Supporting Micro SD Card MP3 Music Player For Arduino spotify mp3 player MP3 Players

Name: android mp3 player DY-HV20T DY-HV8F 12V/24V Power Supply10W/20W Voice Playback Module Supporting Micro SD Card MP3 Music Player For Arduino spotify mp3 player
Brand: MMO Dropship
SKU: 1005002638911709
Price: 32.72 VND
Availability: InStock
Rating: 4.9 (85 reviews)

Code: TD-1005002638911709 38 orders

Free Shipping

$ 32.72 $ 33.71

Other people want this. 30 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	RIXITE
Origin:	CN(Origin)
External Memory:	Yes
Audio Format Support:	MP3, WAV
Audio Format Support:	MP3, WMA, OGG, ASF
Audio Format Support:	mp3
Audio Format Support:	MP3, WMA, ASF, WAV
Audio Format Support:	MP3, WMA, WAV, MP1, MP2
Certification:	CE
Balanced Out:	Yes
Have Speakers or not:	Yes
Battery Specification:	External Power
Function:	Build in Speaker
Function:	bluetooth
Battery Life:	< 10 hours
Display Size:	None
Model Number:	DY-HV8F DY-HV20T
Style:	Pure Audio MP3
Package:	Yes
Supports FM:	Yes
Supports Recording Function:	No
Signal Noise Ratio:	3dB
Screen:	No

Mini Bluetooth 4.1 5.0 MP3 Decoder Board Audio Receiver MP3 Lossless Player Wireless Stereo Music Amplifier Module

USD 0.81/piece

Voice Playback Module MP3 Music Player UART I/O Trigger Amplifier Board Module DY-SV17F DY-SV5W DY-SV8F DY-HV20T DY-HV8F

USD 1.70-4.00/piece

Mini MP3 Player Module + Voice Controller Shield Audio Voice Board Support For SD Card TF Card For XY-V17B

USD 1.16-1.50/piece

TF Card U Disk MP3 Format Decoder Board Module Amplifier Decoding Audio Player

USD 0.82/piece

Bluetooth Audio Receiver board Bluetooth 5.0 mp3 lossless decoder board Wireless Stereo Music Module XY-WRBT Wireless speakers

USD 1.55/piece

Mini Bluetooth 5.0 MP3 Decoder Board Audio Receiver MP3 Lossless Player Wireless Stereo Music Amplifier Module VHM-314

USD 0.81/piece

XY-BT-L Lossless Decoding Module Wireless Bluetooth MP3 Decoder Board 3.7-5V BLE 4.1 Circuit Board Micro USB TF Card Interface

USD 1.54/piece

MH-MX8 MP3 Decoder Board Bluetooth 4.2 5.0 Audio Amplifier Lossless Stereo DIY Modified Speaker High Fidelity HIFI M18 M28 M38

USD 0.90-1.10/piece

Customers who need wholesale can contact customer service to enjoy exclusive discounts

DY-HV8F/DY-HV20T

Product Description:

DY-HV8F/DY-HV20T

is a smart voice playback module developed independently by our company,Integrated IO trigger, UART protocol control, One_line single-bus protocol control, standard MP3 and other 7 operating modes setting by DIP switch; Drive 4~8Ω, 10W~20W speaker by a 20W class D audio amplifier on board;Support MP3.WAV decoding; 64Mbits(8M bytes)flash storage on board, downloading music files directly by micro USB connector.

Product Characteristics:

1.Support MP3.WAV decoding.

2.Support sampling rate (KHz):8/11.025/12/16/22.05/24/32/44.1/48.

3.24bit DAC output,support dynamic range 90dB,SNR 85dB.

4.Wide supply voltage DC:6~35V.

5.64Mbits(8M bytes)flash storage on board, downloading music files directly by micro USB connector.

6.Output maximum 20W driving 4Ω speaker, output maximum 10W driving 8Ω speaker.

7.Play 65535 pieces of music by UART control protocol; Play, Pause, Selecting music, VOL+/- and so on can be controlled,the communication baud rate is 9600bps.

8.Play 255 pieces of music by IO triggering.

9.Play music by One_line control protocol,Play, Pause, Selecting music, VOL+/- and so on can be controlled.

10.Switch 7 work modes using DIP switch easily.

11.ESD protection designed for 8 IOs.

DY-HV8F

未标题-5 未标题-6

DY-HV20T

未标题-7

未标题-8

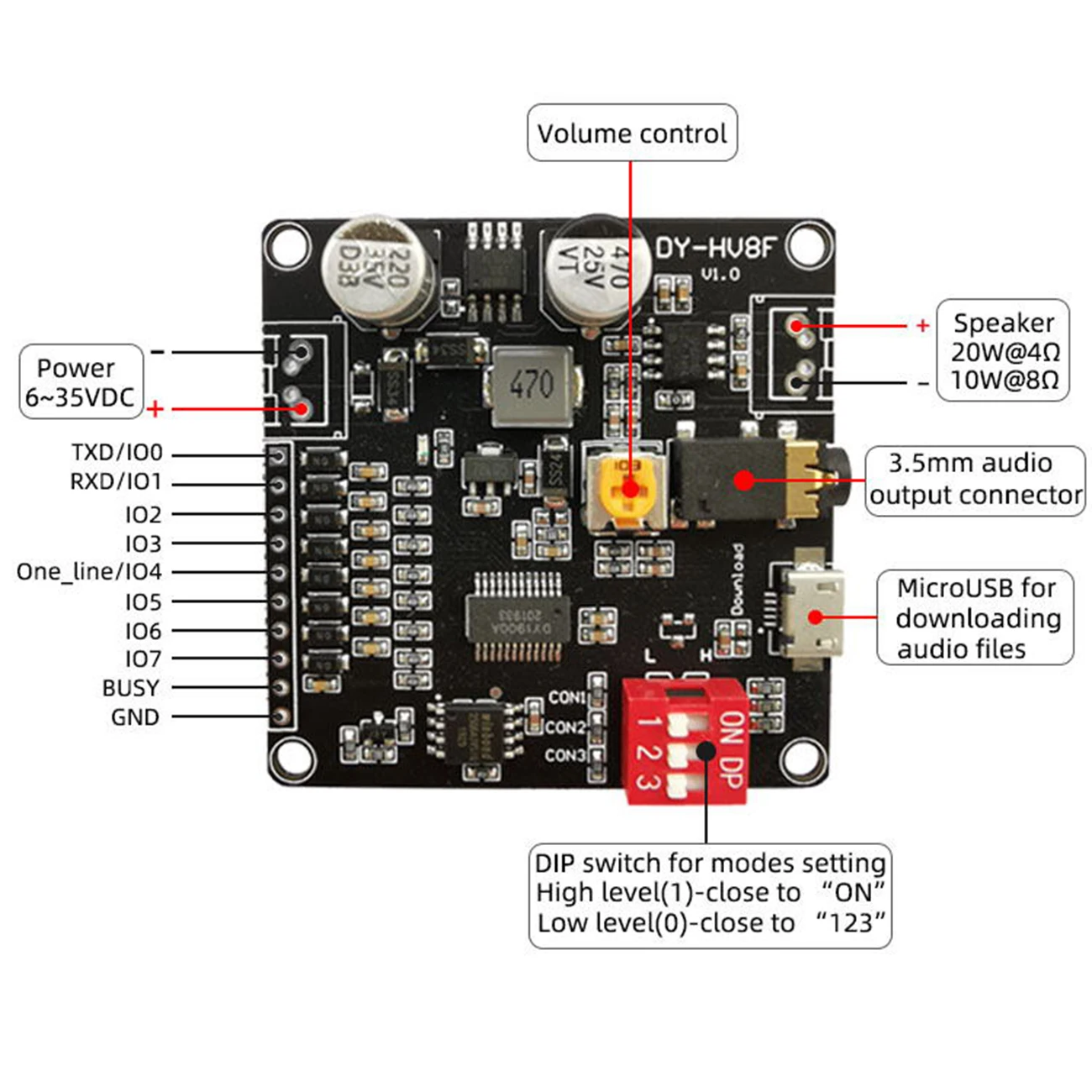

Definition of pins:

PINS

Description

Power(6~35VDC)

6~35VDC power supply

TXD/IO0

IO0 in IO triggering mode;TX in UART control mode,connect to RX of MCU

RXD/IO1

IO1 in IO triggering mode; RX in UART control mode,connect to TX of MCU

IO2

IO2 in IO triggering mode

IO3

IO3 in IO triggering mode

One_line/IO4

IO4 in IO triggering mode;RX in One_line mode

IO5

IO5 in IO triggering mode

IO6

IO6 in IO triggering mode

IO7

IO7 in IO triggering mode

BUSY

Output low level while playing music(0V),output high level when end playing(3.3V)

GND

Reference GND

Speaker

4Ω/20W or 8Ω/10W speaker is recommended

未标题-9 QQ截图20200420182057 QQ截图20200420182103
