Brand Name: | TGETH |
---|---|
Output Type: | AC |
Connection: | Plug In |
Place of Origin: | Taiwan |
API interface for WEB: | OCX |
API interface for PC: | DLL |
Model Number: | AD102 CTI USB Caller |
Usage: | CTI USB Caller ID Interface |
AD102 CTI USB Caller ID Interface Support second time developing with free SDK(Vc, Vb,Vf, C#)
Tips: If the customer has used AD101 before(Do not use AD101 before ,Ignore this message)
, buy AD102 now, need to replace a development package file
The software needs to replace a development package file name
AD101Device.dll
Or contact customer service, will send you a new test file
Diagram:
Key features:
-Incoming/outgoing number, time & date record
-Conversation duration counting
-Compatible ETSI/Bellcore FSK and DTMF caller ID
-Live line operating status indication
-Flexible system parameter programming
-HID USB data transmission without USB driver
-Multiple system LED indicator status control
-Provide several talking startup conditions
-Expandable to 4 devices simultaneously
-Start talking interval & missed call time setting
-Provide polarity reversal detection
System Requirements:
Pentium 400 MHz CPU or above
Windows98se/XP/2000/NT OS
10MB HD space or above
128 MB RAM
CD-ROM
Standard USB port
Standard RJ11 port
USB Audio Function:
Supports USB2.0 Full Speed
Supports USB Audio Device Class Specification 1.0
Supports Microsoft Windows98se/ ME / 2000/ XP
Environment Requirement:
Operation Temp 0oC - 50oC (32oF - 122oF)
Storage Temp -30oC - 65oC (-22oF - 149oF)
Operation humidity 10% - 90% without congealment
Specification:
Product: Single line USB Caller ID interface
Dimension:138(L)*106(W)*25(H) (mm)
USB cable:1.5M
Weight:187 g
Contents: hardwareSDK(AIP) and DEMO Driver-CD USB CableRJ11 CordUserrsquos manual

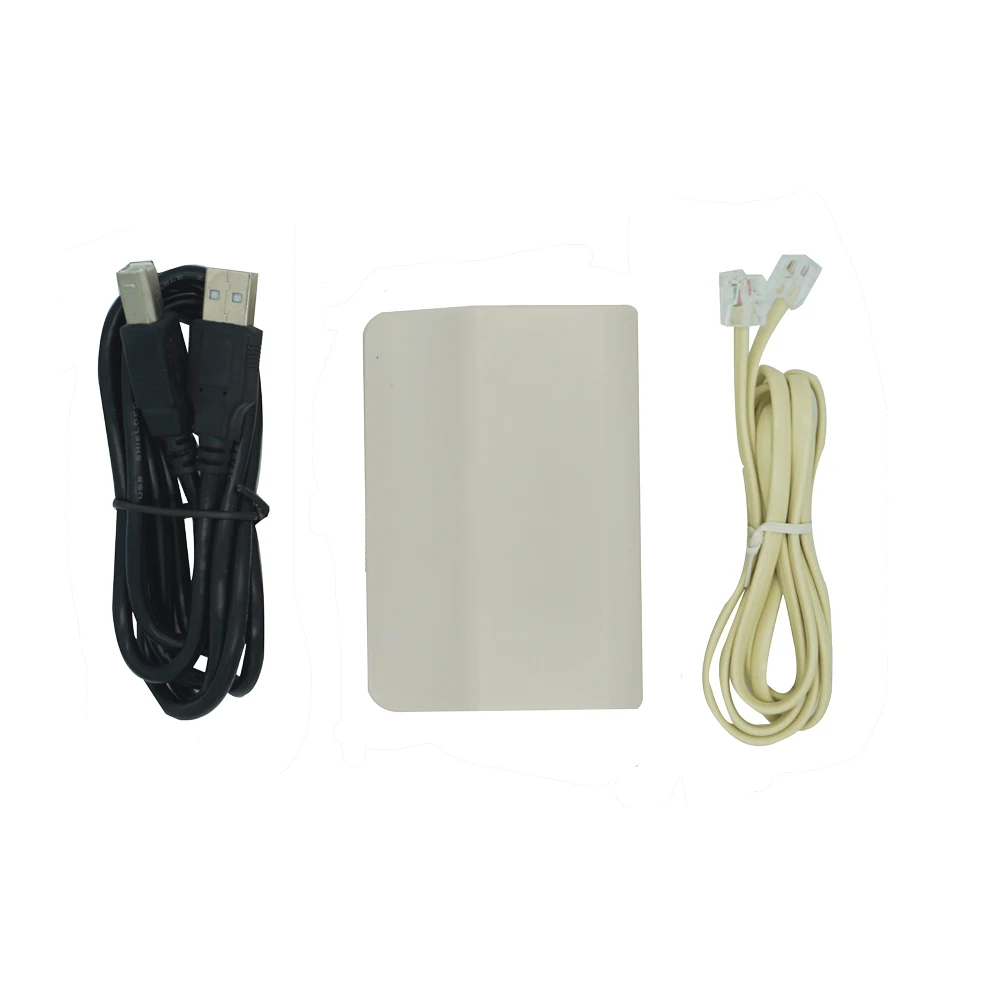

Package content:
1. AD102 Device
2. Software Development Kit(AIP) and DEMO Driver-CD
3. USB cable
4. RJ11 phone cable
5. Userrsquos Manual
