Name: acid litmus paper LCR-TC1 1.8" TFT LCD Display Multi-meter Transistor Tester Diode Triode Capacitor Resistor Test Meter ESR LCR NPN PNP MOSFET COD magnetic tape measure
Brand: MMO Dropship
SKU: 1005003433563174
Price: 44.8 VND
Availability: InStock
Rating: 4.9 (89 reviews)

Code: TD-1005003433563174 1173 orders

Free Shipping

$ 44.8

Other people want this. 24 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Gaqqee
DIY Supplies:	ELECTRICAL
Certification:	CE
Origin:	CN(Origin)
Model Number:	LCR-TC1
AC Current:	MOSFET
Is Smart Device:	No
AC Voltage:	Multi-meter
Measuring Resistance Range:	0.01-50MΩ
Operating Mode:	Handheld
Measuring Inductance Range:	0.01mH-20H
Display Type:	Digital Display
DC Current:	ESR
DC Voltage:	3.7V
Measuring Capacitance Range:	25pF-100mF
Dimensions:	709028mM

LCR-TC1 Described as follows：

Feature:

For detecting NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery, resistor and capacitor and other components, etc.

Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly. ( Use 12864 liquid crystal display with green backlight).

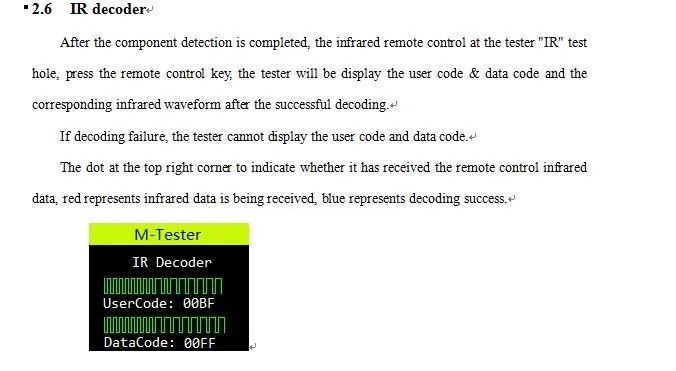

After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decode it, it will display the data code and infrared wave form.

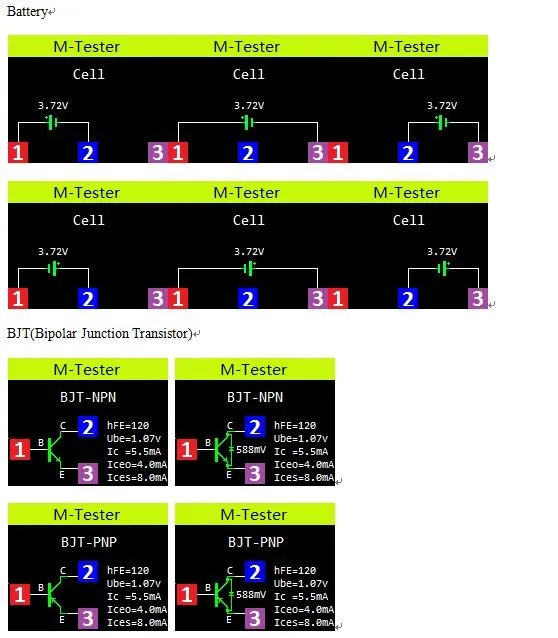

Measurement results represent by TFT graphic display(160x128). Support Chinese and English.

One key operation, Auto Power Off(Timeout Settable). Can also press the multi-functional button to close the detector.

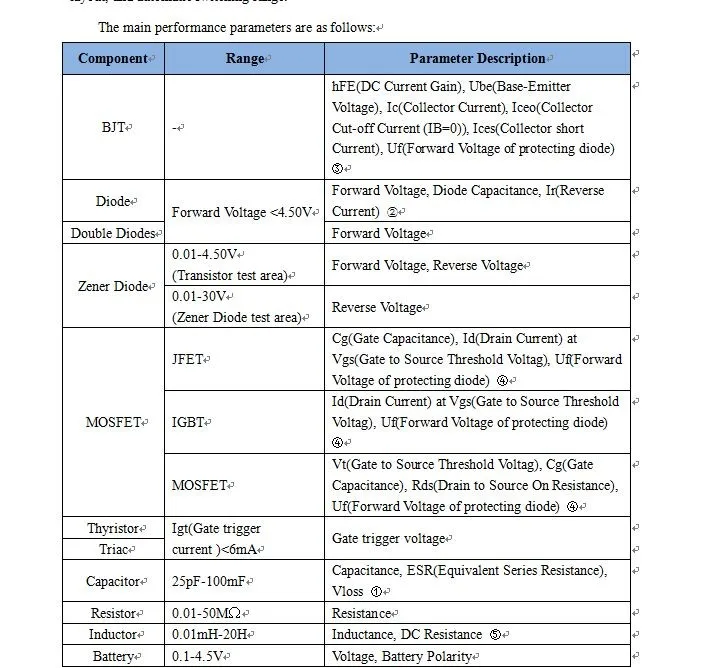

Specification:

Color: White

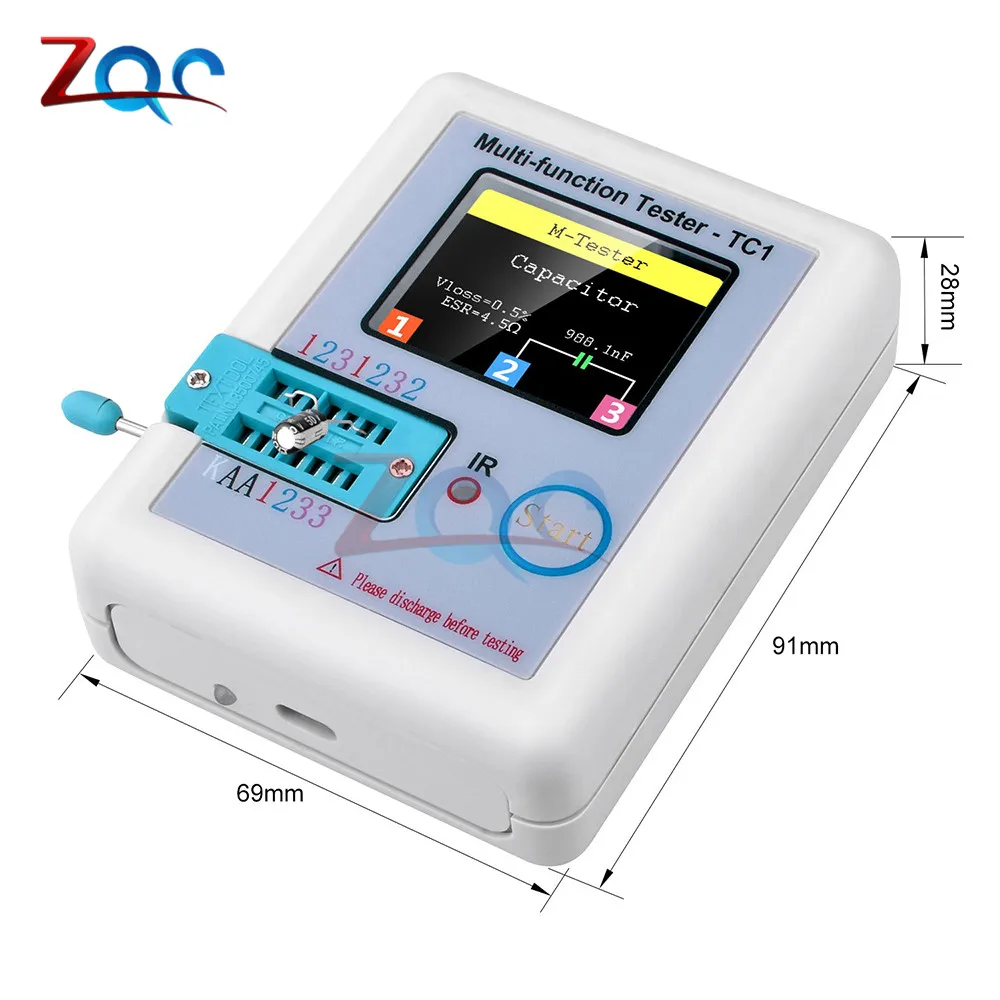

Size: 70*90*28mm/ 2.71x3.58x1.10 inch

Display: 1.8 inch TFT Screen, Color Screen

Diode Range: less than 4.5V

Transistor Detect Area: 0.01-4.5V

Zener Diode Detect Area: 0.01-30V

Triac Range: IGT less than 6mA

Capacitance: 25pF-100mF(Please discharge capacitor before testing)

Resistor: 0.01-50MΩ

Inductance: 0.01mH-20H

Power Voltage: 3.7V

Power: Built-in Rechargeable Lithium Battery

Package Included:

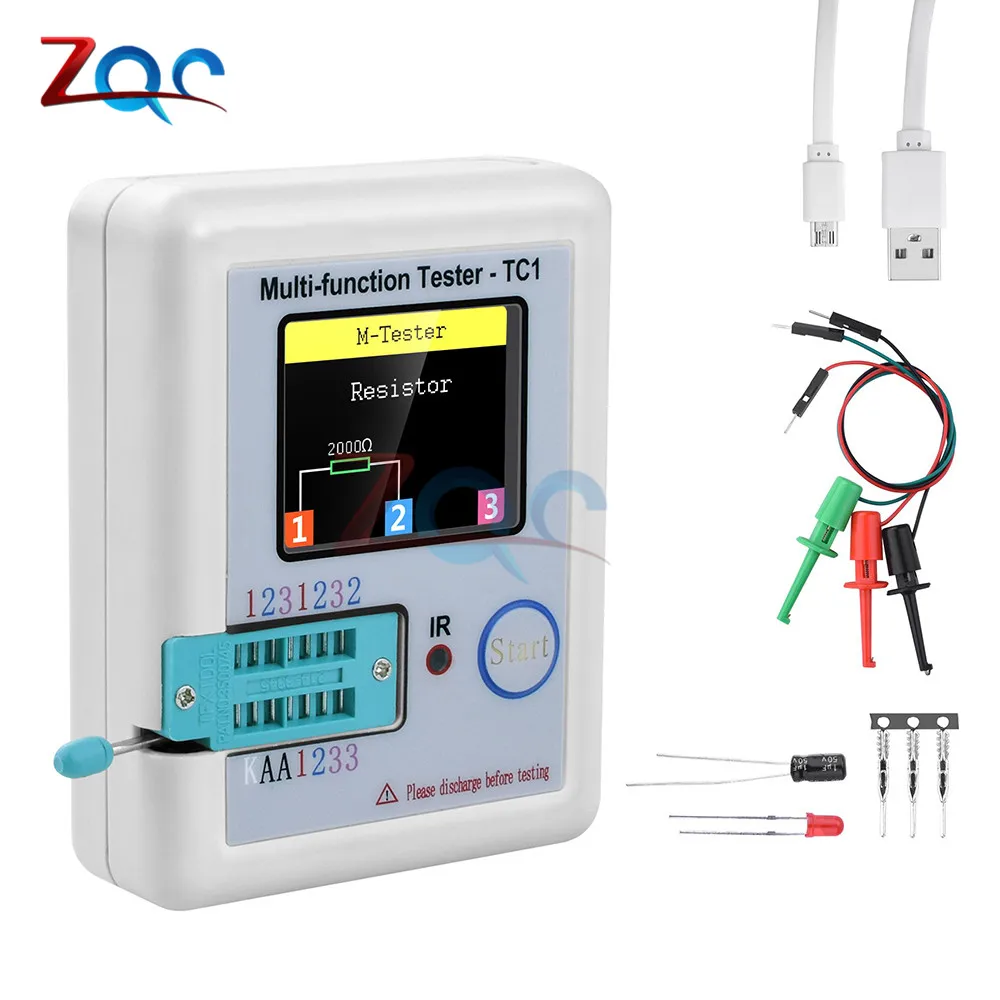

1 * Multi-functional TFT Transistor Tester

1 * Electronic Component Set

1 * Micro USB Cable

3 * Test Hook

Operating Instructions

Key operational definitions

Multi-function key has two actions:

Short press: Press the key and not less than 10 ms, release key within 1.5 seconds

Long press: Press the key more than 1.5 seconds

Power on

In the power off state, short press the multifunction key, the tester is turned on and automatically measured.

Power on & measurement interface

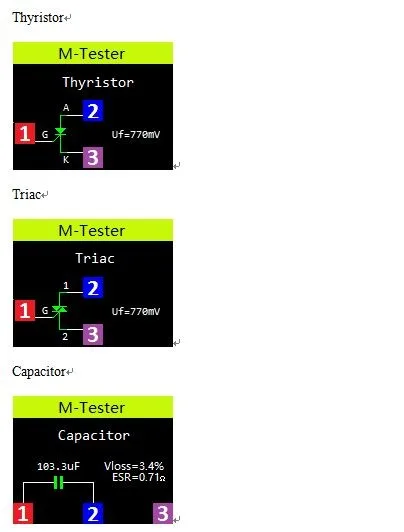

Detect transistor

In the power off state or the test is completed, put the test element into the transistor test area of test seat, and press the locking handle, short press the multifunction key, the tester automatically measure, graphical display of measurement results when testing is complete.

Warning: Always be sure to DISCHARGE capacitors before connecting them to the tester! The tester may be damaged before you have switched it on!

Warning: We do not recommend using the tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!

Component placement

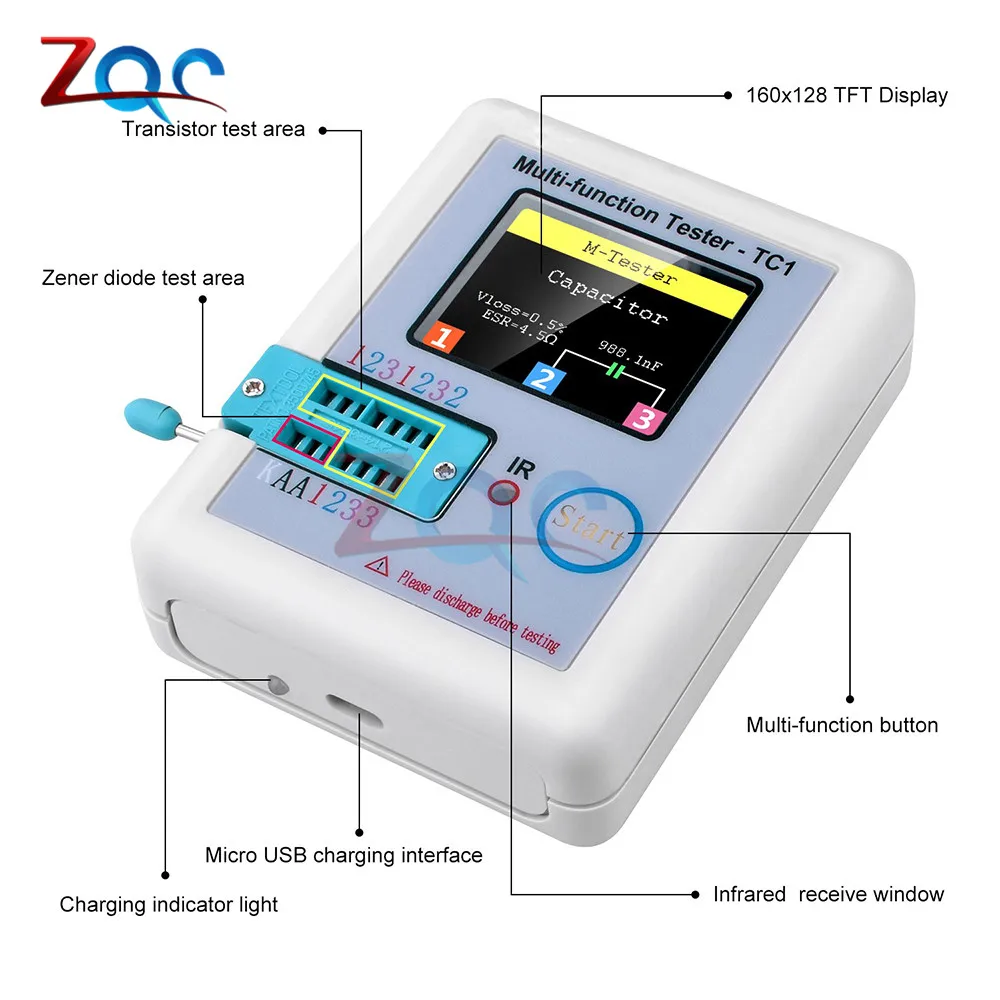

Test seat are divided into transistors and zener diode test area, detailed in 1.1 Description.

No, unknown, or damaged part

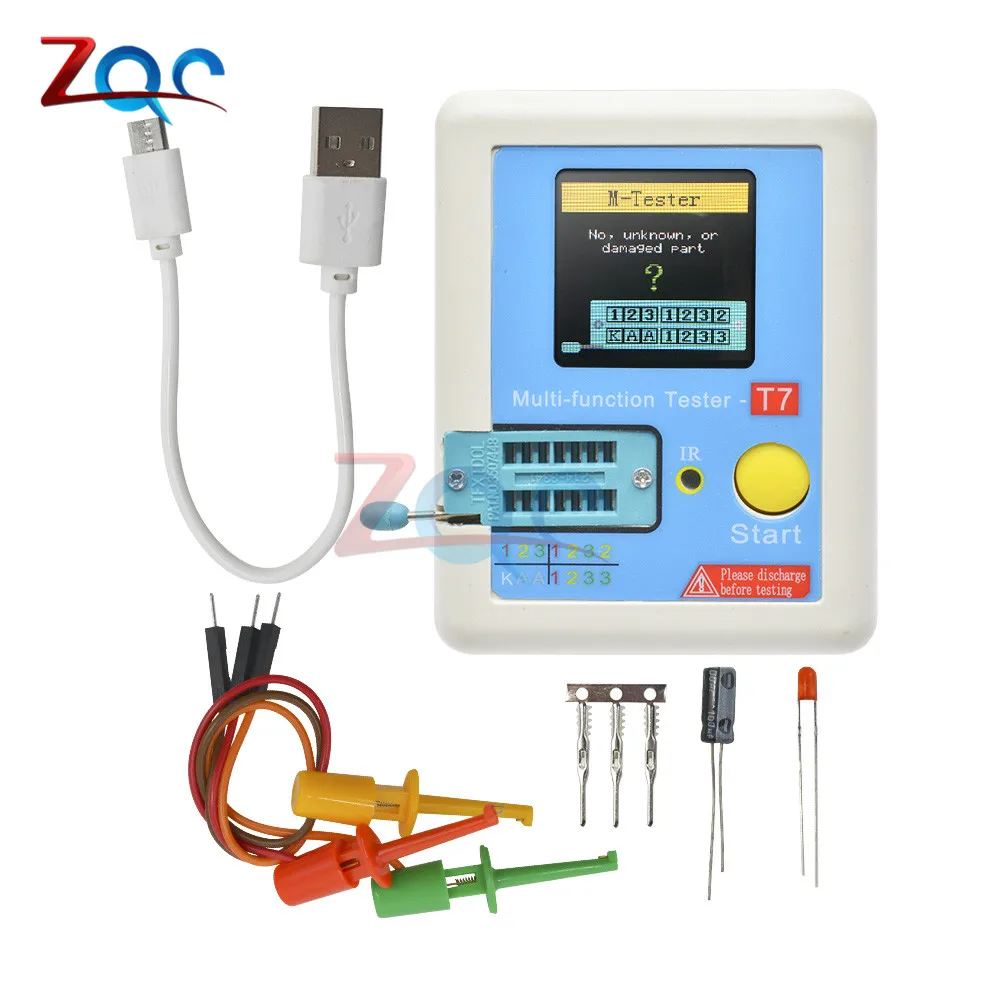

TCR-T7 Described as follows：
