Name: access card reader 865-868Mhz PR9200 Baord Short Range Small Size Low Cost UHF RFID Reader Module with IPEX Socket Stamp Hole Solder smart lock deadbolt
Brand: MMO Dropship
SKU: 4000132152327
Price: 149.37 VND
Availability: InStock
Rating: 4.9 (73 reviews)

Code: TD-4000132152327 9 orders

Free Shipping

$ 149.37

Color:

Note

Quantity:

Other people want this. 20 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	fonkan
Origin:	CN(Origin)
Model Number:	FM-502
Certification:	CE
Certification:	FCC
Certification:	RoHS
chipset:	PR9200
RF power:	18-26dBm
frequency:	865-868Mhz or 902-928Mhz
antenna connecter:	ipex
SDK:	C#
Size:	25*28mm
Protocol:	ISO18000-6C

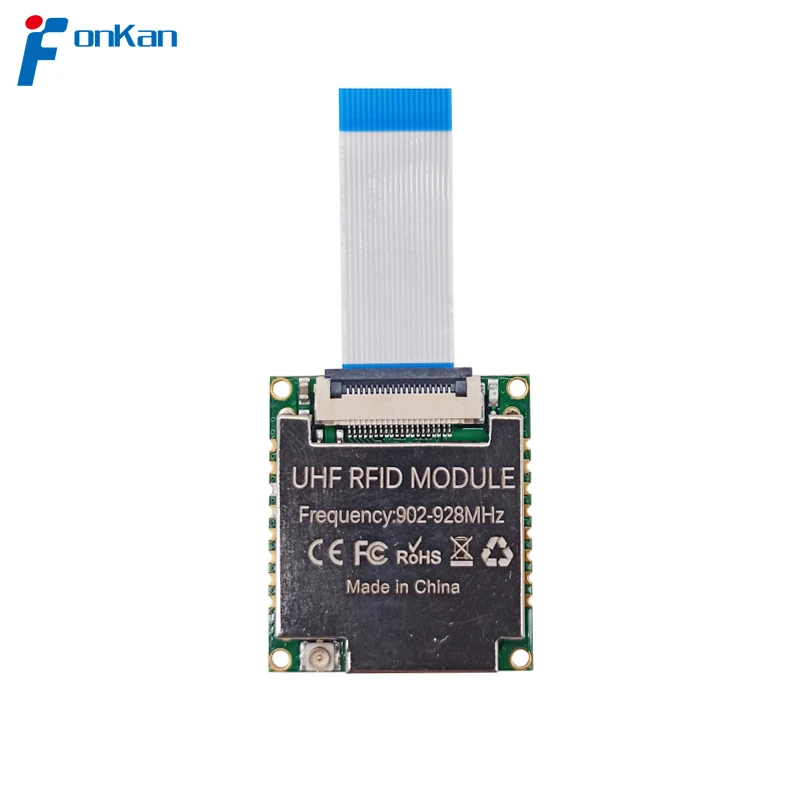

865-868Mhz or 902-928Mhz PR9200 Module UHF RFID Reader and writer Module

Model

FM-502

Protocol

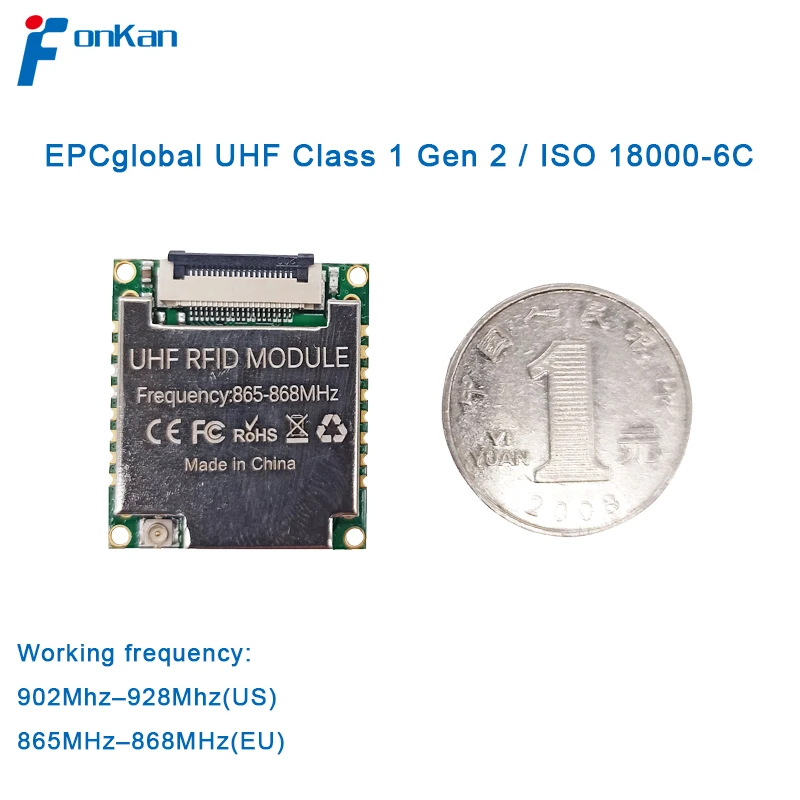

EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

Working frequency

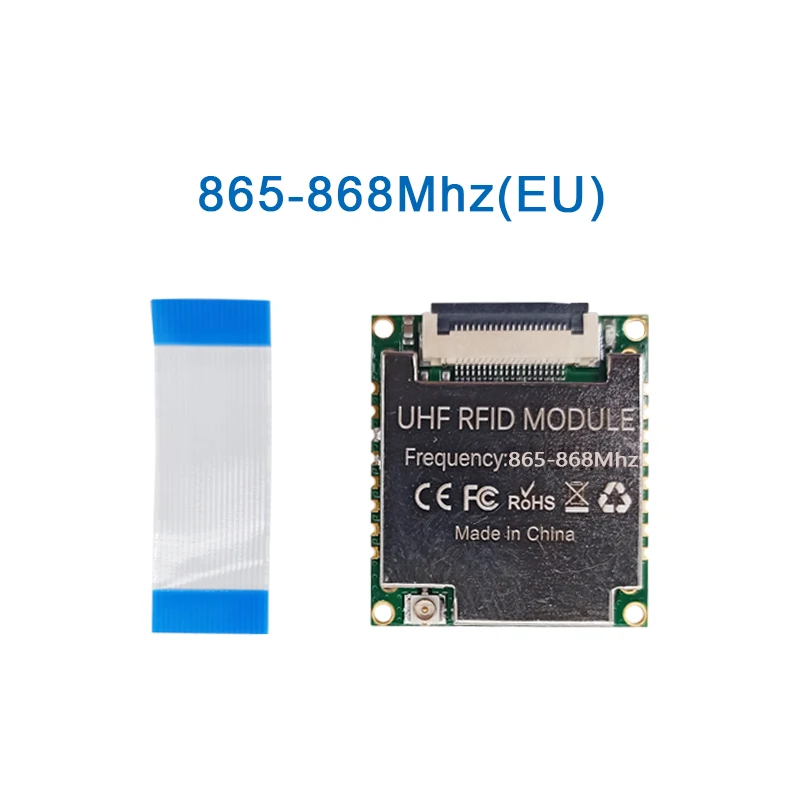

902Mhz–928Mhz(US) or 865MHz–868MHz(EU)

Work voltage

DC 3.5V – 5 V

Standby current

<80mA (EN high level)

Sleep current

<100uA (EN low level)

Operating Current

260mA @ 3.5V (26 dBm Output，25°C).
110mA @ 3.5V (18 dBm Output，25°C).

Start-up time

<100mS

Maximum output power

18-26 dBm

Output power accuracy

+/- 1dB

Output power flatness

+/- 0.2dB

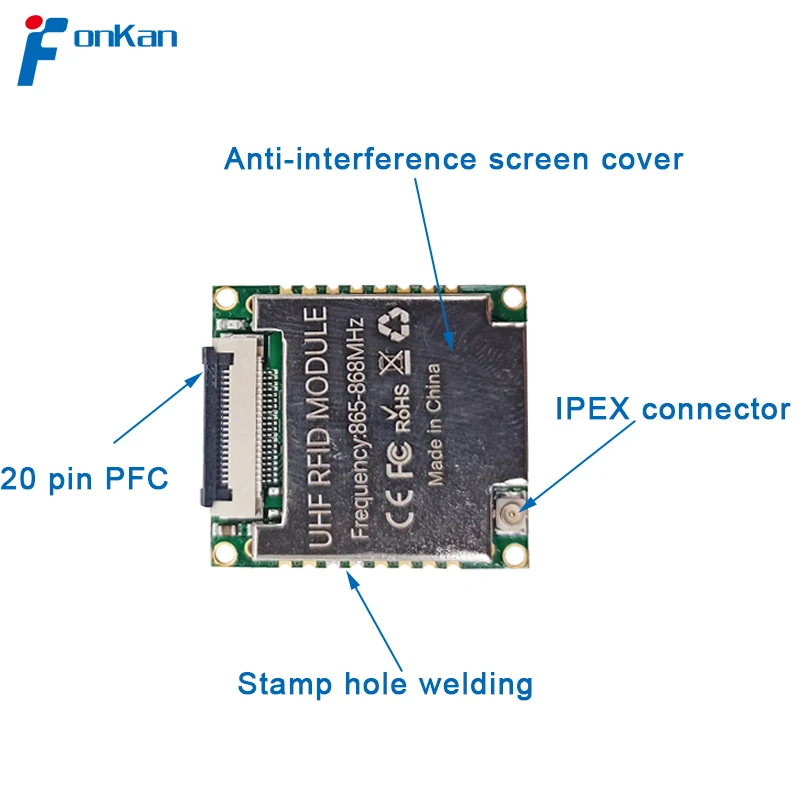

Output RF Connector

I-PEX

Receive Sensitivity

< -70dBm

Peak speed of inventory tags

> 50pcs/sec.

Tag buffer

200pcs tag @ 96 bit EPC

Tag RSSI

support

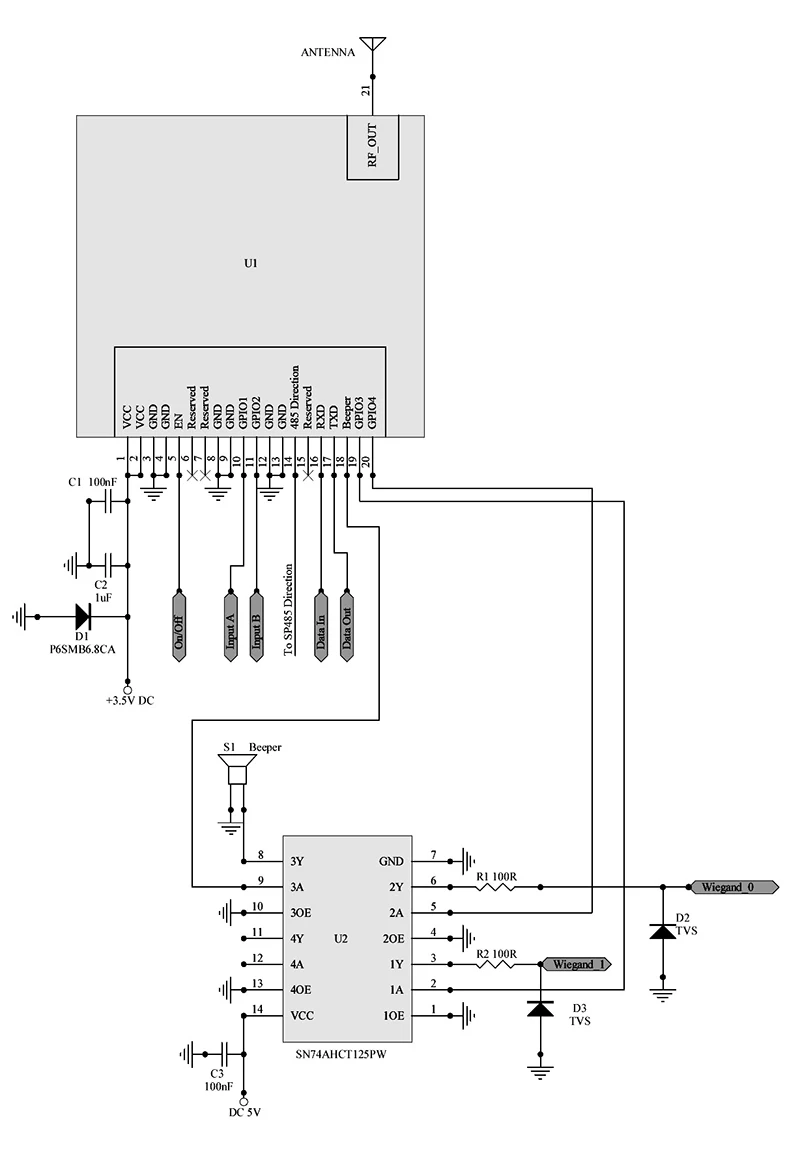

Communication interface

TTL Uart interface
Wiegand26/34 interface

GPIO

2-channel input 2-channel output (3.3V level)

Communication baud rate

115200 bps（Default and recommended）
38400bps

Operating Temp

- 20 °C-+ 70°C

Storage Temp

- 20 °C-+ 85°C

Operating Humidity

< 95% ( + 25 °C)

Heat dissipation method

Air cooling (no external heatsink)

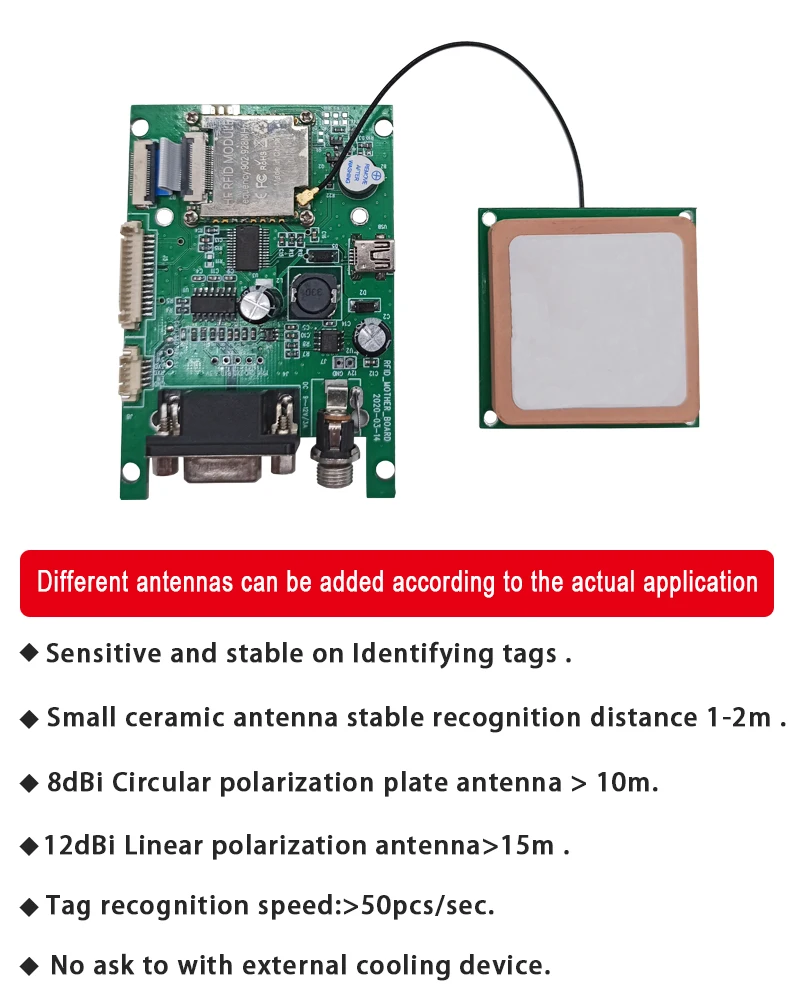

Antenna(customization)

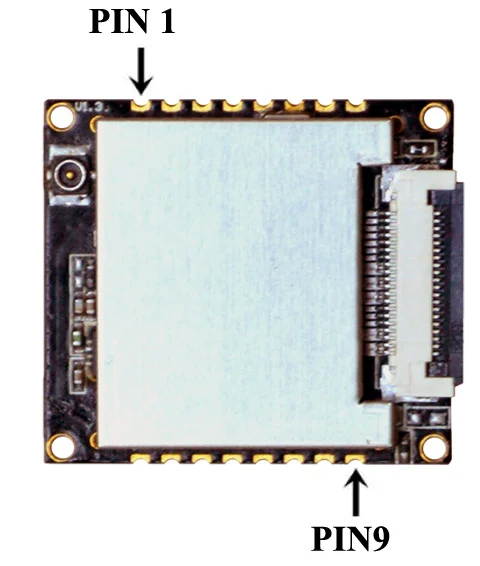

NOTE：The antenna comes from IPEX by default. If you want to connect toPIN1, please leave a message.

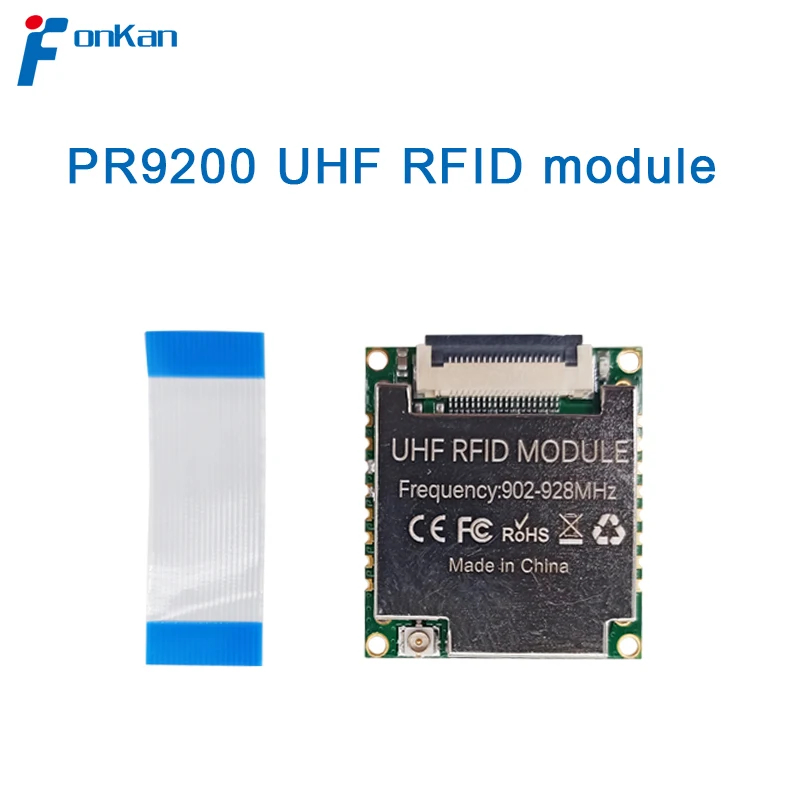

1.PR9200 module

2.Test card

3.SDK and demo(After purchasing, please provide your E-mail to me).

E-mai:[email protected]

Skype:[email protected]

Whatsapp:+86-17603074791
