Acceo A20P 10 Inches Car Dvr Dash Cam HD 1080P Dual Lens Touch Screen Auto Rearview Mirror Dash Stream Media 170° Front And Rear vehicle blackbox dvr full hd 1080p DVR/Dash Cameras

Brand Name:	Acceo
Frames Per Second:	30
Origin:	CN(Origin)
Chipset Manufacturer:	JIELI
Assembly Mode:	Rearview Mirror
View angle:	170°
Number Of Lenses:	2
Screen Ratio:	4:3
Interface:	AV-In
Interface:	USB2.0
Interface:	Micro SD/TF
Video Code:	MJPG
Battery Life:	Connect to the power line
Original Package:	Yes
Camera Resolution:	1920x1080
Special Features:	Digital Zoom
Special Features:	Motion Detection
Special Features:	Cycle Recording
Special Features:	Time&Date Display
Special Features:	microphone
Special Features:	LED Display
Special Features:	With Rearview Mirror
Special Features:	Night vision
Special Features:	Dual Lens
Special Features:	Anti Surge Voltage Impact
Special Features:	waterproof
Special Features:	Anti Fog
Special Features:	Anti Vibration
Special Features:	Real Time Surveillance
Special Features:	VOICE
Special Features:	Cyclic Recording
Special Features:	Automatic White Balance
Special Features:	LED Light
Video Format:	AVI
Touch Screen:	Yes
Item Type:	Car DVR
GPS logger:	NONE
Battery:	Built-in
Display Size:	9.88
Certification:	CE
Certification:	FCC
Certification:	RoHS
Memory Card Required Reding Speed:	Class 10
Imaging Sensor:	1/3"Sony Ccd
OSD Language:	Chinese (Simplified)
OSD Language:	Dutch
OSD Language:	English
OSD Language:	French
OSD Language:	German
OSD Language:	Greek
OSD Language:	Hungarian
OSD Language:	Italian
OSD Language:	Japanese
OSD Language:	Korean
OSD Language:	Polish
OSD Language:	Portuguese
OSD Language:	Romanian
OSD Language:	RUSSIA
OSD Language:	Russian
OSD Language:	Slovak
OSD Language:	Turkish
Pixels:	1200Mega
Rear Camera:	Yes
Display:	IPS
Max External Memory:	64G

Product Video

Product Information

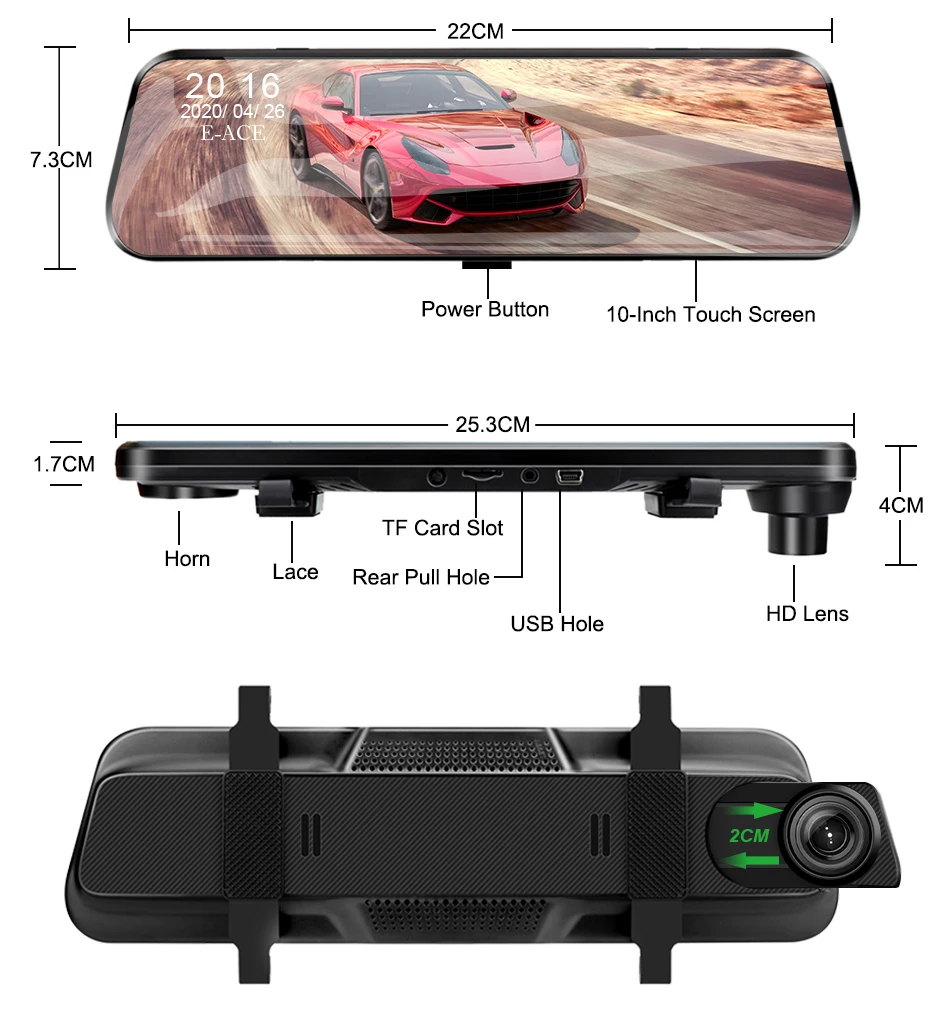

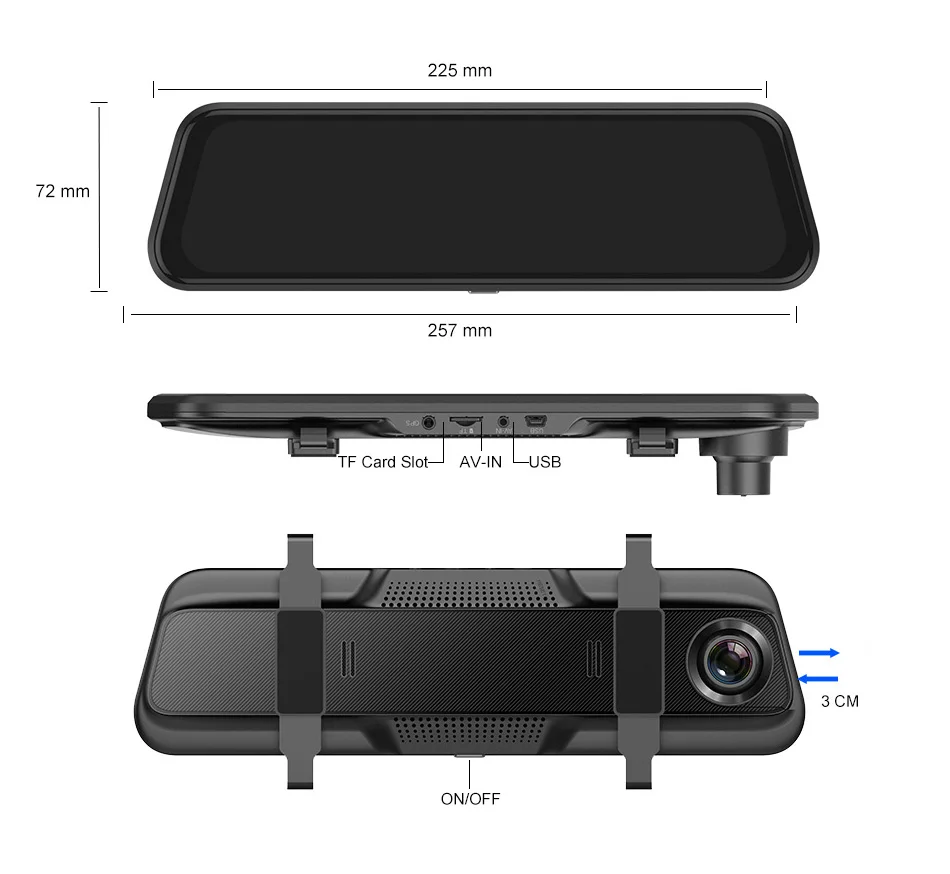

Features And Specifications:
● Installation Type: Rearview Mirror, suitable for all vehicles with mirror;
● Screen(Display) Size: 10.0 Inch Touch IPS Screen
●Chipset(Processor/CPU):JIELI/Hisilicon
● Camera Sensor:Front 2MP + Rear 1MP;
● Camera Lens: Front + Rear; 6 Glass + 4 Glass; 170 Degree Angle + 140 Degree Angle; F2.2 Aperture + F2.2 Aperture;
● Video Resolution:
A20P Front: 1920*1080P@30FPS; Rear: 1920*1080@25FPS;
● Photo Resolution: 12M;
● Video Code: MJPG;
● Battery: Built-In (Built-in battery is very small, can not support working, only for save time & setting, please use original power charger when working);
● OSD Languages: English, Russian, Chinses, Japanese, Korean,etc..... (If you want other languages,tell us,we will help you add it);
● Basic Features: Cycle Recording, Motion Detection, Parking Monitor, Time&Data Display, Wide Dynamic Range, Picture in picture display, ON/OFF Automatically
● Memory Card: Micro SD Card, class 10 and 16GB to 64GB (Not included) ;
● Rear Camera Upgrade: Support max 10 meters cable Rear Camera
● Add Features: Night Vision, Dual 1080P
● More Features: Coming soon.....

Packing List:

● 1 x Packaging box
● 1 x DVR
● 1 x Power charger
● 1 x User manual
● 1 x Rearview Camera With 6 Meters Cable(Optional)
● 1 x Buck Line For 24H Parking Monitoring(Optional)
● 1 x Real Class 10 High Speed TF Card(Optional)

Pay Attention:

● About 24h Monitoring:
The DVR is only compatible with cars that have a 12V power supply. A 24V power supply will burn the motherboard. If you want to use 24V, please add a 24V to 12V Converter(BL).
● About Video:
Our Car DVR is FHD 1080P Video Recorder,must use high quality Class 10 TF Card, any low quality/low speed TF card all can't support our DVRs work normally, if you can't make sure you have good TF Card,please buy our Original TF Card together.

Main Features

1:1 Split Screen

1:1 split screen design to switch front and rearview recording,

big screen and clearly and ersily to check rear view.Touch screen to switch to front camera,back camera.

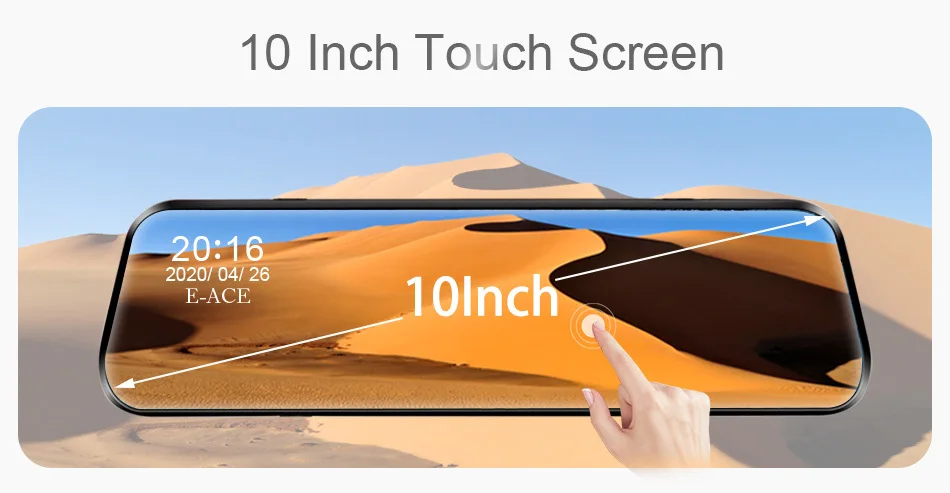

10 Inch Touch Super Screen Display

10 inch touch screen, more convenient to operate,

you can very fast operation of the car camera, so that you are safer in driving.

Dual Camera Simultaneously Recording

This Car DVR has cameras that allows for simultaneously recording videos from two different angles.

Flexible adjustable

Flexible front camera, 3cm longer can be adjustable,

can also adjust the lens up and down and left and right.

And 6 glass HD lens , through the most, too dark, the screen of the active

exposure adjustment, which is more detailed picture details, the image clearer.

2.5D Curved Surface Screen

2.5D curved design,scratch-resistant ,anti-glare,anti-fingerprint.

Real-time Display Reverse Parking view

Smart rear view angle switch between driving and parking.

You could see all further vehicles and objects clearly behind. you while real-time driving

and it will switch the rear view camera automatically to give a closer backup image when parking.

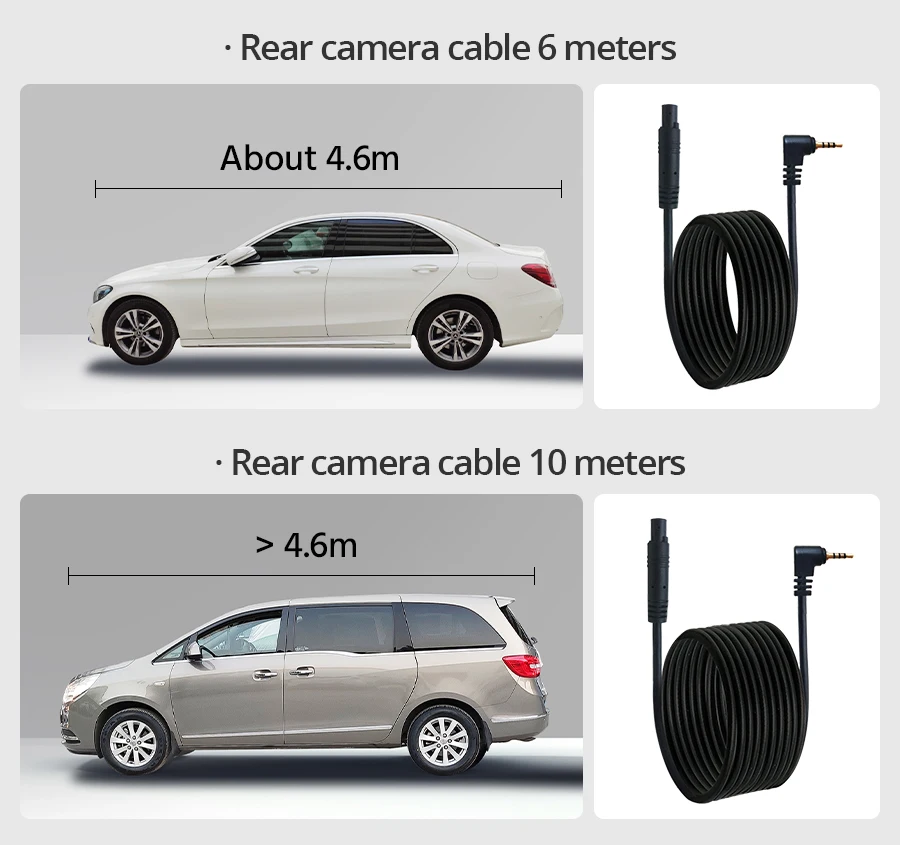

How to choose the rear camera cable

Full HD 1080P Video Quality

Higher quality images help to identify vital details such as

license plates,driver actions and road features which may prove your innocence.

Loop Recording/G-sensor/Parking Monitoring/Motion Detection

Hardwire Kit

Use the Hardwire Kit to not occupy the cigarette lighter interface.

First, connect the negative pole(black line) of the Hardwire Kit to the ground of the car fuse box;

Secondly, if you want to continue monitoring after parking (the DVR works 24 hours), connect the positive

pole(red line) of the Hardwire Kit to the BAT interface of the car fuse box;

If you want to stop monitoring after parking (the DVR does not work after parking), connect the positive pole

of the Hardwire Kit to the fuse box ACC interface.

Packing List

A20P

-1 x DVR(Without Rearview Camera)

-1 x Power charger

-1 x User Manual

-2 x Bandage

-1 x USB Card Reader(Gift)

A20P+BL

-1 x DVR (Without Rearview Camera)

-1 x Power charge

-1 x User Manual

-2 x Bandage

-1 x USB Card Reader(Gift)

-1 x Buck Line For 24H Parking Monitoring

A20P+6M RCC

-1 x DVR

-1 x Power charger

-1 x User Manual

-2 x Bandage

-1 x USB Card Reader (Gift)

-1 x 1080P Rearview Camera With 6 Meters Cable

A20P+6M RCC+BL

-1 x DVR

-1 x Power charge

-1 x User Manual

-2 x Bandage

-1 x USB Card Reader(Gift)

-1 x 1080P Rearview Camera With 6 Meters Cable

-1 x Buck Line For 24H Parking Monitoring

About Rear Camera Installation

Please connect the rear camera's Red cable wire with your car reverse lamp power 's Positive pole(+). and then plug the car charger into the cigar lighter to power supply the car dvr.When you get your car in Reverse Gear,the car dvr will automatically switch to the rear camera with parking line.Then the auto reversing function will work.
