80W Laser Module FAC Lens Head Kit 450nm Blue Laser for CNC 30W 20W 40W Machine Engraver Cutter Glowforge 3D Printer wood locator Woodworking Machinery

Code: TD-3256802949750885 2 orders
Free Shipping
$ 299.6 $ 699
Color: Black
Black
Note

Quantity:
Other people want this. 14 people have this in their carts right now.
Brand Name:  ZBAITU
Certification:  NONE
Origin:  CN(Origin)
Model Number:  FF80
Effect Power:  80W
Output Optical Power:  10W
Wavelength:  450nm
Size:  4x4x15cm
Material:  Aluminum Alloy
Laser color:  Blue
Package Weight:  0.3kg
Lens:  Zoom Lens
Fan Speed:  10000rpm
Service Life:  10000hours
Spot size:  0.08x0.08mm
Focal Length:  45mm
Connection Port:  3-pin

ZBAITU is a professional manufacturer that is concerned with the design, development and production of DIY Laser Engraving Cutting Machine.

Our equitments have better performance than other known brands in the market, welcome to contact us for details!

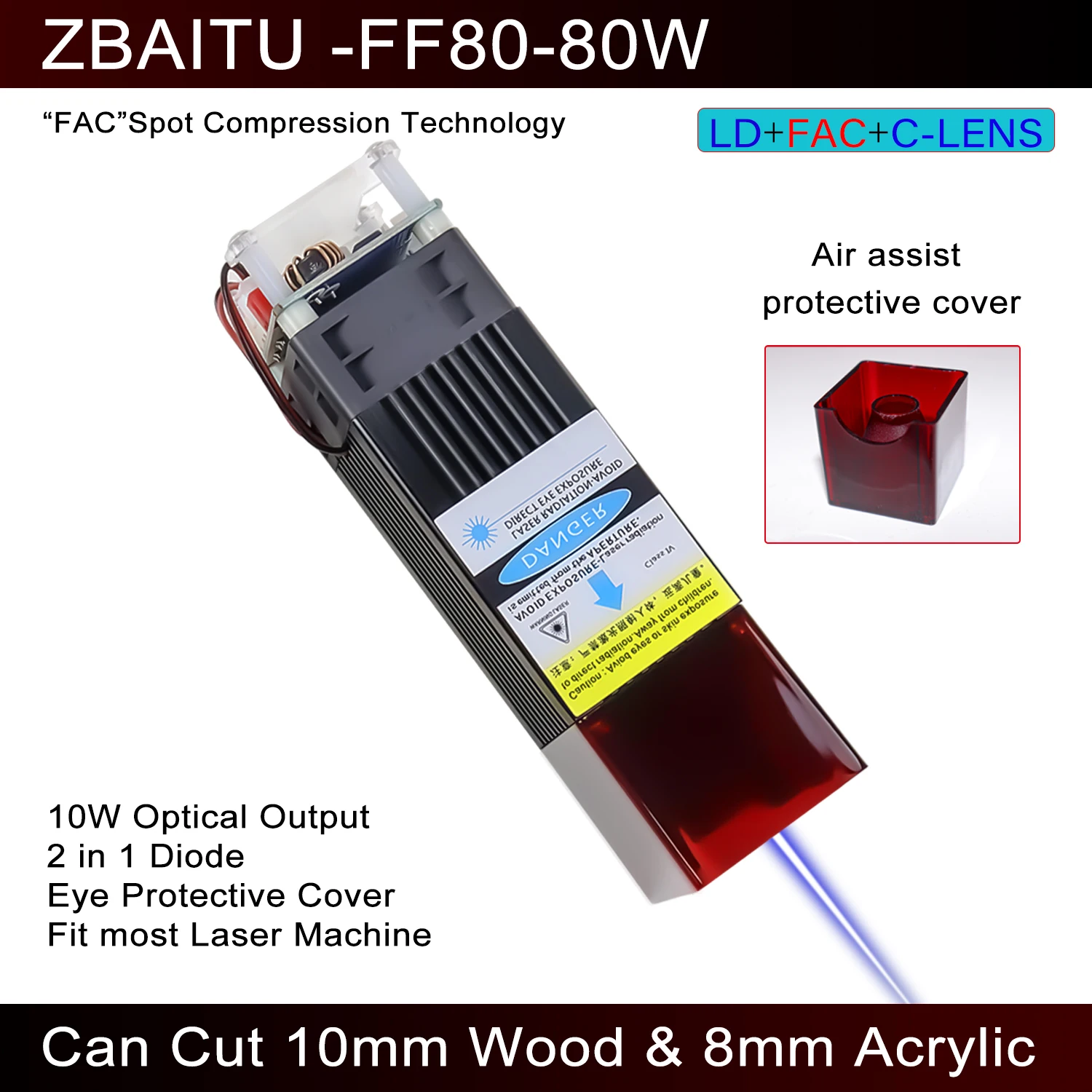

ZBAITU 80W Laser Module Laser Head Kit 450nm Blue Laser for CNC 30W 20W 40W Machine Engraver Cutter Glowforge 3D Printer

FAC technology:  FAC technology means the laser power is more centralized, the engraving/cutting/marking is more accurate.

Designed for Laser Engraver Machine, 3D Printer, CNC Mill.

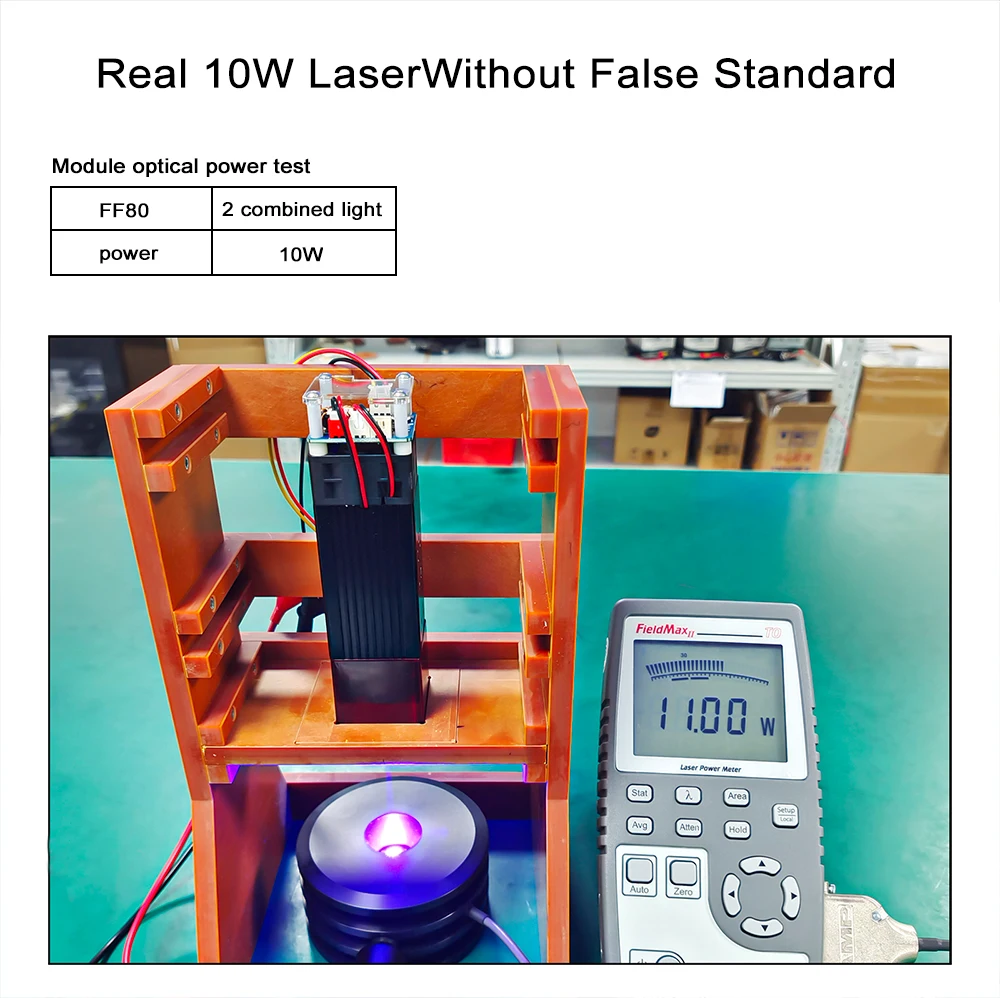

10W optical power output is the highest according to newest theory of light refraction in the market.

Some others claim that their 15W laser power is not so reliable and professional.

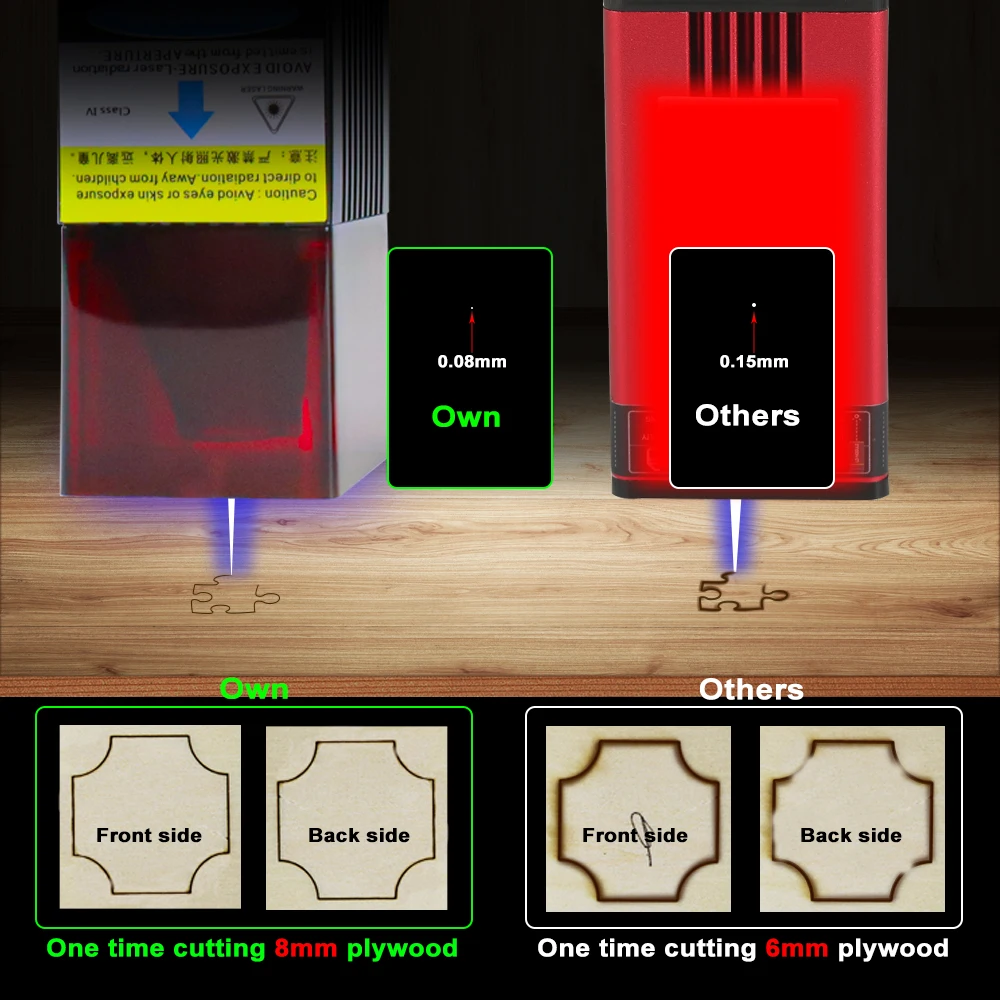

The Ultra-fine Laser Focus

With the unique cross light spot, it ensures more accurate cut lines and fewer burn marks.

Dual Beam Design

Combine 2 laser modules together to achieve 10W laser output.

Cut 8mm plywood from 1 pass, 6mm black acrylic board from 1 pass, Able to engrave stainless steel, metal, ceramic, glasses and so on.

Can Cut

MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper.

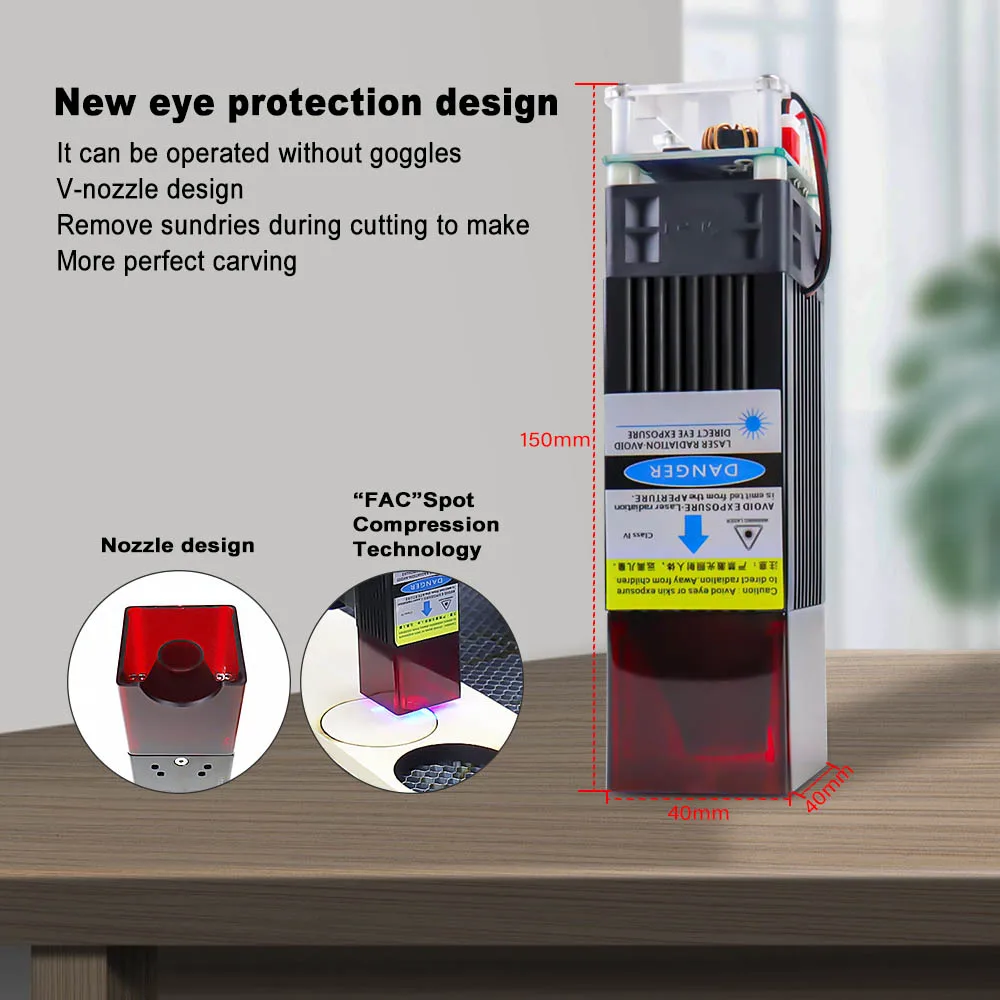

More Safety, Even without wearing protective glasses, the operation is more comfortable with the protective cover on the head.

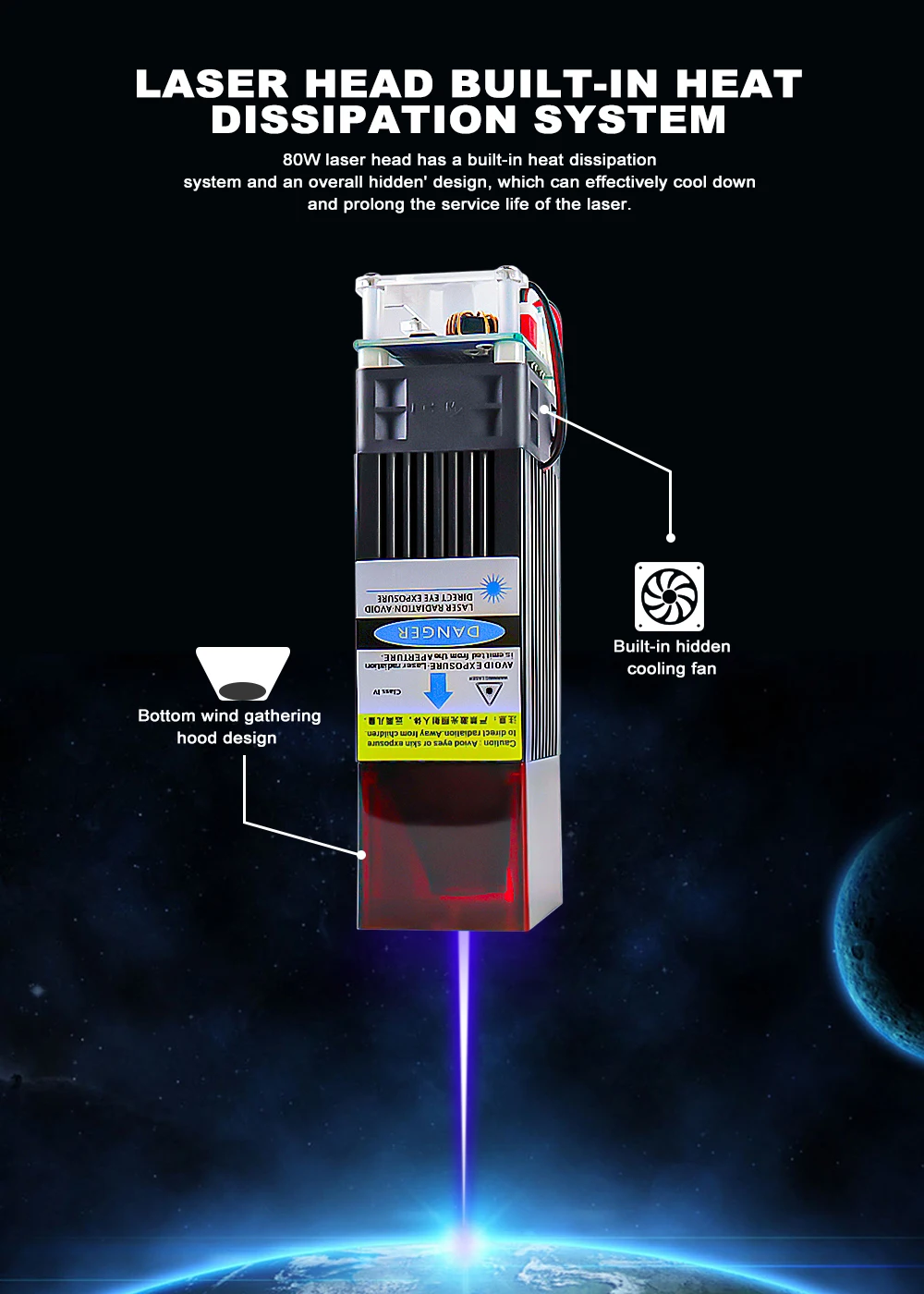

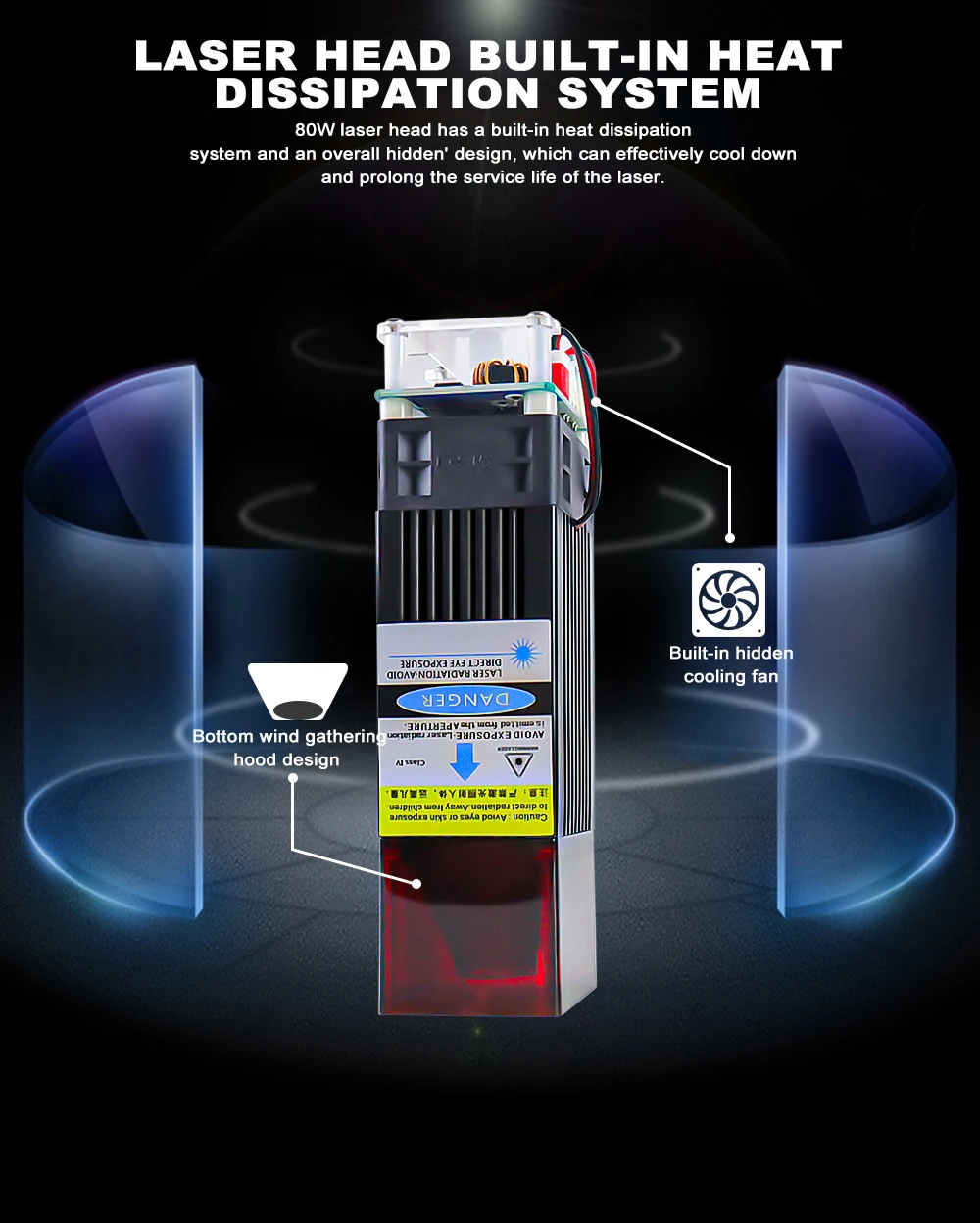

More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

General Specification:

Model:ZBAITU FF80

Material:Aircraft Aluminum

Luminous Color:Blue

Dimension: 4X4X16cm

Life Time:15000 Hours

Technical Parameters:

Module Input:30-40W

Optical Power Output:10W

Wavelength:445-450nm

Beam Shape:Dot (Focusable)

Working Voltage:DC 12V

TTL&PWM Modulation:YES, Compatible with Both TTL & PWM Modulation

Input Voltage:DC12V 3-4A

PWM/TTL Input:DC3.3V-12V

Drive Mode:External ACC

Safe Temperature Range:<60 ℃

Cooling Mode:Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
