7" Wired Video Intercom For Home Security Video Door Bell With Camera Video Door Phone Residential Intercoms For The Apartment doorbell screen intercom Door Intercom Systems
Code: TD-1005002350158463
5 orders
Free Shipping
$ 213.56
Other people want this. 12 people have this in their carts right now.
| Brand Name: | anjielosmart |
|---|---|
| Connection Method: | Wired |
| Camera Sensor type: | CMOS |
| Origin: | CN(Origin) |
| Answering Mode: | Handheld |
| Display Size: | 7 |
| Display Screen Type: | color |
| Zone Input: | None |
| Kit Configuration: | One to Two video doorphone |
| Access Control: | None |
| Type: | Intercom System |
| Waterproof: | Yes |
| Smart home platform: | Other |
| IP Camera Interface: | No |
| Samrt Home Interface: | No |
| Installation: | Wall Mounting |
| Resolution: | > 420 TV Line |
| Connection Type: | Wired |
| Certification: | CE |
| Certification: | EAC |
| Certification: | FCC |
| Certification: | TGA |
| Certification: | PSE |
| Plug Type: | EU plug |
| Plug Type: | US plug |
| Plug Type: | AU Plug |
| Plug Type: | UK plug |
| Model Number: | XSL-V70F+M4 |
| Sensor Size(Inch): | 1/3 |
| Camera: | color |
| Power: | 220v |
| Viewing Angle (°): | 90 |
| Doorbell: | Yes |
| Technology: | ANALOG |
| Material: | Metal/ABS |
| Size: | 240*150*23mm/125*27*50mm |
| Power: | DC 15V / 1.2A |
| Model Number: | XSL-V70F+M4 |
| Application: | Indoor, Outdoor |
| Brand Name: | AnjieloSmart |
| Product Name: | Video door phone |
| Volume: | Adjustable |
| Adapter input voltage: | 100V to 240V |
| Apply: | Families/floors/villas/apartments |
| Night vision: | Support infared night vision |
| Outdoor camera: | IR,Color,Weatherproof |
| Size of Display Screen: | Colour TFT-lcd 7 inches |
| Type: | Access Control |
| Distance: | support up to 100 meters |
Reminder:
There are many options for product links, and it is recommended to order the whole set.
There are 4 different packages for your choice. If you buy the indoor monitor only, or outdoor camera only, we can't guarantee if ours can work with yours.
Package A (Camera ONLY):
Including outdoor camera Only. Not including indoor monitor and 5 meter able.
Package B (Monitor ONLY):
Including indoor monitor Only. Not including outdoor camera and 5 meter cable.
Package C (With One Monitor):
Including outdoor camera + 1 unit indoor monitor + One 5 meters cable.
Package D (With Two Monitors):
Including outdoor camera + 2 unit indoor monitors +One 5 meters cable
One outdoor Camera can work with max
6pcs
indoor monitors, if you want more indoor monitor, you can buy Package D + Package B (if you have any questions, welcome to contact us)

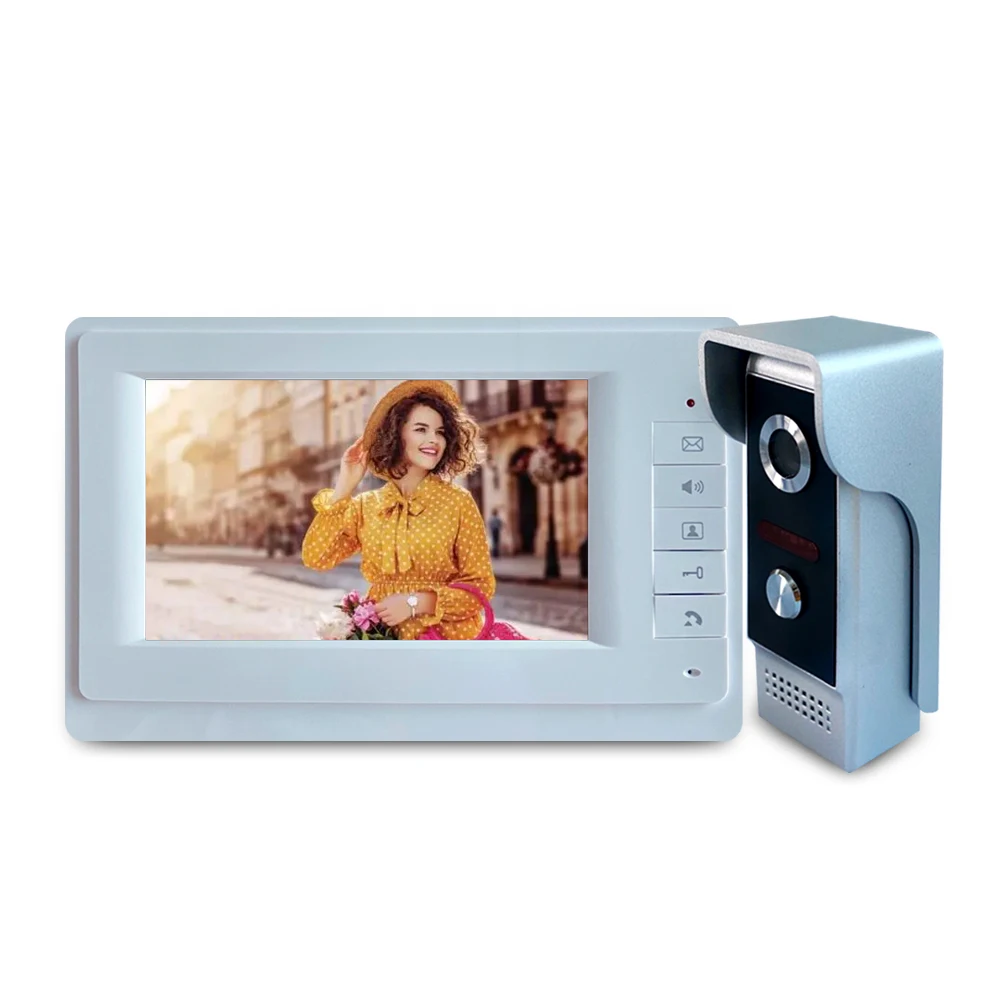

7 inch Video Door Phone Intercom System
Outdoor unit ( Camera) / Indoor unit (Monitor)
Product Details
The distance between the camear and monitor is up to 100 Meter

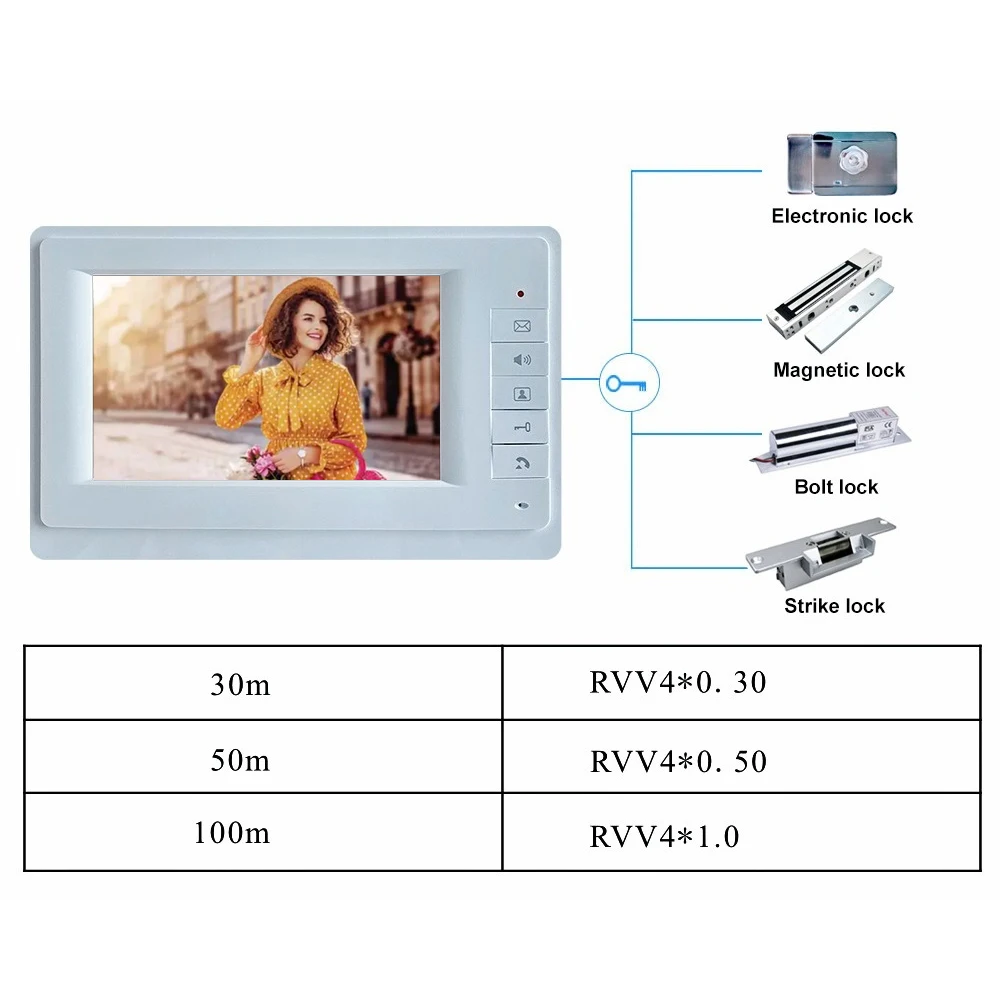

The max distandance is up to 100 meters. Different distance, use different diameter cable, please check the following from to choose correspnding cable.
( If you buy both the camera and monitor, we will supply one 5 meters cable to test our products. You can buy more longer cable in your local place when install it.)
Multiple ringtones - free switch
The 25 chord ringtones can be switched freely, elegantly and fair-sounding. Both of the ringtones and volume can be adjustable, can meet the original needs of your time. Don't need to worry about can't hear voice or hear it too loud any more.
Support Handsfree Dual-way Intercom and Indoor Monitoring
When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk to outside, press the answer button again to turn it off. If you do not press the button after conversation is finished or if no one answer the call, the monitor will turn off automatically after 60s.
Support Two-way Audio and Ringback function
One camera can working with
6pcs
indoor monitors. One monitor can working with 2 cameras. The camera can talk with the monitor. The monitor can talk with each monitor too. (If you want more camera or monitors, please contact us.)
Support IR Night Vision
The outdoor camera build-in 4 white LED light. With this function, you can see outside no matter day or night.
Keep your home more safer.

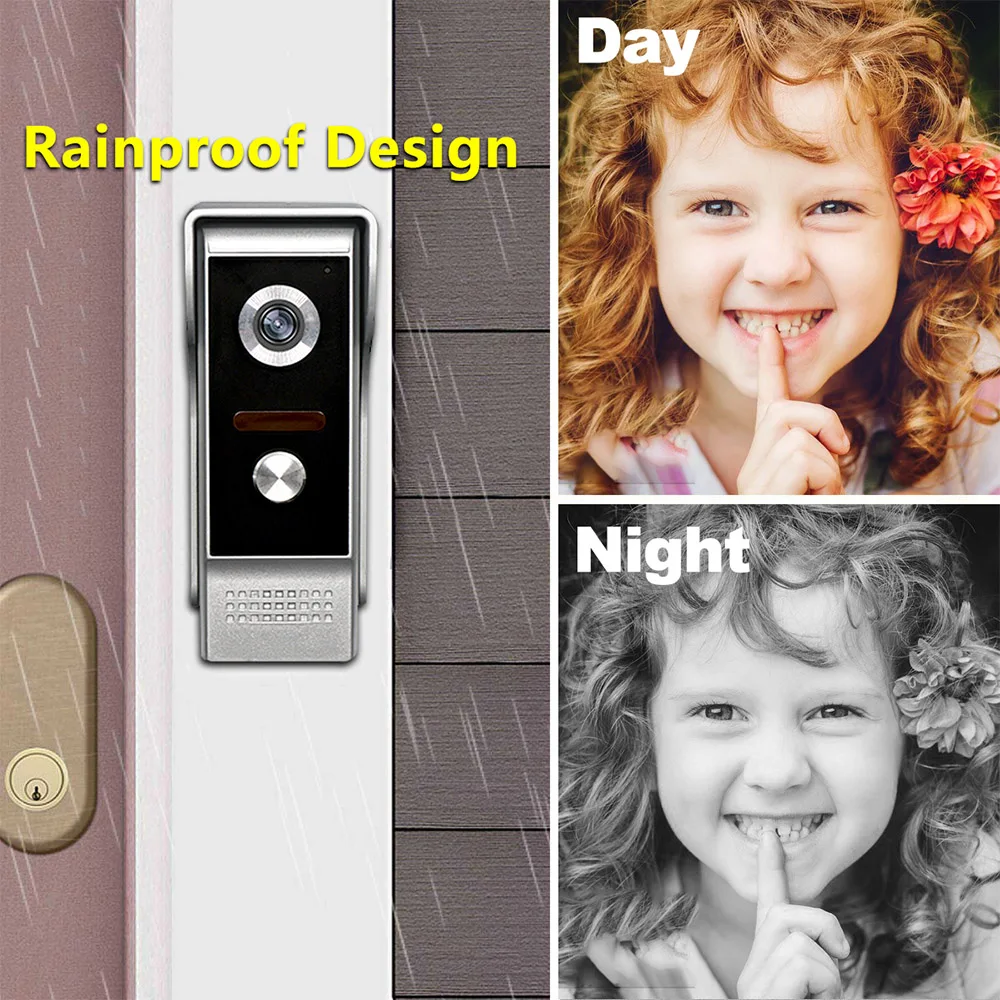

Waterproof and dustproof
The outdoor camera equip with a weatherproof cover,
can be used outside even in very bad weather.
Unlock with Indoor Monitor (Screen)
This video intercom system can work with the electric lock. You can open the door with the indoor monitor. Don't need to go to open the door for youvisitor.Very convenient!
(N
ote: The electric locks are not included in the package, need to buy extra)
Product Analysis
Product Specifications

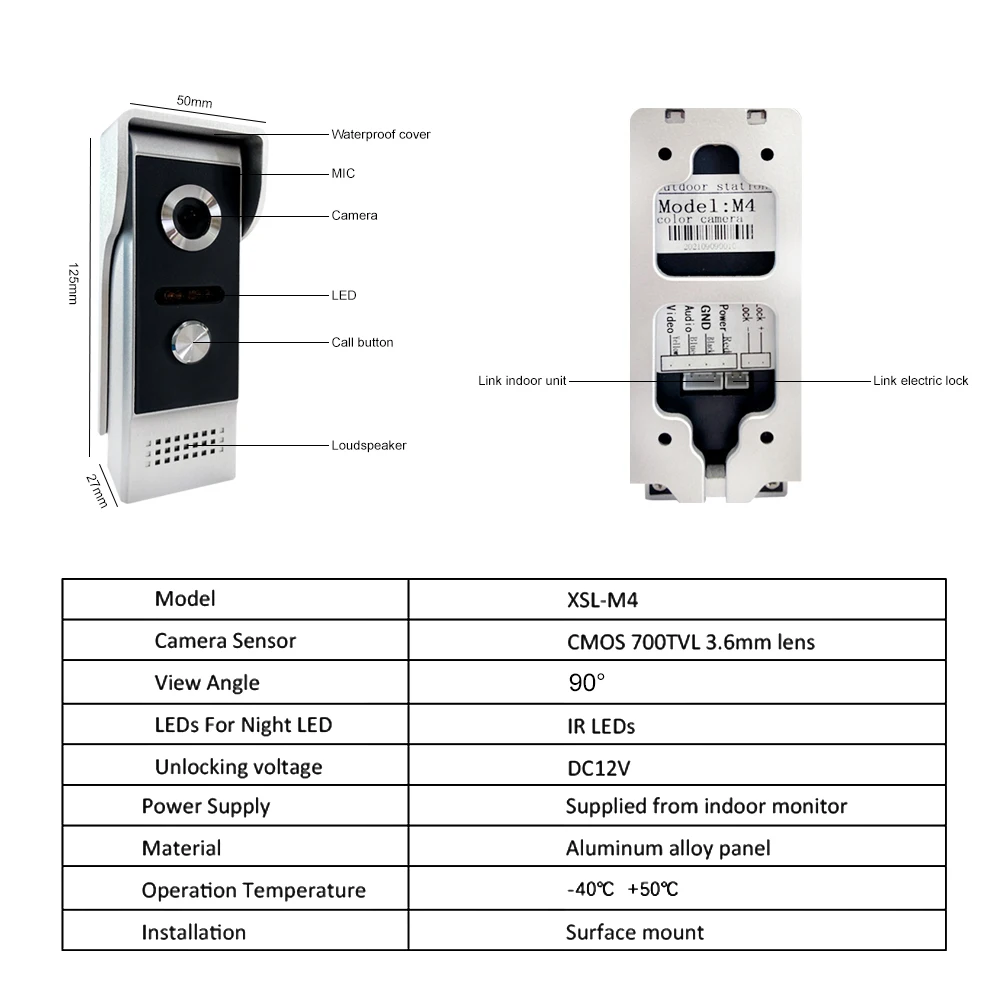

Outdoor Camera
Camera Resolution
700TVL
Night Vision
Up to 2 meters
Working Temperature
-35 °C ~ +55 °C
View angle
85 to 92°
Waterproof
Come with a weaterproof cover
Dimension
50mm(L) x 27mm(W) x 125mm(H)
Installation
Surface mounted
Material
ABS Plastic, Aluminum wire drawing
Wire System
4 Wire system
Model
XSL-M4

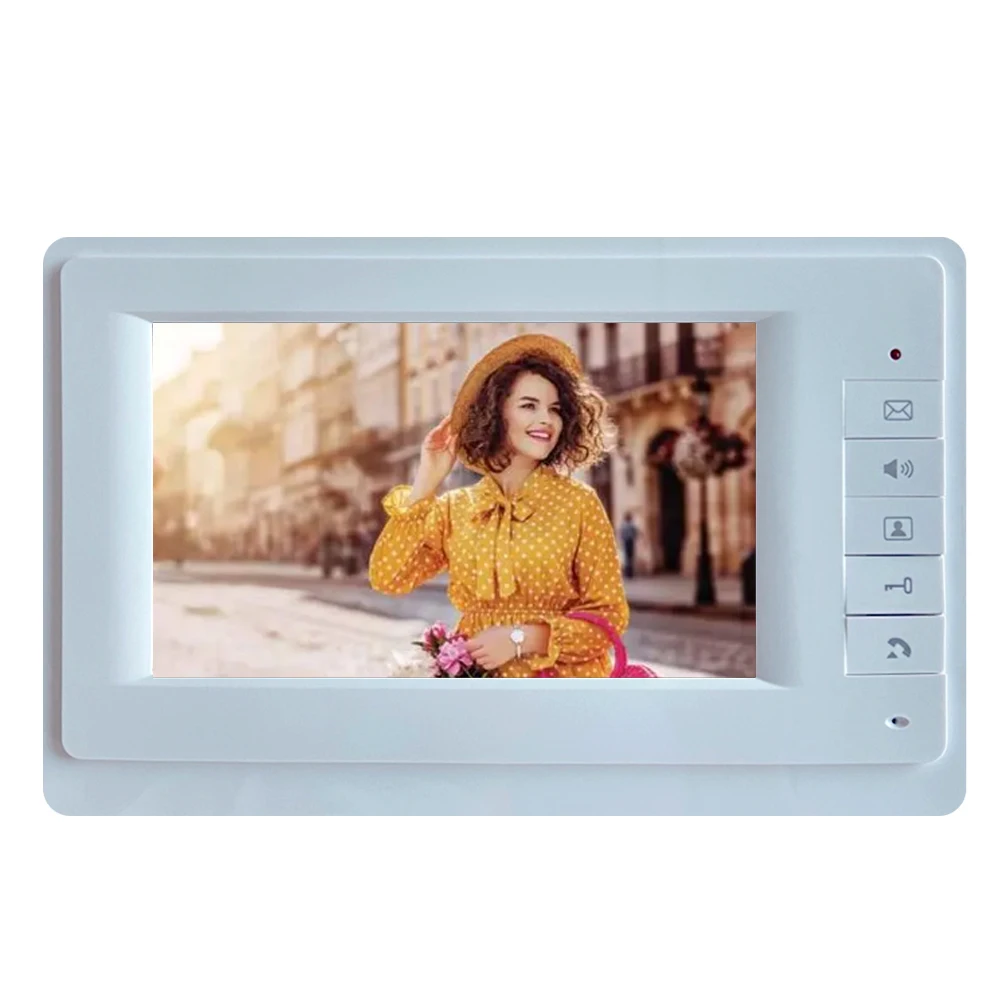

Indoor Monitor
Screen
7" colour TFT-LCD
Effective Pixels
800 x 480
Wiring
4-wire pin end
Room to Room intercom
Yes
Adapter Input
AC100 - 240V 50-60HZ
Adapter Output
DC 15V 1500mA
Case
ABS Plastic
Working Temperature
-35 °C ~ 55 °C
Installation
Wall mounted
Dimension
240mm(L) x 150mm(W) x 23mm(H)
Function
Intercom, monitor, unlock the door
Model
XSL-V70F
Wiring Diagram1:
Using the 4-core cable to connect outdoor unit to indoor unit.
Using the 5-core cable to connect indoor unit to next indoor unit.
(
The NO type lock can be connected to the camera directly. But the magnetic lock, Strike lock and bolt lock need to be connected to an extra DC12V power supply. )
Click to view>>Electronic lock
Very Important:
Please leave us message which type of the power plug you want, otherwise, we will send EU type by
default.
