5.2/5.3 Version GRBL Controller Control Board 3Axis Stepper Motor Offline Double Y Axis USB Driver Board For CNC Laser Engraver. garage woodworking bench Woodworking Machinery
Code: TD-3256802759537408
5 orders
Free Shipping
$ 83.48
$ 129.78
Other people want this. 27 people have this in their carts right now.
| Brand Name: | MASTER JIANG |
|---|---|
| Origin: | CN(Origin) |
| Model Number: | V5.2/V5.3 control board for CNC 3018 plus |
| CNC or Not: | CNC |
| Is Smart Device: | No |
| Condition: | New |
| Certification: | CE |

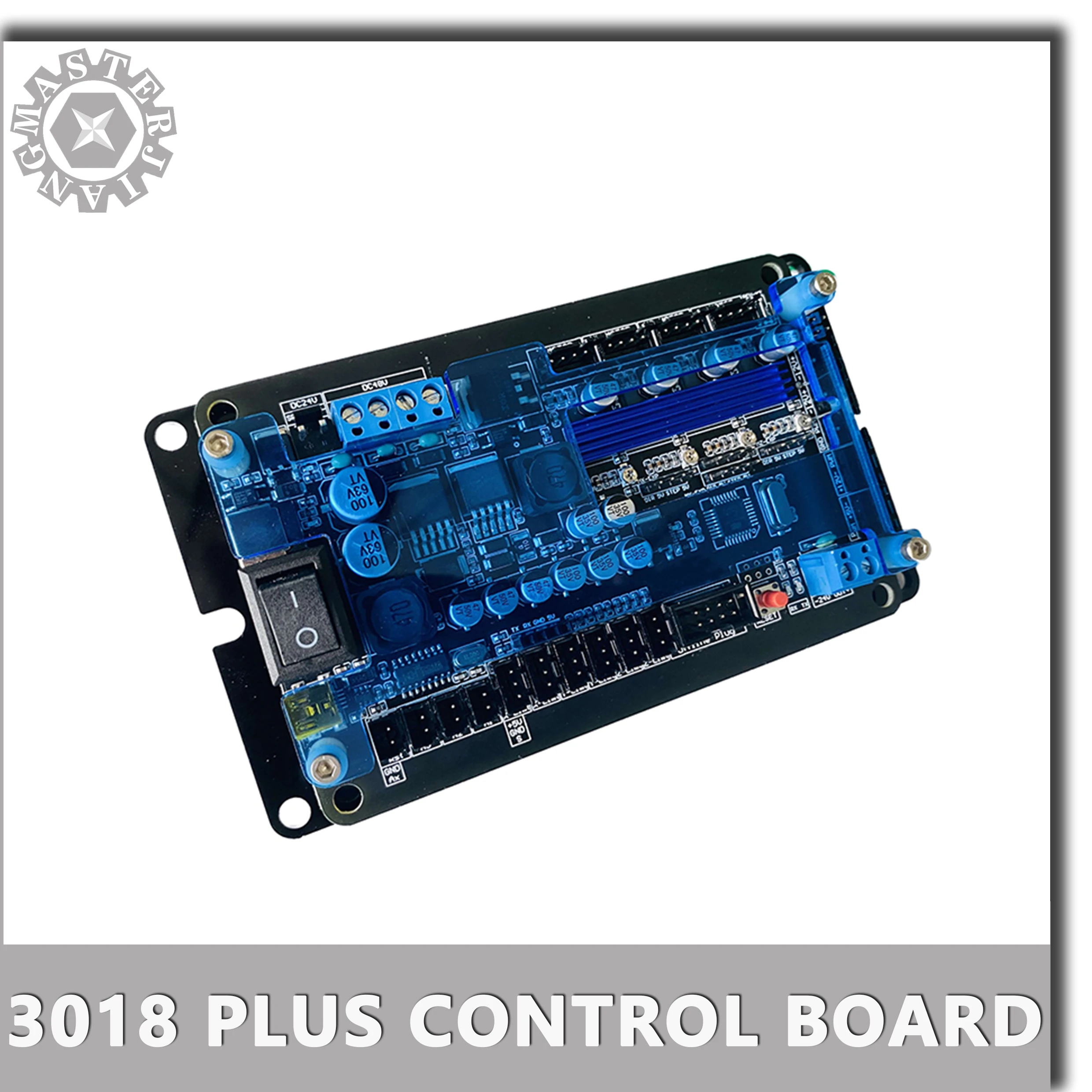

V5.2/V5.3 Version 3 Axis GRBL Control board for cnc updated 3018 plus/CNC 3018 Plus Metal Frame Engraver DIY Pcb Milling Machine Stepper Motor Offline Double Y Axis USB Driver Board.
Features:
V5.2:
Power Supply: DC12-48V
Stepper Motor: X, Y1, Y2, Z
Fan: 5V
Supported Spindle: 48V, 0-500W
Connect Laser: 2pin/3pin/2pin-2pin
Connection: USB
Supported: Servo/Offline Controller/Limit Switch
Related Machine:

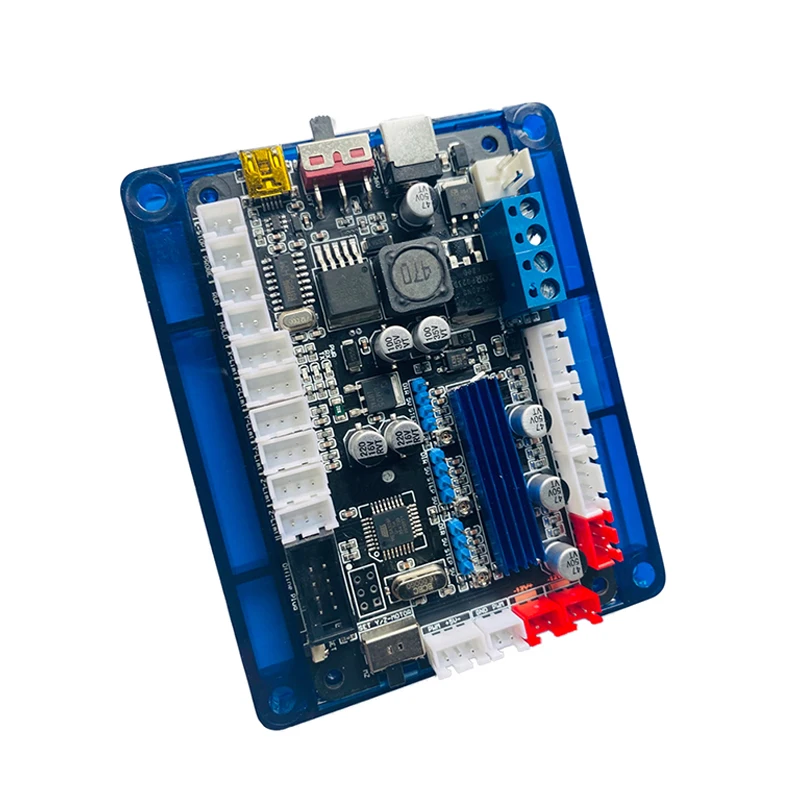

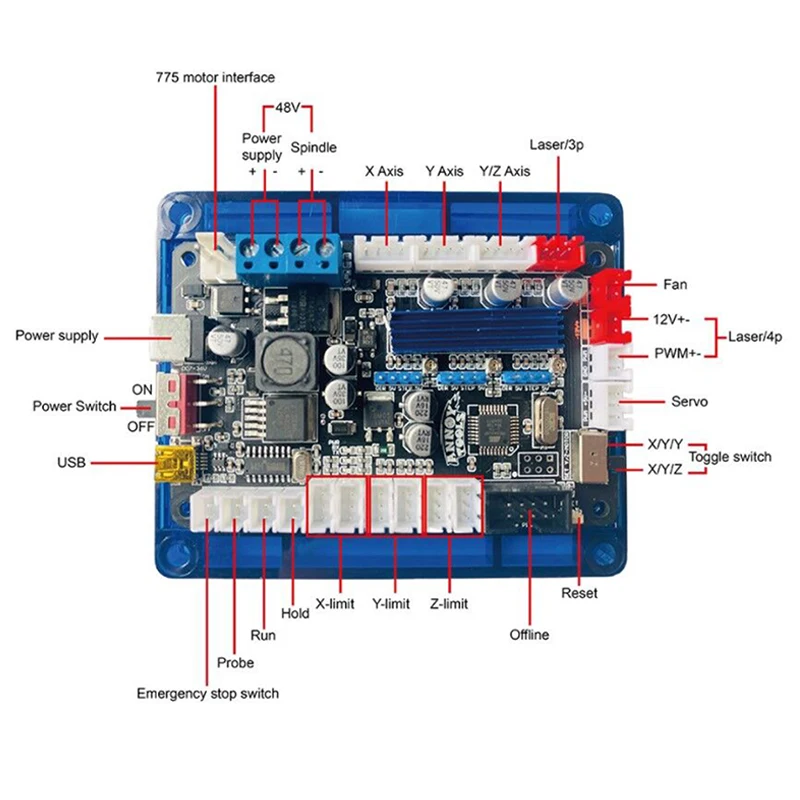

V5.3 with fan/ V5.3 no fan:
Power Input: DC7-36V
Stepper Motor: X, Y, Y/Z
Fan: 5V
Supported Spindle: 0-48V, 0-500W
Connect Laser: 12V 0-5A, Optional 3pin/4pin, 12V TTL/PWM interface
Connection: USB
Supported: offline controller, external high-power drive, emergency stop, reset, continue, pause, limit switch interface, which can meet different needs.
System: Win XP/7/8/10
Software: Candle (3 axis); laserGRBL (laser)
Toggle to switch XYY/XYZ axis work, toggle the power switch, safe and efficient.
Integrated drive to prevent short circuit of the chip, integrated heat sink.
With Fan(only for V5.3 with fan), have better heat dissipation.
Support: offline controller, external high-power drive, emergency stop, reset, continue, pause, limit switch interface, which can meet different needs.
Both the data transmission chip and the main control chip use an external crystal oscillator, the transmission operation is more stable.
Acrylic shell, beautiful appearance, protect the motherboard.
Can be used for Laser Engraving Machine, Drawer Machine, CNC Engraving Machine, etc.
Friendly Reminder:
1. The spindle motor and laser cannot be connected at the same time
2. The offline control board and the SUB data cable cannot be connected at the same time
3. Turn on the power after the electrical connection is completed
4. The positive and negative of the input power must not be reversed, and the reverse connection will burn
5. The 48VDC interface cannot be connected to the switching power supply, and the voltage that can be passed through the DC seat of the control board cannot be greater than 5A
Package Includes:
1 x Control Board V5.2/V5.3 with fan/V5.3 no fan(Optional)

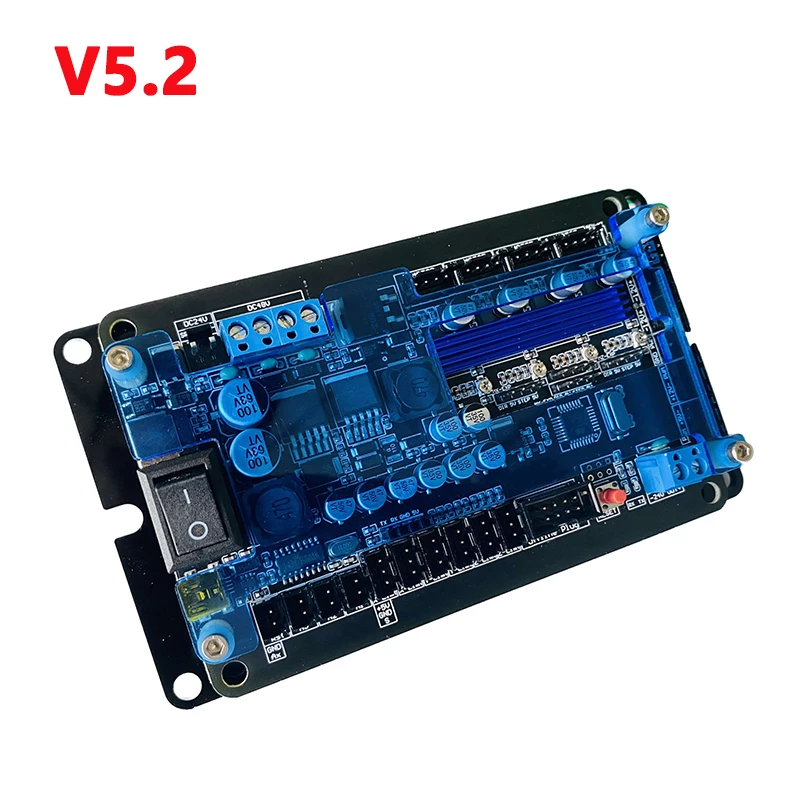

V5.2

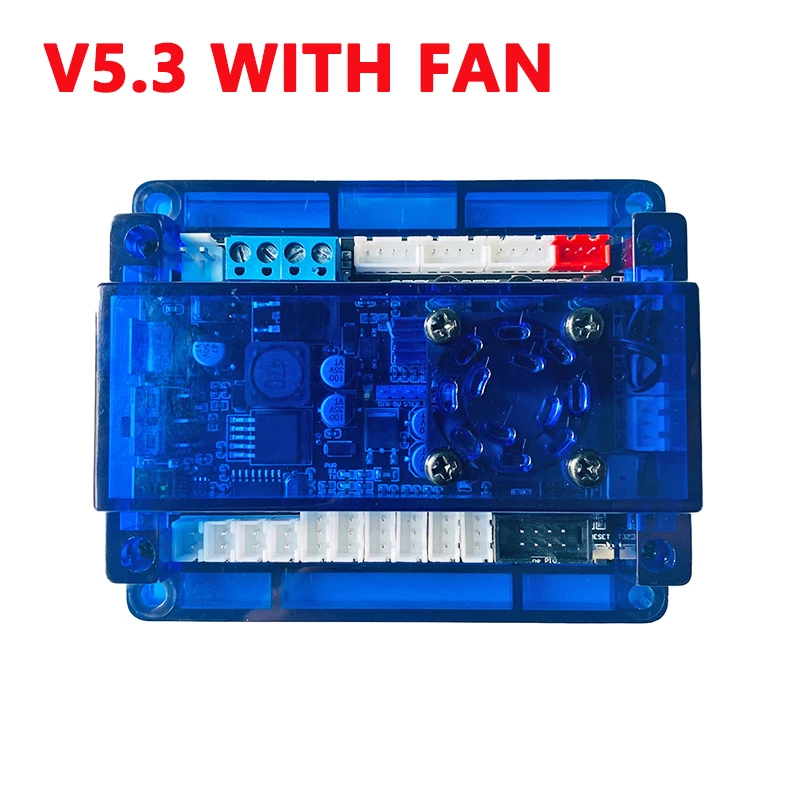

V5.3 with fan

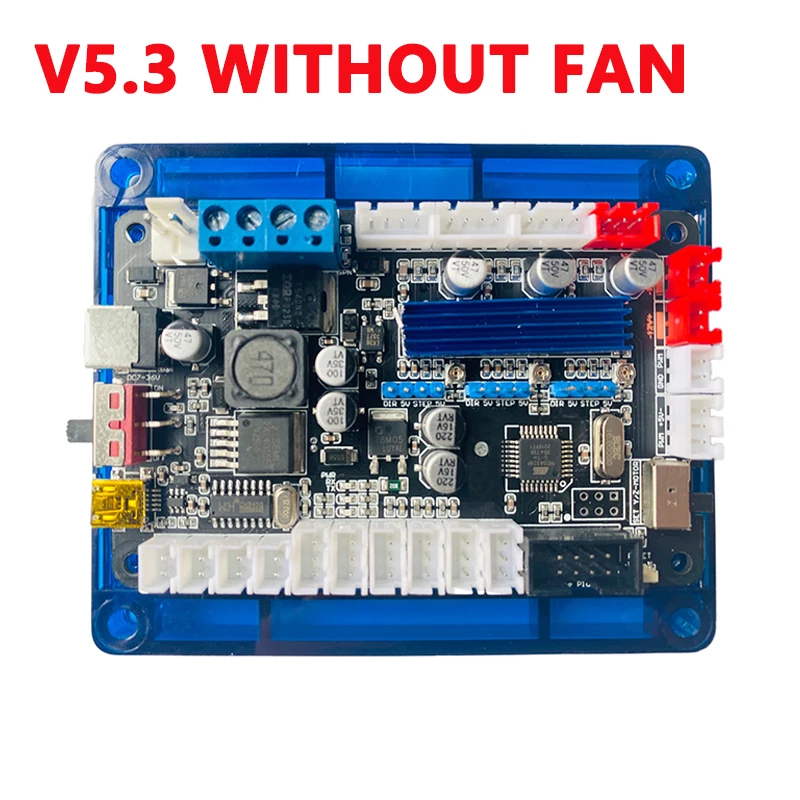

V5.3 no fan
Connect with Spindle:
Connect with Laser:
