433Mhz English French Text Menu HA-VGW Wifi Alarm GSM Alarm System Wifi Smart Home Security Burglar Alarm With 8 Wired Zone

Brand Name:	FOCUS
Smart home platform:	Other
Origin:	CN(Origin)
Certification:	FCC
Kit Configuration:	Door Sensor
Power:	12V 1.5A
Output Number:	12V
Video Interface:	No
Display:	Yes
Alarm Type:	SMS
Alarm Type:	Apps Control
Alarm Type:	The Alarm
Size:	280*205*74MM
Model Number:	HA-VGW
Password Keyboard:	Yes
Arming Type:	Password Keyboard
Connection Type:	wireless
Zone Number:	32 wired zone 8 wired zone
color:	white
Voice prompt :	English /French/Spanish Voice Prompt
network support:	Wifi And GSM
WIFI Frequency:	2.4G
Built-in rechargeable battery:	Up to 8 h
GSM Module:	850/900/1800/1900MHZ
External Power Adapter:	15V/2000mA
Built in temperature sensor?:	Yes, support
Frequency :	433Mhz or 868Mhz Frequency For option
Andriod and IOS App name:	ST-panel or Smart Security
Wireless + wired Zone:	32 wireless Zone+ 8 Wired Zone

433Mhz English French Text Menu HA-VGW Wifi Alarm GSM Alarm system Wifi Smart Home Security Burglar Alarm With 32 Wireless Zone

If you need more accories, please put it into your shopping cart and then pay together!

Andriod/ IOS App name :  ST-PANEL or Smart Security

Youtube video show:

https://www.youtube.com/watch?v=hHz4Jhm-hmI

Pacakge included :

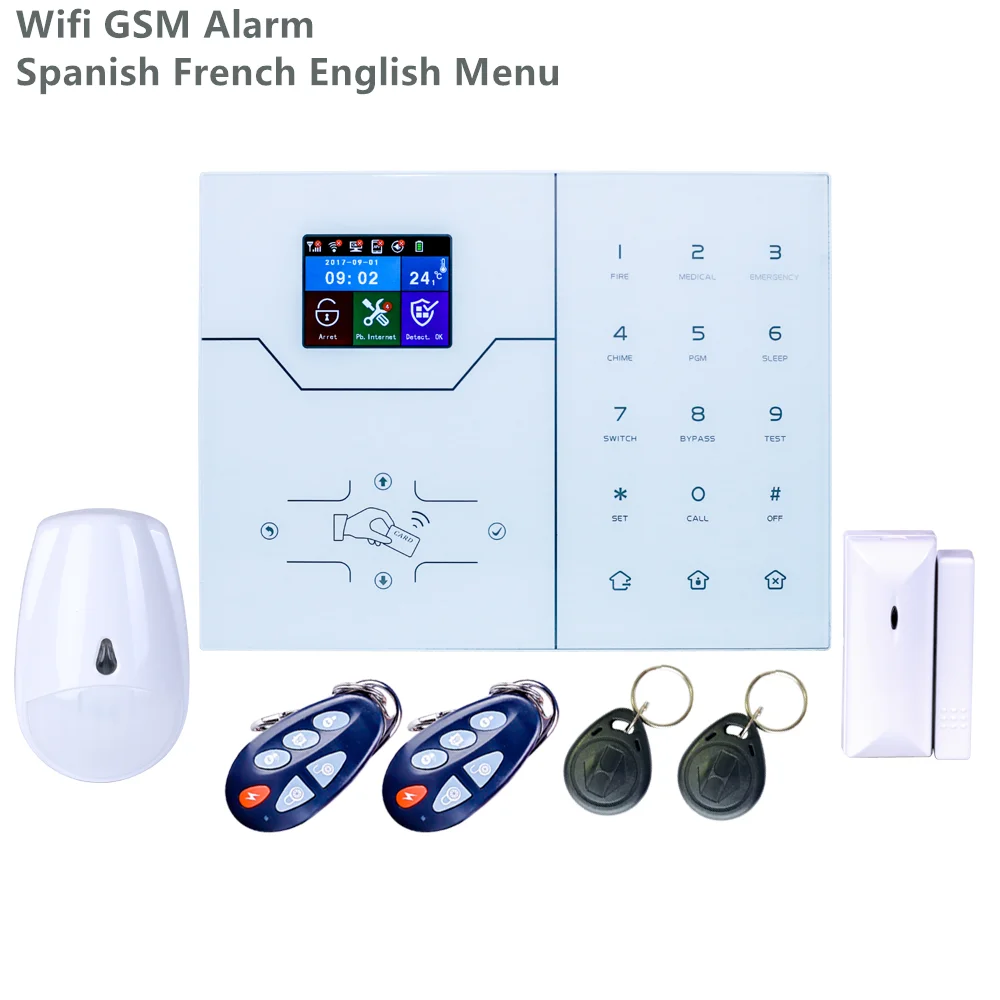

1 * HA-VGW  English Voice prompt  wifi GSM Alarm panel (433Mhz or 868Mhz for your choose)

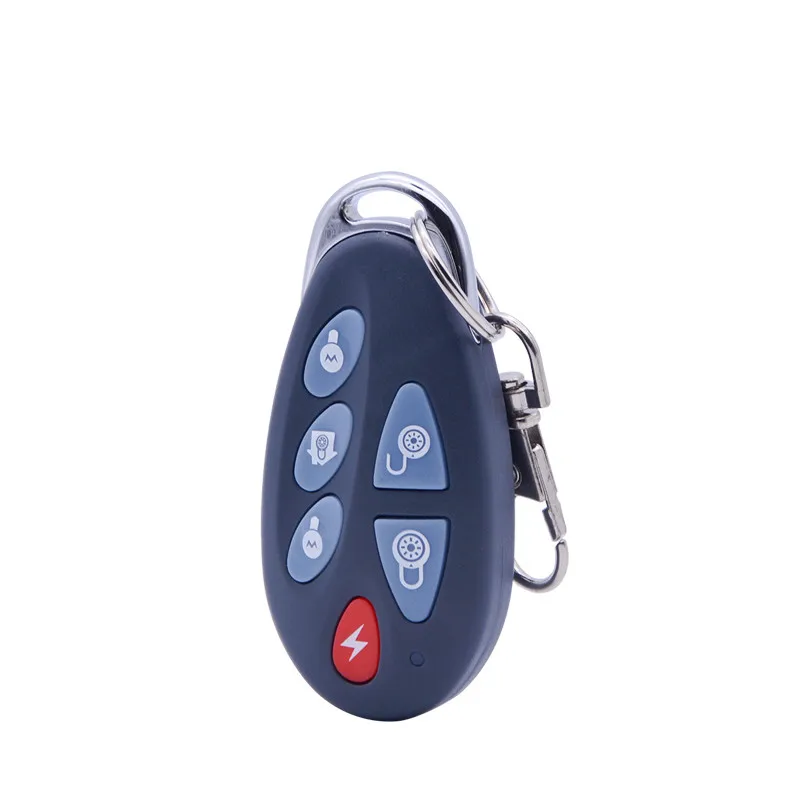

2 * PB-403R wireless remote control

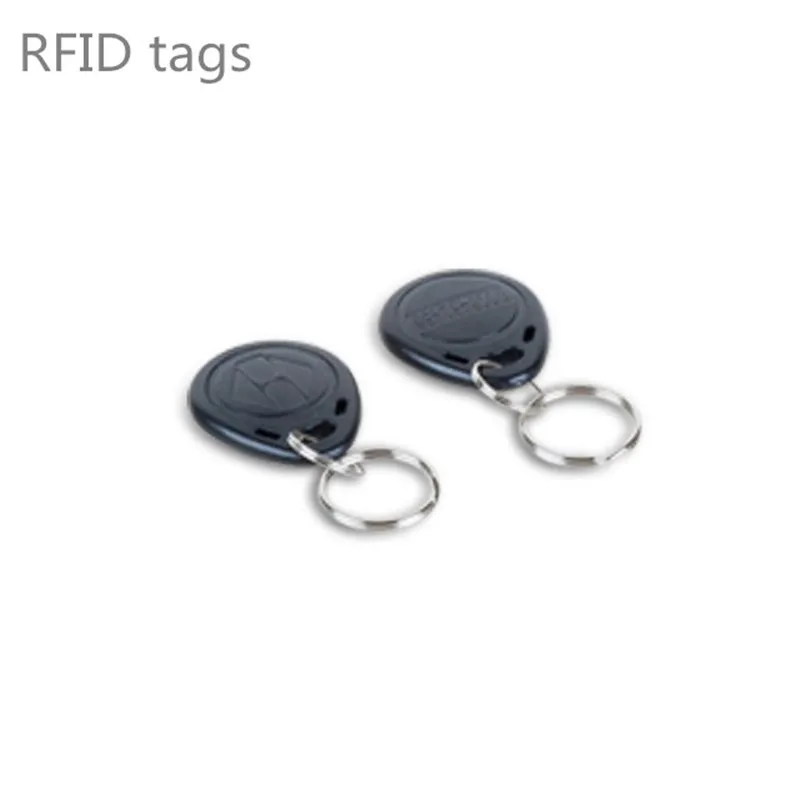

2 * RFID tags

1 * MD-210R Wireless Door Sensor

1 * MC-335RDMT Wireless PIR motion sensor

1 * power plug

1 Piece * box(all sensor not included lithium battery)

Features

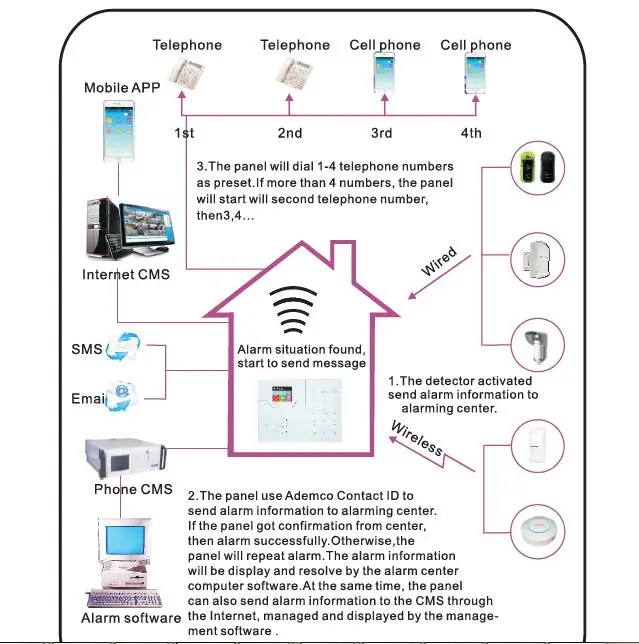

*1. Alarm mode. With internet network and GSM network alarm , GSm Network with GPRS Function, Remote arm and disarm panel through

CMS Or SMS, CID protocol SMS notification, The Priority of internet network and GSM is optional.

*2. With a New Color-Screen, Full-touch button, LCD Graphic display Steps, Working status, alarm process easy and intuitive.

*3. The Full English Voice prompting operation : all local or remote Operation , alarm information , Event log view.

*4. GSM-Hook and voice telepone with intercom function.

*5. All Alarm information Can be Programmed by 16 ways.

*6. Sleep mode, in sleep mode status, all the lights, LCD backlight, Voice and prompt tone are disabled.

*7. Alarm panel under idle status is equivalent to cellphone , you can call through the GSM network for balance inquiries.

*8. 8 Groups accociated zone, can effectively reduce false alarm or for other Functions.

*9. PGM output , with a  programmed output port, followed by 5 kinds of alarm events output.

*10. The doorbell Audio Optional, 1 . Ding Dong, 2. Welcome.

*11. Remote Phone operation: dialing by telephone offsite, after password verification , you car arm, disarm , listen-in premise, system status, query and electrical Switches control and other operations.

*12. Voice Alarm： when panel Alarm, it will automatically Dial the present user Phone numbers to report alarm information then you can remote control the panel after enter user password .

*13. 32 Wireless zone, each wireless zone can automatically learn the codes or be coded manually via the keyboard and web oeration.

*14.  8 wired Zones, user can set the circuit type and speed of response, Support N.O.N.C .

*15: Enable Enroll total 8 wireless remote , 16 electronis Switches. 1 wireless doorbell and unlimited for quanlity of one way wireless siren, 16 RFID tags.

*16. 6 Followme phone# (Voice alarm receiving phone#) 2 For CMS , 4 for Private alarm receiving.

*17. Status inspection Functions: enable record and inquiry 512 alarm event maessages,Like the time When happens anti-tamper Alarm, detector Alarm, tel-line off, arm, disarm, system seting, battery low voltage etc, And also can inquiry the zone number and alarm type.

*18, Timing Arm/diarm , 4 sets of timing arm and disarm time.

*19. Electircal Switces control, User can remote switch on/off via phone or SMS, Also can be controlled manually through the local alarm panel.

*20. Zone Programmable: factory preset of each zone , user can modify all the type according to the actual needs.

*21. Clock : Built-in full automatic calendar clock, set to local time Consistent.

*22. Password Access management, the panel has one administrator password 16 user password,  the Administrator password primarily for system administrators to set up the alarm system. the user passwords for users in the day-to-day use such arm/disarm, remote operation, the administrator password, user password can be freely modified.

*23. FOR CMS networking alarm , depending on the number of users, the user can set four user codes(account number)

*24. Zone type identification: After an alarm is triggered , the alarm zone number displayed on the LCD screen of the panel, also can send the detailed report to CMS which includes alarm localtions and zone types.

*25. Alarm mode: stand-alone singla-family use by the ordinary telephone alarm, it can also be connected to the internet with alarm center by the computer alarm, alarm center automatically recognize and compatible with ordinary telephone alarm.

*26. The tampering alarm, cut the cable between wired detectors and the panel will trigger alarm.

*27. Anti-tamper function: When Someone deliberately dismantled the panel, it wil alarm when triggering tamper switch at the back of the panel.

*28. CMS Communications test： The panel will send a message to CMS At the pre-set time interval to inspect the communication if normal.

*29. Siren options , Built-in Siren, External wired siren, Wireless Siren, All Sirens can be programmed an Enabled/disable when alarms.

*30. The Voice Speaker Volume adjustment, Total 7 level, ajust the volume by a panel arrow keys.

*31. wireless repeater function, can extend the distance bettween the detector and the panel by adding a wireless repeater of our company

*32. The wireless detector low battery prompted: Detector will send status report to the panel every 1~3 hours, The correcsponding Zone number and the battery voltage symbol will be displayed one the LCD Screen and also will report to CMS

ST-panel App interface:

Smart Security App  interface:

HOME MODE

DISARM

ARM

Alarm Setting Area

Learning Detectors

Detector Type

Detector Video Linkage

Local Recording Video

Alarm Push From Mobile

Voice Intercom

Advanced Setting

QR Code Learning & Auto Way

more alarm accessories for option:
