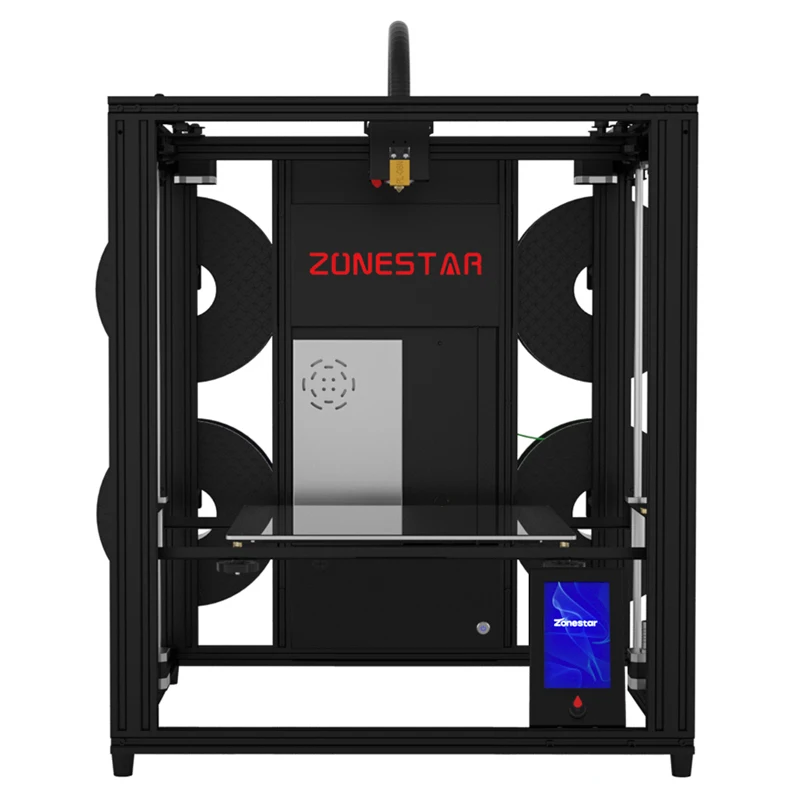

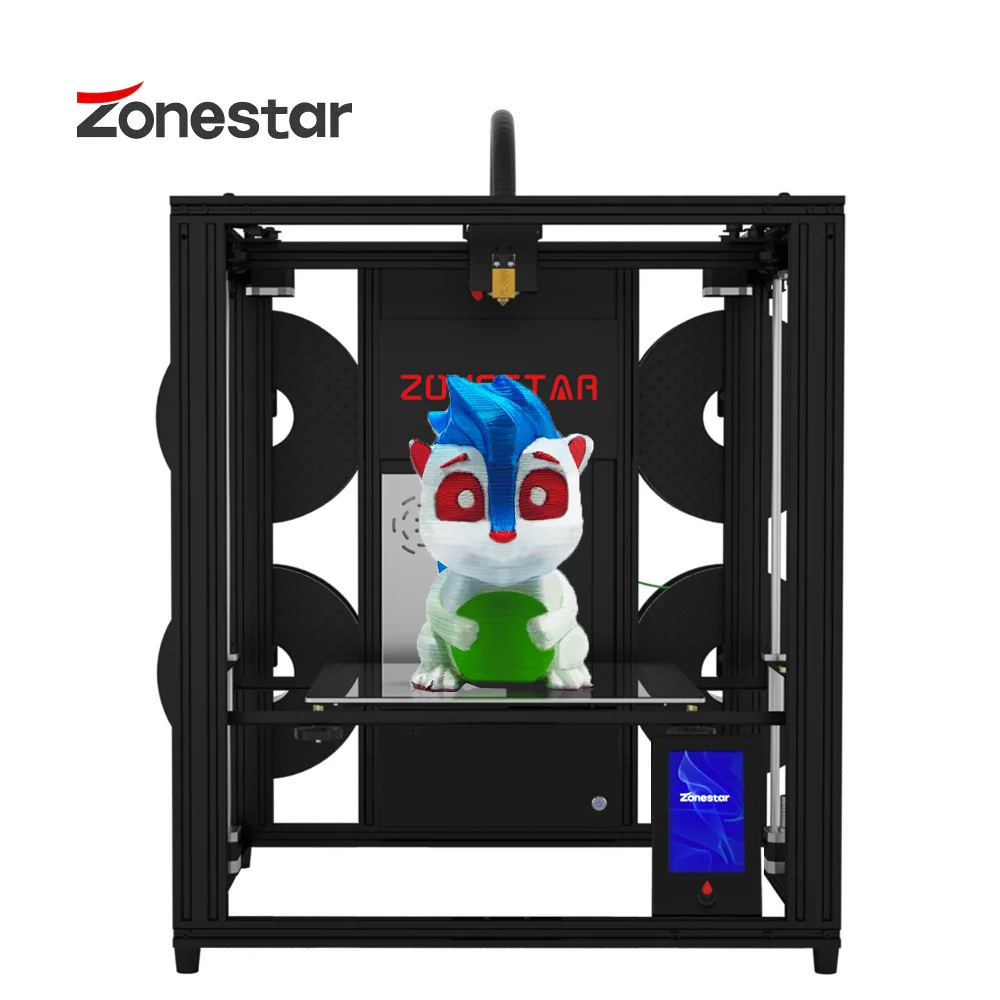

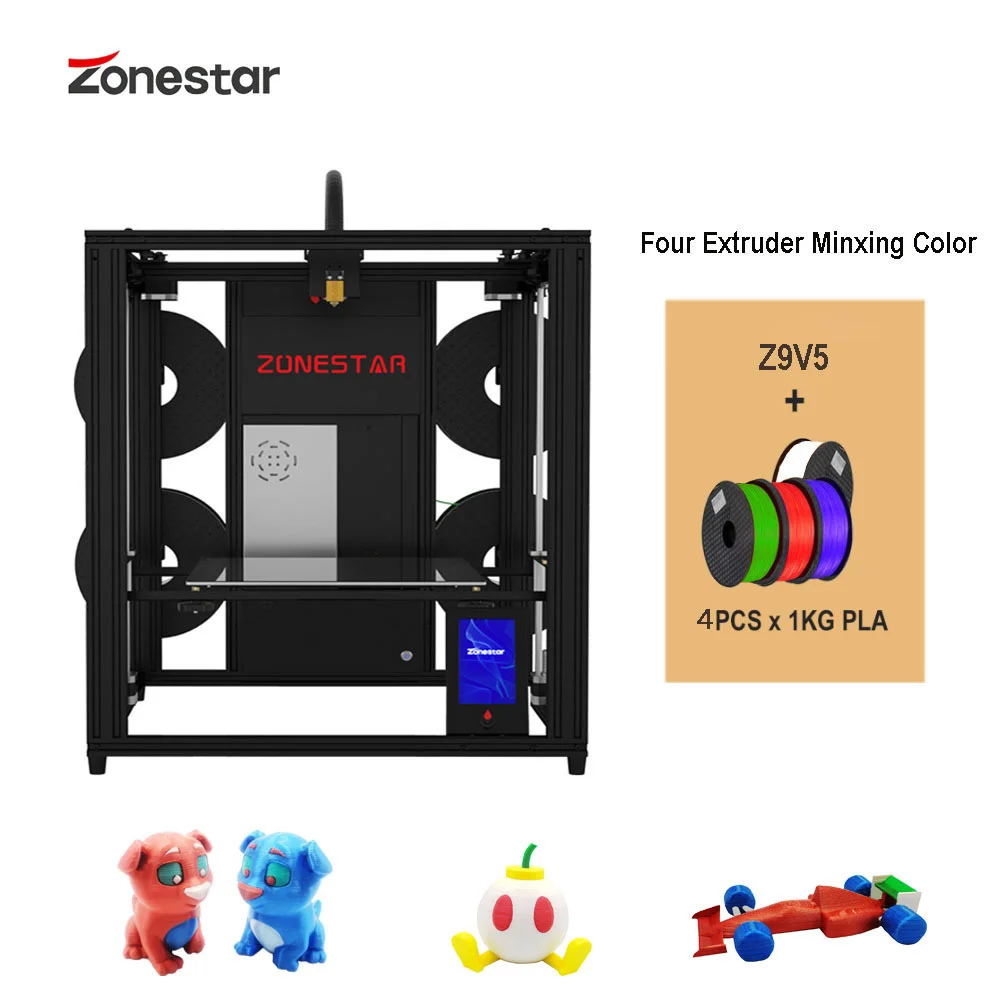

3d printing machine 2022 Newest 4 Extruders 4-IN-1-OUT Multi-Color Large 4.3 TFT-LCD TMC Drive Bed Auto Leveling 3D Printer DIY Kit ZONESTAR Z9V5Pro carbon fiber 3d printer 3D Printers

Brand Name:	ZONESTAR
Model Number:	Z9V5
Origin:	CN(Origin)
CE Certification:	Yes
Consumables Diameter:	1.75mm
Certification:	CE
Printing Speed:	50mm/s
Bed Temp:	115
Slice Thickness:	0.1-0.36mm
Language:	EN/ES/FR/PT/RU
Maximum Printing Speed:	100ms/s
Fliament:	PLA, PLA+, PETG etc.
Slice Software:	Cura
Power Supply:	50/60HZ,220W
Precision:	0.0125mm
Operating System:	Windows/Linux/MacOS
File Format:	Gcode, Stl, Obj, AMF, etc.
Nozzle Diameter:	0.4mm
Diameter Temp:	235
Auto Leveling:	Yes
Maximum Print Size:	300x300x400mm
Molding Technology:	FDM
Interface Type:	USB
Color Print Speed:	40-60mm/s
Maximum Working Speed:	150mm/s
Voltage:	110-220V

NOTICE:

This is a 3D printer DIY kit, it need to assemble by yourself.

All 3D printers have 12 months warranty, buy it with confidence

.

Shipping from Russia, USA, Spain,Poland,Australia have no custom duty.

Shipping from China, you may be charged import duty, if you need more information, please contact us. For EU customers, if you choose shipping from China, Aliexpress doesn't charge VAT (Over 150 EURO) when do payment.

The Spanish islands can only choose to ship from the Spanish warehouse. DONOT place order if there isn't stock in Spanish warehouse.

In some remote areas of Brazil and Russia, transportation takes 30-40 days. If the delivery time shown on the order is exceeded, this is normal, please wait or contact with us, we will help you solve the problem.

Item Option

Option

Description

Z9V5Pro

Z9V5Pro Base Version

Z9V5Pro-MK3

Z9V5Pro-MK3 (Upgraded new bed leveling sensor and  Mixing color hotend)

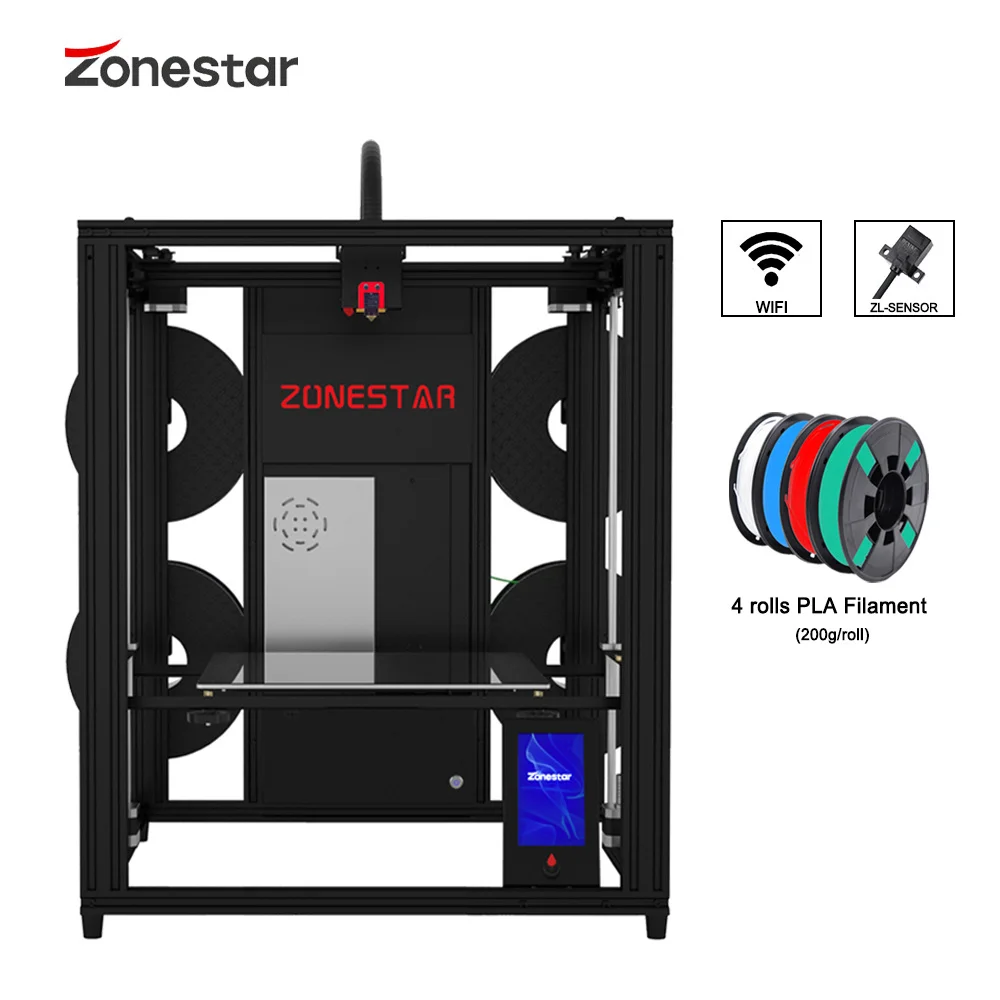

Z9V5Pro-MK3 4x200g

Z9V5Pro-MK3 add WiFi and 4 rolls 200g/rolls filaments

Features

95% pre-assembled, fast installation.

Ultra silent, working noise is less than 58db (measured at 50cm away from the machine) .

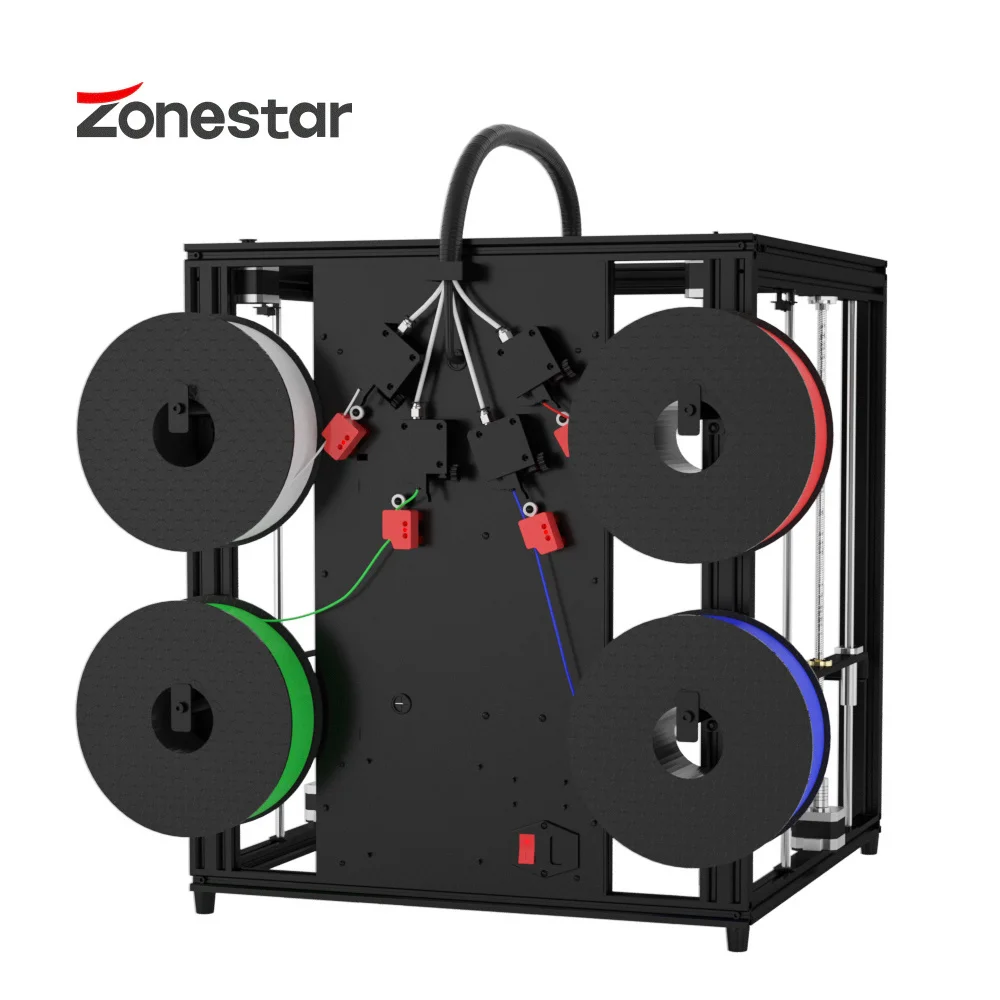

Equip 4 Titan extruders and 4-IN-1-OUT hotend, ability to print 1 ~8 colors 3D prints.

Power loss automatically recovery feature.

Bed auto leveling feature.

Filament run out detect feature.

Auto power off after printed and auto shutdown without operation.

Proprietary Cura multi-color printing plug-in, realize to print multi color 3d prints by the mixing color hotend.

Built-in automatic color mixing engine, one-button to realize gradient and random mixing printing.

Mutil language menu, one button to switch in 6 languages (RU/EN/ES/PT/FR).

Equipped with high performance 32-bit control board.

Open source firmware.

Specifications:

Printing Size:  300*300*400mm

Standard Extruder Diameter: 0.4mm

Layer Thickness: 0.1~0.36mm

Positioning Accuracy(X&y): Z:0.25um X/Y:0.012mm

Extruder Number: 4

Nozzle Number: 1 (4-IN-1-OUT hotend)

Printing Speed: 20-100mm/s

LCD Screen: 480x272 dots TFT-LCD

Power of heatbed: 24V 250W

Recommended Host App: Cura / Repetier-Host

Operating System: Windows/mac

Date Import Format: gcode/STL/AML/OBJ,etc.

Software Language: English/Russian/Spanish/Portugues

e,etc.

AC Power Supply: 110V/220V,50/60HZ

Printing Material Support: PLA/PLA+/PVA/PETG,etc.

Product Size: 56*56*56cm / 22*22*22 inch

Product Weight: 16kg / 35lbs

Package Size: 62*59*21cm / 24.4*23.2*8.3 inch

Package Weight: 17.2kg / 37.9lbs

Upgradable Kits / Parts:

After adding this module, you can turn your 3D printer into a simple laser engraving machine.

New anti-strings nozzle: Effectively reduce printing "strings" and oozing issue for mixing color hotend.

WiFi Module: Remote wireless control the  machine.

ZL-Sensor bed leveling sensor: Remote wireless control the machine.

Direct Driver Extruder:  Support flexible TPU filament, better printing quality.

High speed and high temperature hotend: Support more types of filaments, print quickly.

4-IN-1-OUT Non-Mixing-Color hotend: Support more types of filaments and smaller color switch tower size.

Automatica Repeat Printing Module: Automatic take down the printed object from the printing platform and continue printing the next one.

500x500mm print size upgrade parts.(Coming Soon)

Note: These upgradable kits and parts are optional, you need to buy it separately, welcom to click the below link to buy.
