3 Size Long Shaft 6/9/13mm Music Chime Box Clock Movement Pendulum Swing Silent Mechanism With Hands DIY Replacement Kits

Brand Name:	yurudder
Origin:	Mainland China
Style:	Brief
Model Number:	power
Is Smart Device:	NO
Shape:	Square
Material:	Plastic
Diameter:	25cm
Form:	Single Face
Length:	300mm
Weight:	220g
Motivity Type:	Quartz
Type:	Wall Clocks
Wall Clock Type:	9 mm Sheet
Pattern:	ABSTRACT
Feature:	Swingable,Antique Style,Loudspeaker Mute
Applicable Placement:	Living Room
Combination:	Separates
Display Type:	Needle
Width:	30cm
Body Material:	Plastic

Product Photo

When you install Clock hand, just press down the clock hand to the axis vertically,do not need to twist the hand.

Check three hands,make sure they didn't meet each other,first place three hands all point 12 and then adjust wheel gear to current time,when adjust take note that three hands move fluently,if meet split it

(A) Set the Time and Modody

1.Remove the battery cover.

2.Insert the AA batteries into marking in the battery compartment according the direction of (+)and (-) poles,Then turn the Time setting knob in the clockwise direction to the proper time.

3.Insert 2pcs A size batteries into the music box battery holder according the direction of (+)and (-) poles,Then press the "RESET" button.

4.The first chime/strike after the battery inserted is 6:00AM,it will strike 6 sounds,Press 4 times "SET" button continuously.(it means the chime for 7/8/9/10 o'clock).You will not hear the sound at this period,but actually the clock already finished the chime for 10 o'clock now.

5.Afterward the movement will working self-motion,when time run to 11 o'clock,the strike(chime) will be correct.

6.If it has wrong step during above operation,just re-press "RESET" button,and re-press "SET"button to adjust.

7.For each reput or change batteries it need to set the step 3.

(B)Melody Function

a)MONITOR

To demonstrate the hourly sound select the melody by e) button and press the "MONITOR button.

b)VOLUME:Rotary volum

c)SET:Chime Time Setting Button

After press one time"SET"button,the chime time will onward one hour,but after press one time"SET",The 4x4 mode will not work correctly during the first hour after time is set.However,after that,it works correctly.

(Such as now is 10:25,the chime only will working on 11:00,it can not working during 10:25-10:59 this period)

d)RESET:CHIME TIME RE-SETTING BUTTON

After press"RESET"button,the chime time will automatism set to AM 5:00,when the minute hand run to next 00 o'clock,it will spring the chime function,then it will play chime and striking when AM 6:00.

e)SELECT:Melody select

-AVE MARIA :Ave Maria + Striking at 00 min.

-4x4 WESTMINSTER:Westminster + Striking at 00 min; 1/4,2/4,3/4 Westminster at 15,30 and 45 min respectively.

-WESTMINSTER:Westminster + Striking at 00 min.

-BIM BAM:Bim Bam at 00 min.

(e.g.:at 1 o'clock,1 strike of Bim Bam;at 2 o'clock,2 strikes of Bim Bam,ect.)

f)SOUND:Sound ON/OFF select

-Night off:Night shut off mode,Sound turn-off from 11:00p.m. to 5:45 a.m. automatically.

-24 Hr ON:24 hours ,sound turn-on.

-OFF:Sound off mode

(Note:The clock will switch off automatically from 10:00 PM to 5:59AM if the strike is set correctly.)

 C)VOLUME:Rotary volum

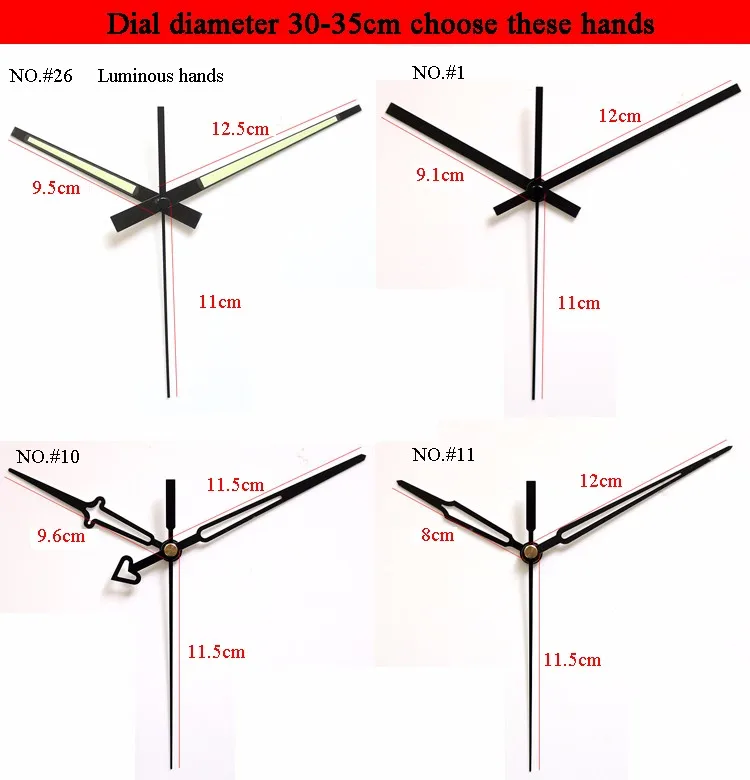

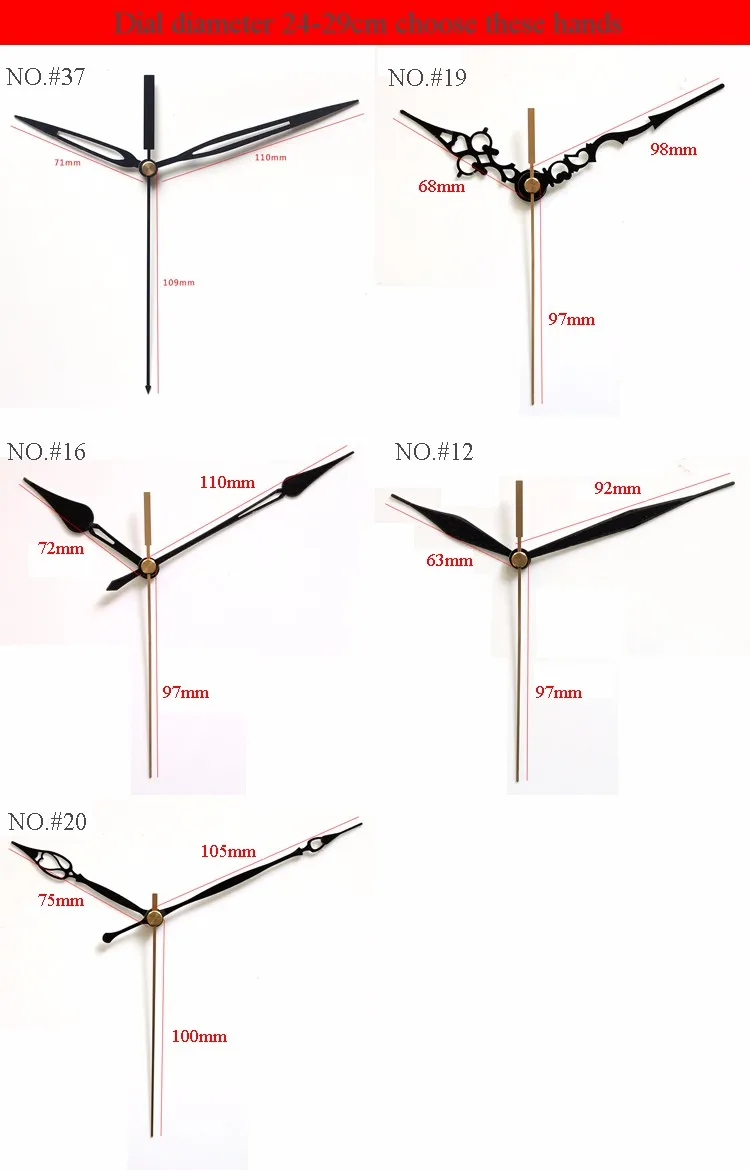

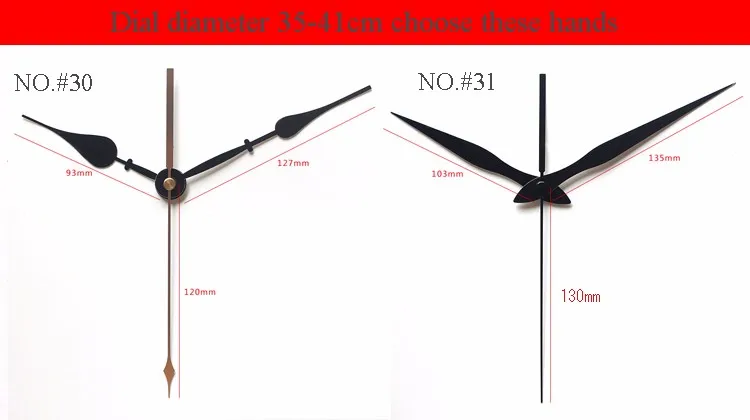

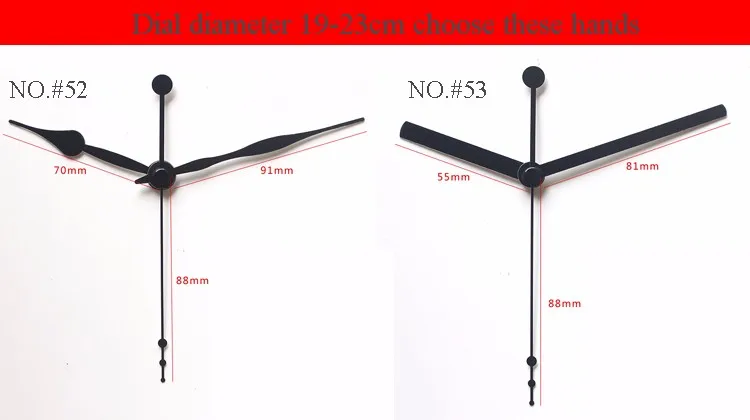

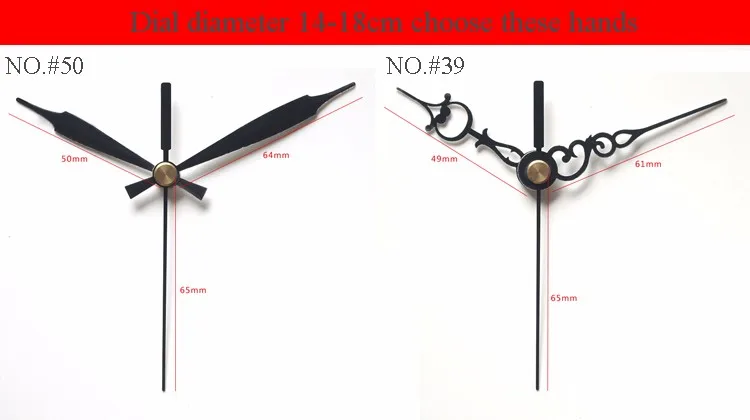

We have several kinds of clock hands for your choice,

choose and leave note for what you like and fit your clock,

if these's no note,we will send hands 9206# Black randomly

short hands

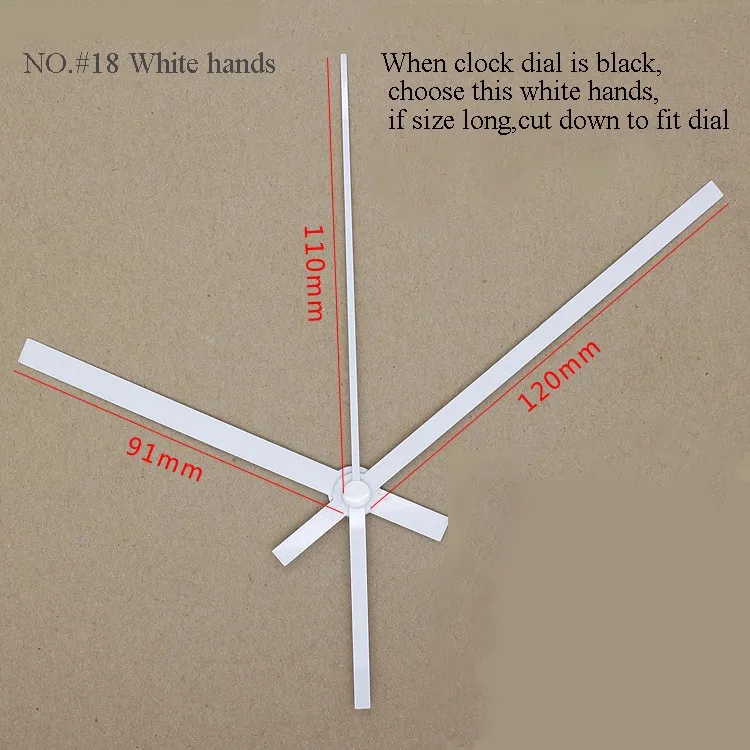

When clock dial is black,choose this white hands,if size long,cut down to fit dial

New arrived hands

if you need

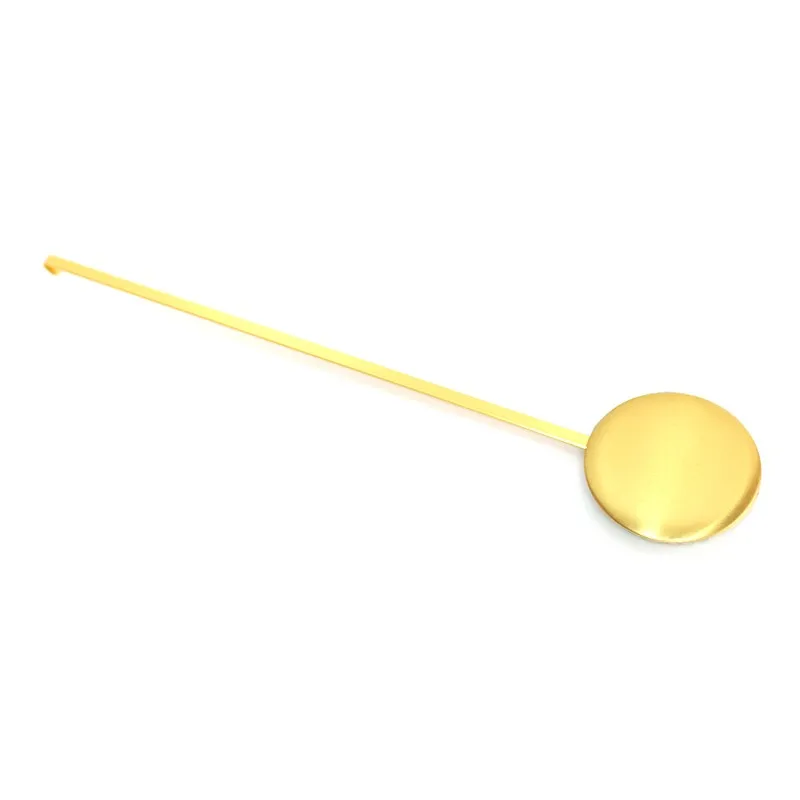

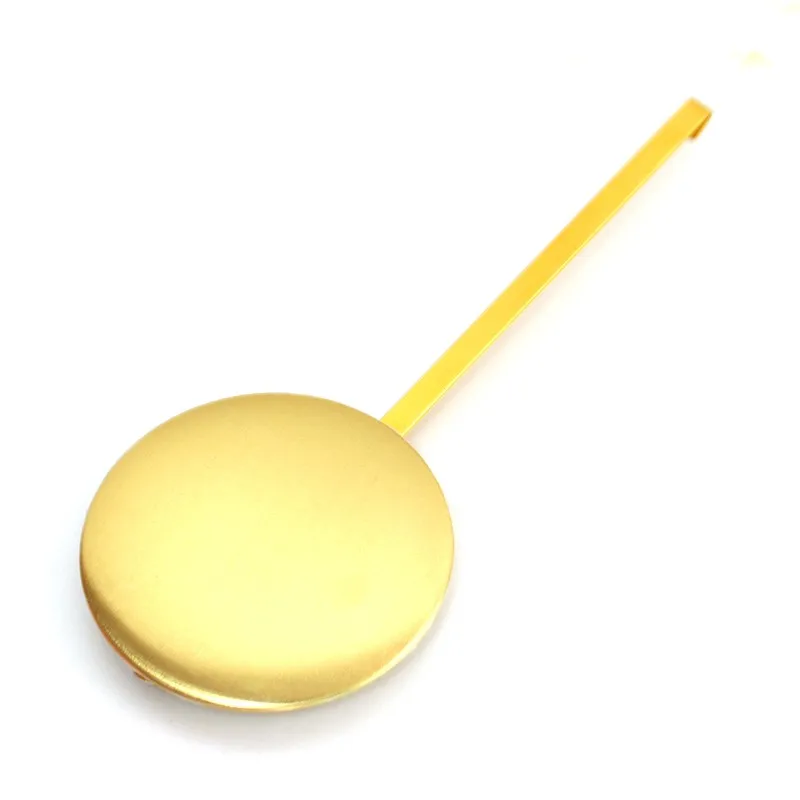

Pendulum,click below picture to buy

Instruction for installation

This under current equipment

fit 1.5V Carbon-zinc battery Only

,

Please Do not use

 high current batteries,rechargeable batteries,they will damage the movement.

As we know,batteries has many limits on air transportation,in order to make shipping more smoothly,

batteries didn't  included in our package

When you install Clock hand, just press down the clock hand to the axis vertically,do not need to twist the hand.

Check three hands,make sure they didn't meet each other,first place three hands all point 12 and then adjust wheel gear to current time,when adjust take note that three hands move fluently,if meet split it

RHYTHM

 is one of the best quartz clock movements in the world

,it

move super mutekeep better time

 and

require less maintenance

,when  you use correct battery and install clock hand correctly,you will be very pleased with it's work

Retail packing

Movement is well wrapped in bubble wrap and hands are packed in a sturdy plastic box (short length of rectangular electrical conduit) both inside a padded envelope.

Wholesale packing 500pcs/ctn

Quality and Service

100% Quality Guarantee

100% Money Back Guarantee on each item and free return shipping if item is not as described

48-Hour Dispatch

48-hour dispatch for order after Aliexpress confirmed the payment except public holidays

Escure your payments online

Payment will only be released to the supplier after you confirm you've received the order.

Shipment:

When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items

within 2 days

once your payment is completed.

We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected. Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments.

The shipping cost does not include any import taxes, and buyers are responsible for customs duties.

Returns:

We do our best to serve our customers the best that we can.

We will refund you if you return the items

within 15 days

of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions.  If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund.  The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.

The buyer will be responsible for the shipping fees to return the items.

Warranty & Maintenance:

We offer the 1-month free replacement.  Buyers may request for a replacement

within 15 days from your receipt of the product.

The buyer should return the product in the original conditions to us and should bear the shipping costs for return.

This 12888 Movement support

1.5V Carbon-zinc batteries only,

if buyers use other highly charged battery which may damage inner part of the Movement,we can not offer replacement and maintenance
