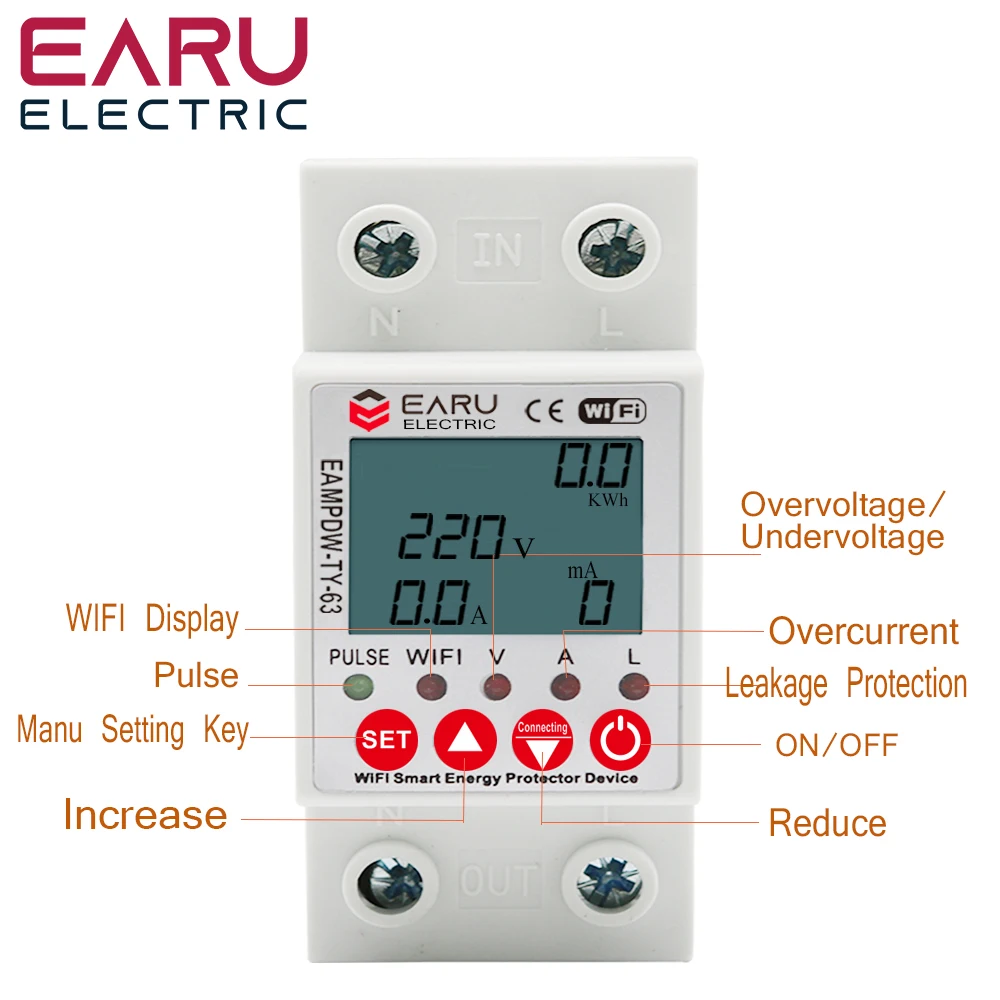

2P 63A TUYA APP WiFi Smart Circuit Earth Leakage Over Under Voltage Protector Relay Device Switch Breaker Energy Power kWh Meter digital vernier caliper Measurement & Analysis Tools

Code: TD-1005002095296451 230 orders
Free Shipping
$ 50.49 $ 89.98
Quantity:
Other people want this. 8 people have this in their carts right now.
Brand Name:  EARUELETRIC
Certification:  CE
Origin:  CN(Origin)
DIY Supplies:  ELECTRICAL
Measuring Energy Range:  0-99999.9 KW/h
Rated Voltage:  230V
Power Supply:  AC
Display Type:  Digital Only
Output Voltage:  220V
Model Number:  EAMPDW-TY-63
Phase:  Single Phase
Max Operating Current:  50A - 79A
Brand Name:  EARUELETRIC
Model Number:  EAMPDW-TY-63
is_customized:  Yes

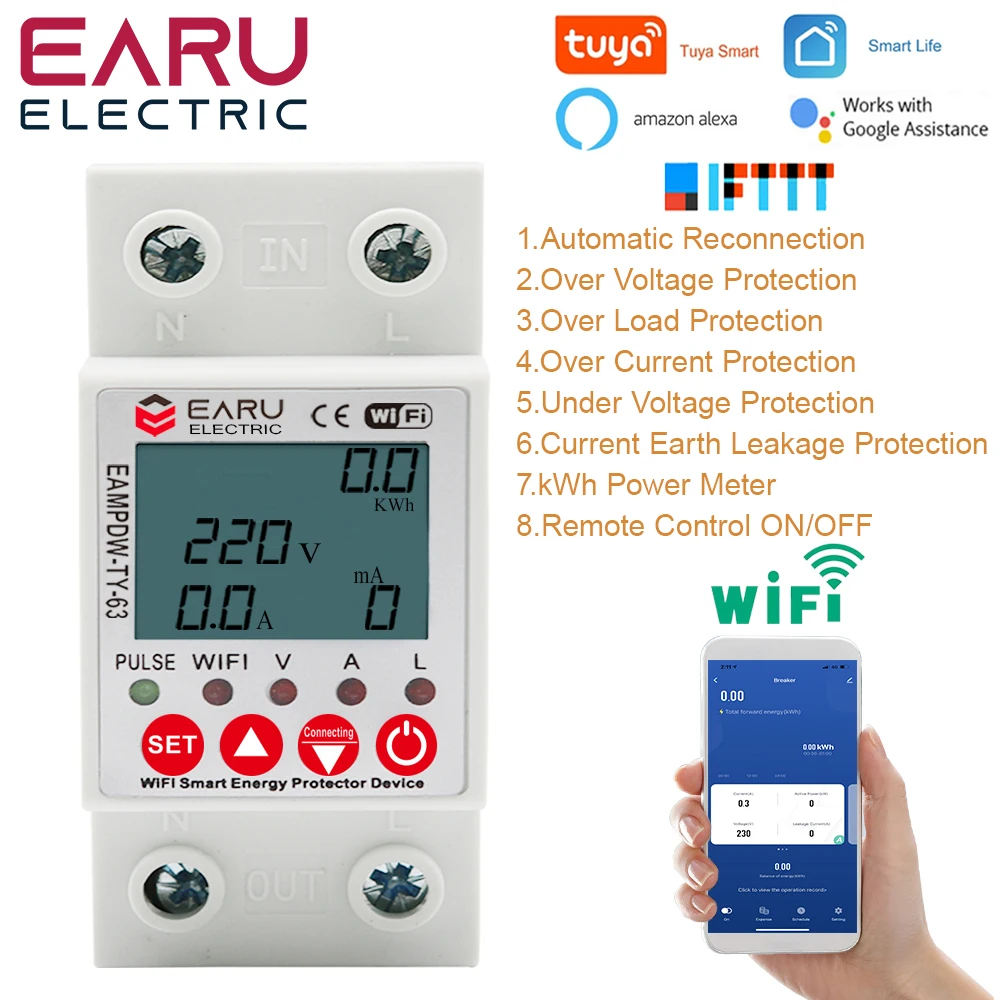

Function 1:  Over Voltage Protection
Function 2:  Under Voltage Protection
Function 3:  Current Limiter
Function 4:  Earth Current Leakage Protection
Function 5:  Energy Consumption Record
Over Voltage Adjustable Range:  250V-300V (adjustable)
Under Voltage Adjustable Range:  150-190V (adjustable)
Current Adjustable Range:  1-63A (adjustable)
Earth Leakage Adjustable Range:  10-99mA
Energy Consumption Record Range:  0-99999.9 KW/h
Model 2:  RCCB
Model 3:  RCBO
Model 4:  RCD

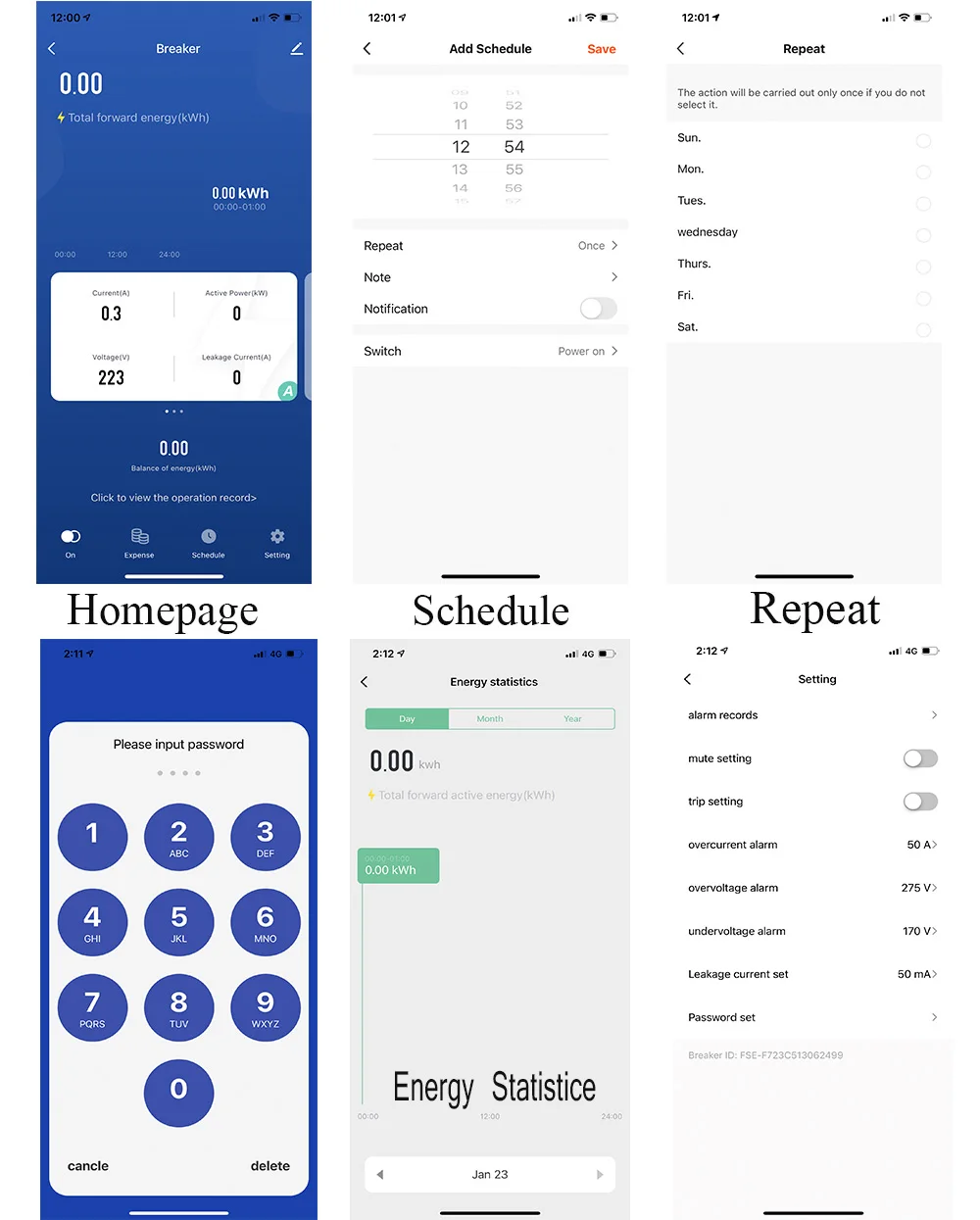

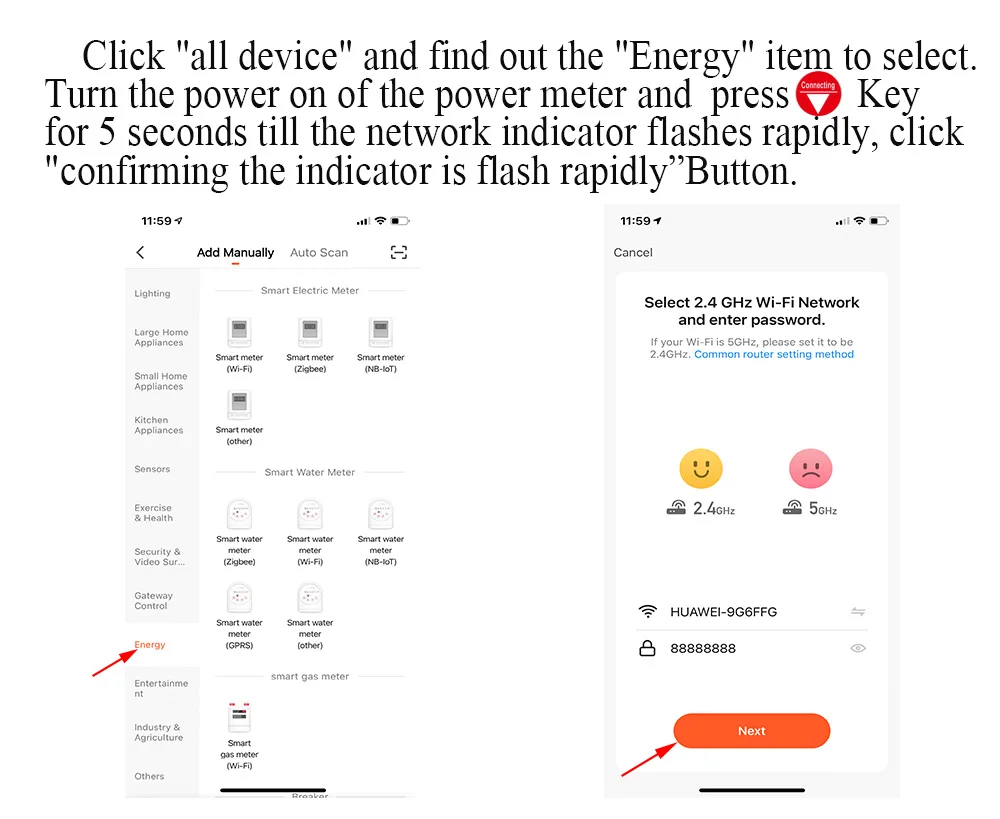

App:  Tuya
Function 6:  Remote Control ON / OFF

Our factory can provide OEM service to manufacture this device with your brand, logo, if you get any need, feel free to contact the buyer!

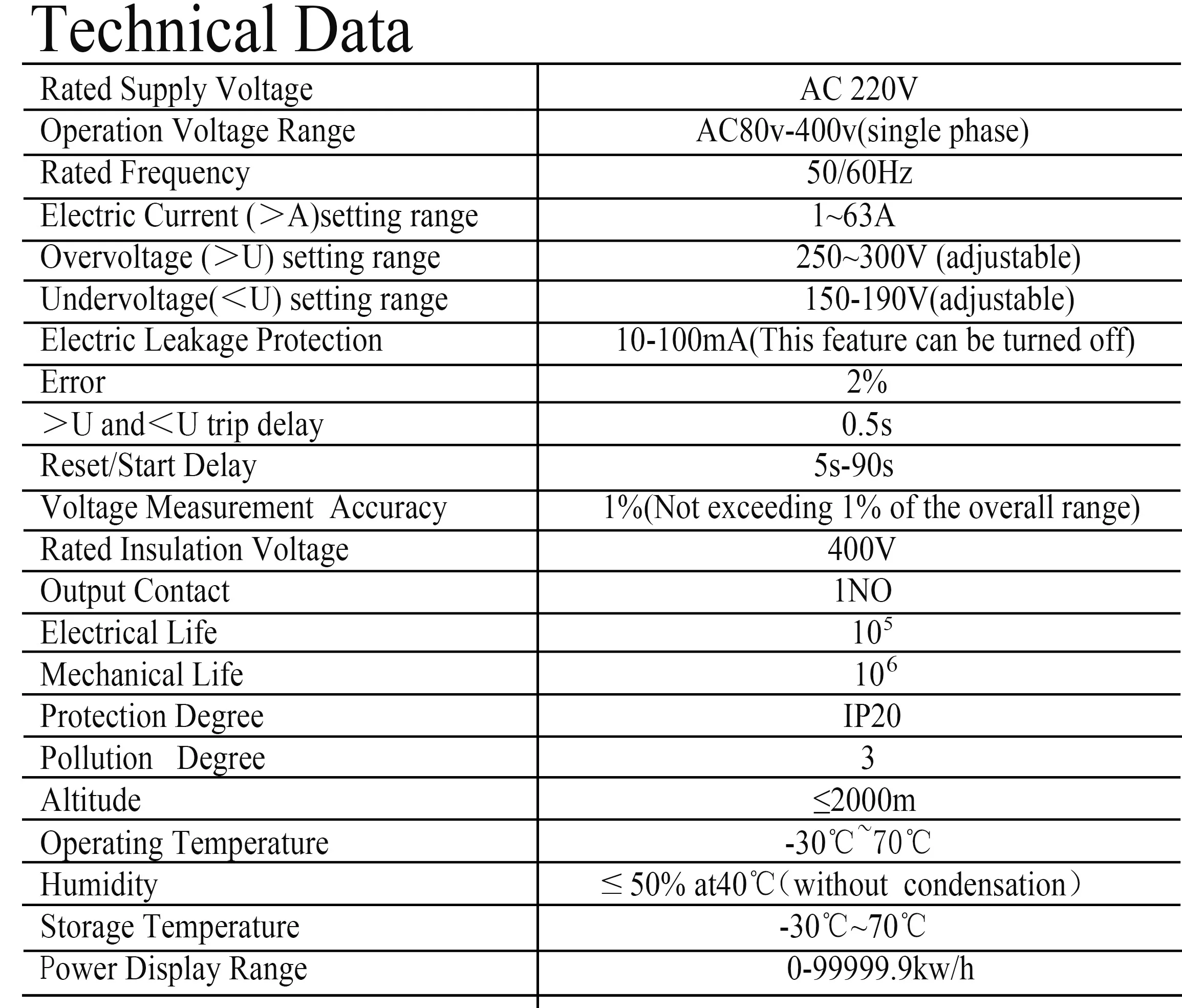

Rated voltage: 230V; Frequency: 50Hz/60HZ

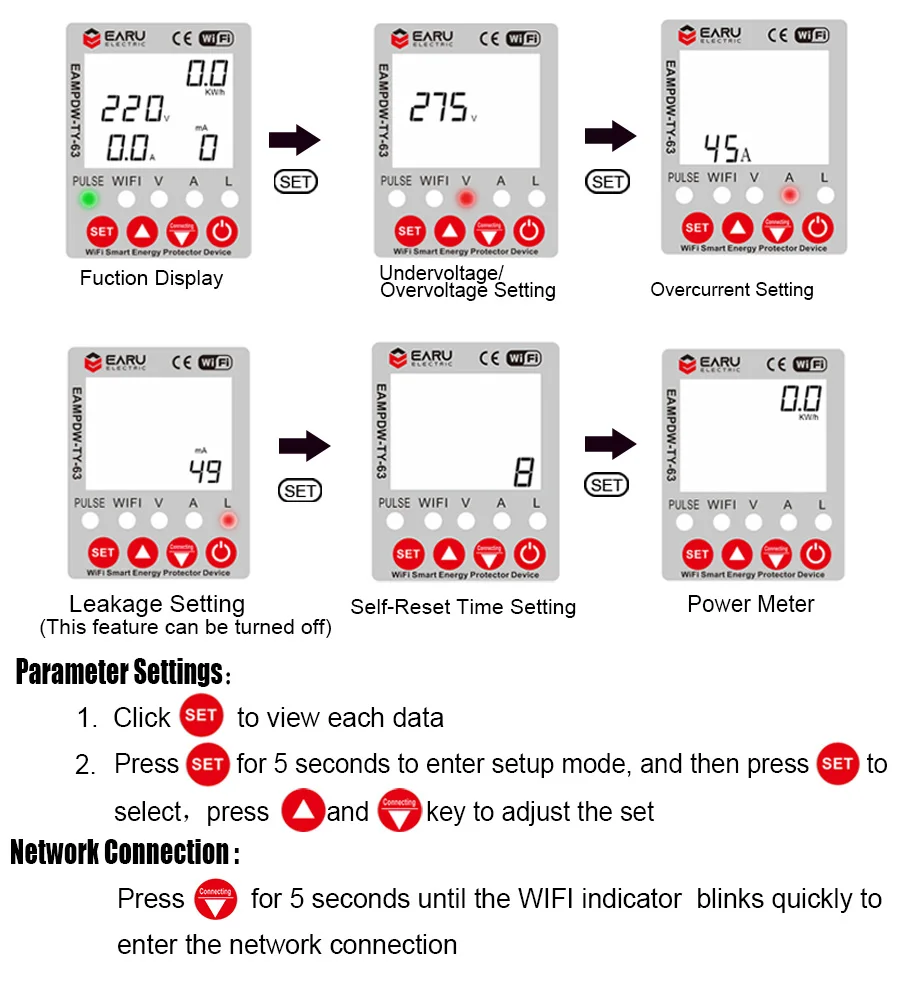

Function: 1. Under voltage protection 150V-190V (adjustable) (default: 170V)

2. Over voltage proteciton 250V-300V (adjustable) (default: 270)

3. Over current protection 1A-63A (adjustable) (default: 63A)

4. Reconnect time (delay on time): 5s-90s (default: 30s)

5. Electric leakage protection:10-99mA

6. Power display range:0-99999.9kw/h

7. Voltage meter

8. Ammeter

9. Energy meter

NOTE :

If the protector trips three times due to leakage  protection, the device will no longer be reconnected automatically again until the user has checked where is the power failure and fixed it to make sure the people safety! Other protection and reconnecting can cycle for over 99999 times.

PS: This device has memory function, when the power is cut off, the device can memory the Kwh, over voltage, under voltage and over current value.
