220V 1.5KW Air Cooled CNC Spindle Motor er11 collet 1500w HY / YL inverter / VFD for CNC Router anvil vise Machine Tools & Accessories

Certification:	CE
Origin:	CN(Origin)
Operating Speed:	0-24000 R/min
Drive:	Motor
Application:	Milling
Model Number:	1.5KW
Maximum Torque:	--
Model Number:	1.5kw Air Cooled Spindle
Type:	1.5kw Air Cooled Spindle Set
Voltage:	110V/220V
Collet:	ER11
Inverter:	HY/YL VFD Inverter
Feature:	Converter Inverter
Spindle:	1.5kw 110v /1.5kw 220v
Runout:	Less than 0.005mm
Usage:	Spindle ER11

Notice：

1.If you need a spindle, inverter and chuck, please select this option to place an order

“220v spindle and VFD”/“110v spindle and VFD”

2.If you only need spindle and chuck, please select this option to place an order

“220V spindle ER11”/“110V spindle ER11”

3.If you only need inverter, please choose this option to place an order

“110V VFD” /“220V VFD”

4.There are two types of spindles. One is junction box and the other is aerial plug. The Polish warehouse currently only has aerial plug by default.If there is no request, the warehouse will be sent randomly

Different Power Applications of Air-cooled Square Spindle

1.5KW

Relief carving, advertising carving, material wood, pvc, acrylic board

2.2KW

Relief carving, advertising carving, material wood, aluminum,

part of soft metal, pvc, acrylic board

3.5KW

Relief carving, advertising carving, hollow cutting process of PVC,

acrylic, MDF, LED and other materials, and need faster speed and

cutting power, materials wood, aluminum, some soft metals, pvc, acrylic board.

4.5KW

For solid wood cutting and perforating, it can also be used as a cutting machine,

4.5-7.5kw, select the appropriate power according to the hardness of

the material and the depth of the hole.

6KW

For solid wood cutting and perforating, it can also be used as

a cutting machine, 4.5-7.5kw, select the appropriate power

according to the hardness of the material and the depth of the hole

7.5KW

For solid wood cutting and perforating, it can also be used as

a cutting machine, 4.5-7.5kw, select the appropriate power

according to the hardness of the material and the depth of the hole

6KW ATC

Spindle

Automatic tool change spindle: automatic tool change engraving machine

or woodworking machining center

9 KW ATC

Spindle

Automatic tool change spindle: automatic tool change engraving machine

or woodworking machining center

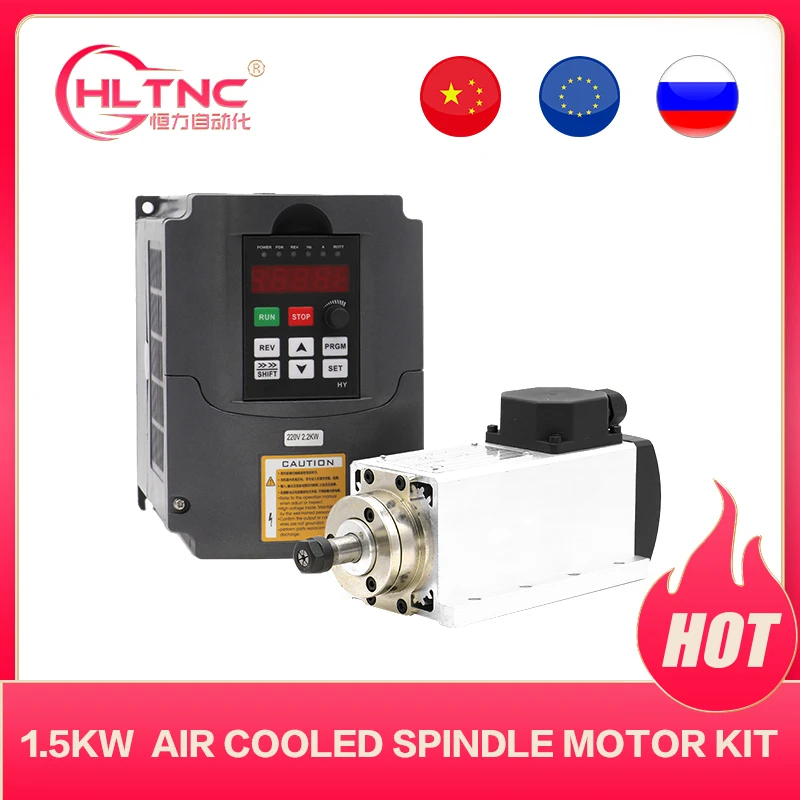

1.5kw Junction Box HY VFD

1.5kw



Aviation plug HY VFD

1 &220v



1.5

kw ER

11

 4 bearings air cooled spindle

1 &220v



1.5

kw Huanyang inverte/VFD

1 kit ER

11

 high accuracy collet(≤0.008mm) （Quantity:



7

）

φ1*1   φ2 *1  φ3 *1   φ4*1   φ5 *1  φ6 *

1

  φ7*1

1 &220v



1.5

kw ER

11

 4 bearings air cooled spindle

1 &220v



1.5

kw Huanyang inverte/VFD

1 kit ER

11

 high accuracy collet(≤0.008mm) （Quantity:



7

）

φ1*1   φ2 *1  φ3 *1   φ4*1   φ5 *1  φ6 *

1

  φ7*1

1.5kw Junction Box YL VFD

1.5kw



Aviation plug YL VFD

1 &220v



1.5

kw ER

11

 4 bearings air cooled spindle

1 &220v



1.5

kw YL inverte/VFD

1 kit ER

11

 high accuracy collet(≤0.008mm) （Quantity:



7

）

φ1*1   φ2 *1  φ3 *1   φ4*1   φ5 *1  φ6 *

1

  φ7*1

1 &220v



1.5

kw ER

11

 4 bearings air cooled spindle

1 &220v



1.5

kw YL inverte/VFD

1 kit ER

11

 high accuracy collet(≤0.008mm) （Quantity:



7

）

φ1*1   φ2 *1  φ3 *1   φ4*1   φ5 *1  φ6 *

1

  φ7*1

  1. 0-24000rpm ultra-high speed

  2. Four high-quality bearings

  3. Run silent

  4. High temperature resistance

  5. long life

Aviation Plug

Cooling Fan

Metal body

Parameter

Lengthened rotor

Chuck

Juntiion Box

Cooling Fan

Metal body

Parameter

Lengthened rotor

Chuck

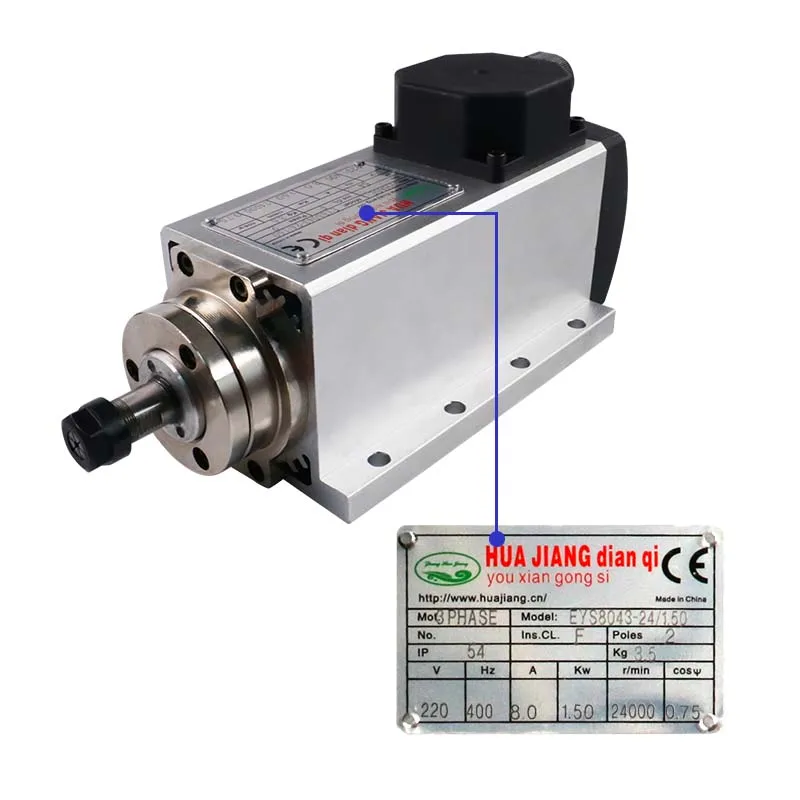

MOTORE ASINCRONO TRIFASE/ASYNCHRONOUS 3 PHASE MOTOR

1.5kw spindle

Spindle

Fail

V（±10%）

220

V（±10%）

Hz

400

Hz

rpm

24000

rpm

KW (HP)

1.5

KW (HP)

A

5

A

IS .F

Poli:2

TA :20℃

Serv:S1

=0.8

Cosφ0.7

IP：50

Air Cooling

1.5kw Termial Box Type Spindle

1.5kw Aviation Connector Type Spindle

Huanyang HY Inverter

LED Display zone indicating For., Rev.,frequency,current,recolution, etc.

Main display zone indicating frequency,current,ACV ,DC V,revolution,counter,temperature,etc

Speed controller

Function key

Set Key (enter)

Value Change key

Stop/Reset key

Run key

FOR/REV Switch

(DISP) Shift key

Tech parameters

       Power:1.5KW

      Input Voltage :220V

       Input Frequency :50/60Hz

       Input Phase : 1phase

     Output Voltage : 220V

       Output Phase : 3pahse

      Output Current :7A

      Output Frequency: 400Hz

  Control  Method : V/F control; Open-loop fiux vector control

YL Inverter

Digital Display

Forward/Reverse Switch Key

Run Key

Stop Reset Button

Shift Key

Frequency Adjustment Key

Programming Key(Forward/Backward)

Select/Confirm Key

Up and Down Keys

Tech parameters

       Power:1.5KW

      Input Voltage :220V

       Input Frequency :50/60Hz

       Input Phase : 1phase

     Output Voltage : 220V

       Output Phase : 3pahse

      Output Current :7A

      Output Frequency: 400Hz

  Control  Method : V/F control; Open-loop fiux vector control

The factory default setting of YL inverter is 400hz, no need to set it,

it is suitable for our spindle motor

Function description of Main circuit terminals

Symbol

Function Description

  R S T

Input terminal of AC line power.(220V class,for both single.three phase,single phase connected to

any  two phases)

 U.V.W

 Output terminal of the inverter

   P.Pr

Connector for braling resistor（optional)

      E

Ground terminal:the third method of grounding for 220V and special grounding for 380V of electrical

engineering regulations.

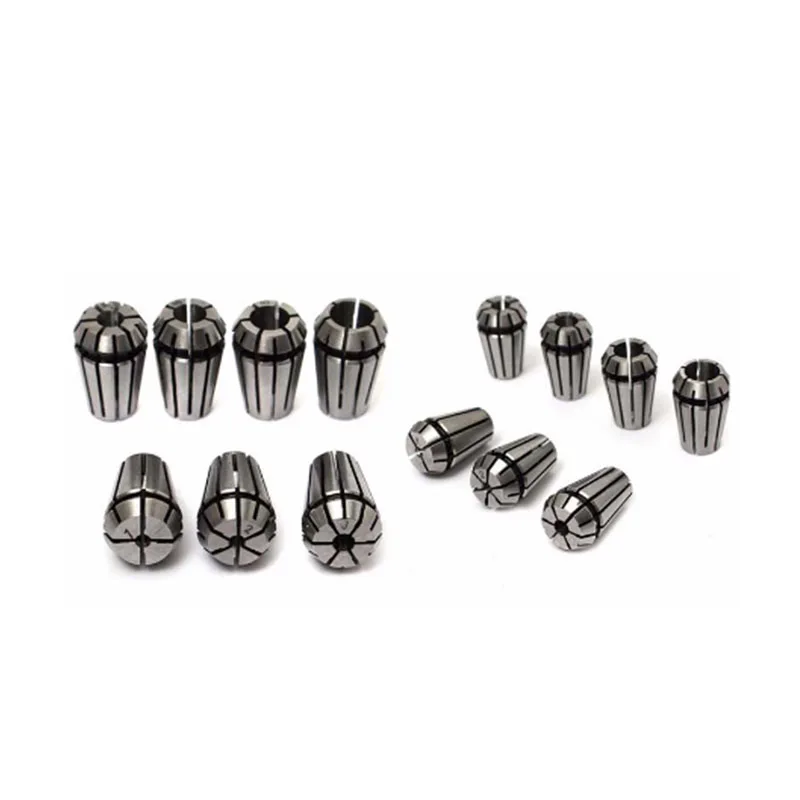

                ①φ1*1   ②φ2 *1  ③φ3 *1   ④φ4*1   ⑤φ5 *1  ⑥φ6 *1  ⑦φ7*1

1.5kw Wiring diagram

Inverter Setting Scheme

                                 PD013=8

              Restore factory setting

                                 PD005=400

              Set max operating frequency

                                 PD004=400

              Set base frequency

                                 PD002=1

              Set board potentiometer control

                                 PD070=1

              Set analoy input

                                 PD072=400

              Set high analoy frequency

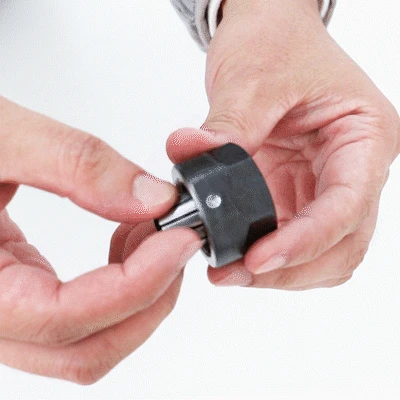

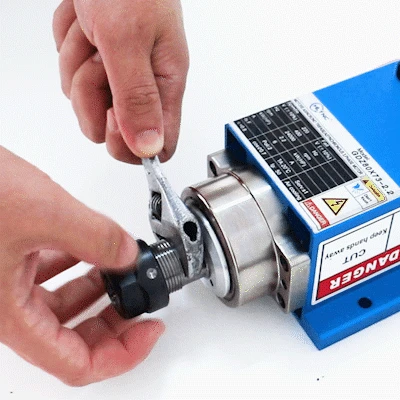

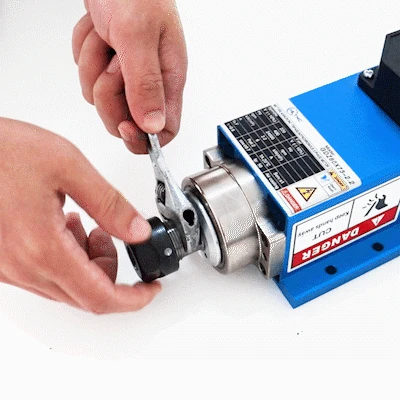

CHUCK REPLEACEMENT

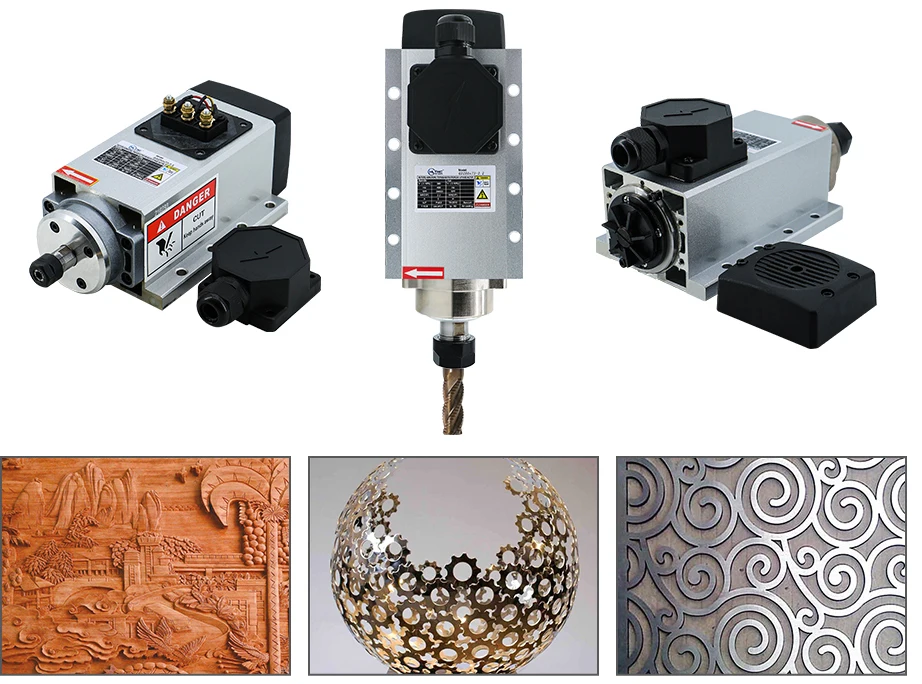

Wood Carving

Soft Metal

Engraving

Aluminum Alloy

Carving

   Milling Cutter

         Sliding Table

Air Cooled Spindle

1:

The spindle has been running for a period of time and the temperature is very high. Is it normal? What is the working environment temperature range?

Answer:

Mechanical products have very good heat resistance. The surface is normal within 150°c, and the suitable working environment temperature is -10°c ~ +50°c

2:

Application of air-cooled spindle

Answer:

This air-cooled spindle is suitable for woodworking, aluminum and some soft metals, and can be used with a variety of milling cutters

3:

Number and material of bearings

Answer:

4 steel ball bearings, model C7002

4:

Continuous working time

Answer:

If the ambient temperature is in the normal range and the surface temperature of the spindle is within 150 degrees, it can work continuously without interruption.

5:

Can the spindle run vulgarly?

Answer:

Yes, the maximum speed of this spindle is 0-24000rpm, which is all possible within this range

6:

Abnormal sound

Answer:

If there are abnormal noises, most of them are bearing problems, because the bearing has a service life and is vulnerable to damage. According to different frequency and intensity of use, the bearing needs to be replaced after 0.5 to 1 year.
