2022 NEW MARANTZ MA-9S2 150W+150W 8ohm stereo amplifier board DIY KIT/ Amplifier Board

Code: TD-3256801481486980 2 orders
Free Shipping
$ 87.87 $ 91.22
Color:
DIY KIT
Finished board
Note

Quantity:
Other people want this. 17 people have this in their carts right now.
Brand Name:  GZLOZONE
Certification:  CE
Origin:  CN(Origin)
Maximum Power Per Channel:  101-130W
Model Number:  WL-MA9S2
Package:  Yes

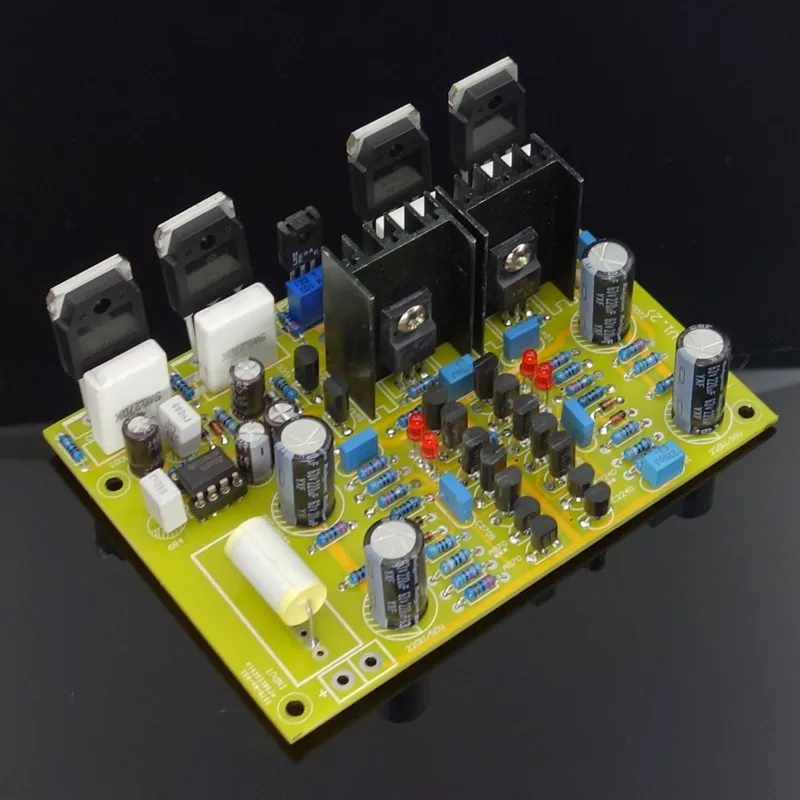

MARANTZ MA-9S2 150W+150W 8ohm stereo amplifier board



This amplifier board don\\'t include the 4pcs biggest transisters.



pay me more 22USD for thie 4pcs transistors



DC+-30V---DC+-63V

size :109MM * 82MM

The midpoint of servo LF353

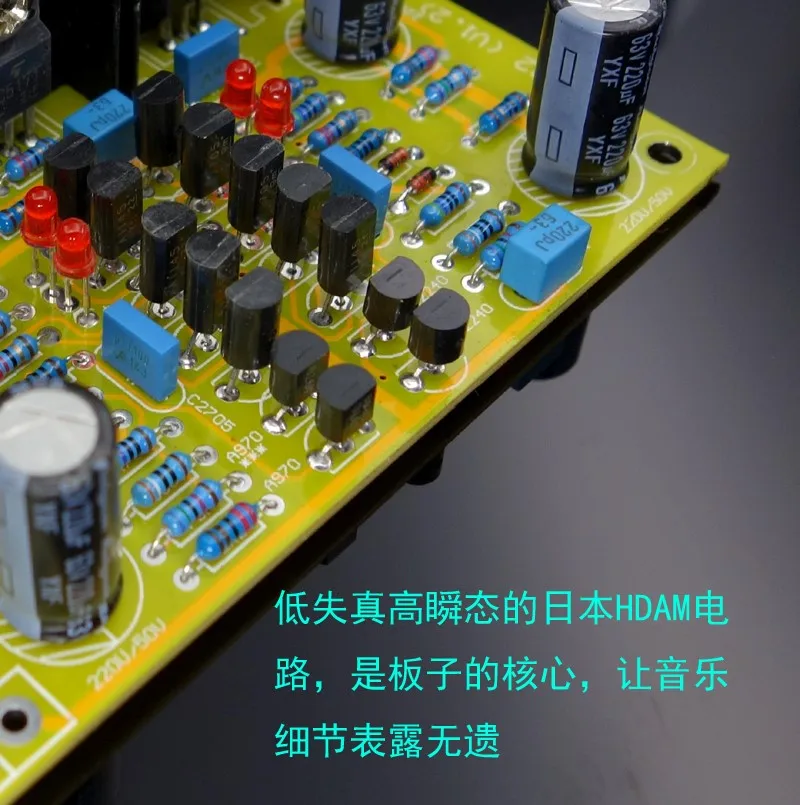

   Marantz MA-9S2 is a classic machine. The original machine is 3W multi-element. The topology of the hdam-sa module is adopted. The input is a special diamond buffer circuit. The I/V mirror circuit is used between the voltage levels. It has a good Matching characteristics before and after. The feedback form of the final stage circuit is current feedback, and the load control force is very good. If the input capacitor is shorted, because the circuit itself has no feedback capacitor, it can be regarded as an all-DC amplifier circuit, and the circuit has excellent electrical performance. ;

This kit refers to the circuit of the machine, and adds a DC servo circuit, so that the midpoint can be exempted from debugging. The midpoint has only one bit of MV level change. The whole machine only needs to adjust the quiescent current, which is to adjust the trimmer potentiometer. Make any resistor voltage of 0.22 ohm on the board between 10MV---40MV. Of course, if you want to do a machine, you can adjust it to 100MV or more to pay attention to heat dissipation.


Voltage range: DC+-30V---DC+-63V

Power: 8 ohms 150W (tested at DC+-63V)

Area: 109MM * 82MM Smaller, easy to install
