2021 Top ELP 1080P Sony IMX323 H.264 Low light 0.01Lux Industrial Machine Vision Mini USB Webcam Camera for PC Computer Laptop

2021 Top ELP 1080P Sony IMX323 H.264 Low light 0.01Lux Industrial Machine Vision Mini USB Webcam Camera for PC Computer Laptop

Name: 2021 Top ELP 1080P Sony IMX323 H.264 Low light 0.01Lux Industrial Machine Vision Mini USB Webcam Camera for PC Computer Laptop
Brand: MMO Dropship
SKU: 2251832596106875
Price: 140.59 VND
Availability: InStock
Rating: 4.9 (97 reviews)

Code: TD-2251832596106875 38 orders

Free Shipping

$ 140.59 $ 145.09

Sensor Size:

5-50mm lens

2.8-12mm lens

no lens

4mm CS lens

6mm CS lens

8mm CS lens

12mm CS lens

6-60mm lens

Note

Quantity:

Other people want this. 20 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	ELP
Type:	Video Camera
Supported Operating Systems:	Windows 10
Supported Operating Systems:	Windows Vista
Supported Operating Systems:	Windows 8
Supported Operating Systems:	Windows 7
Supported Operating Systems:	Windows 98
Supported Operating Systems:	Mac OS
Supported Operating Systems:	windows xp
High Definition:	1080P(Full-HD)
Lens (mm):	5-50mm varifocal lens
Style:	Mini Camera
Certification:	CE
Certification:	FCC
Certification:	RoHS
Connectivity:	USB
Smart home platform:	NONE
Origin:	CN(Origin)
Installation:	Normal
Power Consumption(W):	5V/150mA
Color:	black
Minimum Illumination(Lux):	0.01lux
Sensor:	CMOS
Megapixels:	2MP
Sensor Brand:	SONY
Special Features:	UVC support
Storage:	None
Video Compression Format:	MJPEG
Video Compression Format:	H.264
Power Supply:	Normal
TF Card:	None
IR Distance(m):	0
is_customized:	Yes
Power Supply(V):	5V
Model Number:	ELP-USBFHD06H-SFV(5-50mm)
Viewing Angle :	100°
Dimensions (L x W x D)(mm):	383832mm
Supported Mobile Systems:	Android
Network Interface:	None
Sensor:	Sony IMX322
Resolution:	1920X1080 P. 2 megapicxel full hd
Picture format:	H.264 /MJPEG&YUY2
USB Protocal:	USB2.0 HS/FS, USB1.1 FS
Lens:	2.8-12mm/5-50mm varifocal lens , 4/6/8/12mm CS lens optional
Support OS:	UVC or Windows, android ,linux,MAC OS
Ships From:	Shenzhen
Low illumination Camera:	0.01Lux Low light
OTG function:	Support
High frame rate:	1080P 30fps USB Camera
Technology:	Low illumination 0.01lux

2021 Top ELP 1080P Sony IMX323 H.264 Low illumination 0.01Lux Industrial Machine Vision Mini usb webcam camera

Package includes:

1) 1PC 2mp H.264 usb camera with different Lens optional

2) 1PC 3m usb cable

Key Features:

1. Ultra Low light Camera, Minimum illumination

0.01lux

2. Support otg protocal

4. Max resolution :1920*1080P ,2.0 Megapixel

5. Highly advanced

Sony IMX323 Sensor

6. Compression format : H264 /MJPEG / YUV2(YUYV)

7. White balance Function: Excellent indoor and outdoor effects, vivid colors

8. Equiped with 2.8-12mm/5-50mm varifocal lens , 4/6/8/12mm CS lens optional

9.Support OS : Windows 7.8.10 , Android, Linux, Mac ( 13 version or above)

Specifications:

Model

ELP-USBFHD06H-SFV(5-50mm)

Sensor

Sony IMX322

Lens Size

1/2.9 inch

Pixel Size

12.8X11.6 mm

image area

2000(H)X1121(V) approx. 2.24 M pixels

Max. Resolution

1080P

Compression format

H264 /MJPEG / YUV2（YUYV）

Resolution & frame

H264：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps

MJPEG：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps

YUV：320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps

S/N Ratio

42dB

Dynamic Range

86dB

Sensitivity

5.0V/lux-sec@550nm

Mini illumination

0. 01 lux

Shutter Type

Electronic rolling shutter / Frame exposure

Connecting Port type

USB2.0 High Speed

Free Drive Protocol

USB Video Class（UVC）

Support OTG Protocol

USB2.0 OTG

AEC

Support

AEB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

Digital audio

High quality digital MIC, support single, dual channel

LED board power connector

Support 2P-2.0mm socket

Power supply

USB BUS POWER 4P-2.0mm socket

Power supply

DC5V

Operating Voltage

140mA~190mA

Working current

-10～70℃

Working temperature

-20～85℃

Board size /Weight

38X38mm（Compatible 32X32mm）/ about 30g

Cable

Standard 1M / optional 2M,3M,5M

Operating system request

Win7 Win8

Linux 2.6 or above

Android 4.0 or above

Applications:

used for all kinds of machine as below:

machinery equipment

, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,

automatic
vending machine

, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,

teaching system, Interactive system

,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,

Industrial camera

, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,

Medical auxiliary equipment

, etc.

Product display:

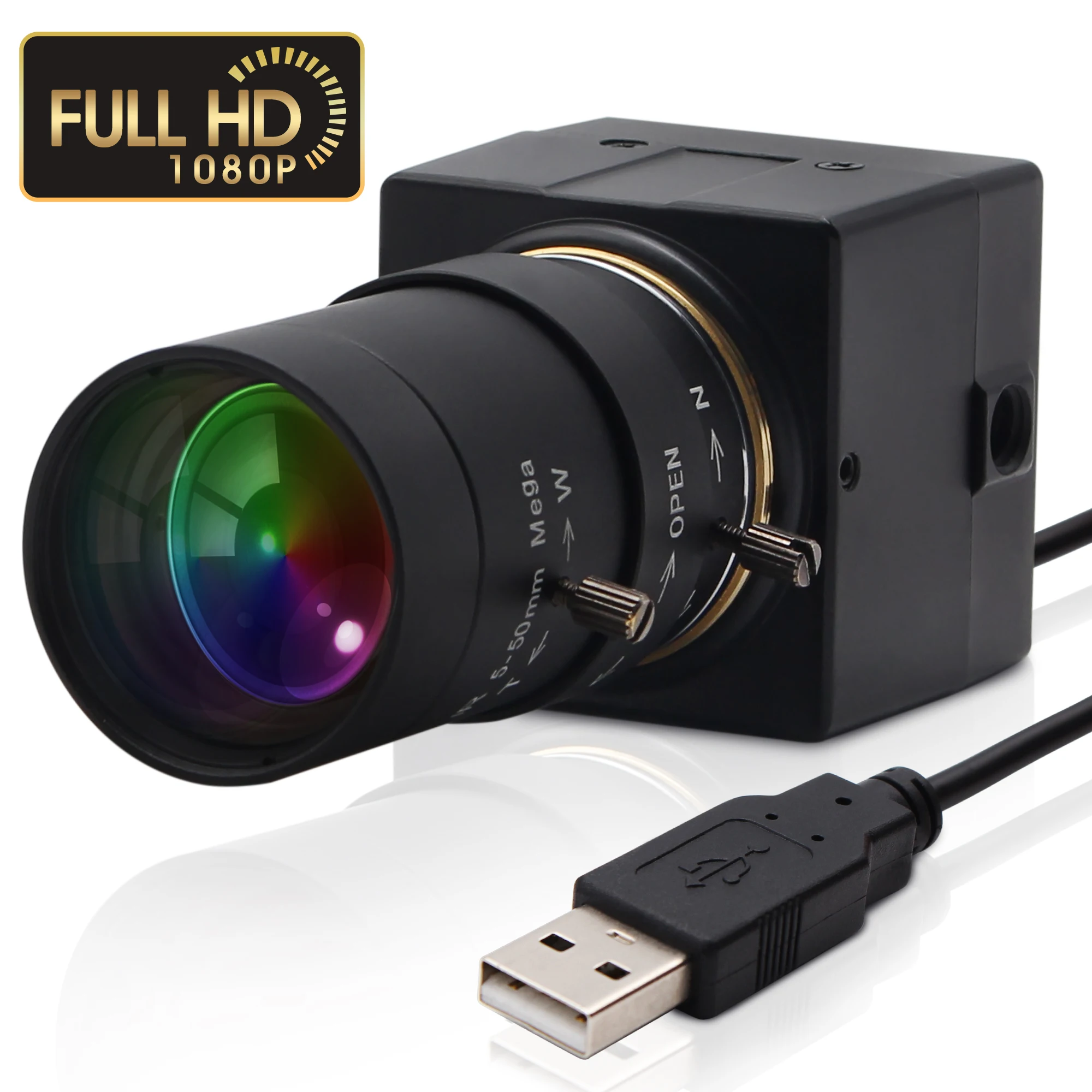

2MP FULL HD Low light 0.01Lux USB Camera

2.8-12mm/5-50mm varifocal lens, 4/6/8/12mm CS lens optional

Real Effect Image from our Customers:

Specially designed Packing for usb cameras:

Seller recommended products:

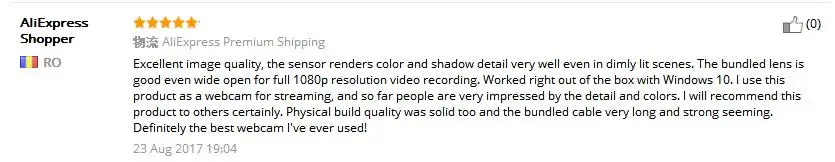

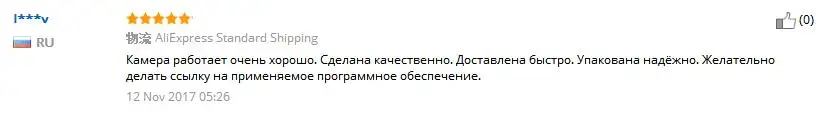

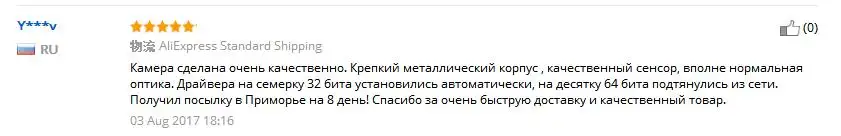

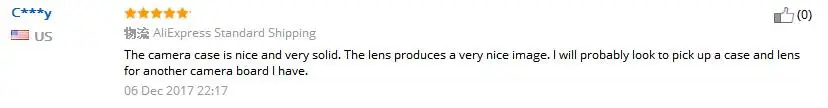

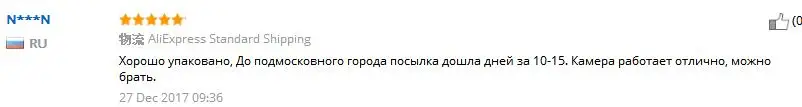

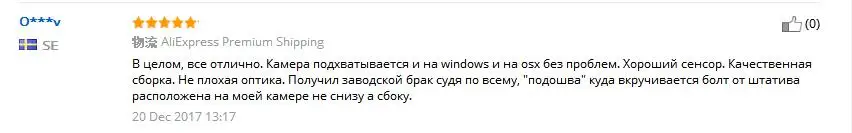

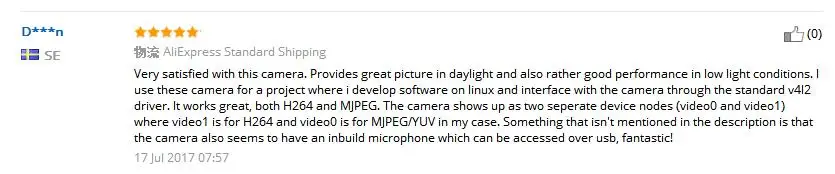

Positive feedbacks from customers:
