2000W Amplifier Power Supply Soft Starting Board High Power For 1969 audio Speaker Thunder Protection 220V

2000W Amplifier Power Supply Soft Starting Board High Power For 1969 audio Speaker Thunder Protection 220V

Name: 2000W Amplifier Power Supply Soft Starting Board High Power For 1969 audio Speaker Thunder Protection 220V
Brand: MMO Dropship
SKU: 2251832707042460
Price: 36.12 VND
Availability: InStock
Rating: 4.9 (73 reviews)

Code: TD-2251832707042460 28 orders

Free Shipping

$ 36.12 $ 39.07

Color: 220V

220V

Note

Quantity:

Other people want this. 23 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	GHXAMP
Certification:	NONE
Origin:	CN(Origin)
Maximum Power Per Channel:	NO POWER
Model Number:	3800W-2000W Power Tool Soft Starting
Package:	Yes
Channels:	1

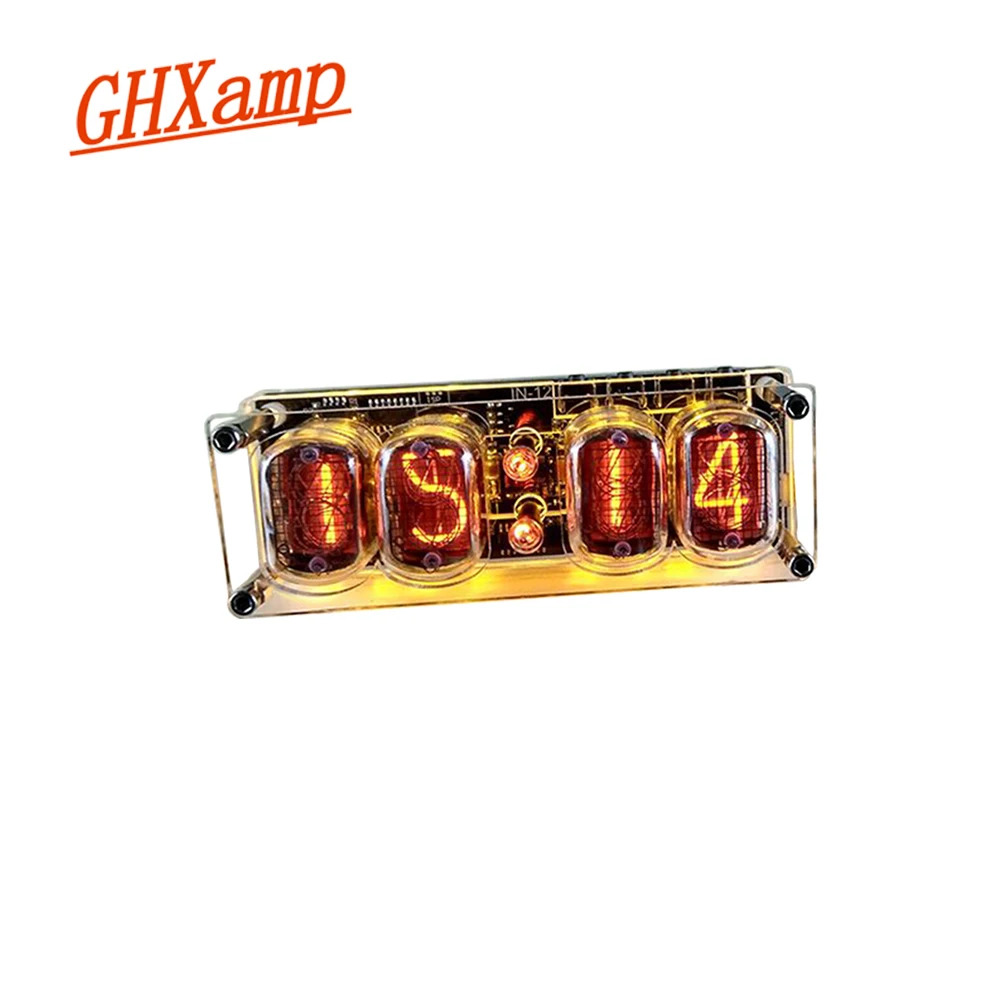

GHXAMP IN-12 Glow Tube 4-digit Clock Colorful LED Backlight DS3231 Nixie Clock IN-12B DC5V USB Electronic DIY

USD 30.75-60.00/piece

amplifiers TPA3116 high power dual channel digital amplifier board U disk TF card decoding 50W*2 Bluetooth-compatible

USD 16.77/piece

GHXAMP TPA3116 amplifier 2.1 Amplifiers Board 50W+50W+100W Woofer Speaker DIY 12-24V Bluetooth-compatible 5.0 With Case

USD 33.99/piece

GHXAMP 120 LED Level Indicator Stereo Sound Control Audio Music Spectrum electronic VU Meter LED music rhythm volume 5V Case

USD 24.57-32.76/piece

GHXAMP 2 Inch Speaker 4OHM Full Range Units Woofer Portable Speaker Waterproof Diy Home Theatre Neodymium 10W 20W 2PCS

USD 15.41-17.37/lot

4 inch 4.5 inch Woofer Speaker 50W Midrange BASS Rubber edge High-end Bass unit 4 ohm For Peerless speaker 1PCS

USD 52.50/piece

IRS2092 800W+800W Amplifier Audio Board IRFB4227 Power Tube Class D Dual Channel HIFI Amp TO220 Speaker Protection Rectifier

USD 78.00/piece

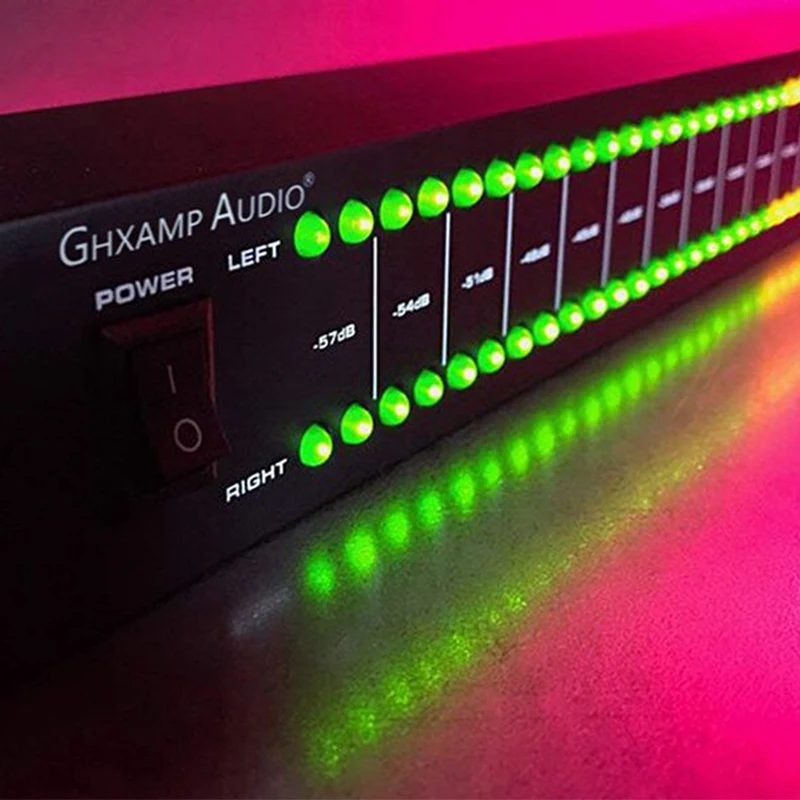

GHXAMP Professional Dual 40 LED Spectrum Stage Home Amplifier Speaker Audio Stereo Level Indicator -57dB-0dB

USD 65.45-69.30/piece

Note: The correct wiring sequence is: the power--switch--soft start--load .

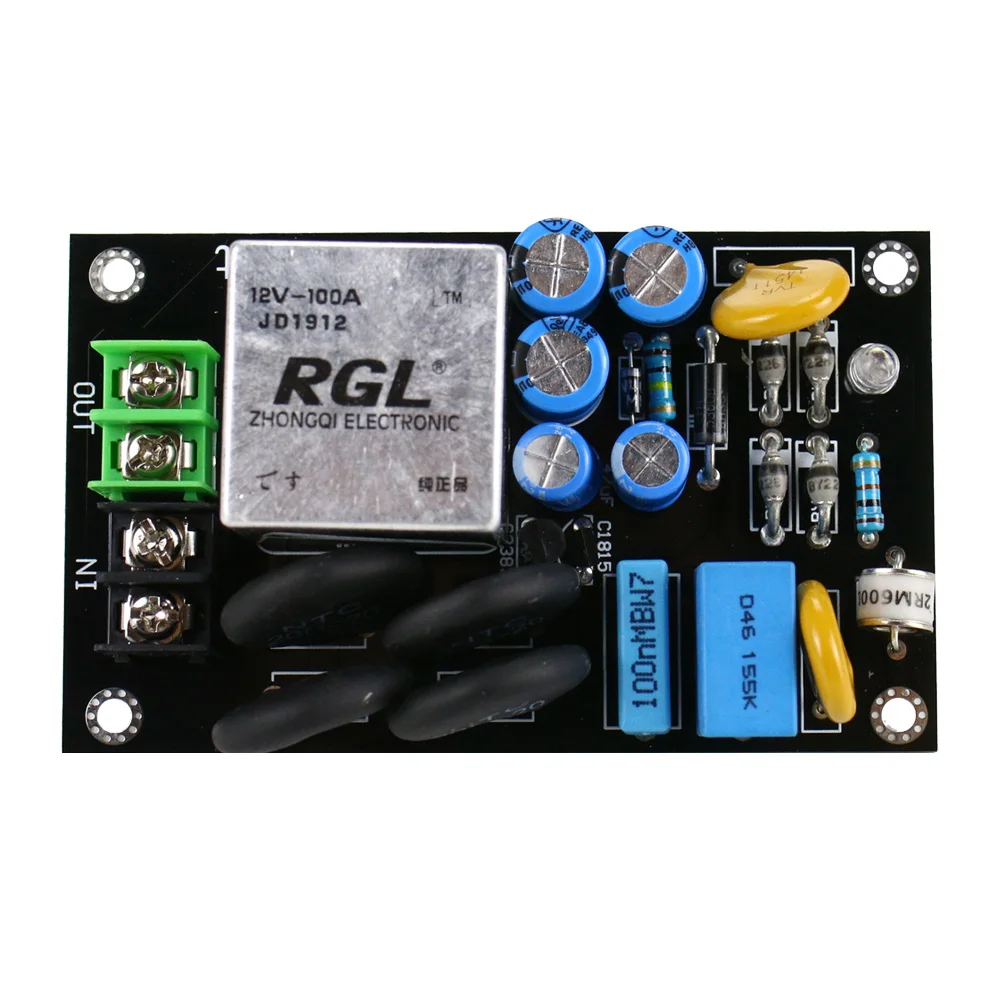

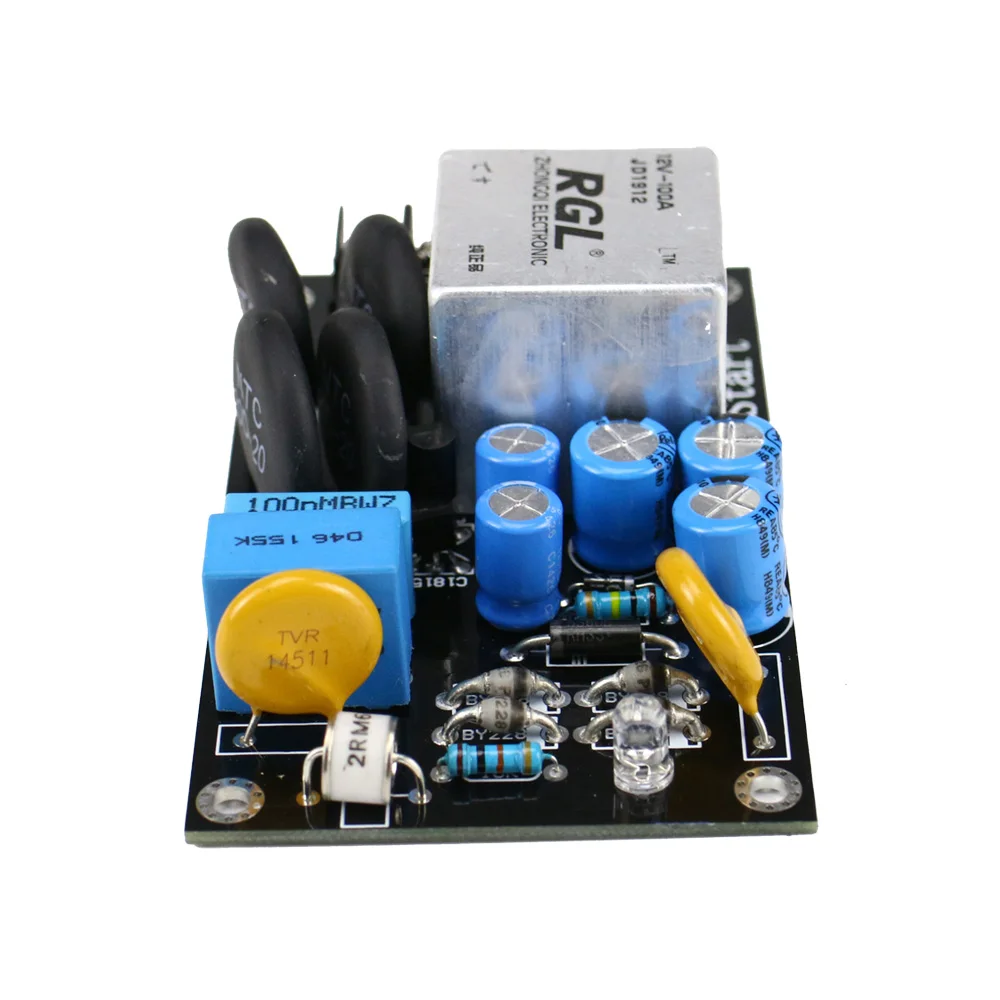

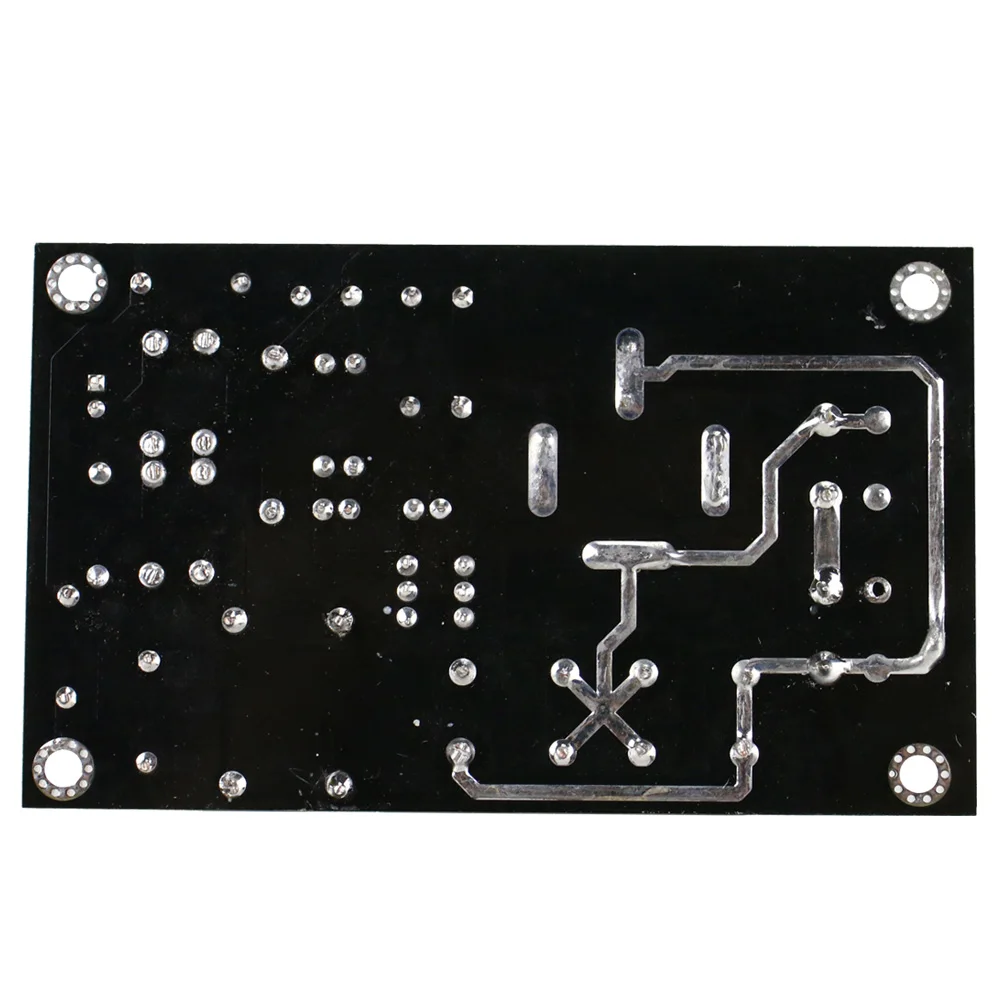

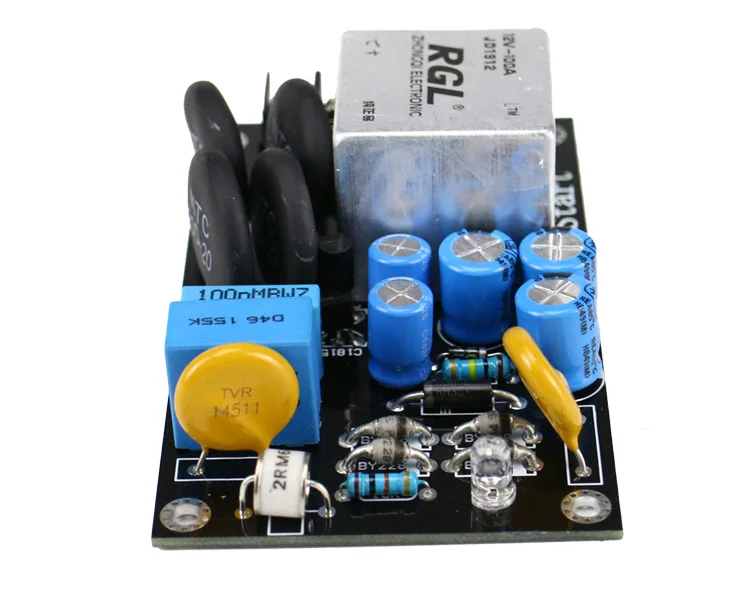

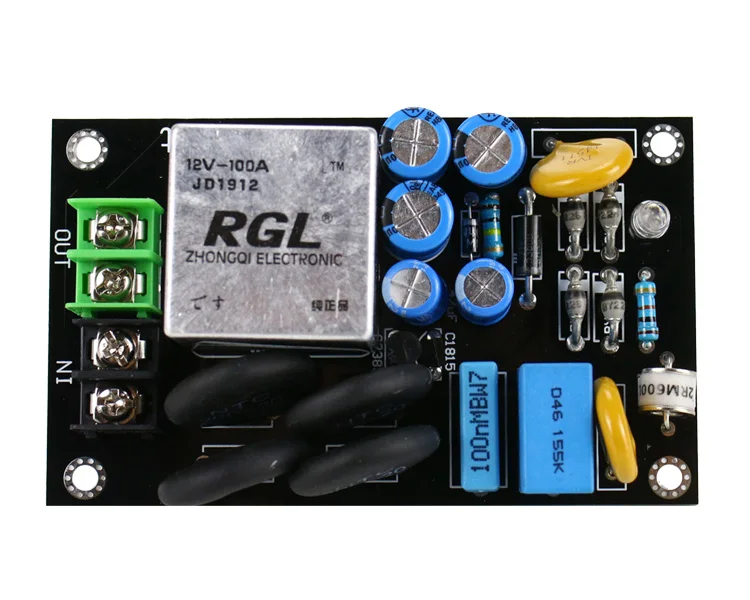

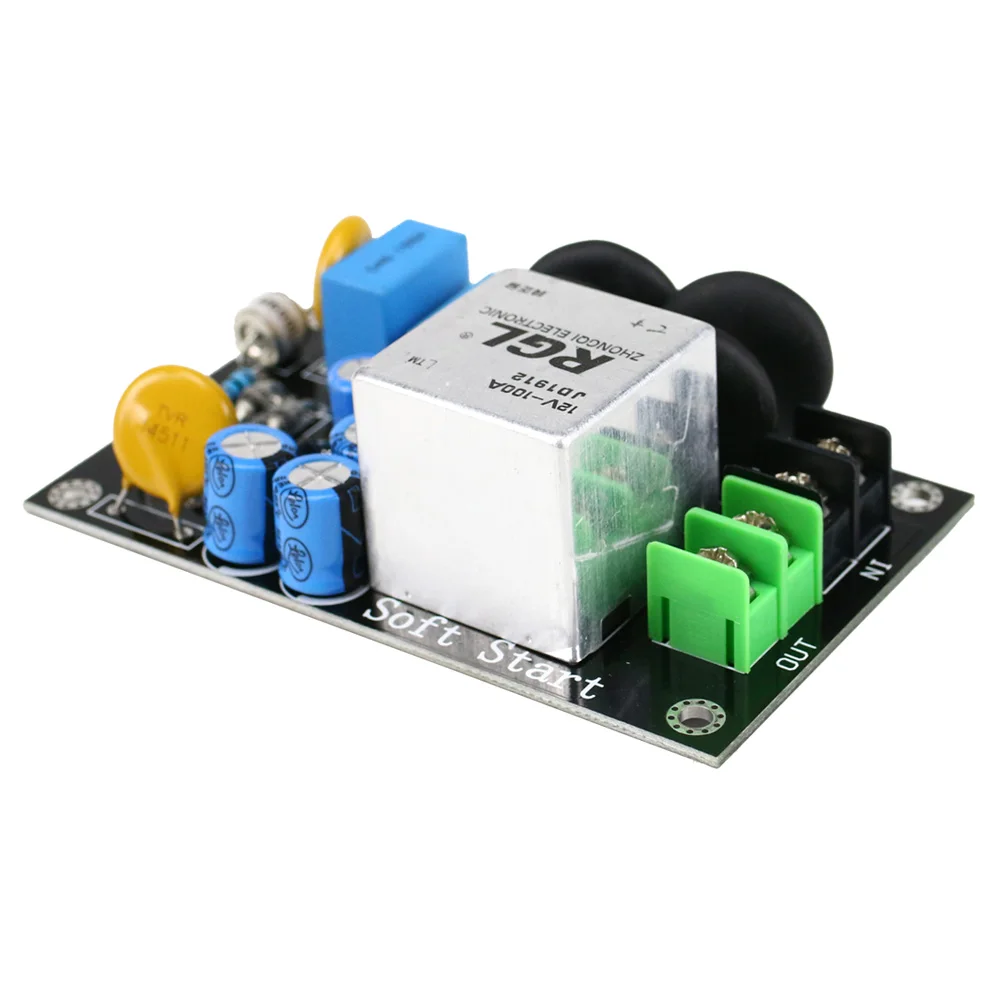

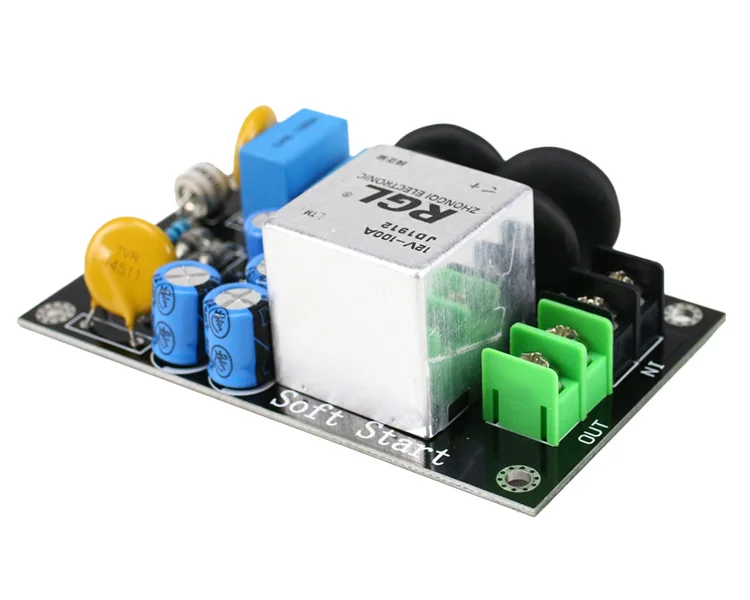

Name: High power power soft start circuit board

Relay: RGL high power super large current 100A pure copper foot relay

Size: 95mmX58mmX30mm (height), ultra-small size

The power used is suitable within 3800W. Long-term load working power is recommended at around 2000W

110V version

Power Supply Voltage Adaptation Range: AC 100V to 125V.

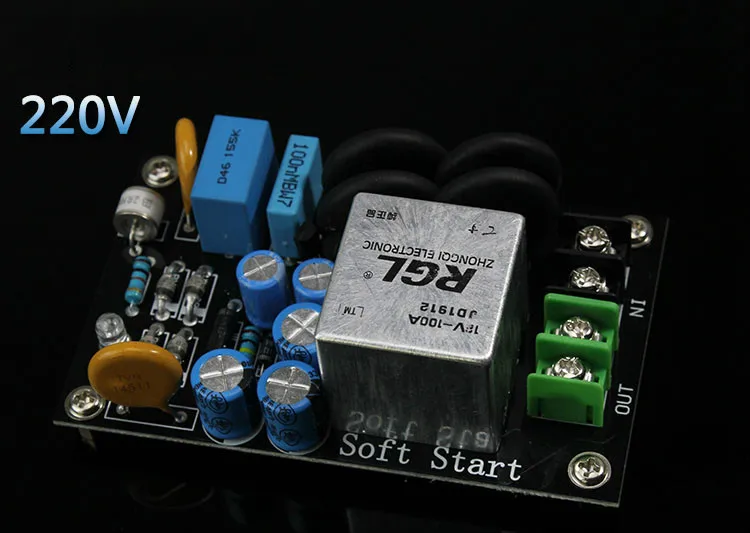

220V

version

Power supply voltage adaptation range: AC 200V to 275V.

Main Feature:

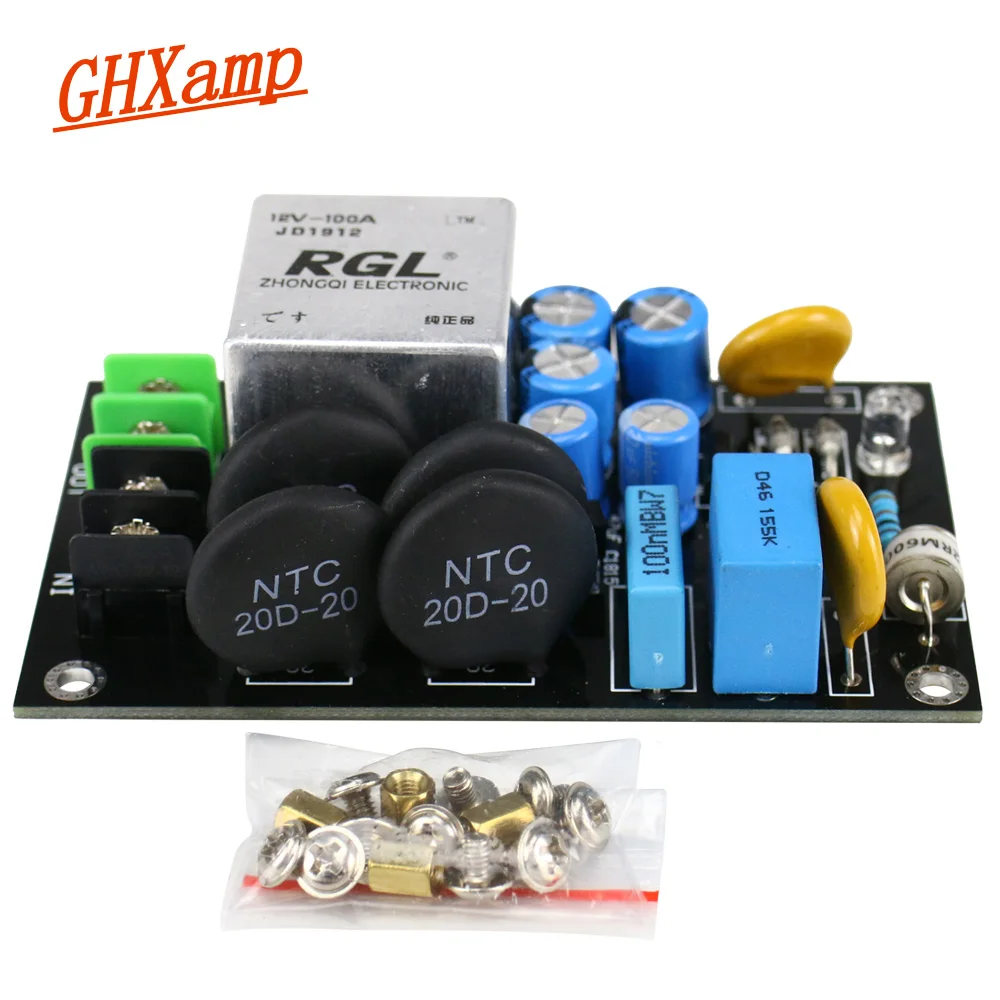

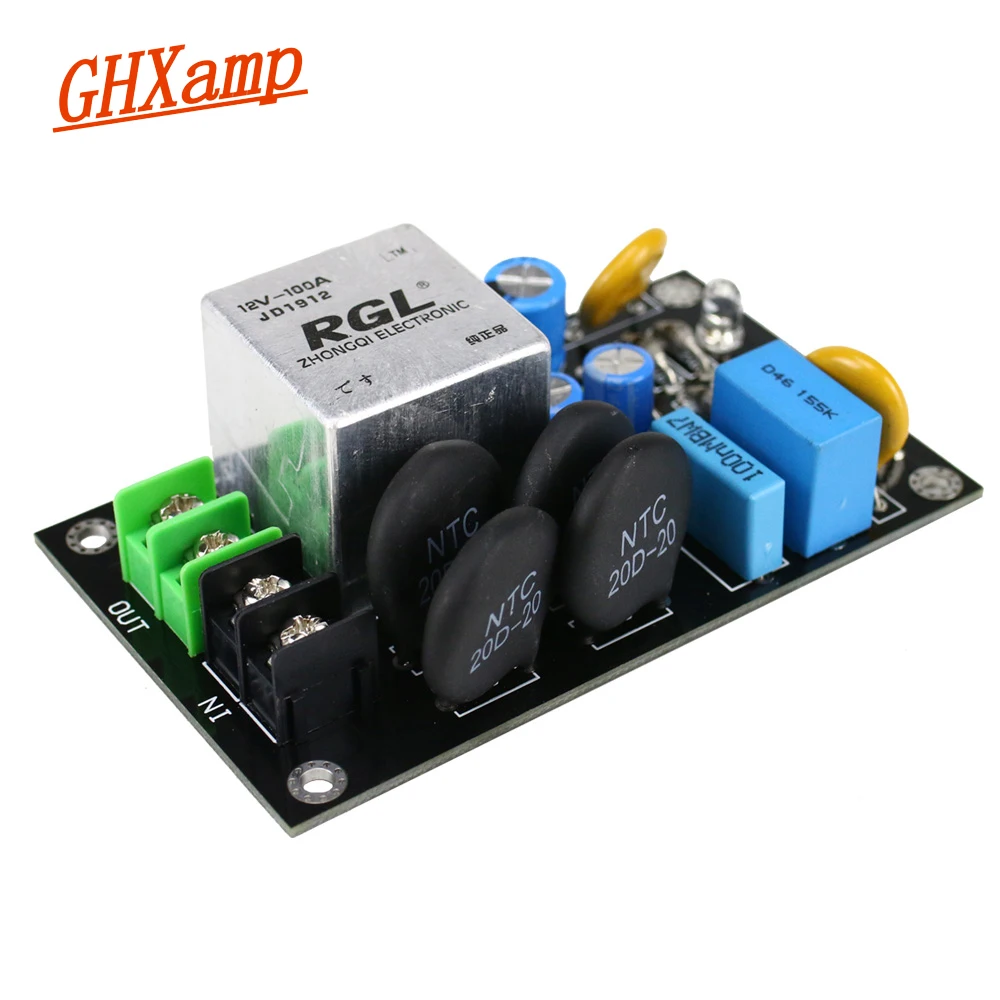

The soft starter function is to reduce the inrush current at the moment of startup to reduce the impact of the machine on the grid and extend the life of the switch. This board uses ultra-high current (100A) pure copper foot relay and 4 large thermistor NTC 20D-20, which effectively protects the machine and prevents excessive starting current.

This board does not require an auxiliary power supply. It has only 2 terminals, one is connected to the power input (before a switch control), and one output is connected to the load, which is very convenient to use.

Working Principle:

At the initial stage of power-on, the load is supplied through a thermistor with a negative temperature coefficient. As the temperature of the thermistor rises, the resistance decreases and the voltage rises slowly, thereby effectively suppressing the impact of the surge current on the line and other electrical appliances. Impact. After about 2 seconds, the relay pulls in (adjustable pull-in time, see the picture for details), short-circuit the thermistor, the power supply will directly supply power to the load through the relay contact, and the load enters the normal working state.

Detonator function:

The lightning protection tube, also called the gas discharge tube, is composed of a pair of cold cathode plates that are separated from each other and encapsulated in a glass tube or a ceramic tube filled with a certain inert gas (Ar).

The gas discharge tube is turned off under normal operating conditions, and its interelectrode resistance is above the megaohm level. When the surge voltage exceeds the withstand voltage of the circuit system, the gas discharge tube is broken down and the arc discharge phenomenon occurs. Since the arc voltage is low, it is only several tens of volts, which can limit the further rise of the surge voltage in a short time. .

The gas discharge tube uses the above principle to limit the surge voltage and protect the circuit from overvoltage.

Package

1pc Thunder protection power soft start board
