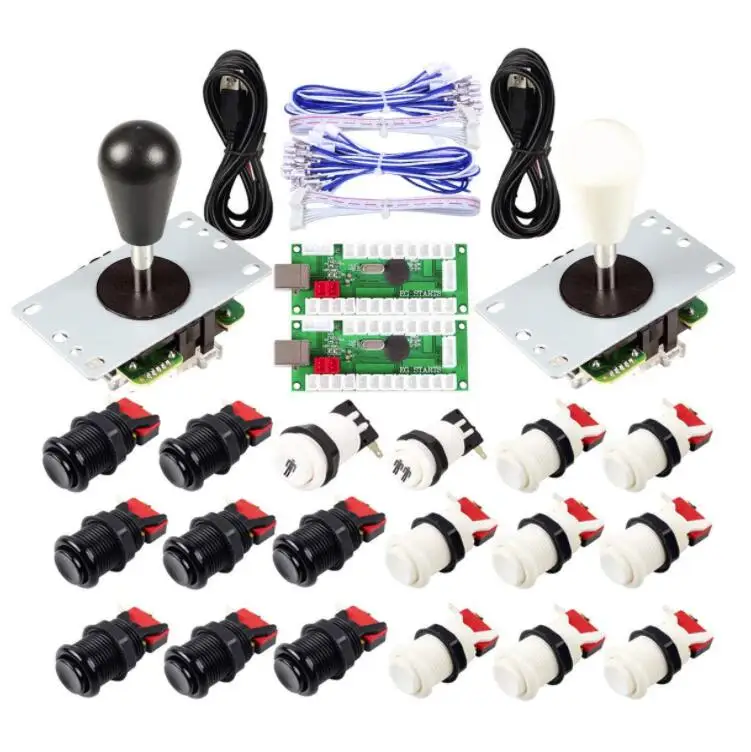

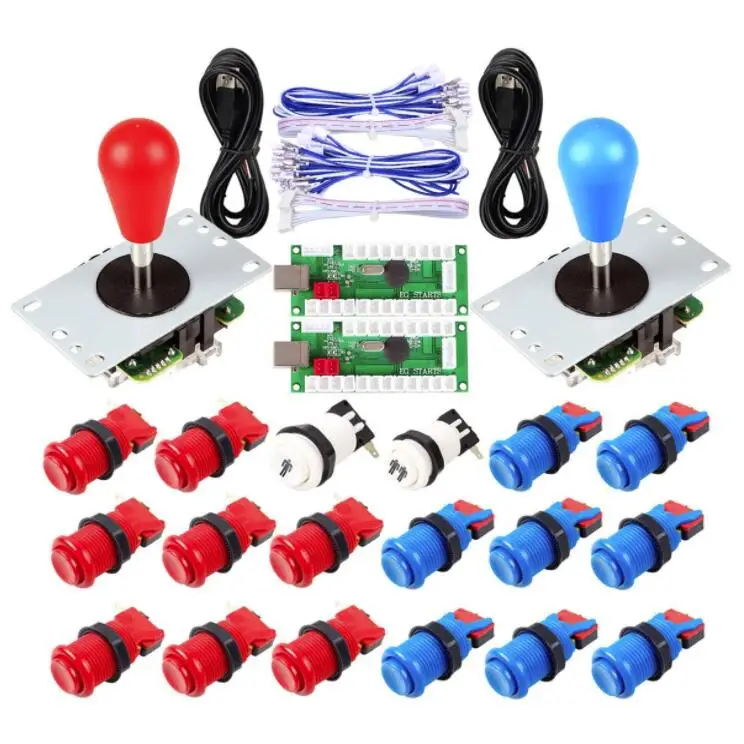

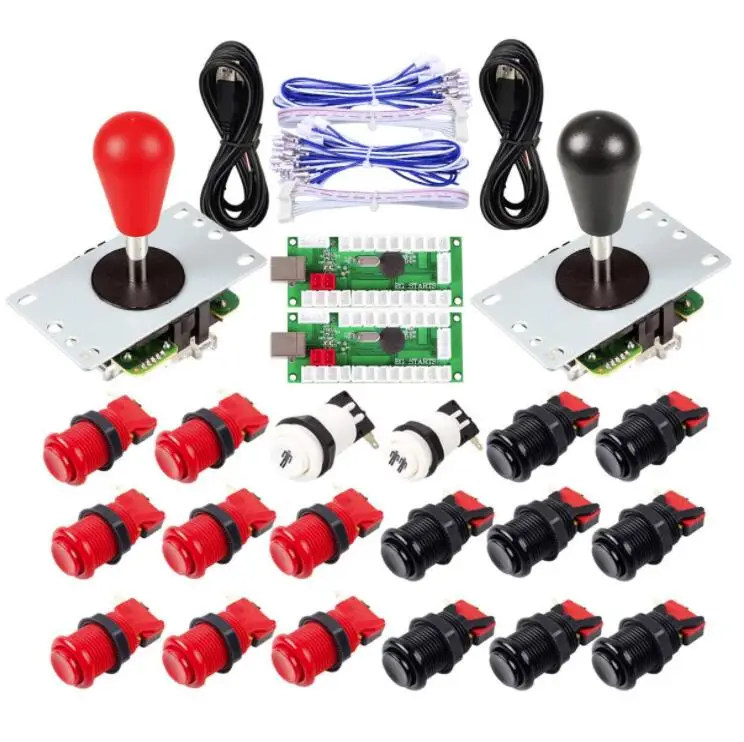

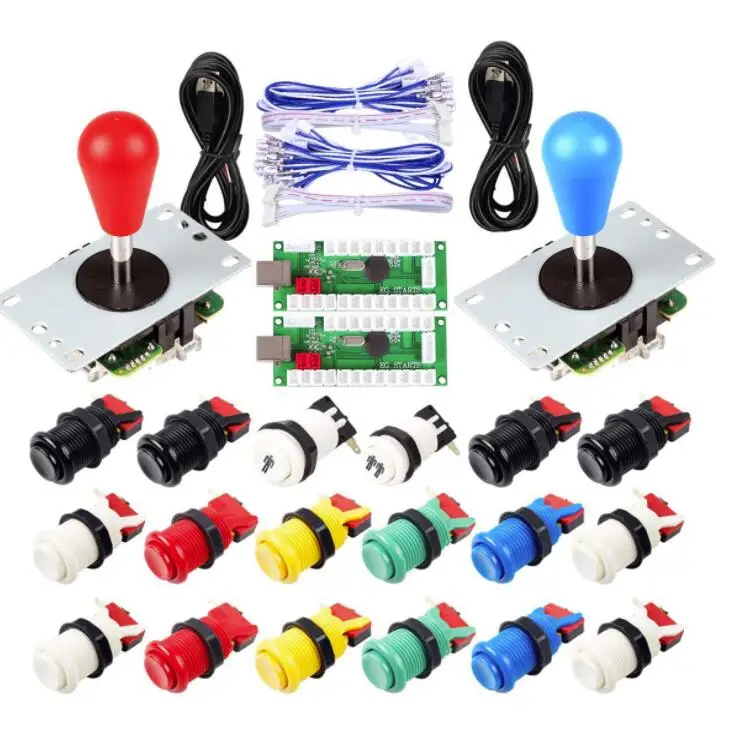

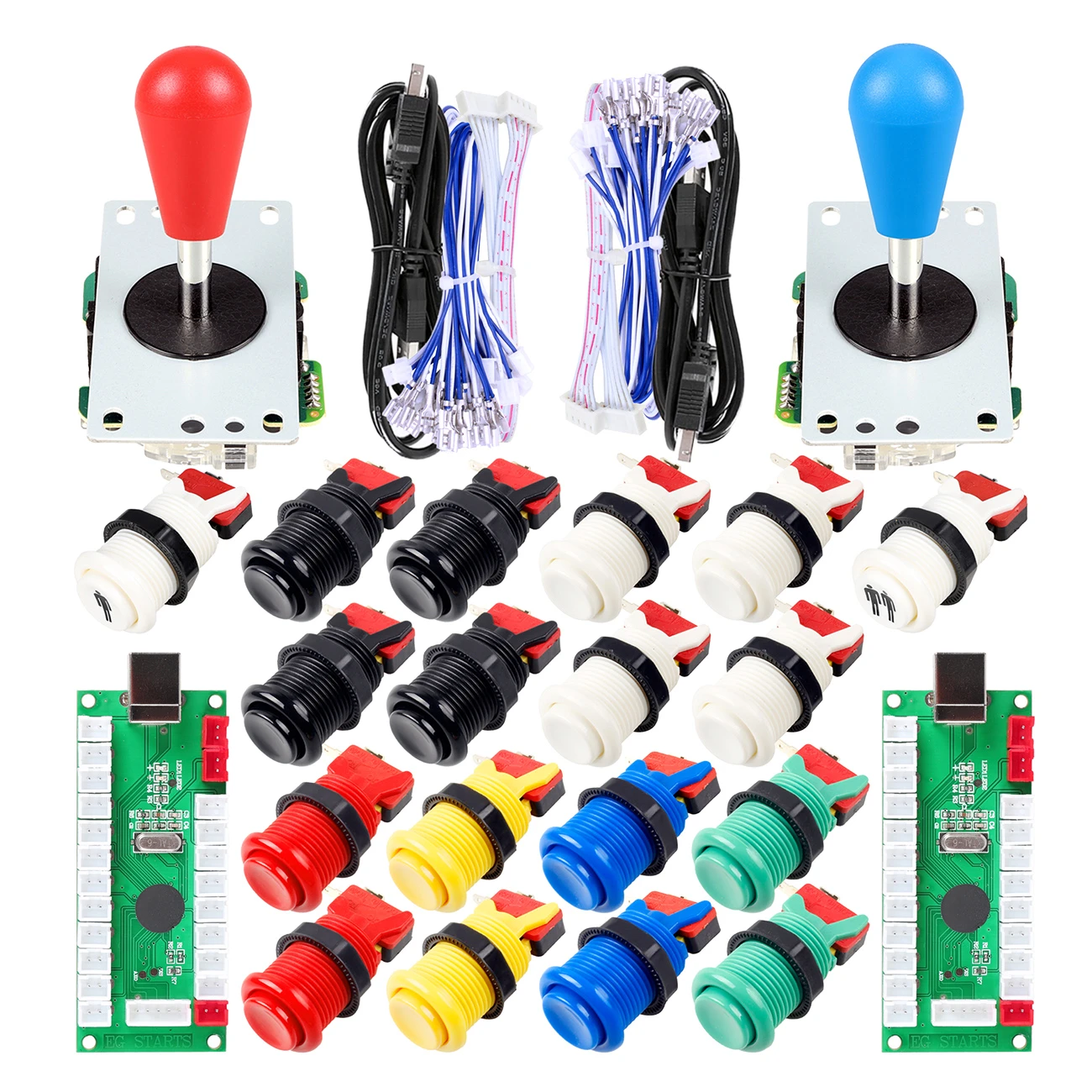

2 Player Arcade USB Encoder Ellipse Oval Joystick Hanlde + American Style Arcade Buttons for PC MAME Raspberry Pi All Windows

Name: 2 Player Arcade USB Encoder Ellipse Oval Joystick Hanlde + American Style Arcade Buttons for PC MAME Raspberry Pi All Windows
Brand: MMO Dropship
SKU: 2251832854208616
Price: 130.86 VND
Availability: InStock
Rating: 4.9 (86 reviews)

Code: TD-2251832854208616 8 orders

Free Shipping

$ 130.86 $ 133.32

Color:

Note

Quantity:

Other people want this. 24 people have this in their carts right now.

Description
Shipping & Returns

Brand Name:	Jiu Man
Certification:	NONE
Origin:	CN(Origin)
Compatible Brand/Model:	None
Type:	Joysticks
Model Number:	TY-MS-Kits
Language:	English Version
Interface Type:	USB
Package:	Yes

Compatible model

Package Included

Tips for installation

Tips for New User:

Can replace the different ball

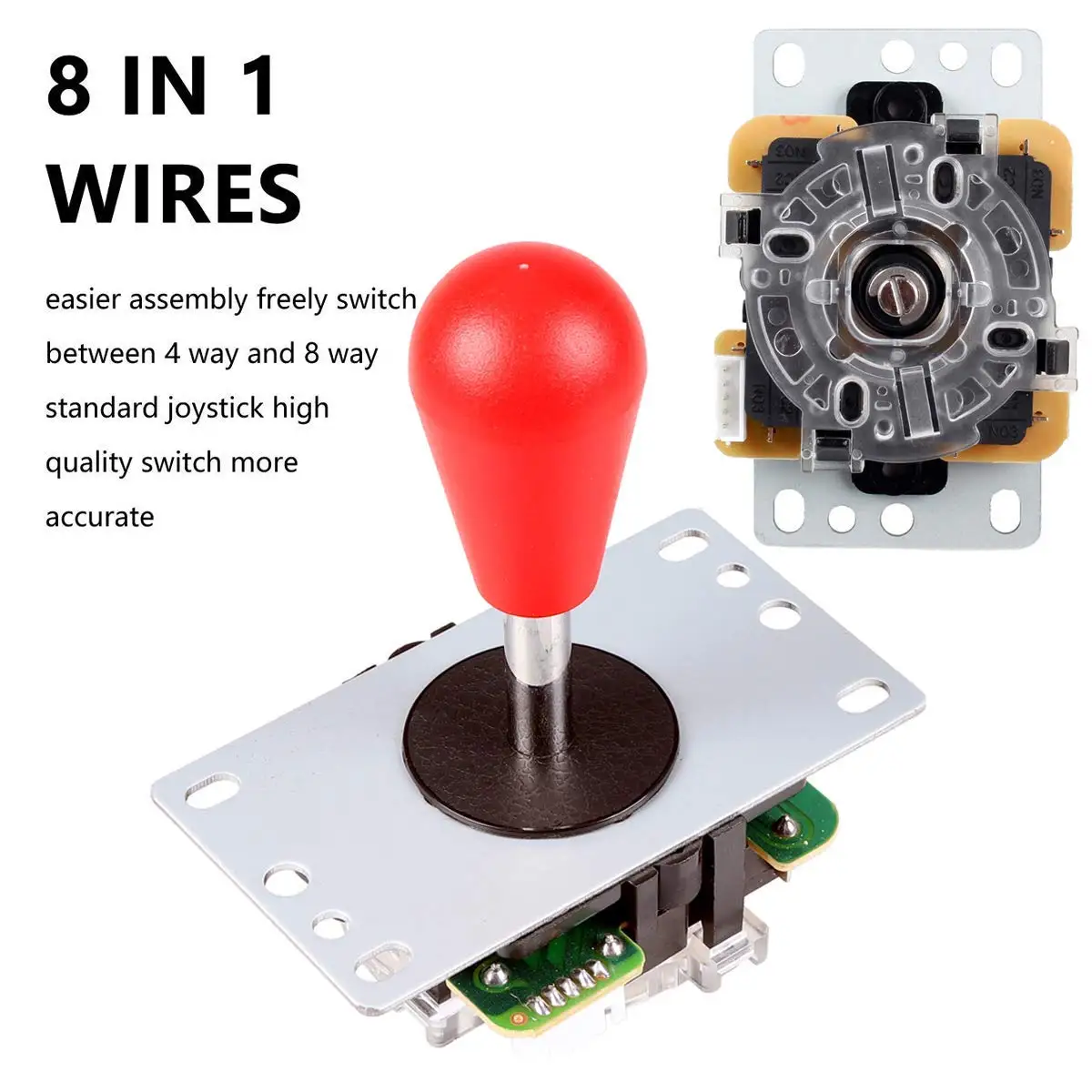

It's hight quality 5Pin 8-ways joystick model. The service life reaches 1 million clicks.Ne

w interface mode. Reject the wrong interface.

Applicable to the wooden shell and iron shell machine, the return of flexible, more wear-resistant; Iron base parallel cone; square gate

All the silver conduction point, contact sensitive; within the iron bar for the stainless steel; 2.0 thickness of the electrolytic plate; dust washers; ball detachable, can replace the different ball;

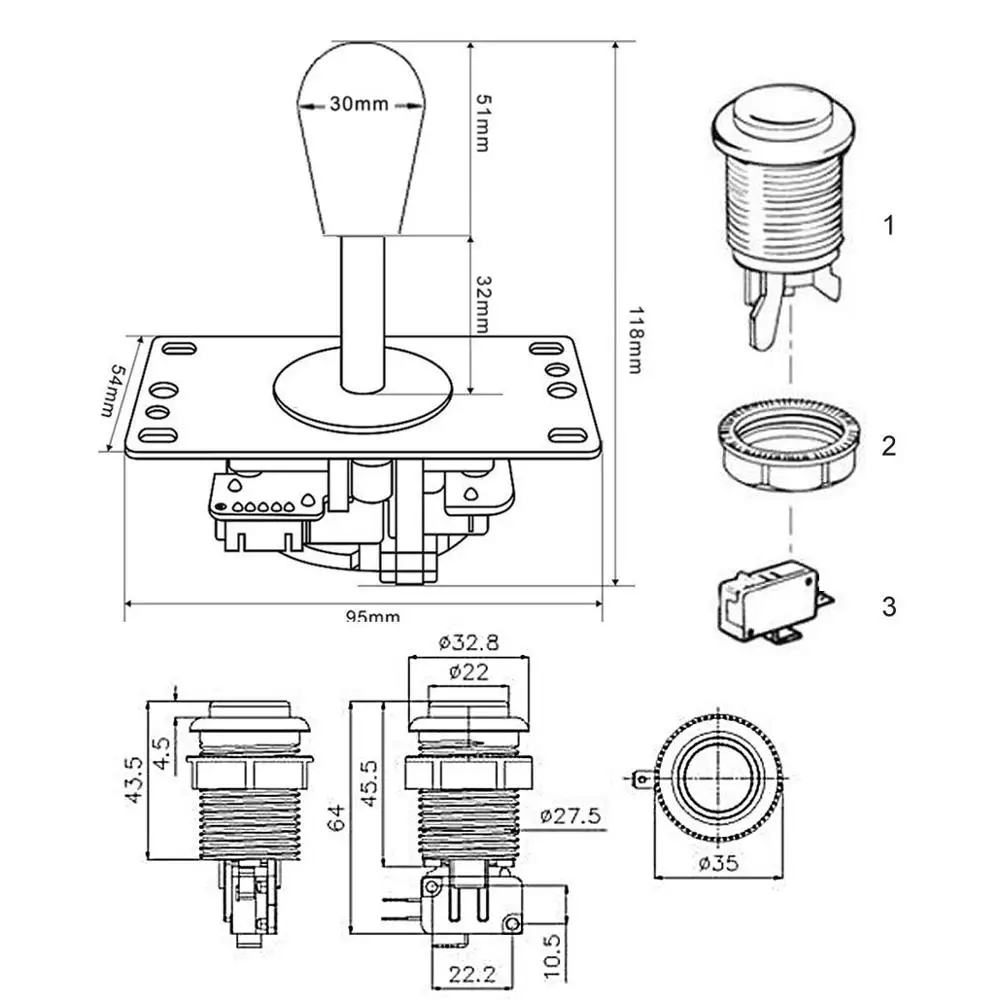

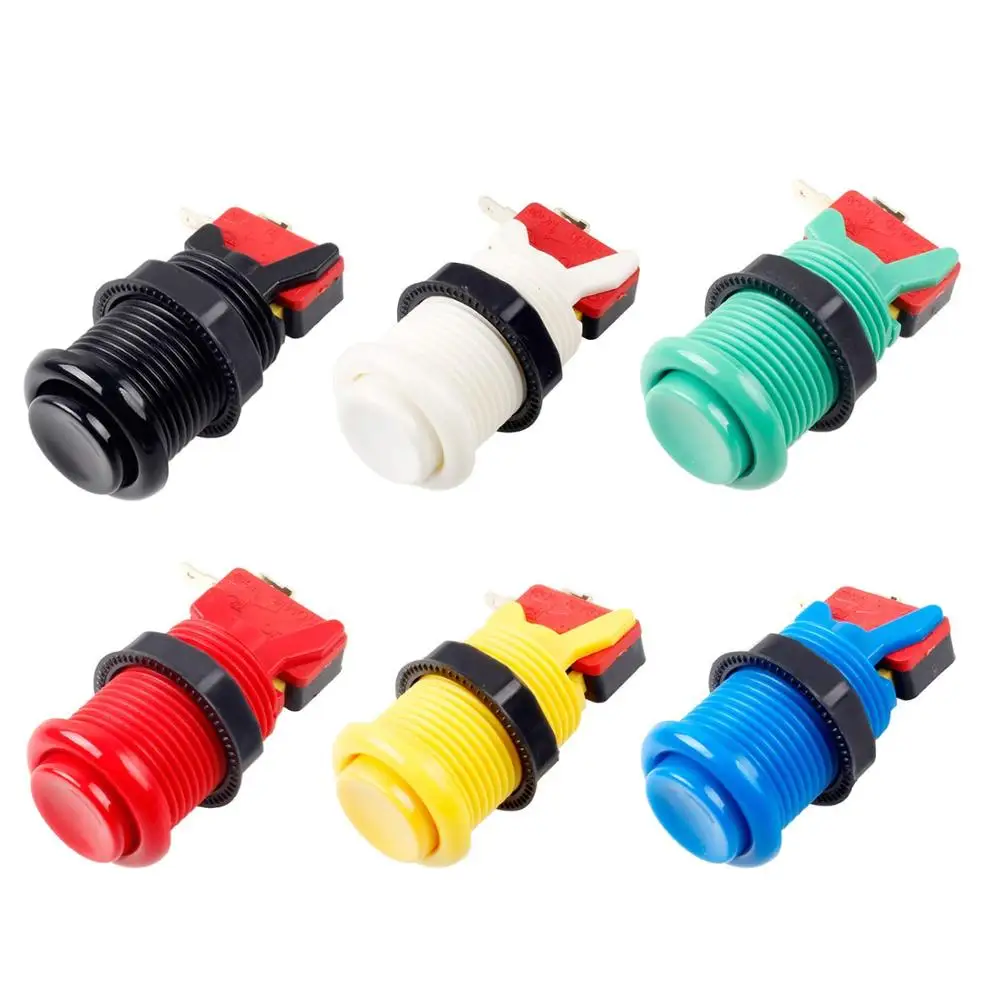

This Happ Type Ultimate arcade button is ideal for arcade machine and JAMMA machine projects.T

his is a standard 30mm button that will fit in a 28mm mounting hole.I

t features a concave plunger and includes fixing ring and microswitch.

Mounts into wood or metal control panelsId

eal for use within 3/4" wood control panelsMi

croswitch reliability tested to 10,000,000 cyclesVe

rtical attached microswitch with .187" (4.8mm) terminalCl

assis Concave plunger design,Mounts in 28mm hole.

Each button includes a button body lock ring 2 pin micro switch.M

ake sure that the hole diameter is correct 28mm (1.104 inch).

Zero Delay Arcade USB Encoder For Your Pc Game DIY!P

Perfect fit for 5Pin joystick with Sanwa type joystick

All Push Button types which with Happ type 4.8mm Terminal!

Use this Encoder you can build your own Arcade Game Machine!

Plug and Play, It does not require any drivers. All windows systems! Such as Windows XP,Windows 7,Windows 8 etc!

It also can support most Arcade Emulations,Such as MAME,JAMMA & other PC gaming console emulation.

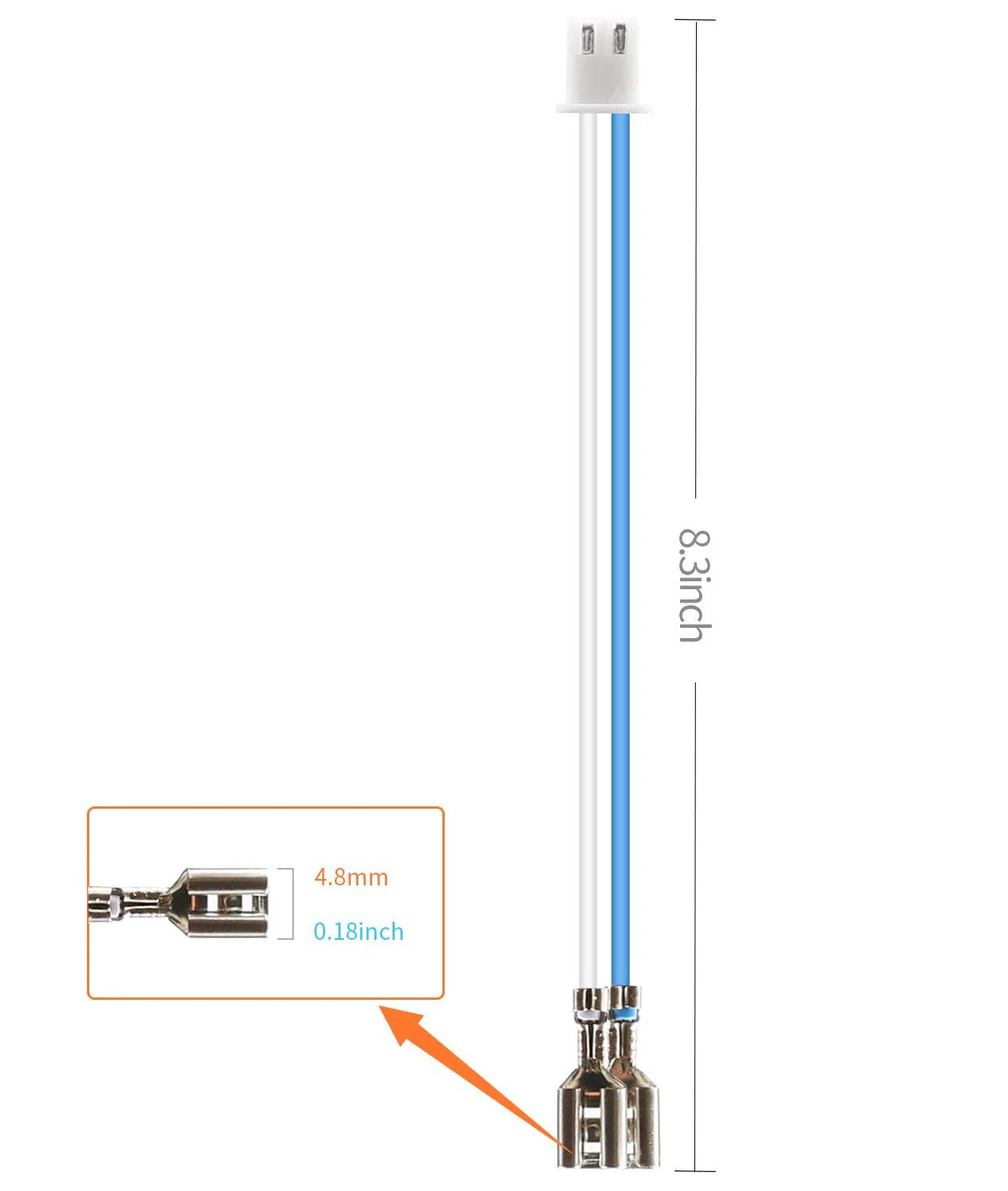

This 2Pin 20cm longer buttons cables adopt 0.187" straight terminal. Use for Happ Buttons. Micro Switch Buttons and LED lights Push Buttons etc.

Each blue and white line can only access one buttons interface.

If need to replace the joystick. Do not tear the blue and white cable. Use a tool to clamp the 4.8mm terminal and pull out the port.

It is also a very compact encoder. The size for the encoder board just 8.5 cm X 3.5 cm X 1 cm.

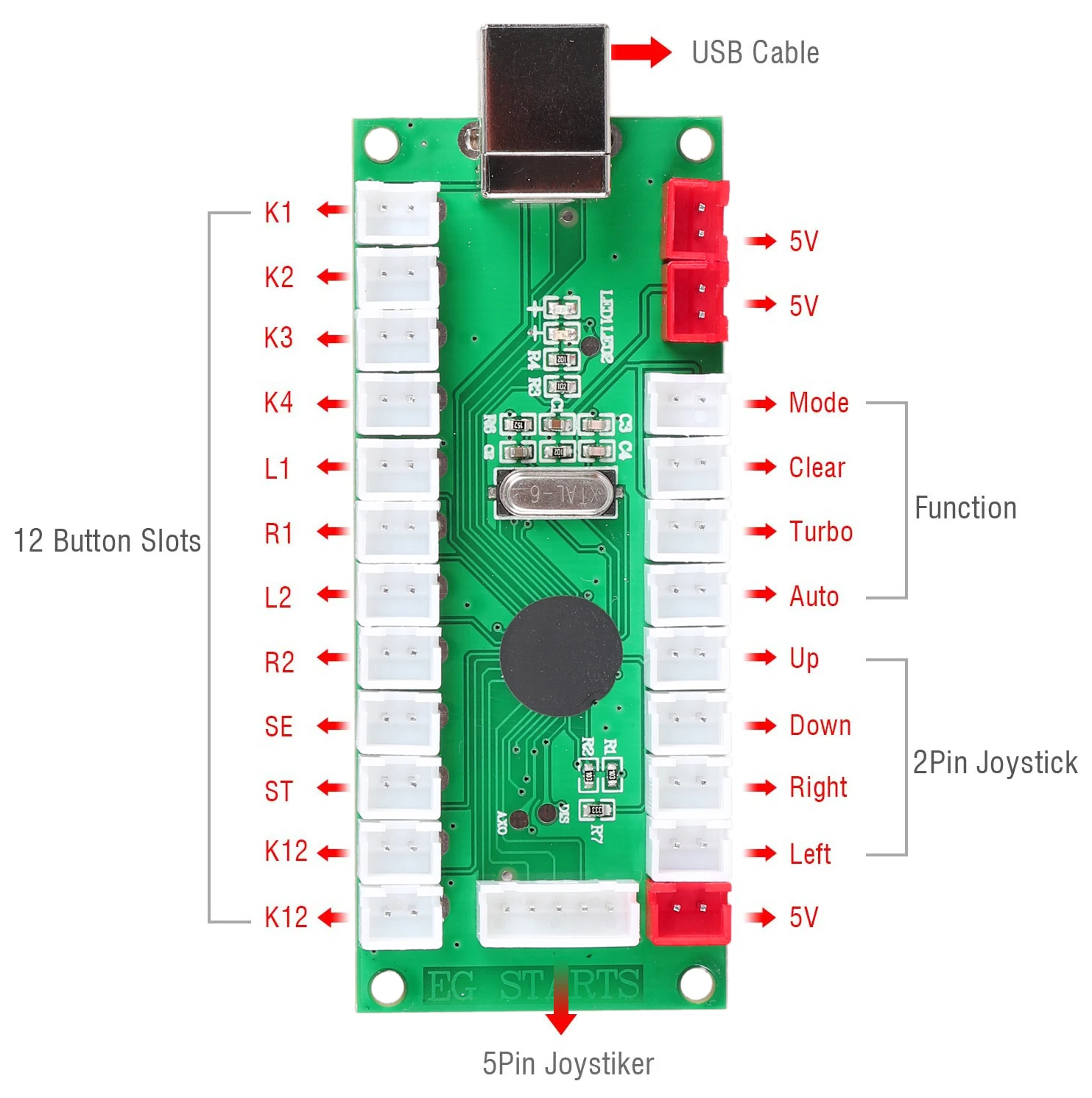

USB Print Terminals

K1-K12 Push Buttons Terminals

5Pin Joystick Terminals

2Pin Joystick Terminals

Auto, Turbo, Clecet, Mode Terminals

6 and 6-1 is Output 5V Power Terminals

<1> High performance COMS technology.

<2> Support function key TURBO and AUTO mode with LED twinkle.

<3> The rocker IC supports multiple game equipment form.And in two kinds of equipment .Digital mode, Analog mode can arbitrary switching.
