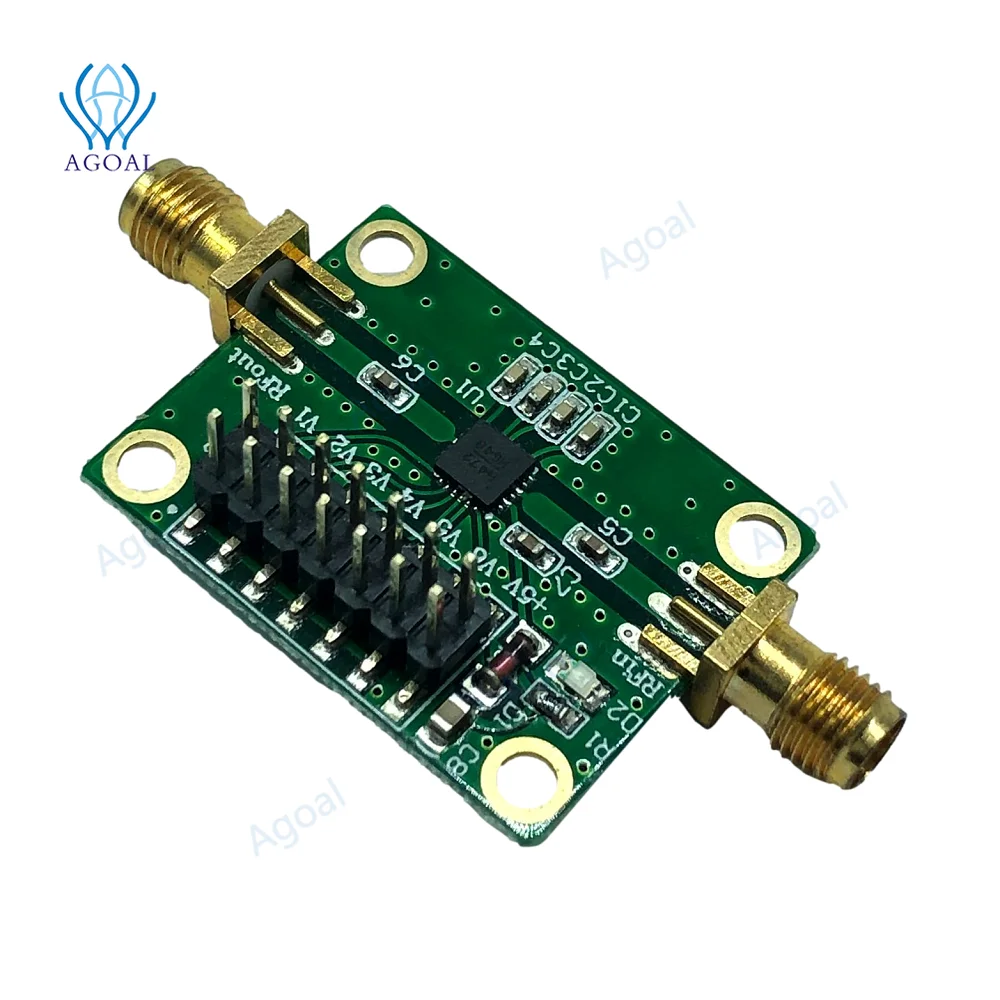

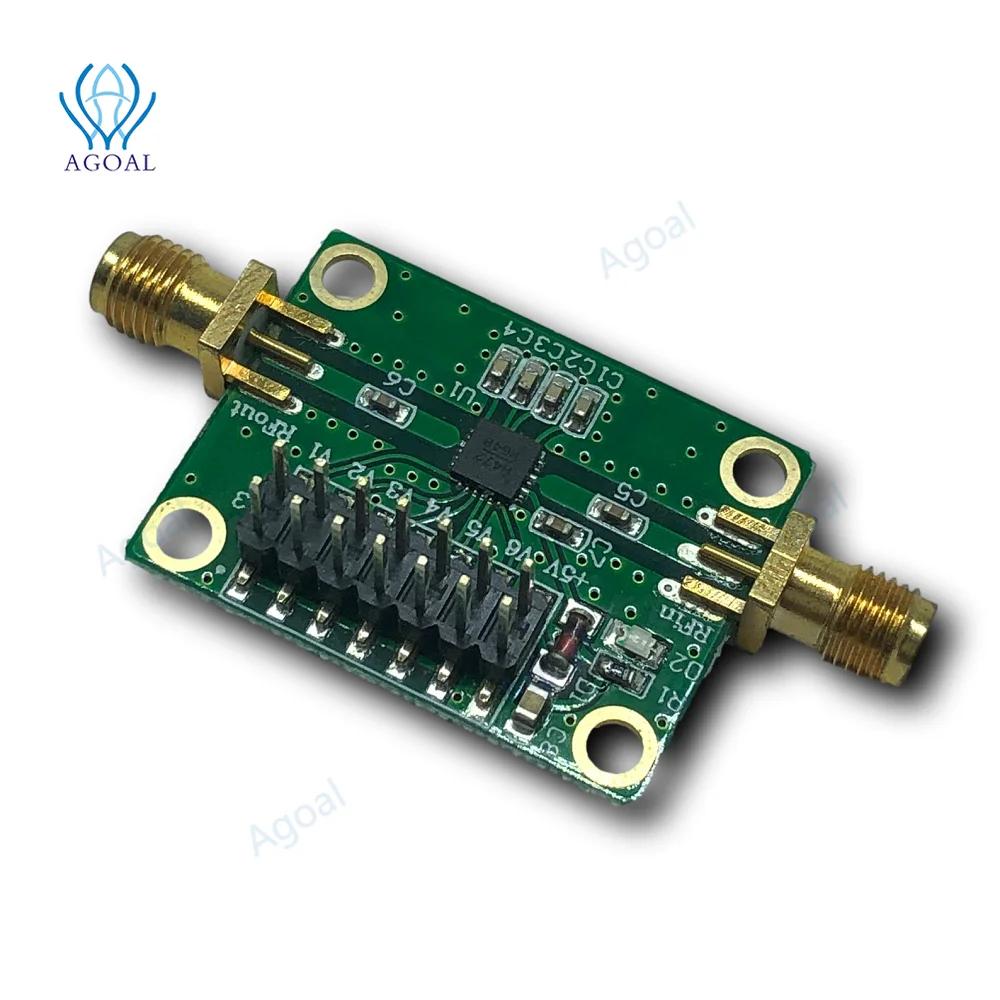

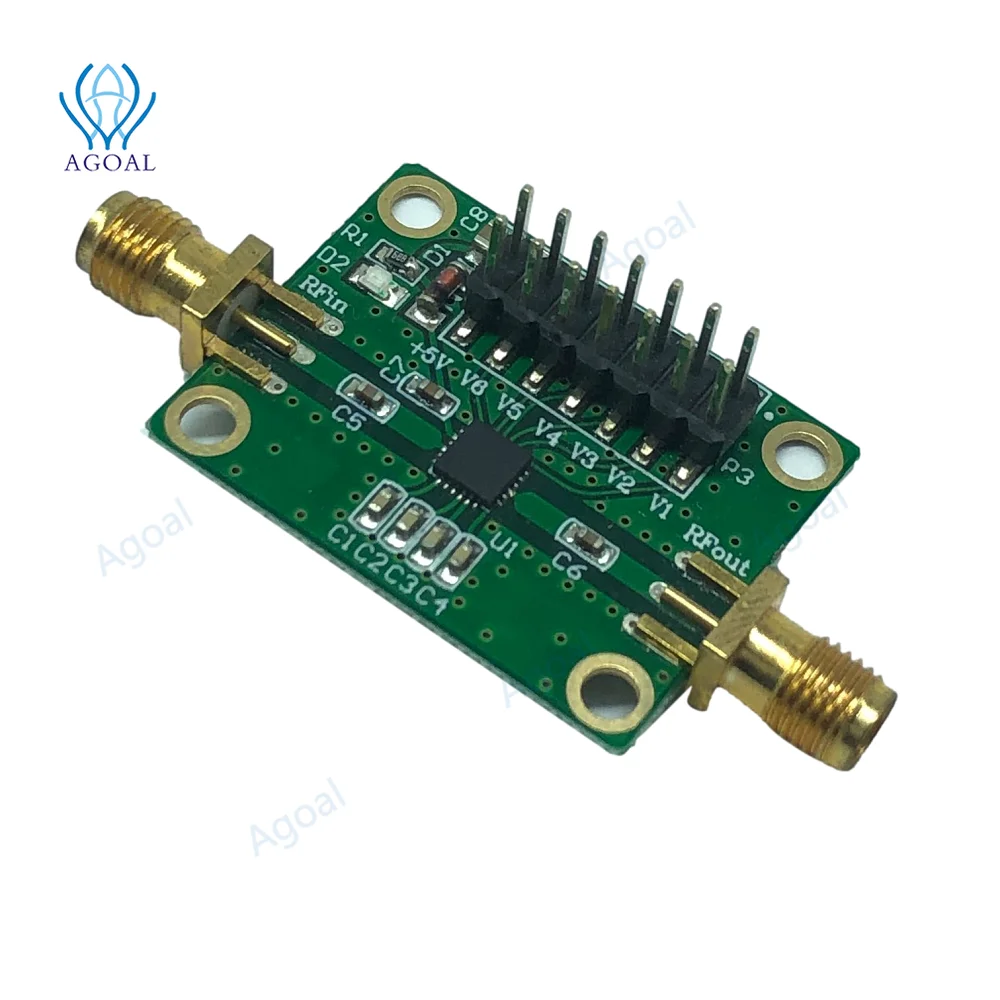

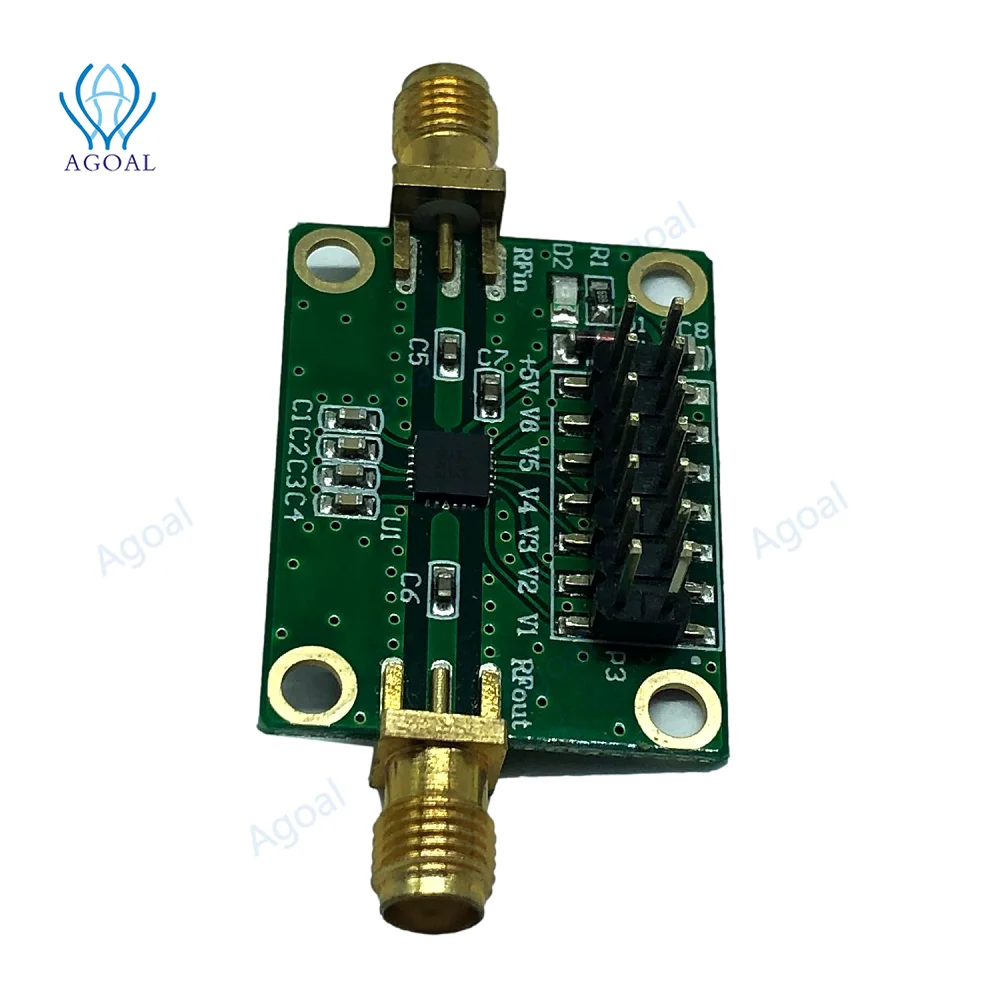

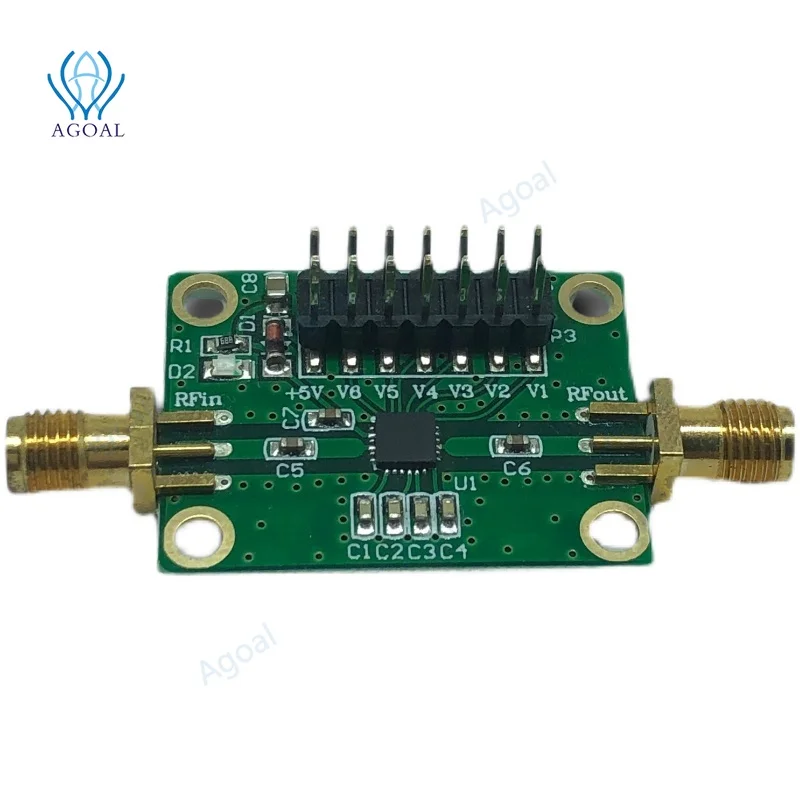

1M-3.8GHz HMC472 RF Attenuator 0.5dB Stepping Low Insertion Loss Digitally Programmable Module

Code: TD-3256803806257898 1 order
Free Shipping
$ 35.88 $ 38.58
Quantity:
Other people want this. 5 people have this in their carts right now.
Brand Name:  Agoal
Certification:  NONE
Origin:  CN(Origin)

Description:

HMC472 is a wideband 6-bit digital attenuator with an attenuation range of 0~31.5dB and a typical step error of ±0.25dB. It adopts QFN surface mount package, single power supply 5V power supply, operating frequency range DC to 3.8 GHz, insertion loss is lower 2.0 dB (typical value), IIP3 is +54 dBm, suitable for various RF and IF applications.

Module features:

(1) Operating frequency range: 1M~3.8GHz;

(2) Maximum power of input signal: 20dBm

(3) Attenuation factor and step length: The attenuation factor is 0~31.5dB, and the step length is 0.5dB.

(4) Insertion loss: less than 2.0dB.

(5) Attenuation control interface: one is manual adjustment control through the 6-position pin header on the board;

(6) Input and output impedance: 50Ω.

(7) Power supply: the typical value is +5V, and the maximum value cannot exceed +7V.

(8) Input and output interface: SMA interface inner screw inner hole.

Package included:

1 x RF Attenuator Module
