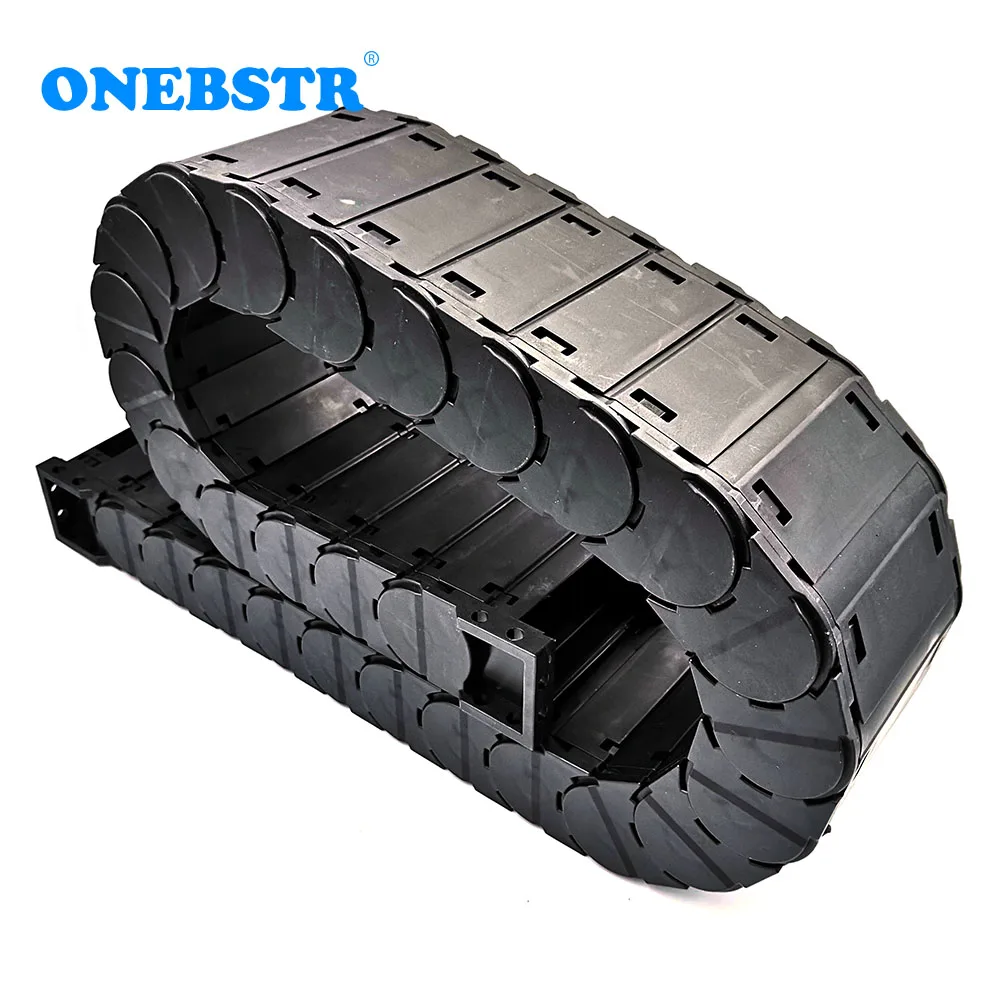

1 Meter D30x75mm Drag Chain Wire Carrier Cable Low Noise Closed Type Open On Both Sides CNC Router Machine Tools Free Shipping seiko print head 3D Printer Parts & Accessories

Code: TD-1005003177281466
Free Shipping
$ 96.53 $ 122.81
Size: Inner Size 30X75mm
Inner Size 30X75mm
Color:
R75
R100
Note

Quantity:
Other people want this. 28 people have this in their carts right now.
Brand Name:  ONEBSTR
Origin:  CN(Origin)
Item Type:  Mechanical Kit/Hardware Parts
Model Number:  30 Series
Inner Size:  30X75mm
Outer Size:  45x91mm
Max outer diameter of cable:  25mm
Pitch:  33.5mm
Link Per meter:  30
Material:  Plastic
Structure:  Closed type both sides can be opened
Equipment Cable Protection:  Leaf Chain
Transmission chain:  Machinery and equipment
With Connector:  Yes
Customized:  Yes

D30x75mm Drag Chain Wire Carrier Cable Low Noise Closed Type Open On Both Sides For CNC Router Machine Tools Free Shipping

Uses and Features:

1) Suitable for use in a reciprocating motion of the occasion, can be built-in cable, tubing, pipe,plumbing, etc. play traction and protection.

2) Each section towline can open, easy installation and maintenance. Exercise low noise, wear-resistant, high-speed movement.

3) The towline has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, doors and windows machinery, injection molding machines, robots, overweight transportation equipment, automated warehouses.

Plastic towline structure:

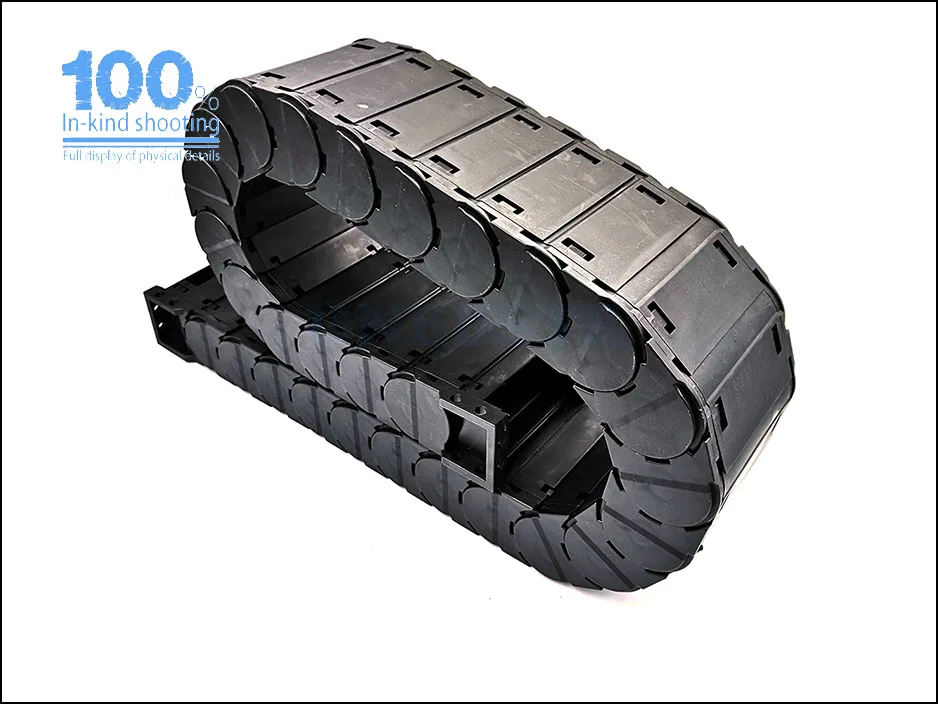

1) The towline shape like tanks chain, composed by a large number of unit links between the rotating freely link.

2) Within the same series of towline high, outside the high, the same pitch, towline in width, bend radius R may have a different choice.

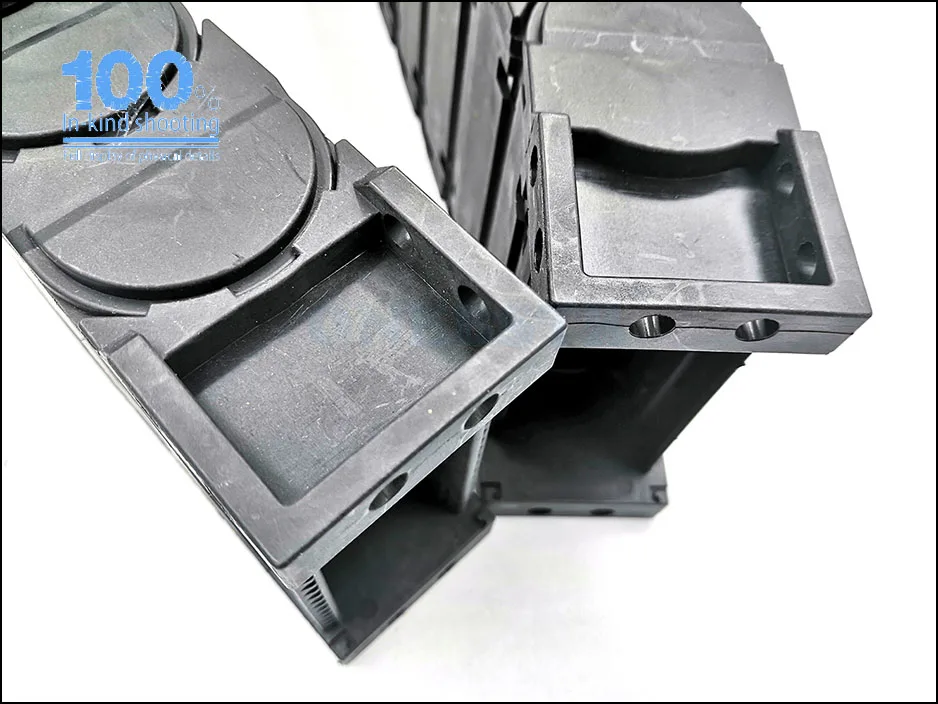

3) Unit chain around the chain plate and the upper and lower cover composition, towline can open each section, easy assembly and disassembly without threading, to the cable, tubing, pipe, pipe, etc. into the towline after opening the cover.

4) Also available separators, the chain separated by space as needed.

Package includes:

1 Meter X Drag Chain (Length includes both end Connectors)

Note:If you need other lengths, they can be customized, please feel free to contact us, we will quote you separately.

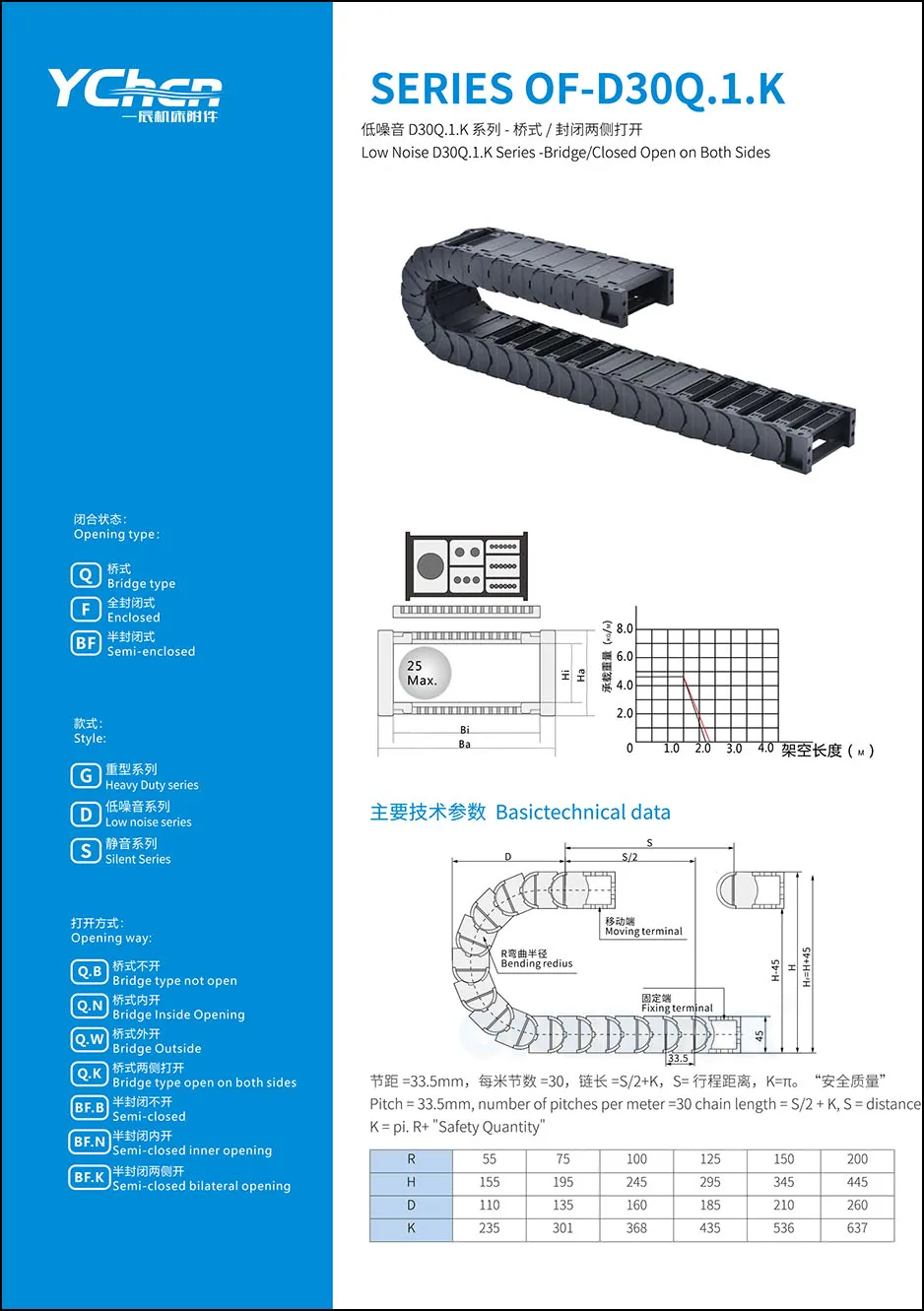

Towline selection of main parameters:

Within high: Select built-in cable, tubing, pipe, pipe, etc. As one of the most coarse reference height,plus at least 10% of the height of the space within the towline as high. If the overlap by overlapping the actual height as the reference height.

Wide: Choose thicker some cables, tubing, pipe, water pipes, with its outer diameter and as the towline wide reference, and stay at least 10% of the width of the space.

Bending radii R: choose built-in cable, tubing, pipe, pipe, etc. The maximum bending radius as a reference value, and left more than 10 percent of the space.

Use towline length = R + 0.5R + stroke / 2

After bending towline total height = 2R + external high

Towline place principles:

Should leave 15% of the remaining space for built-in cable, tubing, etc., may move freely in the radial direction of the towline does not produce tension. Larger diameter difference between the wire should be laid separately, weight distribution, if necessary, be separated by the dividing sheet.

In the high-speed or high-frequency operation, to try to make the wires apart from each other on a level, do not make it mutually stacked more time in the cable, pipe, tubing, etc. is recommended to

use separators.
