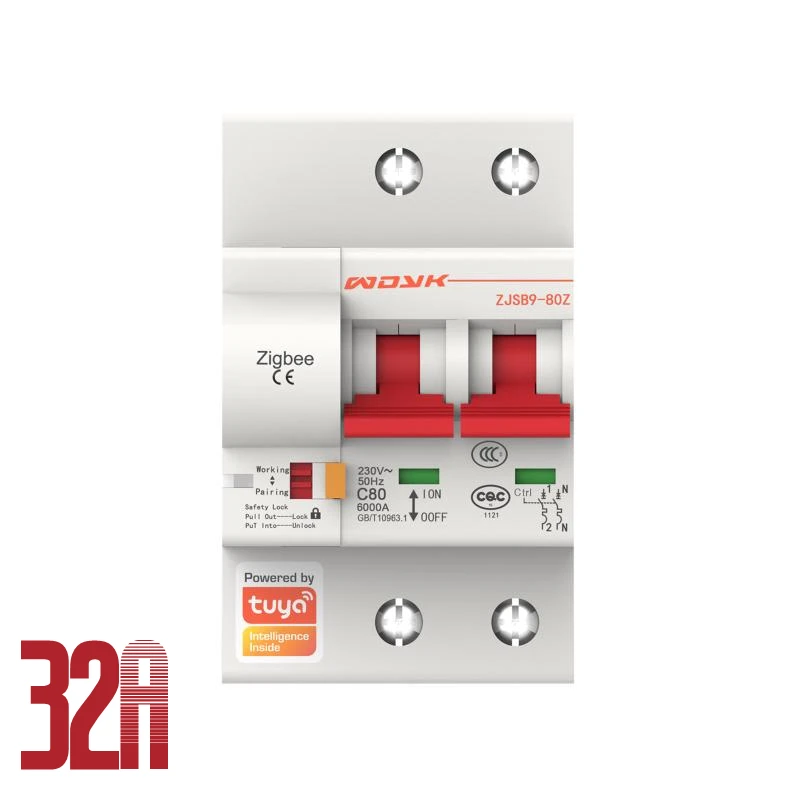

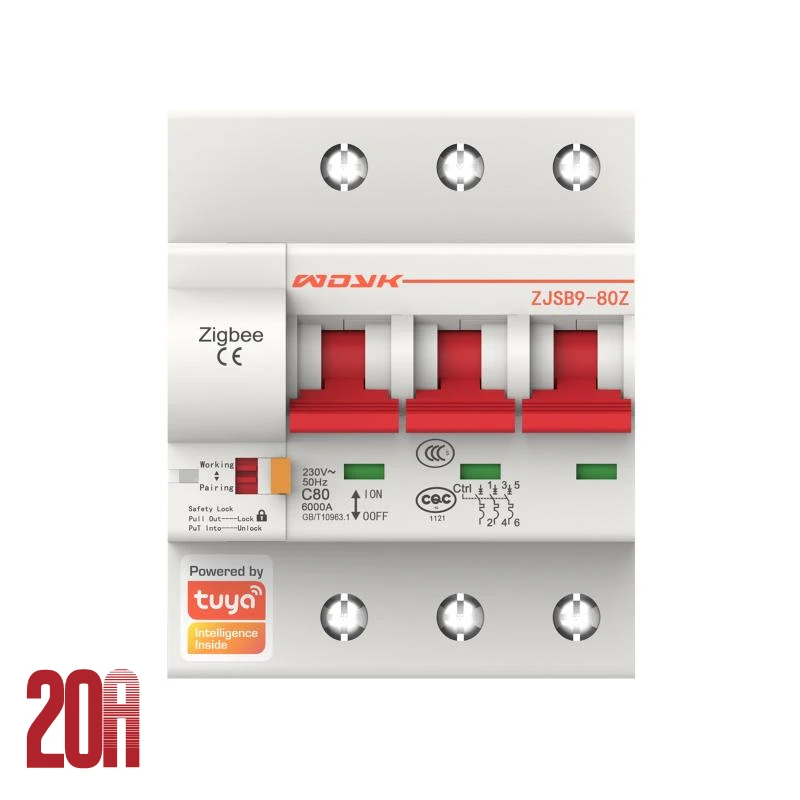

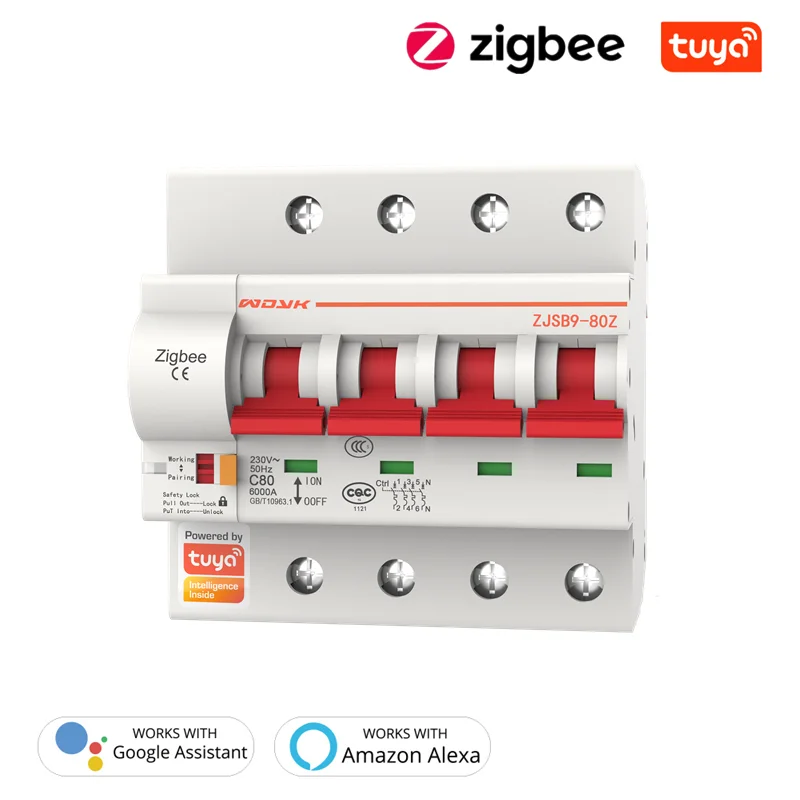

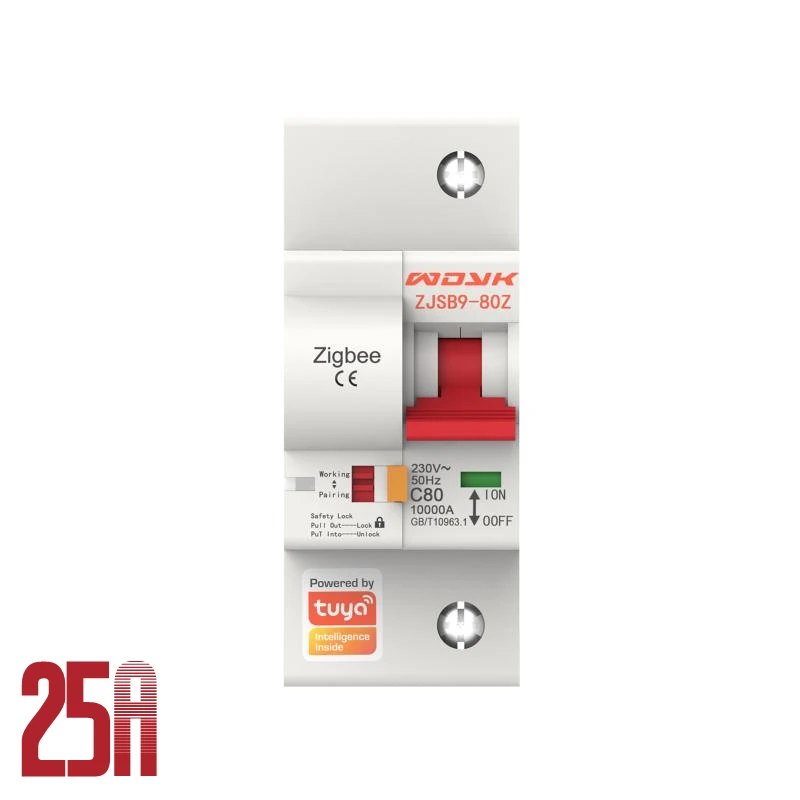

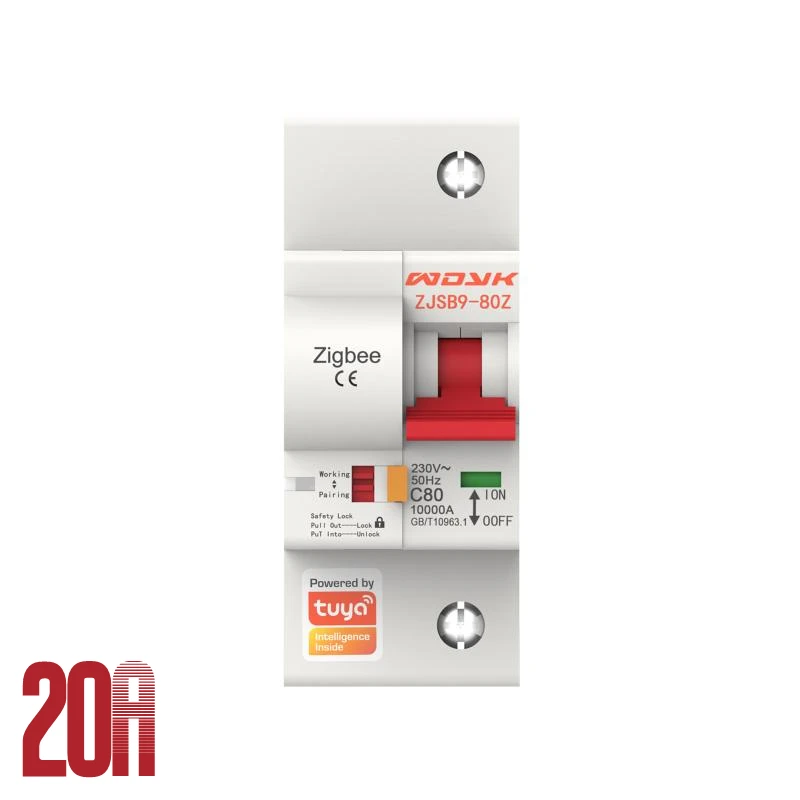

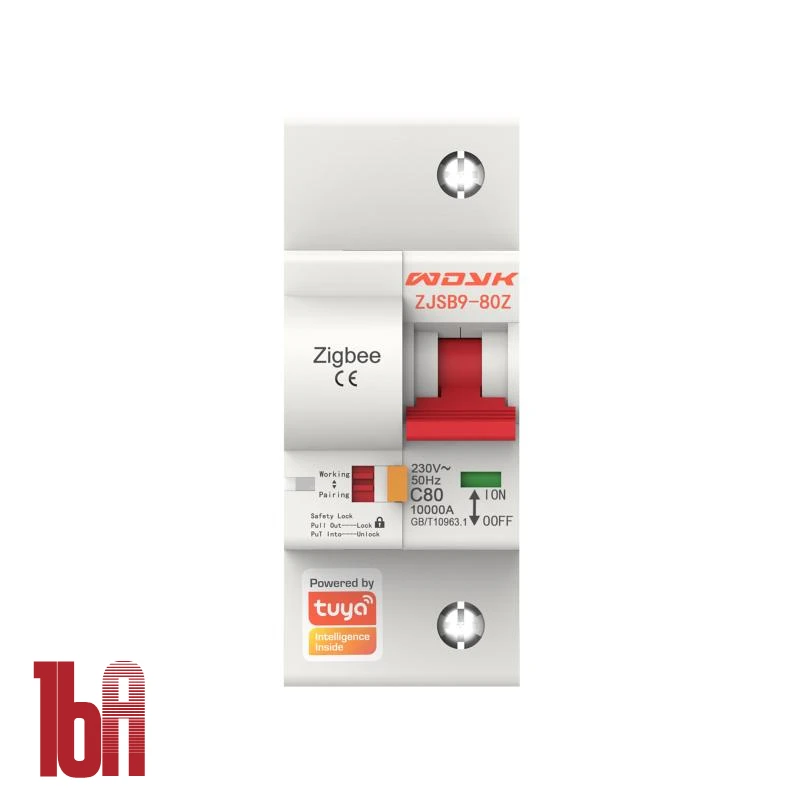

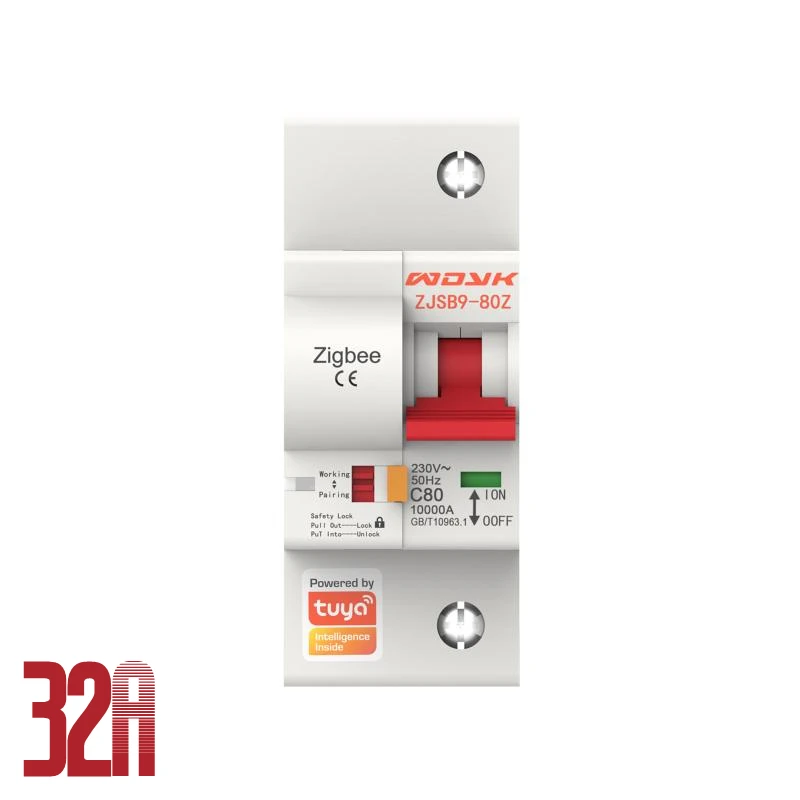

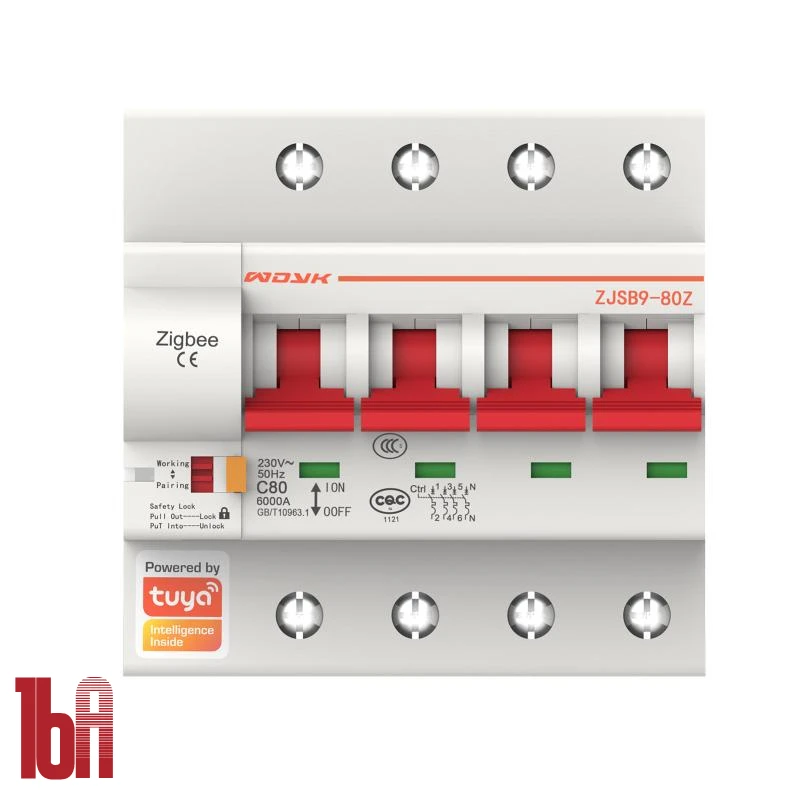

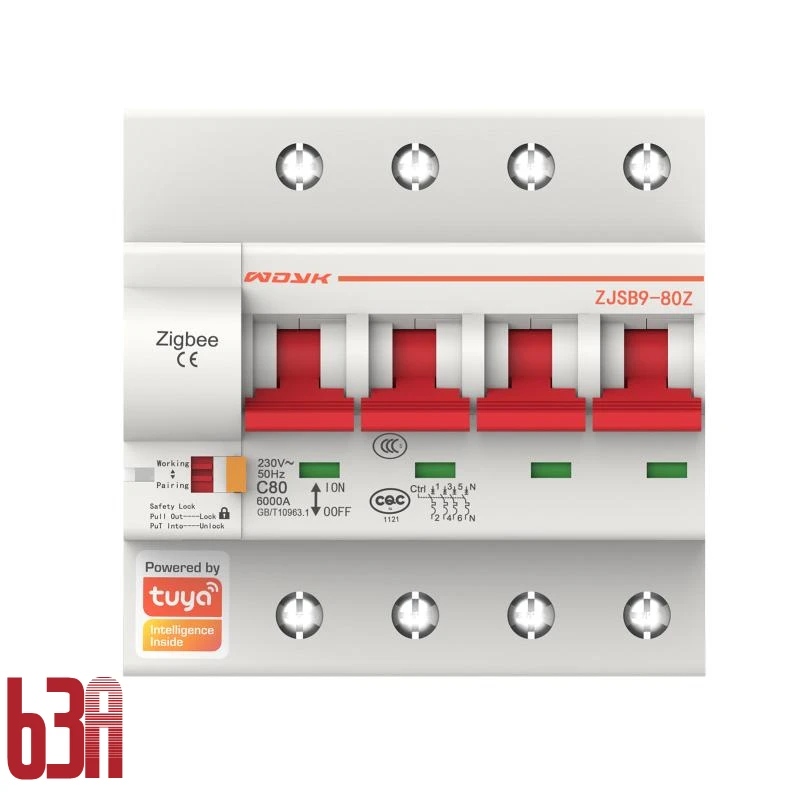

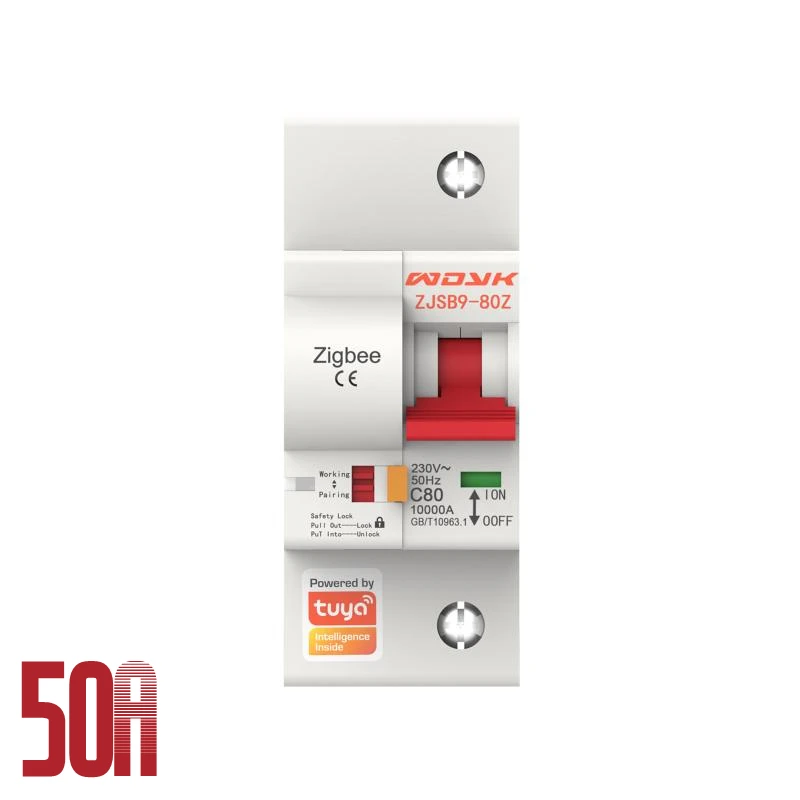

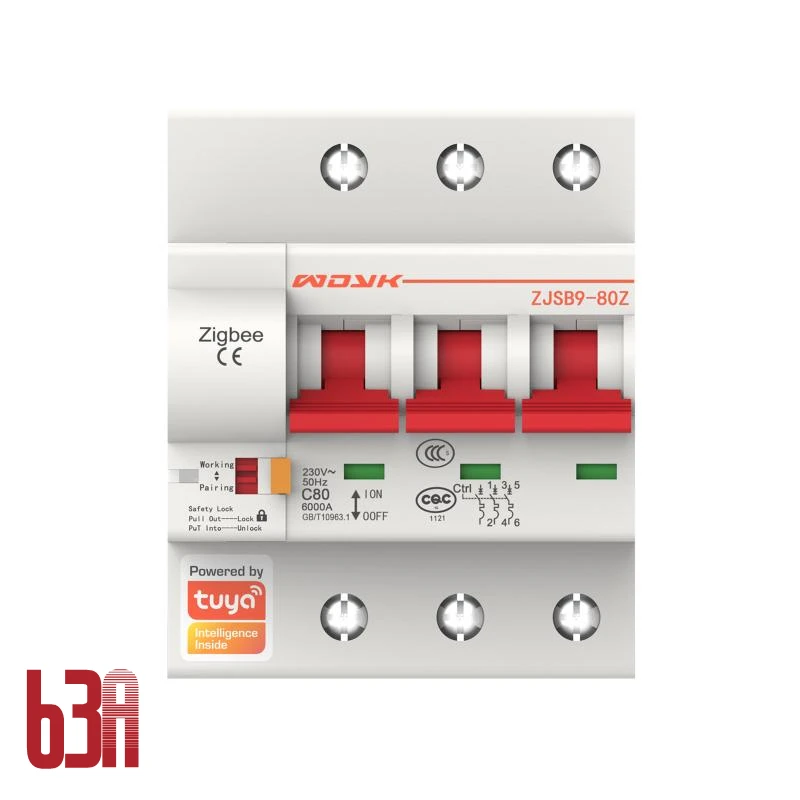

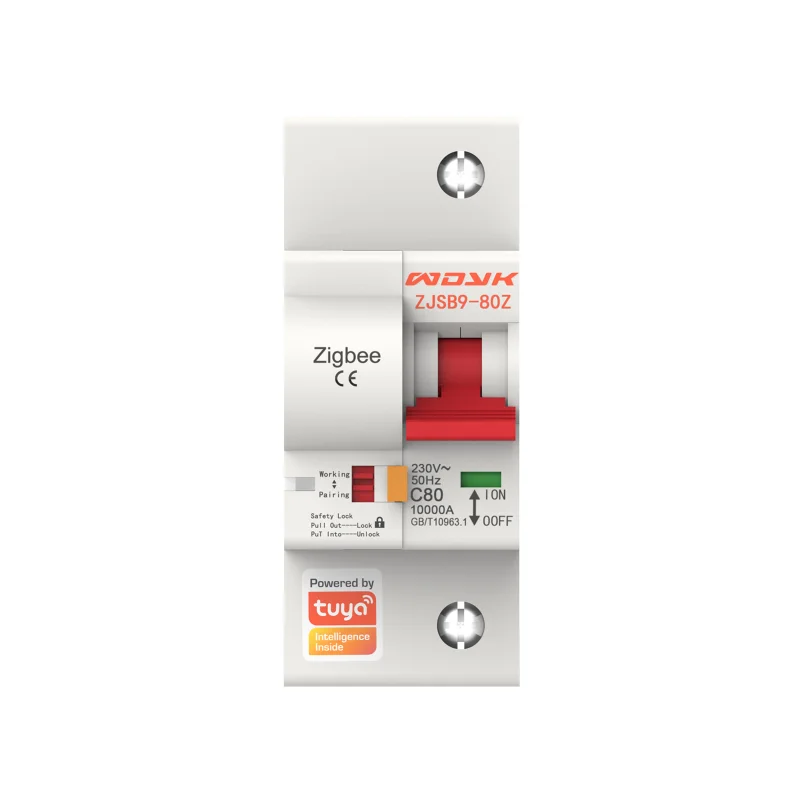

1-4P Zigbee 3.0 Tuya Smart Circuit Breaker WiFi Automatic Switch 220V/380V IoT Smart Home Air Switch Work With Alexa Google Home

Brand Name:	centechia
Certification:	CE
Origin:	CN(Origin)
Model Number:	ZJSB9
State of Assembly:	Ready-to-Go
Features:	Slot
Gyro:	none
Control Channels:	2 Channels
Rated frequency:	50Hz/60HZ
Number of poles:	1P/2P/3P/4P
Protection level:	IP20
Name:	circuit breaker
Zigbee version:	Zigbee 3.0

Tuya EU 16A WiFi Smart Plug Outlet Smart Home Power Energy Monitoring Timer Switch Remote Control Works with Alexa Google Home

USD 9.99-19.73/piece

16A Tuya / Zigbee EU Smart Plug Smart Home Wireless Socket APP Remote Control Power Monitor Outlet Work With Alexa Google Home

USD 6.70-14.74/piece

10PCS USB 5.0 Bluetooth Transmitter Audio Speaker Wireless Music Vedio Receiver Bluetooth Adapter For AUX Headphones Computer TV

USD 3.81-37.87/piece

Tuya Home Alarm Smart Zigbee WIFI Water Leakage Sensor Water Leakage Alarm Household Overflow Security Water Flooding Detector

USD 7.92-28.90/piece

Tuya Smart Zigbee Hub Gateway Smart Home Bridge Wireless Smart Life APP One-Botton Remote Control Work With Alexa Google Home

USD 10.36-41.03/piece

US 10A Mini Wifi Switch Tuya Smart Home Homekit Remote Control Wireless Socket Outlet Voice Control Work With Alexa Google Home

USD 12.84-107.01/piece

Tuya Wireless WIFI High Definition Visual Smart Home Night Light Doorbell Camera Low Power Voice Home Security Intercom Alarm

USD 7.92-47.65/piece

Zigbee WIFI Smart Touch Screen Light Switch 1/2/3 Gang TUYA US/EU Single Fire Wire Touch Wall Panel For Amazon Alexa Google Home

USD 9.14-20.29/piece

Description:

100% Brand New and High Quality！

Before using this device, you must add a gateway. The gateway is not included and needs to be purchased separately！

When buying this product, be sure to pay attention to whether the voltage matches.

Please connect the incoming line from the top of the product, and connect the outgoing line from the bottom of the product！

Remote control at anytime from anywhere,no distance limit.

Schedule ON/OFF

Voice control for Amazon Alexa and Google home,IFTTT,SmartThings

Overload and short circuit protection

Over voltage and surge protection

The ZJSB9 series of intelligent miniature circuit breakers reflect the latest design concepts and manufacturing techniques, featuring compact size, long life, modularity, high breaking, and intelligent remote control. Applicable to AC 50Hz60Hz, rated voltage 220V/380V, rated current to 125A, for switching on, breaking, timing, delay and distributing electric energy and carrying rated current; and can overload and short circuit in line and equipment The protection of the line and the electrical equipment in the case can also be used as the infrequent start-up and overload and short-circuit protection of the motor. More importantly, it can directly control the circuit breaker closing and opening control on the remote control device, and can be shared with other users through the extended function, timing, delay and other setting functions to meet the needs of different users.

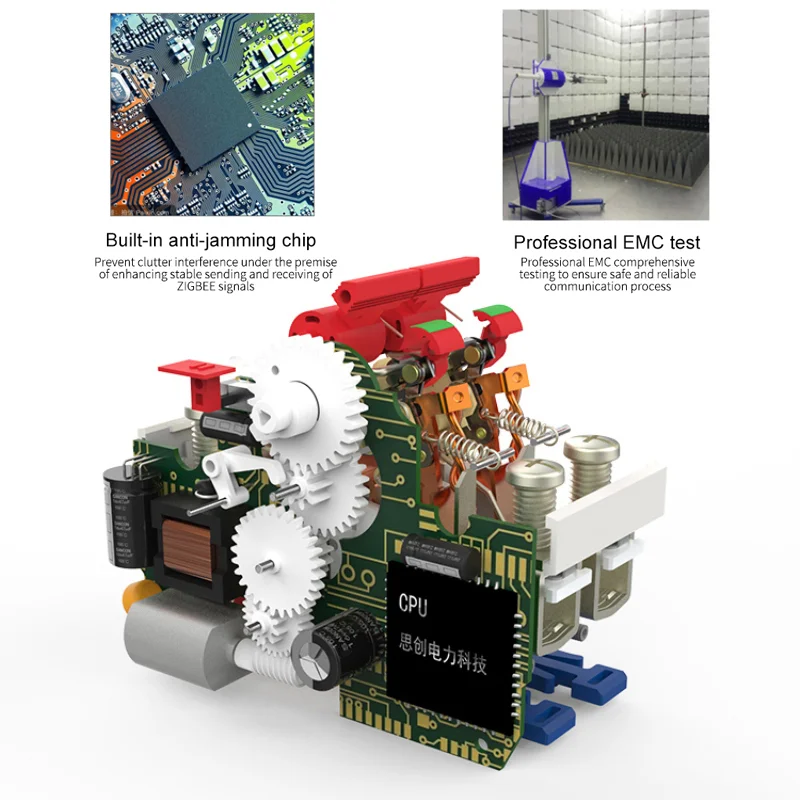

Built-in anti-jamming chip. Enhance the stable transmission and reception , prevent clutter interference.

Professional EMC test, professional EMC comprehensive test to ensure the communication process is safe and reliable.

Withstand voltage of 6000V, it can effectively improve the service life of equipment even under overvoltage conditions.

EMC electromagnetic interference performance experienced electrical fast transient burst immunity test, surge test, electrostatic discharge test, etc., the product remains intact.

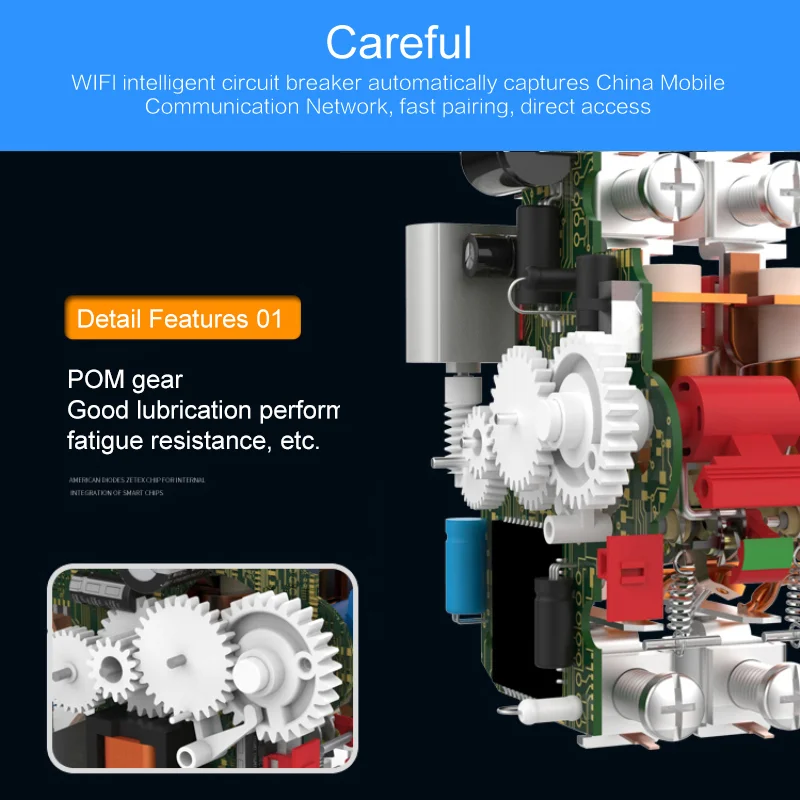

High mechanical life, the product organization is still close to 120 times per hour, and it still maintains good operation after 10,000 cycles.

Quick closing function, improve the opening and closing performance to prevent overheating and aging, and prolong the service life.

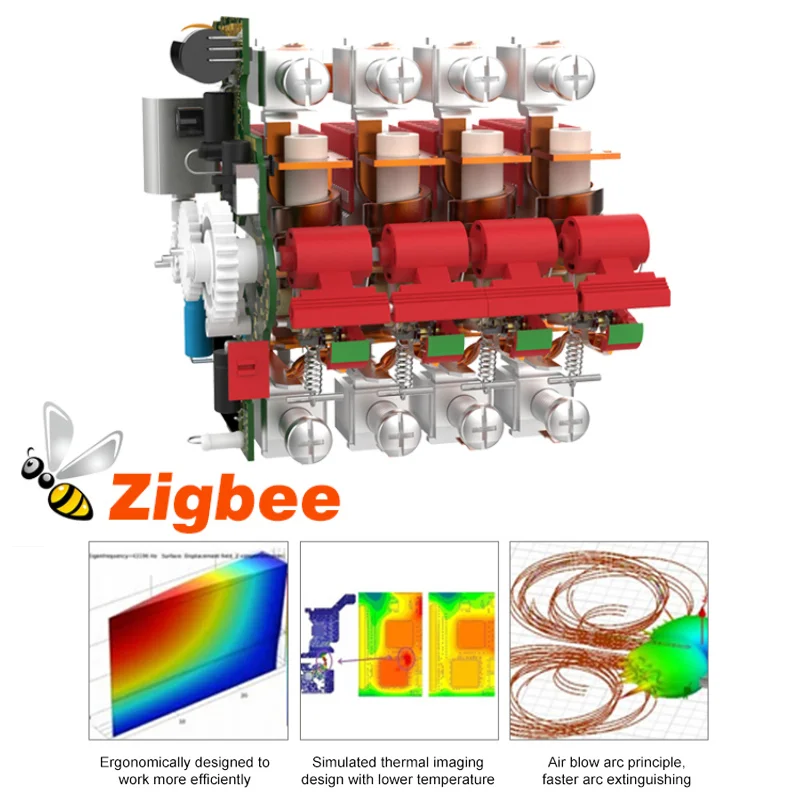

Ergonomic design work more efficiently.

Simulated thermal imaging design with lower temperature.

Air blow arc principle, faster arc extinguishing.

One mobile phone can control all electrical appliances with one APP

Island power supply, tower equipment, outdoor lighting, house power supply, field engineering, mountain facilities, street lighting control.

Work with :  Alexa , google home

Function : switch on / switch off / timer schedual / smart scene

Remote control : By smartphone application from anyway (the smartphone must connect to the internet in WiFi or 3g/4g)

ZigBee3.0

Protection : overload protection , short-circuit protection , isolating.

Specifications:

Meet the standard: GB/T 10963.1 IEC 60898-1

Rated voltage: AC 220V (1P, 2P) / AC 400V (3P, 4P)

Rated frequency: 50Hz/60HZ

Number of poles: 1P, 2P, 3P, 4P

Pollution level: Level 2

Protection level: IP20

Specified use temperature: -25 °C ~ 65 °C

Rack rated current: 80A, 125A

Rated current: 10A, 16A, 20A, 25A, 32A, 40A,

Instantaneous tripping form: C

Rated short-circuit breaking capacity: 6kA

Rated impulse withstand voltage: 6kA

Mechanical life: more than 10,000 times

Electrical life: more than 6000 times

EMC performance: in line with GB/T 18449

Surge withstand: in accordance with GB/T 17626.5

Salt spray bearing: in line with GB/T 2423.17 48h

Dust bearing: in line with GB/T 4208 8h

Maximum wiring capacity: 50mm2

Tightening torque: 4-5Nm

Package Included:

1*circuit breaker

1*Instruction

Notes:

When buying this product, be sure to pay attention to whether the voltage matches.

Before using the product, be sure to read the instructions and use them correctly.

When installing and installing, please do it under the condition that the line is powered off to ensure safety.

Please connect the incoming line from the top of the product, and connect the outgoing line from the bottom of the product！
